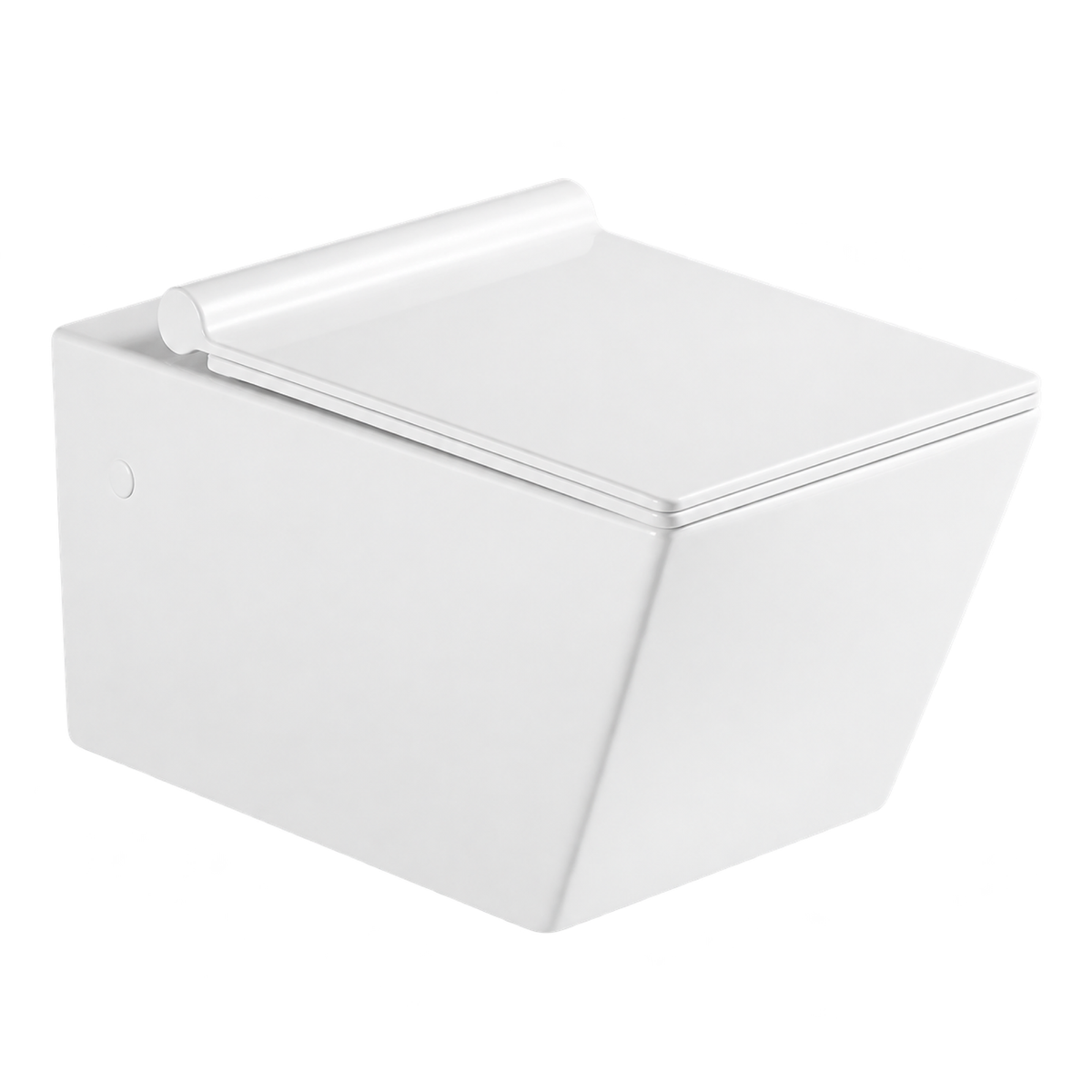

Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet, 560 × 360 × 310 mm
FT-133 is a ceramic wall-hung toilet printed in the catalog as a washdown wall-hung closet. The flush is washdown, and the outlet is a rear P-trap listed at 180 mm, an outlet height rather than a wall distance. The catalog prints one size for the model: 560 × 360 × 310 mm (22.0 × 14.2 × 12.2 in), in length × width × height order. FT-133 is the only SKU printed under the model.
See the wall-hung toilet collection.
More in Wall Hung Toilet
Mix any models in one 20ft container · no per-model minimum
-
HSJ-V720124 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.9" × 15.7" × 14.6"Wall-hung, P-trap
-
HSJ-T0523 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.3" × 16.0" × 14.6"Wall-hung, P-trap
-
TC-7402Marble Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 13.8" × 13.8"Wall-hung
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E07Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet21.1" × 14.2" × 13.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A09E550 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet21.7" × 14.4" × 14.6"Wall-hung
-
LJ-A09Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A08595 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet23.4" × 15.4" × 14.8"Wall-hung
-
LJ-A07Washdown Wall-Hung Toilet, 170 mm P-Trap Outlet22.4" × 15.4" × 14.6"Wall-hung
-
LJ-A03Washdown Wall-Hung Toilet, 185 mm P-Trap Outlet, 2 Finishes22.4" × 14.2" × 14.4"Wall-hung
-
LJ-A06Washdown Wall-Hung Toilet, 150 mm P-Trap Outlet, 2 Finishes22.2" × 14.0" × 13.8"Wall-hung
-
FT176-BF-2Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 360 × 310 mm20.5" × 14.2" × 12.2"Wall-hung
-
FT-976Swirl Flush Wall-Hung Toilet FT-976, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824BFSwirl Flush Wall-Hung Toilet FT-824BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-876Swirl Flush Wall-Hung Toilet FT-876, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824Swirl Flush Wall-Hung Toilet FT-824, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-806CSwirl Flush Wall-Hung Toilet FT-806C, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-809Swirl Flush Wall-Hung ToiletWall-hung
-
FT-805CSwirl Flush Wall-Hung Toilet FT-805C, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-806Swirl Flush Wall-Hung Toilet FT-806, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-805Swirl Flush Wall-Hung Toilet FT-805, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-709Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 345 × 310 mm20.5" × 13.6" × 12.2"Wall-hung
-
FT-706490 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-543470 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet18.5" × 14.2" × 13.4"Wall-hung
-
FT-535Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 540 × 360 × 310 mm21.3" × 14.2" × 12.2"Wall-hung
-
FT-705Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.3" × 14.2" × 12.2"Wall-hung
-
FT-524-BFDual-Jet Wall-Hung Toilet FT-524-BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-516Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 510 × 350 × 320 mm20.1" × 13.8" × 12.6"Wall-hung
-
FT-524Dual-Jet Wall-Hung Toilet FT-524, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-501R/510T510 mm Wall-Hung Toilet, 15 Decor Designs20.1" × 13.6" × 12.2"Wall-hung
-
FT-490/520490 mm Wall-Hung Toilet, 13 Decor Designs19.3" × 14.2" × 12.8"Wall-hung
-
FT-257480 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet18.9" × 13.8" × 11.8"Wall-hung
-
FT-251Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 8 Finishes20.5" × 14.2" × 12.2"Wall-hung
-
FT-248Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 490 × 350 × 305 mm19.3" × 13.8" × 12.0"Wall-hung
-
FT-249510 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 14.2" × 12.0"Wall-hung
-
FT-192495 mm Dual-Jet Wall-Hung Toilet19.5" × 14.4" × 11.8"Wall-hung
-
FT-195505 mm Dual-Jet Wall-Hung Toilet19.9" × 13.6" × 12.0"Wall-hung
-
FT-190490 mm Dual-Jet Wall-Hung Toilet19.3" × 13.8" × 14.4"Wall-hung
Fit data
Rough-in, flush and size of FT-133
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
Washdown P-Trap Data
Washdown Wall Hung Toilet, 180mm P Trap: FT-133
FT-133 pairs a washdown flush with a rear P-trap outlet listed at 180 mm.
- Rear P-trap height
- 180 mm
- Length · 22.0 in
- 560 mm
- Width · 14.2 in
- 360 mm
- Height · 12.2 in
- 310 mm
Verify against the official technical drawing before fabrication.
Washdown Basics
The FT-133 Flush in Brief
Washdown
Printed product name: washdown wall-hung closet.
Ceramic
Ceramic is the listed material.

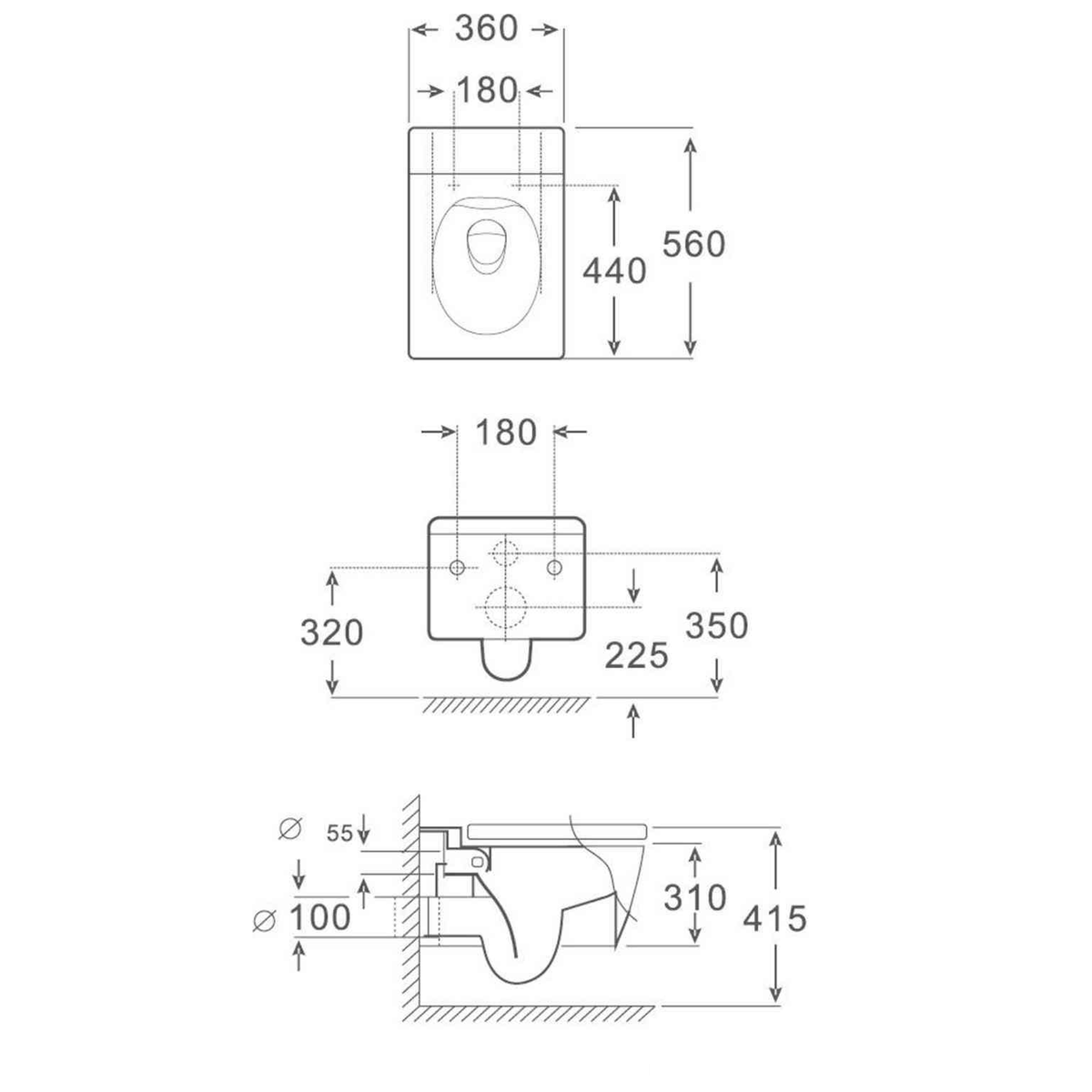

Printed Dimension Line
560 × 360 × 310 mm in Full
- Overall Size
- 560 × 360 × 310 mm (22.0 × 14.2 × 12.2 in)
- Order of Figures
- Length × width × height
- Mounting
- Wall-hung
Size is quoted exactly as the catalog prints it.
FT-133 Against FT-535
Washdown Versus Dual-Jet Sibling
FT-133 prints 560 × 360 × 310 mm with a washdown flush; FT-535, the listed sibling, prints 540 × 360 × 310 mm with a dual-jet flush.
FT-133 prints a 180 mm P-trap; FT-535 prints a 180 mm P-trap.
Washdown Order Data
FT-133 RFQ and Certification
Certification documents for FT-133 are matched to the destination market at quotation.
Details to send for FT-133
- Model: FT-133
- Flush: washdown
- Outlet: 180 mm P-trap
- Quantity
- Destination market
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
What is the flush on the FT-133?+
Where does the FT-133 washdown wall hung toilet, 180mm P trap, drain?+
Which height figure should be used for the FT-133?+
FT-133 is a washdown wall-hung toilet, 180 mm P-trap at the rear, made in ceramic. Those 2 facts come straight from its catalog lines: Washdown wall-hung closet and P-trap 180mm. Washdown is the only flush type listed for this toilet, and wall-hung is the only installation type. For buyers who keep separate washdown and dual-jet ranges, FT-133 belongs on the washdown side, next to other washdown wall hung toilets in a supplier range.
Flush and length are the printed differences. FT-133 prints a washdown flush; the FT-535 wall-hung toilet prints a collision flush, called dual-jet here. FT-133 prints 560 × 360 × 310 mm; FT-535 prints 540 × 360 × 310 mm. Outlets are printed alike: FT-133 prints P-trap 180mm; FT-535 prints P-trap 180mm. A buyer choosing between the 2 wall hung toilets therefore weighs the flush type first and the 560 or 540 mm length second.
Length of the FT-133 bowl is printed at 560 mm, or 22.0 in, and width at 360 mm, or 14.2 in. Both figures sit on the printed size line in length × width × height order. Height on the size line is 310 mm (12.2 in). Certification documents for the FT-133 are matched to the destination market at quotation, alongside the washdown flush and 180 mm outlet already printed.
