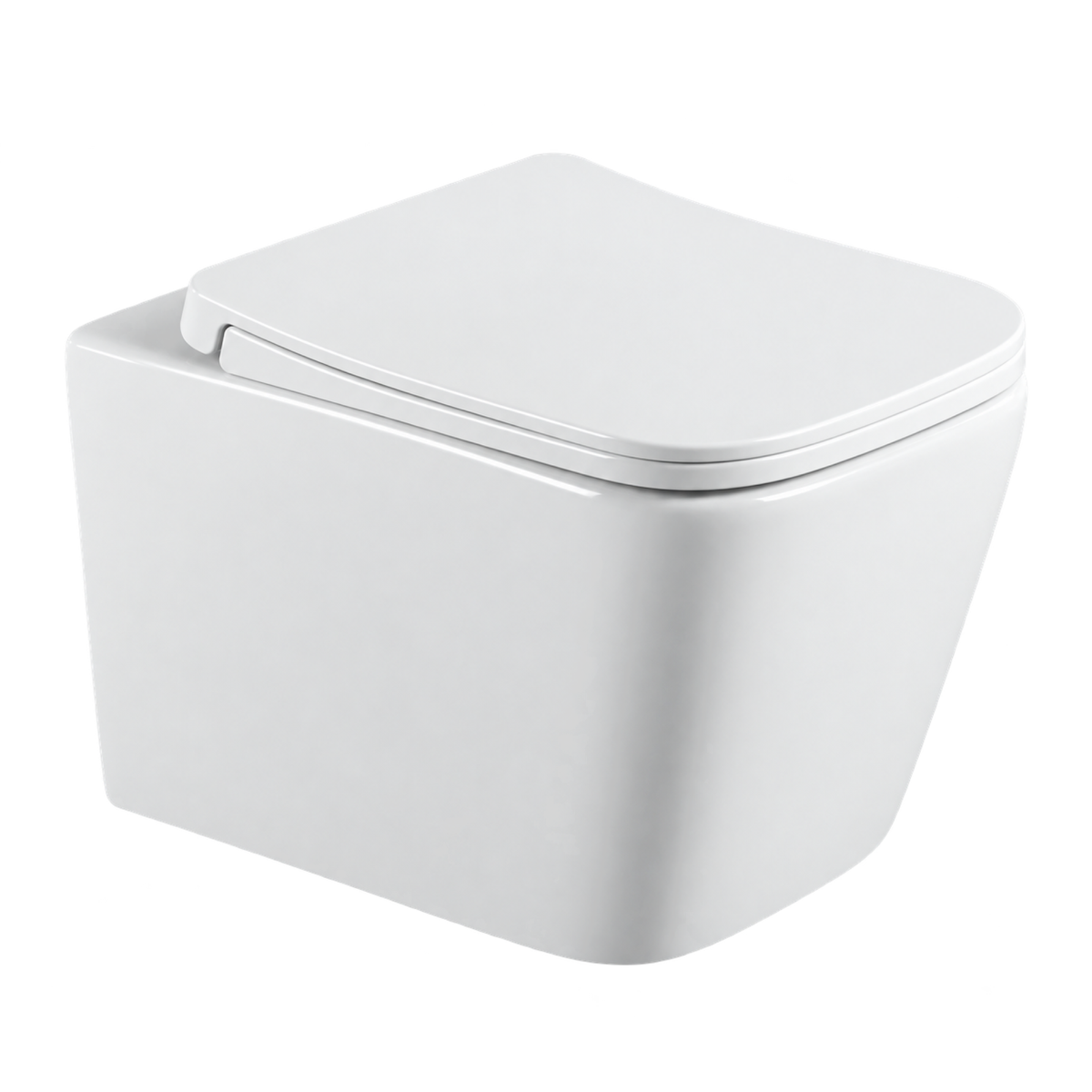

Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 345 × 310 mm
FT-709 is a ceramic wall-hung toilet with a dual-jet flush, the system the catalog prints as collision type; the printed product name is Collision type flush wall-hung closet. The outlet is a 180 mm P-trap outlet. The catalog prints one size for the model: 520 × 345 × 310 mm (20.5 × 13.6 × 12.2 in), length × width × height. The factory catalog prints the CE mark against FT-709; request the current CE declaration.
See the wall-hung toilet collection.
More in Wall Hung Toilet
Mix any models in one 20ft container · no per-model minimum
-
HSJ-V720124 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.9" × 15.7" × 14.6"Wall-hung, P-trap
-
HSJ-T0523 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.3" × 16.0" × 14.6"Wall-hung, P-trap
-
TC-7402Marble Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 13.8" × 13.8"Wall-hung
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E07Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet21.1" × 14.2" × 13.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A09E550 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet21.7" × 14.4" × 14.6"Wall-hung
-
LJ-A09Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A08595 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet23.4" × 15.4" × 14.8"Wall-hung
-
LJ-A07Washdown Wall-Hung Toilet, 170 mm P-Trap Outlet22.4" × 15.4" × 14.6"Wall-hung
-
LJ-A03Washdown Wall-Hung Toilet, 185 mm P-Trap Outlet, 2 Finishes22.4" × 14.2" × 14.4"Wall-hung
-
LJ-A06Washdown Wall-Hung Toilet, 150 mm P-Trap Outlet, 2 Finishes22.2" × 14.0" × 13.8"Wall-hung
-
FT176-BF-2Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 360 × 310 mm20.5" × 14.2" × 12.2"Wall-hung
-
FT-976Swirl Flush Wall-Hung Toilet FT-976, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824BFSwirl Flush Wall-Hung Toilet FT-824BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-876Swirl Flush Wall-Hung Toilet FT-876, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824Swirl Flush Wall-Hung Toilet FT-824, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-806CSwirl Flush Wall-Hung Toilet FT-806C, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-809Swirl Flush Wall-Hung ToiletWall-hung
-
FT-805CSwirl Flush Wall-Hung Toilet FT-805C, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-806Swirl Flush Wall-Hung Toilet FT-806, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-805Swirl Flush Wall-Hung Toilet FT-805, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-706490 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-543470 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet18.5" × 14.2" × 13.4"Wall-hung
-
FT-535Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 540 × 360 × 310 mm21.3" × 14.2" × 12.2"Wall-hung
-
FT-705Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.3" × 14.2" × 12.2"Wall-hung
-
FT-524-BFDual-Jet Wall-Hung Toilet FT-524-BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-516Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 510 × 350 × 320 mm20.1" × 13.8" × 12.6"Wall-hung
-
FT-524Dual-Jet Wall-Hung Toilet FT-524, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-501R/510T510 mm Wall-Hung Toilet, 15 Decor Designs20.1" × 13.6" × 12.2"Wall-hung
-
FT-490/520490 mm Wall-Hung Toilet, 13 Decor Designs19.3" × 14.2" × 12.8"Wall-hung
-
FT-257480 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet18.9" × 13.8" × 11.8"Wall-hung
-
FT-251Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 8 Finishes20.5" × 14.2" × 12.2"Wall-hung
-
FT-248Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 490 × 350 × 305 mm19.3" × 13.8" × 12.0"Wall-hung
-
FT-249510 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 14.2" × 12.0"Wall-hung
-
FT-192495 mm Dual-Jet Wall-Hung Toilet19.5" × 14.4" × 11.8"Wall-hung
-
FT-195505 mm Dual-Jet Wall-Hung Toilet19.9" × 13.6" × 12.0"Wall-hung
-
FT-190490 mm Dual-Jet Wall-Hung Toilet19.3" × 13.8" × 14.4"Wall-hung
Fit data
Rough-in, flush and size of FT-709
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
520mm Pan Specs
520mm Dual Jet Wall Hung Toilet Specs
- Overall Size
- 520 × 345 × 310 mm (20.5 × 13.6 × 12.2 in)
- Outlet
- 180 mm P-trap
- Flush
- Dual-jet (catalog: collision)
- Material
- Ceramic
The factory catalog prints the CE mark against FT-709; request the current CE declaration.

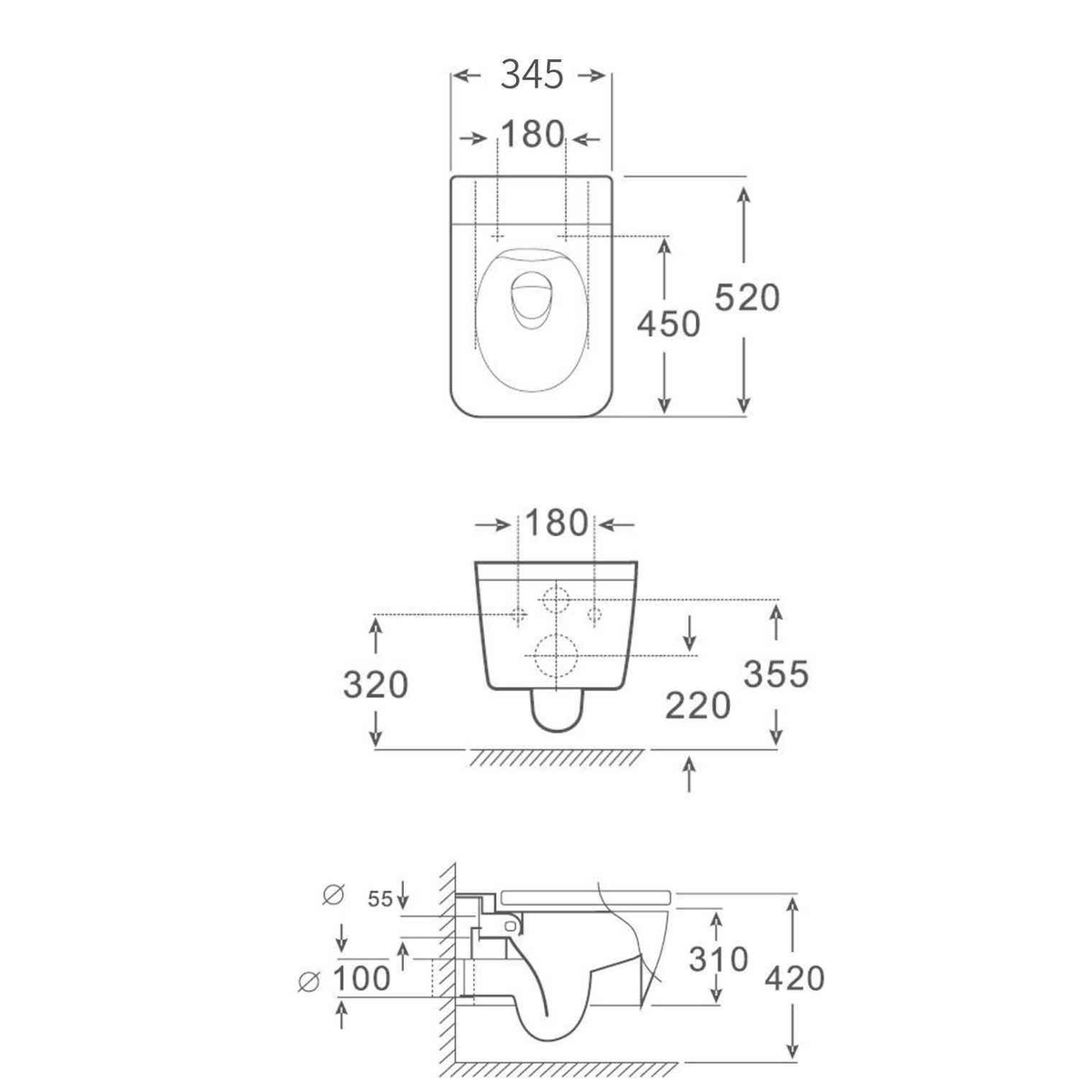

FT-709 in Inches
20.5 in Long
- Length · 520 mm
- 20.5 in
- Width · 345 mm
- 13.6 in
- Height · 310 mm
- 12.2 in
Verify against the official technical drawing before fabrication.
Dual-Jet Entry
Collision Flush Printed for FT-709
Catalog name: collision type flush wall-hung closet, with a collision icon.
FT-709 and FT-501R/510T
Sibling Sizes
520 × 345 × 310 mm
Printed length: 520 mm.
510 × 345 × 310 mm
Printed length: 510 mm.
Both entries print 345 mm width and 310 mm height.
FT-709 Inquiry Lines
Request FT-709 Pricing
Add the CE declaration to the price request.
Include for FT-709
- Model: FT-709
- Flush: dual-jet
- Outlet: 180 mm P-trap
- Quantity
- Destination market
- CE declaration request
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
Which compliance document applies to the FT-709?+
What defines the FT-709 as a 520mm dual jet wall hung toilet?+
How does the FT-709 compare with the FT-501R/510T?+
Compliance is the starting point for the FT-709, a 520mm dual-jet wall-hung toilet with CE printed against it in the factory catalog. Buyers serving markets that ask for CE documents should obtain the current CE declaration under the code FT-709. That mark is the only certification printed for the model, and it appears on the same listing as the 180 mm P-trap line. With the declaration in hand, the remaining specification comes straight from the printed lines on flush, outlet and size.
FT-709 is printed at 520 mm long, 345 mm wide and 310 mm high, which reads 20.5 × 13.6 × 12.2 in. Ceramic is the listed material, and the body hangs on the wall as printed. The catalog gives these figures in length × width × height order on a single size line for the code, with no other size listed. Verify against the official technical drawing before fabrication.
Collision type flush wall-hung closet is the product name printed for the FT-709, and a collision icon accompanies it. This page calls the flush dual-jet. The bowl drains at the rear as a P-trap toilet bowl, with the outlet height printed as 180 mm. That figure is an outlet height rather than a rough-in distance, so the wall drain should be measured and matched to it. Confirm the 180 mm outlet height against the model spec sheet.
