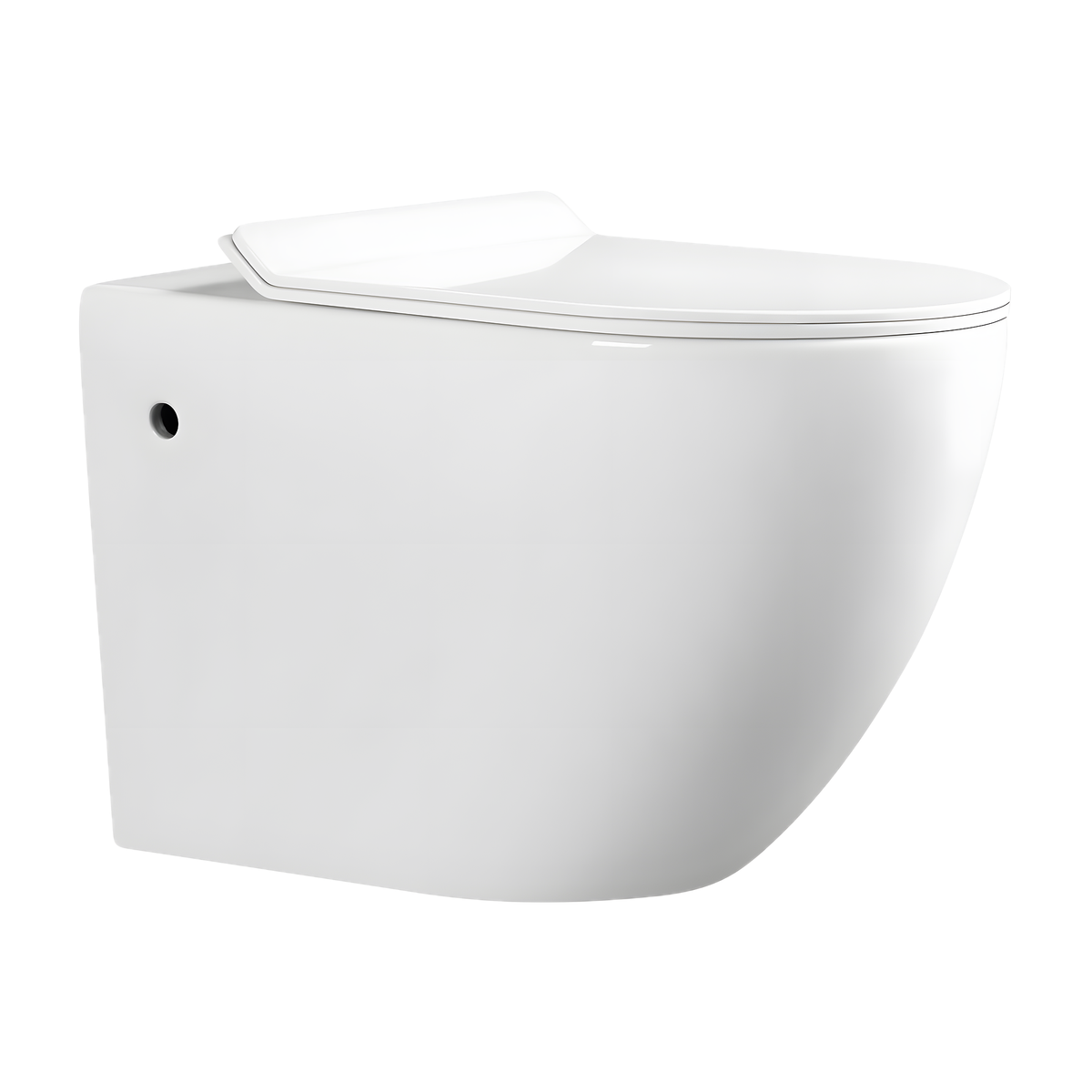

550 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet
Catalog entry LJ-A09E / Wall-hung Toilet covers a ceramic pan for wall-hung mounting, with washdown flushing and a 180 mm P-trap outlet. Length × width × height is printed as 550 × 365 × 370 mm, or 21.7 × 14.4 × 14.6 in. White is offered under one SKU. LJ-A09E prints a 365 mm width; LJ-A09 prints 355 mm. The outlet value of 180 mm is a P-trap height, not a rough-in distance.
See the wall-hung toilet collection.
More in Wall Hung Toilet
Mix any models in one 20ft container · no per-model minimum
-
HSJ-V720124 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.9" × 15.7" × 14.6"Wall-hung, P-trap
-
HSJ-T0523 Inch Wall-Hung Smart Toilet, 135 mm P-Trap Outlet23.3" × 16.0" × 14.6"Wall-hung, P-trap
-
TC-7402Marble Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 13.8" × 13.8"Wall-hung
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E07Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet21.1" × 14.2" × 13.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A09Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
LJ-A08595 mm Washdown Wall-Hung Toilet, 180 mm P-Trap Outlet23.4" × 15.4" × 14.8"Wall-hung
-
LJ-A07Washdown Wall-Hung Toilet, 170 mm P-Trap Outlet22.4" × 15.4" × 14.6"Wall-hung
-
LJ-A03Washdown Wall-Hung Toilet, 185 mm P-Trap Outlet, 2 Finishes22.4" × 14.2" × 14.4"Wall-hung
-
LJ-A06Washdown Wall-Hung Toilet, 150 mm P-Trap Outlet, 2 Finishes22.2" × 14.0" × 13.8"Wall-hung
-
FT176-BF-2Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 360 × 310 mm20.5" × 14.2" × 12.2"Wall-hung
-
FT-976Swirl Flush Wall-Hung Toilet FT-976, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824BFSwirl Flush Wall-Hung Toilet FT-824BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-876Swirl Flush Wall-Hung Toilet FT-876, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824Swirl Flush Wall-Hung Toilet FT-824, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-806CSwirl Flush Wall-Hung Toilet FT-806C, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-809Swirl Flush Wall-Hung ToiletWall-hung
-
FT-805CSwirl Flush Wall-Hung Toilet FT-805C, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-806Swirl Flush Wall-Hung Toilet FT-806, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-805Swirl Flush Wall-Hung Toilet FT-805, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-709Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 520 × 345 × 310 mm20.5" × 13.6" × 12.2"Wall-hung
-
FT-706490 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-543470 mm Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet18.5" × 14.2" × 13.4"Wall-hung
-
FT-535Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 540 × 360 × 310 mm21.3" × 14.2" × 12.2"Wall-hung
-
FT-705Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.3" × 14.2" × 12.2"Wall-hung
-
FT-524-BFDual-Jet Wall-Hung Toilet FT-524-BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-516Dual-Jet Wall-Hung Toilet, 180 mm P-Trap Outlet, 510 × 350 × 320 mm20.1" × 13.8" × 12.6"Wall-hung
-
FT-524Dual-Jet Wall-Hung Toilet FT-524, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-501R/510T510 mm Wall-Hung Toilet, 15 Decor Designs20.1" × 13.6" × 12.2"Wall-hung
-
FT-490/520490 mm Wall-Hung Toilet, 13 Decor Designs19.3" × 14.2" × 12.8"Wall-hung
-
FT-257480 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet18.9" × 13.8" × 11.8"Wall-hung
-
FT-251Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 8 Finishes20.5" × 14.2" × 12.2"Wall-hung
-
FT-248Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 490 × 350 × 305 mm19.3" × 13.8" × 12.0"Wall-hung
-
FT-249510 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 14.2" × 12.0"Wall-hung
-
FT-192495 mm Dual-Jet Wall-Hung Toilet19.5" × 14.4" × 11.8"Wall-hung
-
FT-195505 mm Dual-Jet Wall-Hung Toilet19.9" × 13.6" × 12.0"Wall-hung
-
FT-190490 mm Dual-Jet Wall-Hung Toilet19.3" × 13.8" × 14.4"Wall-hung
Fit data
Rough-in, flush and size of LJ-A09E
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
Washdown Profile
550mm Washdown Wall Hung Toilet: LJ-A09E
Washdown
Flush type listed for LJ-A09E.
550 mm · 21.7 in
Front-to-back length of the ceramic body.
180 mm P-Trap
Rear outlet height.
Finish offered: White.

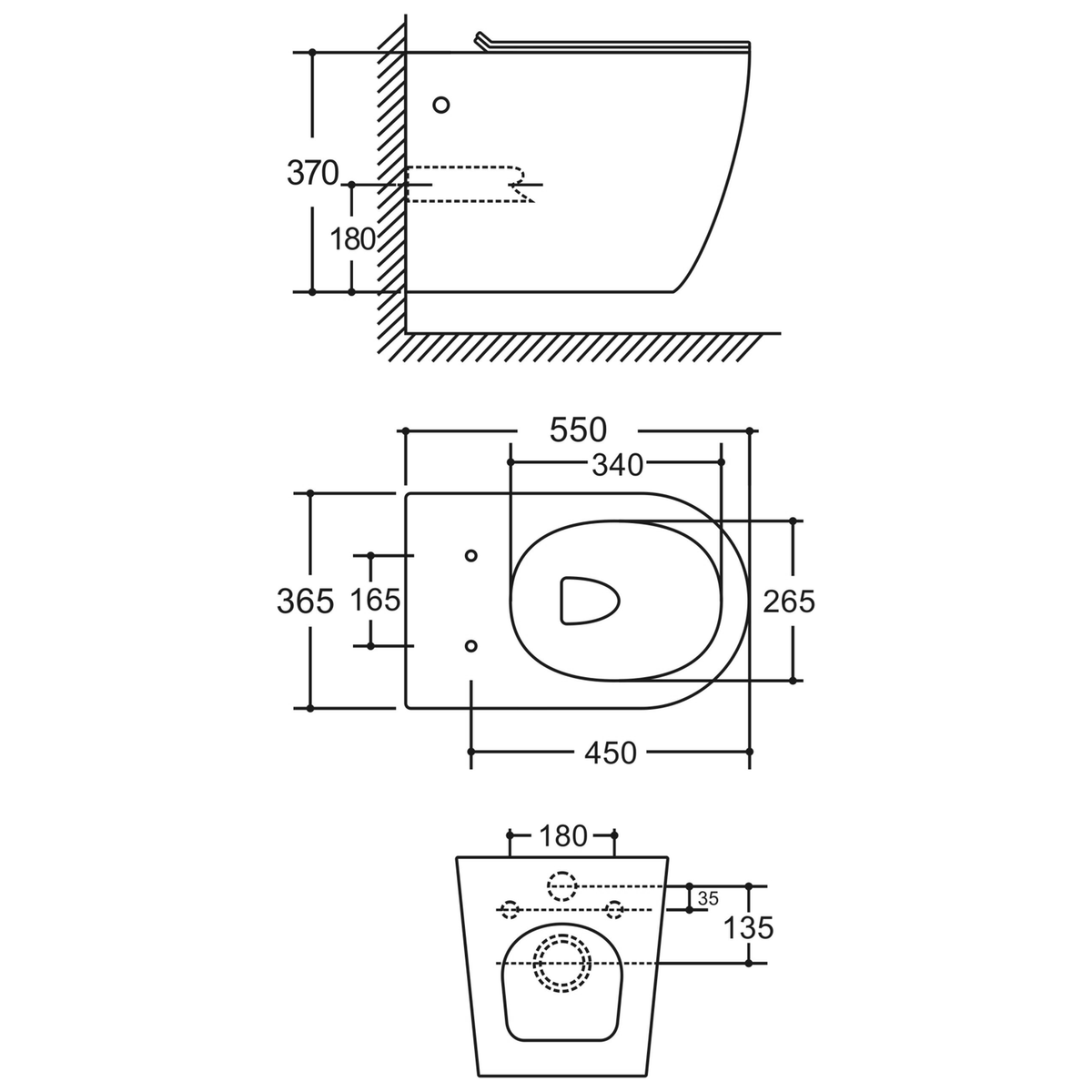

Inch and Millimeter Size
550 × 365 × 370 mm in Inches
- Length · 21.7 in
- 550 mm
- Width · 14.4 in
- 365 mm
- Height · 14.6 in
- 370 mm
Verify against the official technical drawing before fabrication.
E Suffix Versus Base
LJ-A09E and LJ-A09 Printed Figures
Matched to the destination market at quotation for LJ-A09E.
LJ-A09E prints 550 × 365 × 370 mm; LJ-A09 prints 550 × 355 × 365 mm.
LJ-A09E prints a 180 mm P-trap; LJ-A09 prints a 180 mm P-trap.
Certification documents for LJ-A09E are matched to the destination market at quotation.
E Code Request
Quote Fields for the E Code
LJ-A09E is quoted as its own code, in White.
Quoting LJ-A09E: what to list
- Model: LJ-A09E
- Flush: washdown
- Outlet: 180 mm P-trap
- Finish: White
- Quantity
- Destination market
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
What are the dimensions of the LJ-A09E 550mm washdown wall hung toilet?+
How do the LJ-A09E and LJ-A09 printed sizes compare?+
Which outlet does the LJ-A09E list?+
Built around a 550 mm length, LJ-A09E is a 550mm washdown wall hung toilet offered in White. Its full printed size is 550 × 365 × 370 mm, or 21.7 × 14.4 × 14.6 in. Ceramic is the body material, and mounting is wall-hung. All 3 figures sit in one printed line, Size: 550x365x370mm. The printed name line is LJ-A09E / Wall-hung Toilet, with washdown as the flush and a rear P-trap outlet at 180 mm.
Washdown is the flush type printed for LJ-A09E, and no other flush version is listed under the code. The outlet sits at the rear as a 180 mm P-trap. Catalog P-trap figures describe outlet height, so the wall drain measured on site is the number to compare. Wall hung toilets with a rear outlet line up with the wall drain only when those heights agree. Mounting is wall-hung, as printed.
LJ-A09E is quoted as a single SKU in White. Certification documents for LJ-A09E are matched to the destination market at quotation. Supply data printed for the code are the washdown flush, the 180 mm P-trap outlet, the ceramic body and the 550 mm length. Height on LJ-A09E reads 370 mm (14.6 in), and width 365 mm (14.4 in). The printed name line is the only entry for the code, and mounting is wall-hung.
