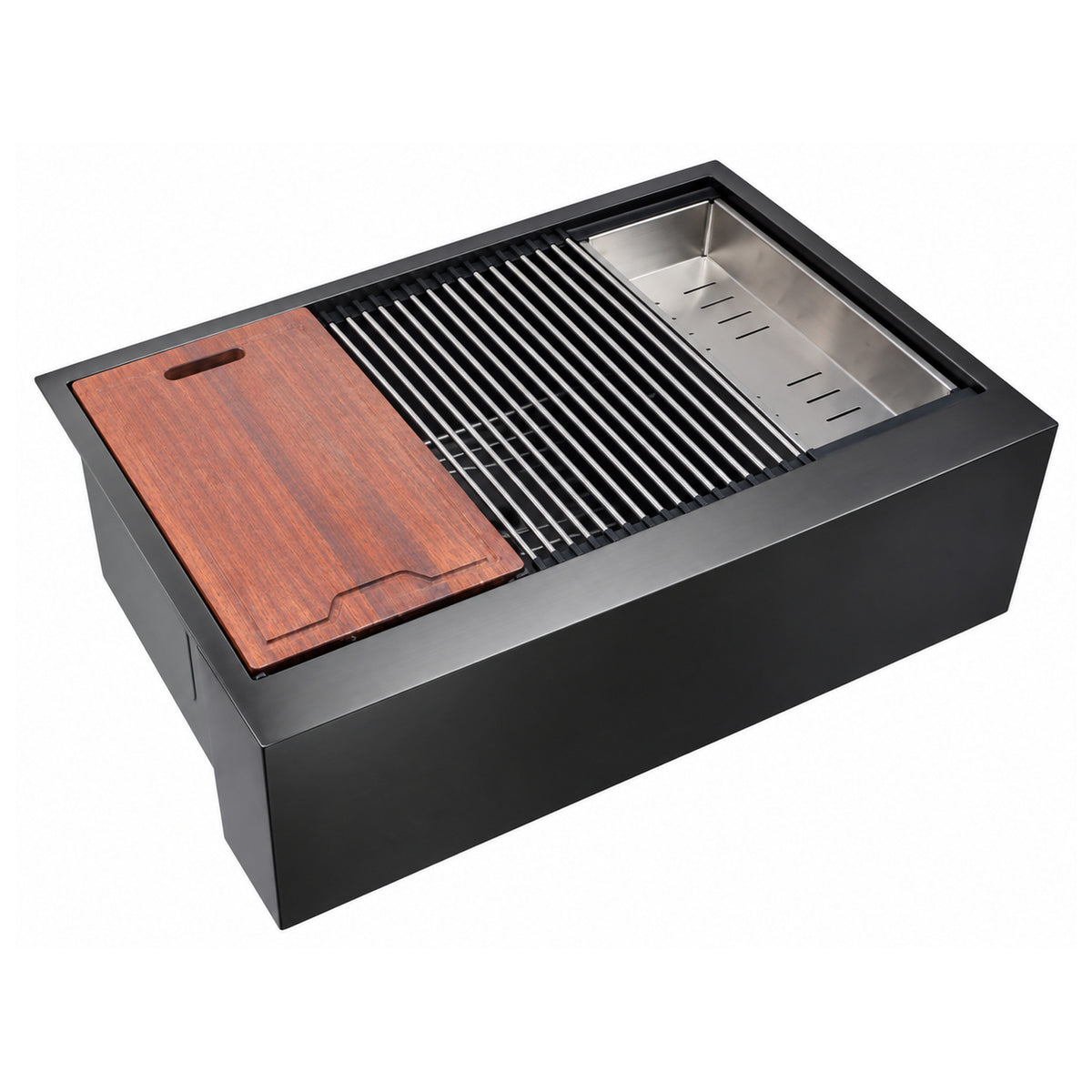

Straight-Apron Nano Black Ledge Kitchen Sink 33x22, 16-Gauge 304

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.
Nano black stainless gives WF332010S-NANO a dark straight apron that suits modern cabinet lines. The overall body is 33" × 22" (838 × 559 mm) in 16G 304 steel.
One 31" × 16-7/8" bowl, 10" deep, sits behind a stepped ledge. Pick Zero, R10, R15 or R19 corners, then order from our Foshan factory with MOQ 50 pcs.
More in Farmhouse Kitchen Sinks
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.
-
FSR3320Flat Apron-Front Stainless Steel Farmhouse Sink, 33x21x1033" × 21" × 10"Farmhouse / apron-front
-
FSR3021Compact 30-Inch Stainless Steel Farmhouse Sink, Curved Apron30" × 21" × 9.5"Farmhouse / apron-front
-
FS3322Wide Single-Bowl Stainless Steel Farmhouse Sink, 33x22x933" × 22.25" × 9"Farmhouse / apron-front
-
FS3321Curved Apron-Front Stainless Steel Farmhouse Sink, 33x21x1033" × 21" × 10"Farmhouse / apron-front
-
FDR302130-Inch Equal Double-Bowl Wave-Apron Farmhouse Stainless Steel Sink30" × 20.98" × 9.5"Farmhouse apron-front
-
FD362136-Inch Handmade Offset Double-Bowl Apron Farmhouse Stainless Sink36.0" × 21.0" × 10.0"Farmhouse / apron-front
-
FD332133-Inch Double-Bowl Curved-Apron Farmhouse Stainless Steel Sink33" × 21" × 10"Farmhouse / apron-front
-
36 Inch Single-Bowl Fireclay Farmhouse Sink35 3/4" × 19 3/4" × 9 7/8"Apron front / farmhouse
-
SN3320S-BLK33 Inch Black and White Fireclay Farmhouse Sink33" × 20" × 10"Apron front / farmhouse

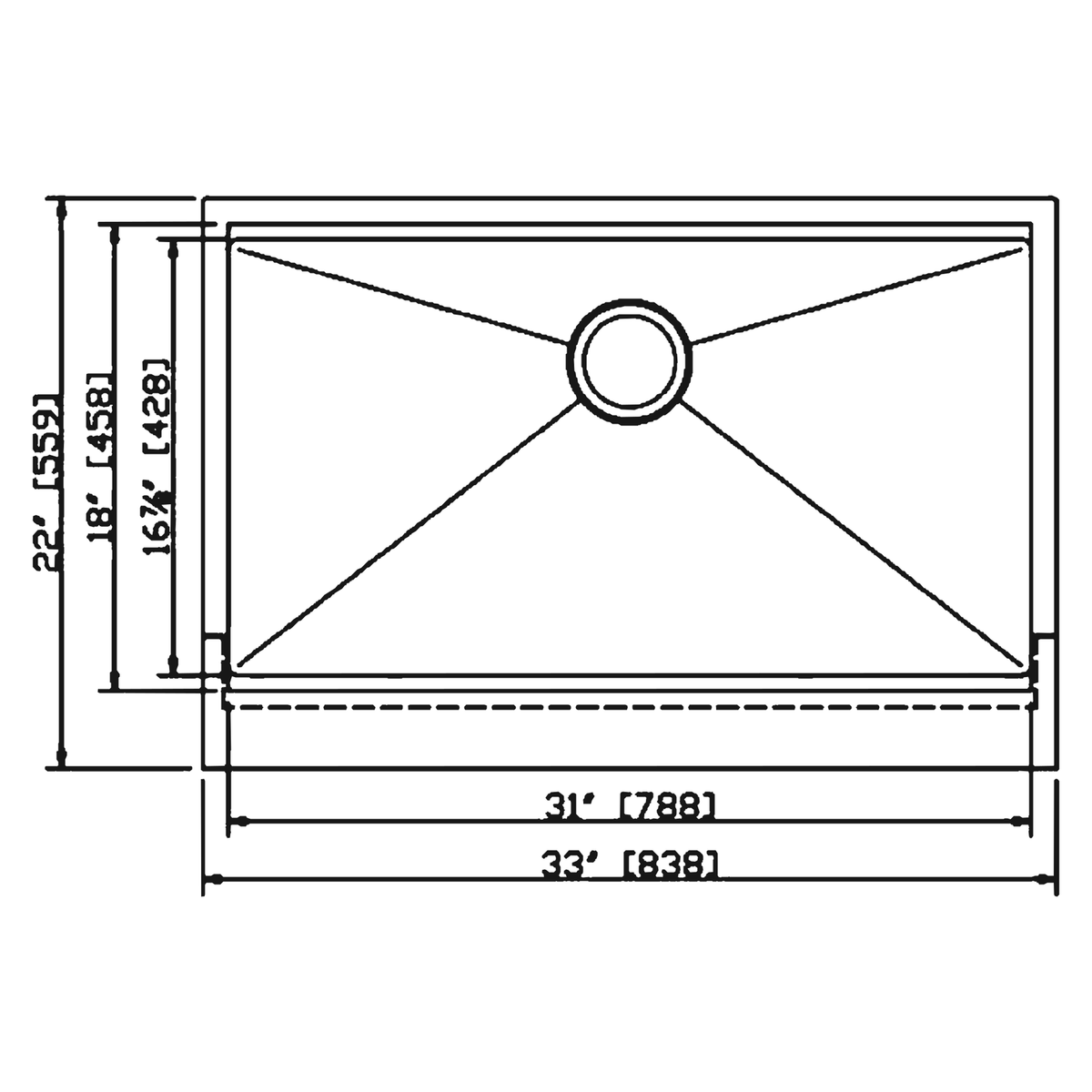

Dimension sheet
Sizes and cut data for WF332010S-NANO
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
NANO BLACK
A dark stainless front for modern kitchens
Nano black gives 304 stainless steel a dark tone for kitchens built around dark or slab cabinetry. WF332010S-NANO, our 33 x 22 nano black apron front ledge sink, puts that finish on a straight apron.
Straight apron
A flat straight panel forms the front, not a curved farmhouse face, so it reads as modern beside slab cabinet doors.
Large single bowl
One bowl of 31" × 16-7/8" spans most of the 33" width, leaving room for sheet pans and large pots.
Stepped ledge

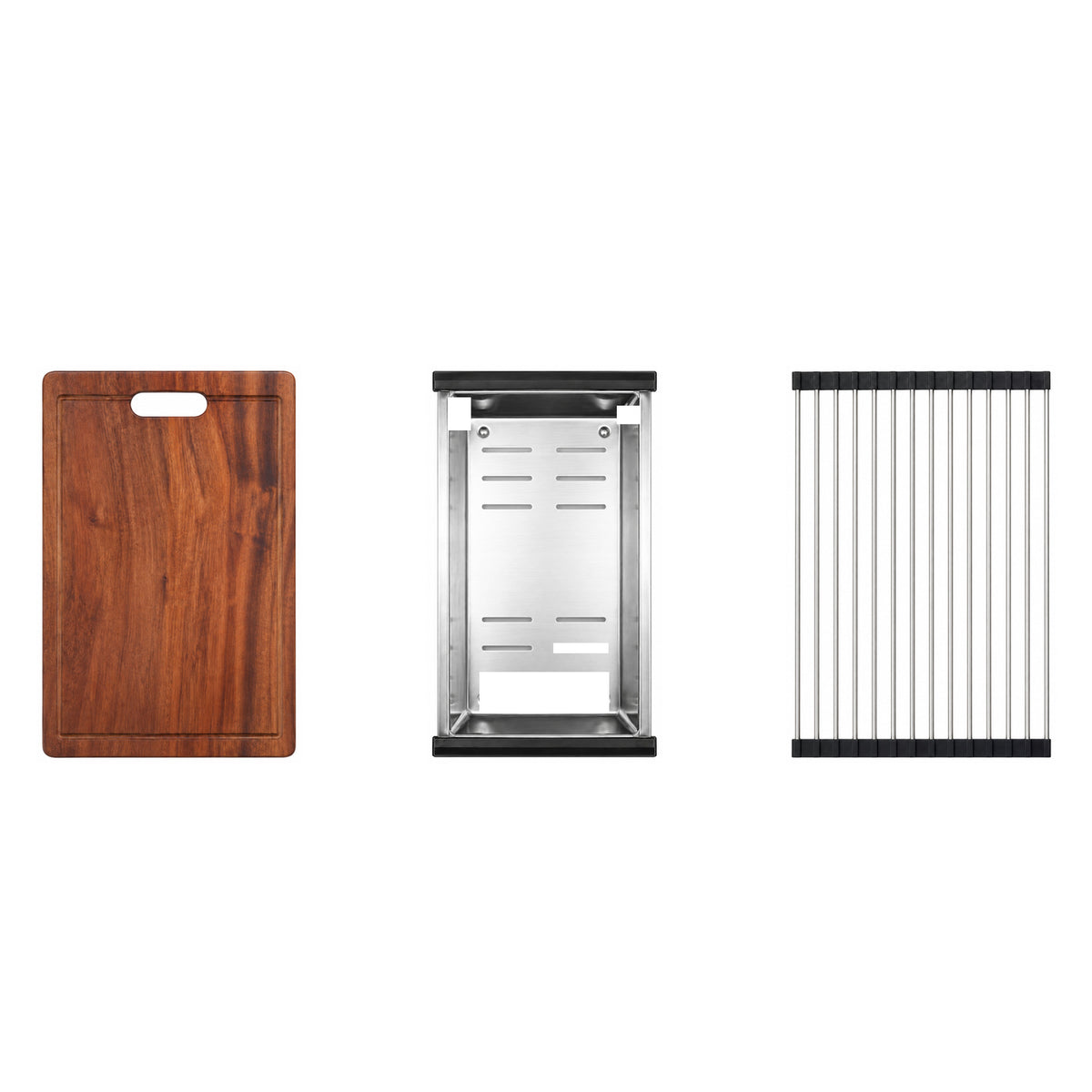

A stepped ledge runs along the rim and turns the single bowl into a workstation layout, with room to rest accessories over the water.
MEASUREMENTS
WF332010S-NANO measurements at a glance
- Model
- WF332010S-NANO
- Overall size
- 33.0" × 22.0" (838 × 559 mm)
- Bowl
- 31" x 16-7/8"
- Bowl depth
- 10"
- Drain opening
- 3-1/2"
- Corner radius
- Zero/R10/R15/R19
- Material
- 304 stainless steel
- Gauge
- 16G
- Finish
- Nano Black
- Mount
- Apron Front
- Packing
- 1PC / Box
BUILD NOTES
Radius, gauge and cabinet cut for a 33-inch front
Measuring 838 mm across, the sink needs a base cabinet whose front is cut to leave the apron exposed. Agree the cabinet width and drawings with your cabinet maker before the order is released.
Four corner radii are tooled for this body: Zero, R10, R15 and R19. The bowl outline can follow the cabinet style without any new mould, and one radius per program keeps every unit identical.
WF332010S-NANO uses a 16G (1.5 mm) stainless steel gauge in 304 grade. Quartz and solid surface countertops meet the sink along its top edge, so send the fabricator the overall size and ledge profile with the template request.
PROCUREMENT
Ordering WF332010S-NANO by the container
MOQ is 50 pcs, each sink packed 1PC / Box, and a mixed 1×20 ft container is accepted.
Send quantity, corner radius and destination port. Dark and plain steel apron models from our farmhouse kitchen sinks range can share one container, so a showroom chain can stock both looks.
