Polished Gold Gooseneck Widespread Bathroom Faucet, Scroll Handles
More in Widespread Bathroom Faucet
Mix any models in one 20ft container · no per-model minimum
-
DL-01 303Matte Black Flared Base High Arc Widespread Bathroom Faucet DL-01 303Deck-mounted, three holes
-
DL-01 318Chrome Wide Flat Spout Widespread Bathroom Faucet DL-01 318Deck-mounted, three holes
-
DL-01 300Side Tab Marble Wedge Widespread Bathroom Faucet DL-01 300Deck-mounted, three holes
-
B625 04Brushed Gold Twist Facet Widespread Bathroom Faucet B625 04Deck-mounted, three holes
-
B1006A 04Rose Gold Tulip Flare Widespread Bathroom Faucet B1006A 04Deck-mounted, three holes
-
B099C 04Chrome Taper Cone Lever Widespread Bathroom Faucet B099C 04Deck-mounted, three holes
-
B099 04Taper Cone Smooth Knob Widespread Bathroom Faucet B099 04Deck-mounted, three holes
-
B099G 04Brushed Gold Taper Cone Knurled Widespread Bathroom Faucet B099G 04Deck-mounted, three holes
-
B056C 04Brushed Gold Studded Dial Widespread Bathroom Faucet B056C 04Deck-mounted, three holes
-
B231 04Matte Black Square Block Widespread Bathroom Faucet B231 04Deck-mounted, three holes
-
B1007 04Brushed Gold Soft Wedge Widespread Bathroom Faucet B1007 04Deck-mounted, three holes
-
B1016 04Brushed Gold Square Arch Widespread Bathroom Faucet B1016 04Deck-mounted, three holes
-
B815 04Gun Metal Grey Slate Wedge Widespread Bathroom Faucet B815 04Deck-mounted, three holes
-
B030 04Brushed Gold Sculpted Swoop Widespread Bathroom Faucet B030 04Deck-mounted, three holes
-
B064 04Gun Metal Grey Ribbed Column Widespread Bathroom Faucet B064 04Deck-mounted, three holes
-
B068 04Chrome Pencil Line Widespread Bathroom Faucet B068 04Deck-mounted, three holes
-
B091 04Noir Sweep Matte Black Widespread Bathroom Faucet B091 04Deck-mounted, three holes
-
B015 04Noir Gilt Matte Black & Gold Widespread Bathroom Faucet B015 04Deck-mounted, three holes
-
B1003 04Brushed Gold Flat Ribbon Widespread Bathroom Faucet B1003 04Deck-mounted, three holes
-
B092 04Gun Metal Grey Curved Cone Widespread Bathroom Faucet B092 04Deck-mounted, three holes
-
B1006 04Brushed Gold Bow Spout Widespread Bathroom Faucet B1006 04Deck-mounted, three holes
-
B743 04Brushed Nickel Black Sleeve Widespread Bathroom Faucet B743 04Deck-mounted, three holes
-
FYF-01417Chrome Square Widespread Bathroom Faucet, 2-Handle Deck Mount5.6" H × 6.9" DDeck-mounted, 3-hole widespread
-
FYF-01003Chrome Curved-Spout Widespread Bathroom Faucet, Dual Lever Handles14.2" × 7.2"Deck-mounted, 3-hole 8" widespread
-
F309001Chrome Gooseneck Widespread Bathroom Faucet, Dual Lever Handles8.9" × 7.2" × 2.0"Deck-mounted 3-hole 8" widespread
-
F305201Brushed Gold Art Deco Widespread Bathroom Faucet, Channel Spout8.75" × 6.06" × 3.69"3-hole 8" widespread, deck-mounted
Model sheet
2 factory configurations of FYF-01303
Every option below is a produced configuration with its own SKU. 2 finishes. Name the exact SKU on each purchase order line.
-
NO. FYF-01303GD
Gold -
NO. FYF-01303BK
Matte Black
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Widespread 3-Hole
Three pieces on 8 inch centres with scroll levers
A widespread faucet lands on the deck as three separate pieces. Spout in the middle, one handle each side, set on 8 inch centres.
Handles set apart from the spout
The gap between the pieces is the point of a widespread. It reads larger than a single plate faucet on the same basin.
Scroll lever handles
The title names scroll handles. That is a shape decision, and it decides whether the set belongs in a traditional programme or a contemporary one.
Widespread sets need a deck drilled for three holes, which narrows the basins available. The rest of the group is in the widespread bathroom faucet range.

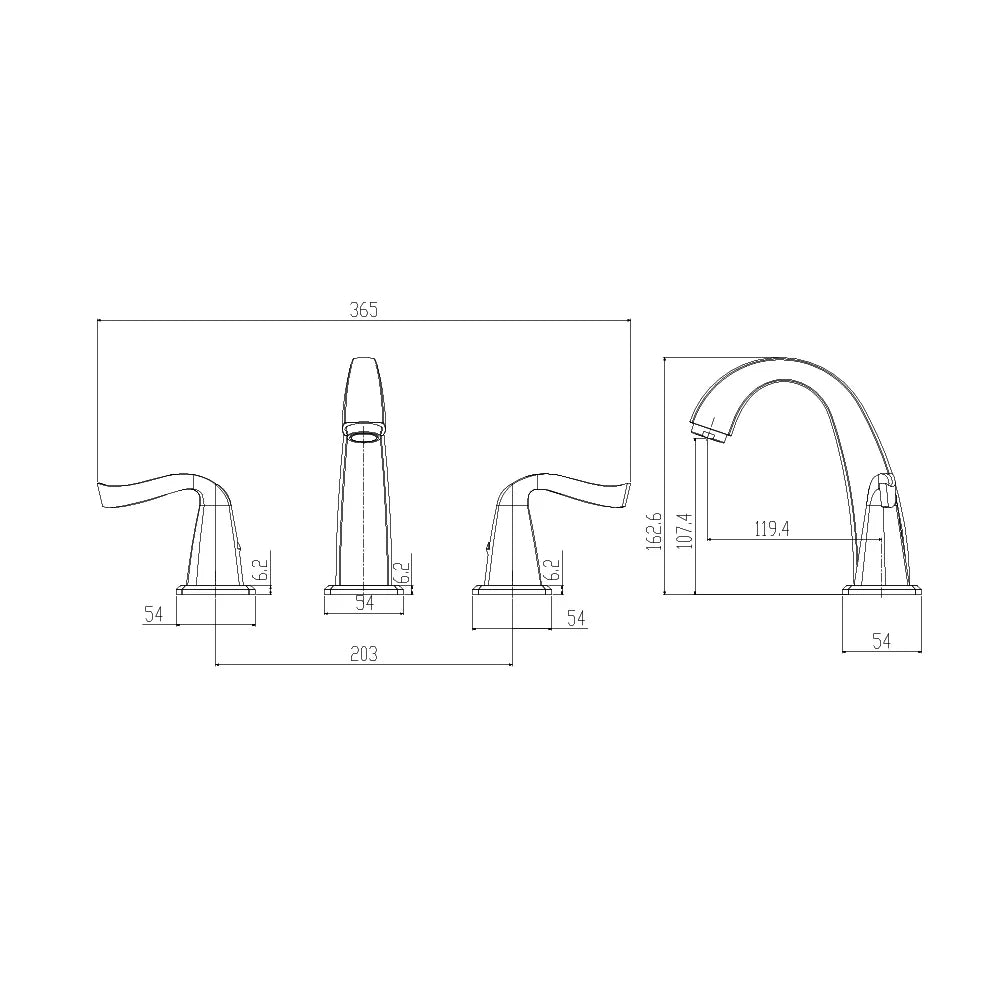

Fit & Clearance
Centres, reach and overall width for the 8 inch set
This model publishes more dimensions than most basin faucets. Use all of them.
- Hole Centres
- 8" (203 mm), 3-hole
- Spout Height
- 6.4" (162.6 mm)
- Spout Reach
- 4.7" (119.4 mm)
- Overall Width
- 14.4" (365 mm)
Overall width of 14.4 inches decides whether the set fits the basin, not the 8 inch centre distance. A deck drilled on 8 inch centres can still be too narrow.
Take the 4.7 inch reach to the bowl drawing. On a wide basin a short reach puts the outlet closer to the back wall than the render suggests.
Check the basin deck width, not only the hole centres, before approving.
Construction & Finish
Gold and matte black on the same widespread body
Two finishes are published for this set. Gold and matte black, one code each.
Finish · 2
Two codes on one body
GD and BK are the published codes. A two finish range keeps stock planning simple while giving a showroom one warm option and one dark.
-

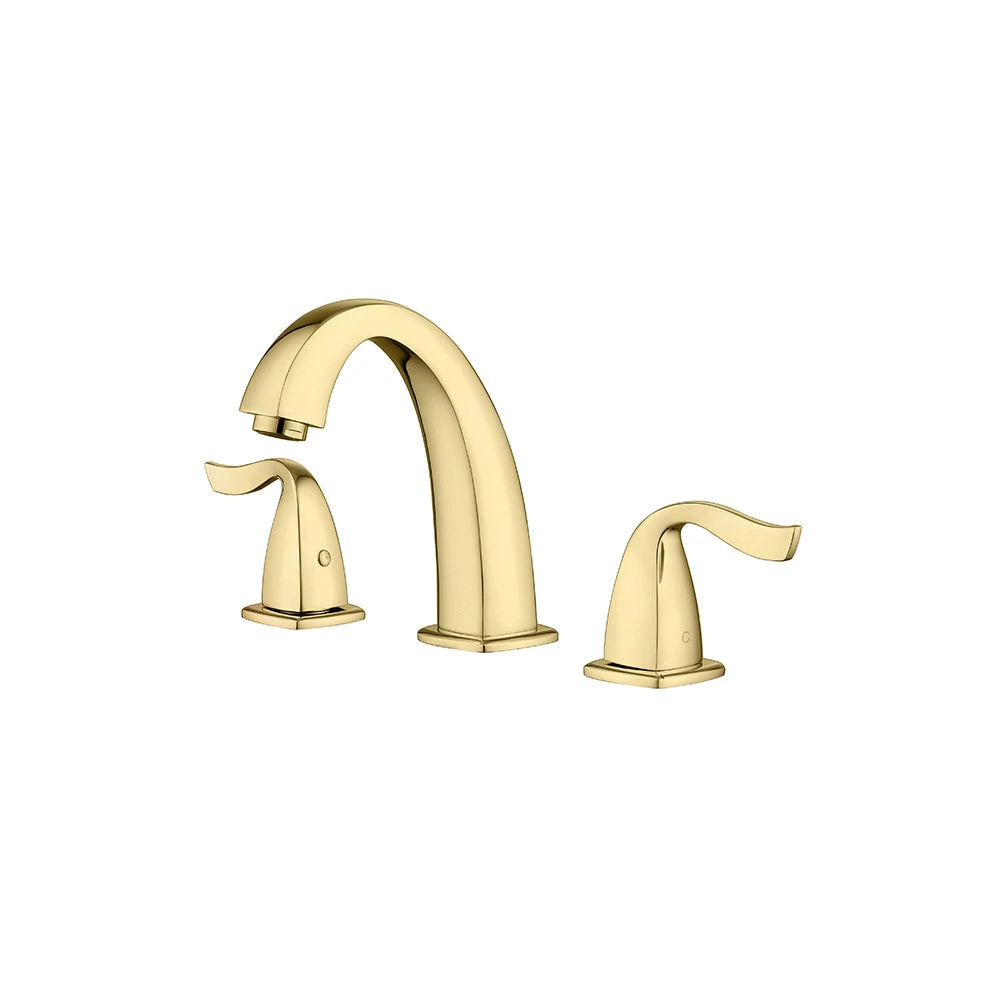

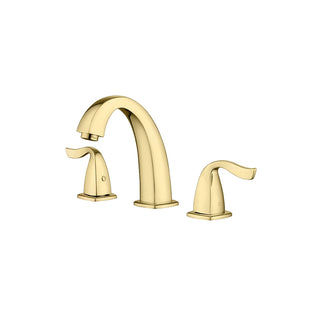

Gold
-

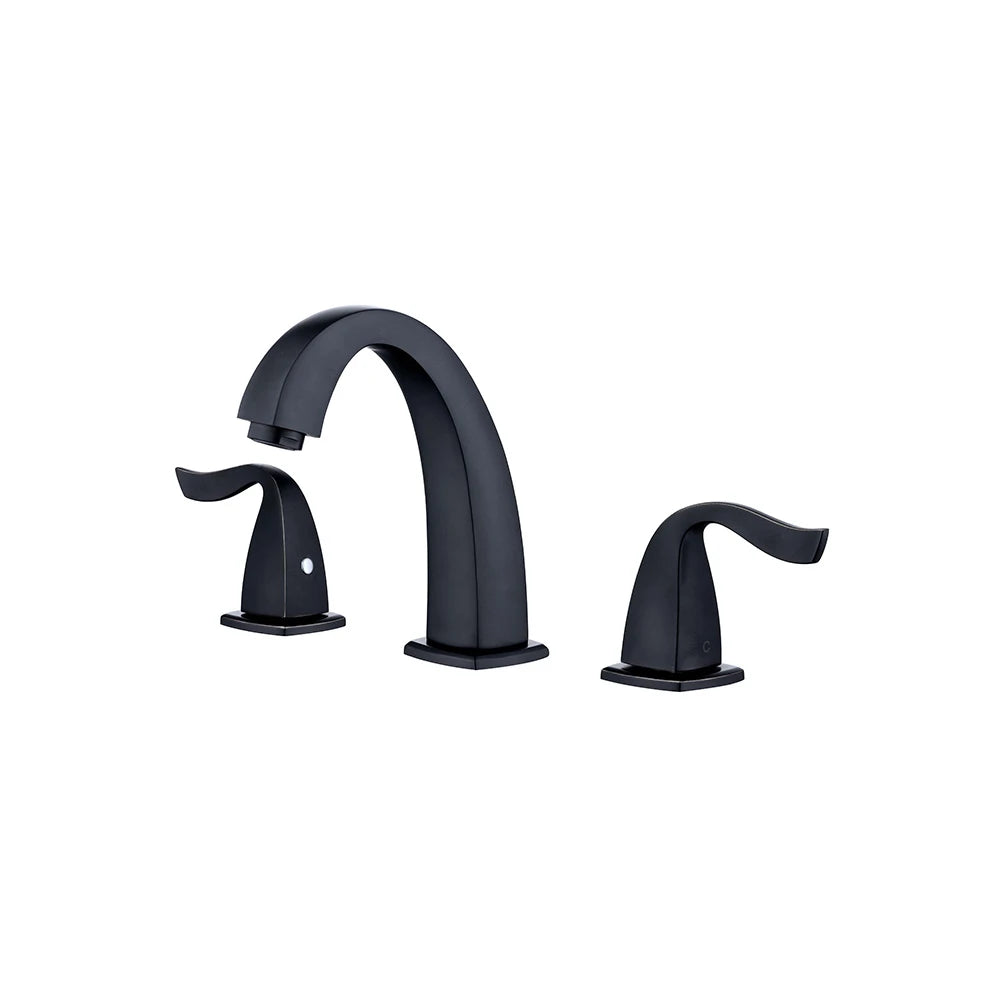

Matte Black
Brass appears in the product tagging rather than in the specification block. Ask for the material line to be written into the quotation if the submittal calls for it.
If you already carry a gold hardware line, request a sample to compare before approval.
Compliance
Project submittals for a three hole widespread
Ask for the drawing, the finish reference and the document list as one package. Agreeing scope early keeps the job off hold at approval.
FYF-01303 is cUPC listed. The published specification also holds material, type, mount, finish, size and MOQ. Before it goes into a submittal, request the current listing number and certificate validity so the documentation matches your destination market.
Widespread sets often go into specified projects, where the submittal package matters as much as the goods. Name the market and the reviewing authority and we will confirm what we can issue.
Procurement
Quoting the FYF-01303 widespread set
A widespread is bought as a set, not as three loose pieces. Say so on the purchase order and the packing list will match what arrives.
- Published MOQ
- 100 pcs
- Standard Lead Time
- 30–45 days (typical)
A widespread leaves the line as three pieces in one box, so the insert has to cover assembly and not just fitting. That scope is agreed inside the SANIKB OEM and ODM program.
Include these details with the RFQ
- Set quantity and split between GD and BK
- Deck width of the target basin
- Drawing and finish reference for submittal
- Handle option if scroll levers are not wanted
- Carton and insert format for a three piece set
- Reviewing authority and destination market
- Incoterm, port and required ship date
Confirm which pieces count inside the published minimum. The quoted date is the one that binds.
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
