Model sheet
3 factory configurations of FYF-01003
Every option below is a produced configuration with its own SKU. 3 finishes. Name the exact SKU on each purchase order line.
-
NO. FYF-01003CR
Chrome -
NO. FYF-01003LH
Gun Metal Grey -
NO. FYF-01003BK
Matte Black
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
One Code Per Finish
FYF-01003 carries a separate code for each of its three finishes
Chrome, Gun Metal Grey and Matte Black each have their own SKU on this set, so a mixed specification is picked against codes rather than against a colour description in an email.

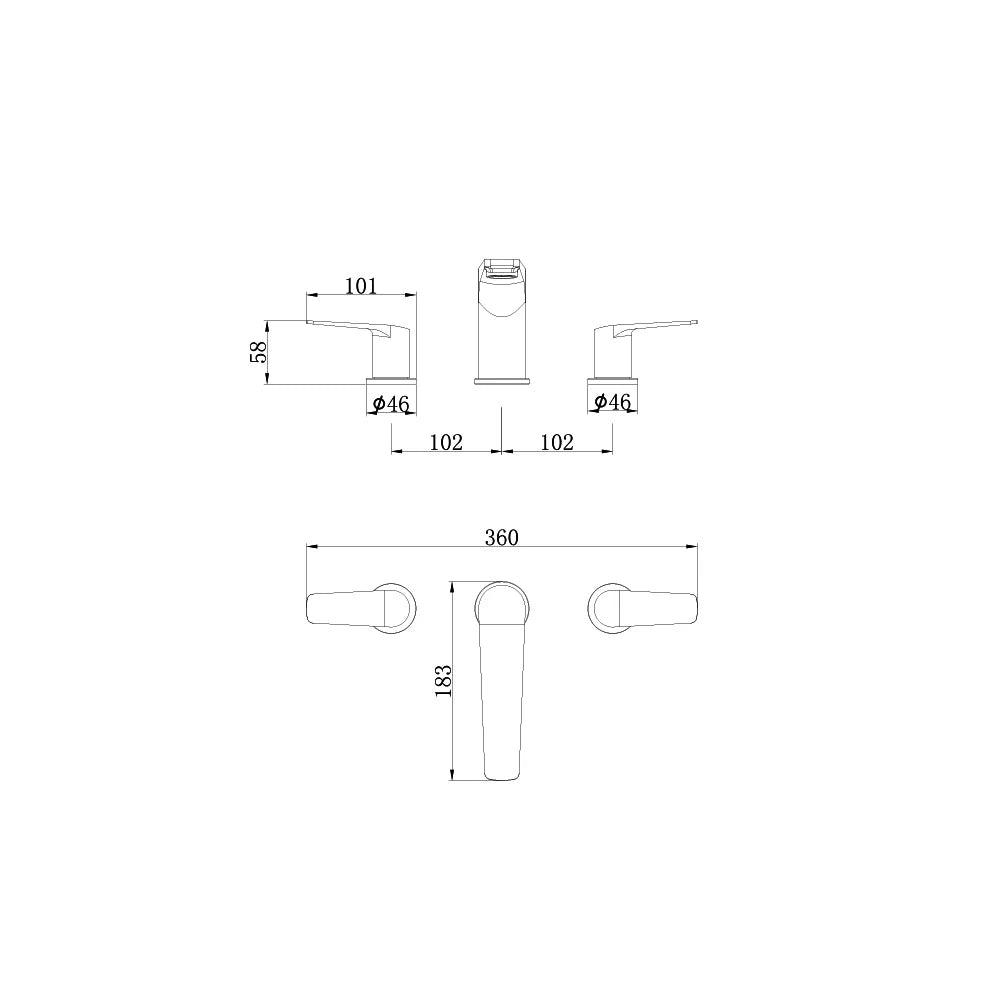

Three codes on one drawing
FYF-01003CR, FYF-01003LH and FYF-01003BK are the published codes, and one drawing covers all three.
A soft curve rather than a high arc
The spout on this model curves gently instead of climbing. It keeps the profile low across a wide three hole deck.
Set the code list before the PO, then draw the rest of the deck from the widespread faucet collection.
Span & Drilling
Three holes at 8 inch centres for FYF-01003
Deck mounted, three hole, at 8 inch widespread centres.
- Overall Size
- 14.2" x 7.2" (360 x 183 mm)
- Mounting
- Deck-mounted, 3-hole
- Hole Centres
- 8" widespread
- Handles
- Dual lever
The hole centres and the overall figure are two different numbers. Drill to the centres and take deck clearance from the drawing.
Connection detail under the deck is not published. Ask for the drawing against FYF-01003.
A wide spread needs a wide vanity.
Construction & Finish
Brass trim in bright, grey and black
Material is recorded as brass in the product record.
Finish · 3
Chrome, Gun Metal Grey, Matte Black
Chrome, Gun Metal Grey and Matte Black run off one tooling family. Gun Metal Grey is the dark option that is not black, which is what some brand standards ask for by name.
-

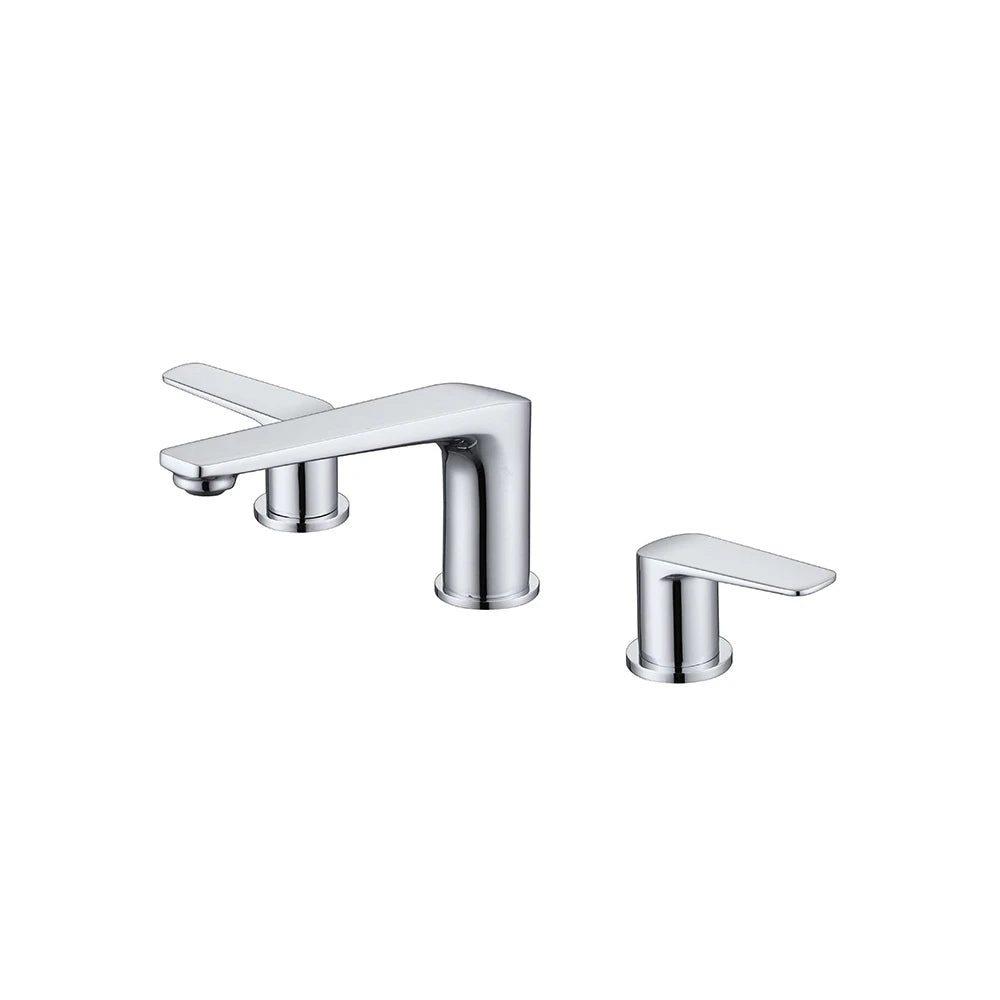

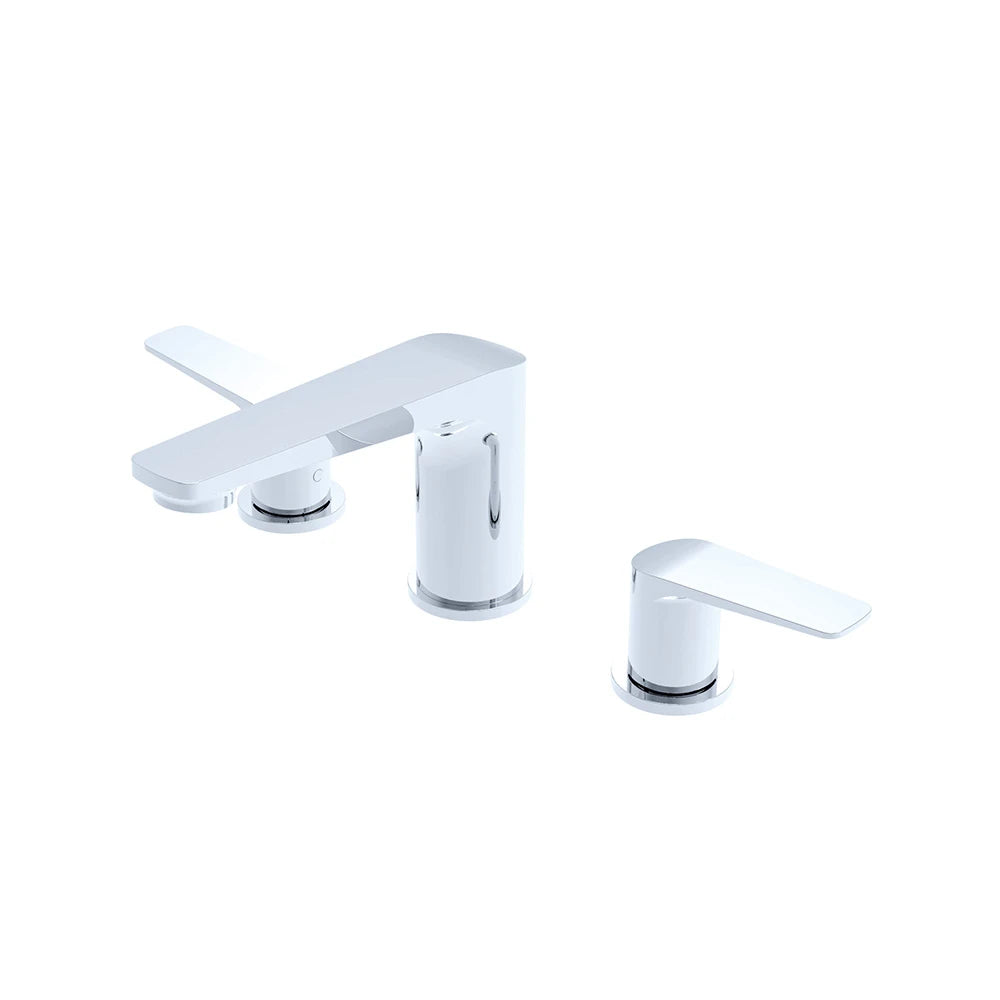

Chrome
-

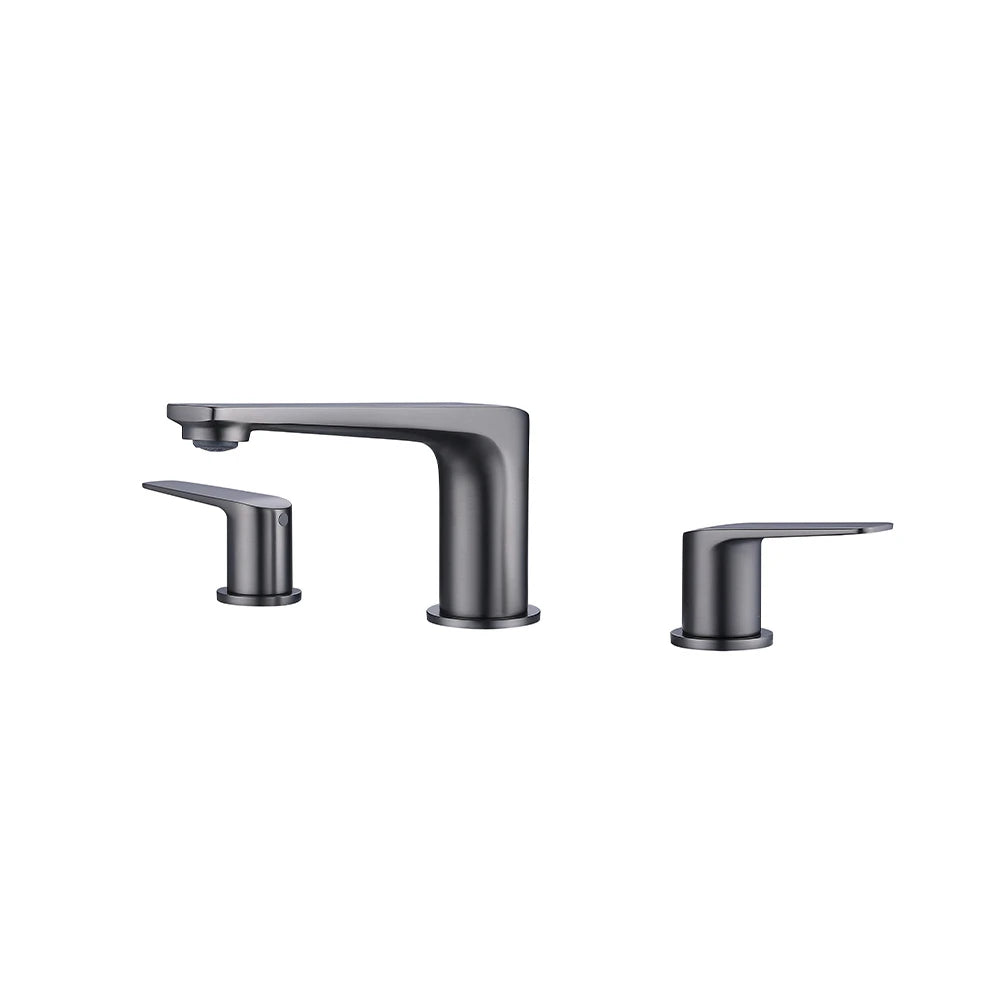

Gun Metal Grey
-

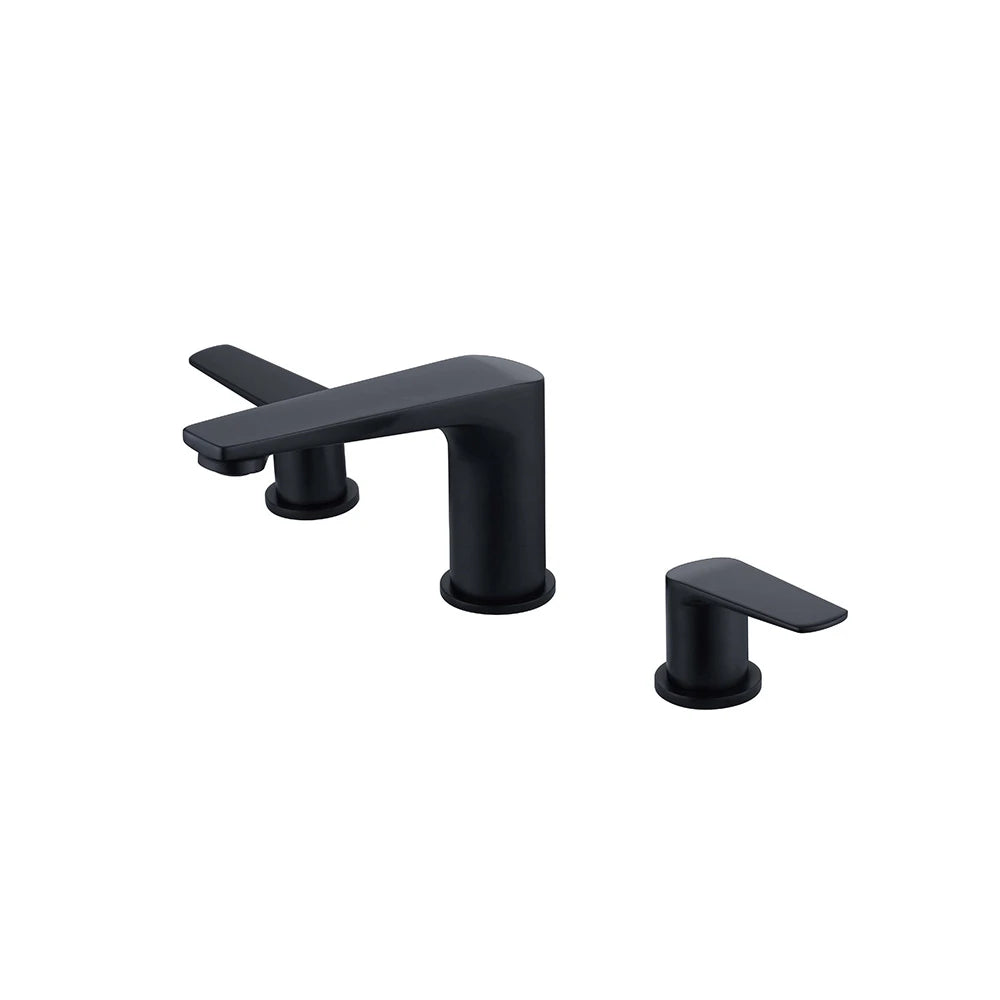

Matte Black
The finish is fixed at order stage, and finishes can be mixed inside one order.
Quote the finish code and the finish name together.
Documents
cUPC listing for FYF-01003
Drawing and spec sheet are issued against FYF-01003 on request.
FYF-01003 is cUPC listed. The published specification also holds material, type, mount, finish, size and MOQ. Before it goes into a submittal, request the current listing number and certificate validity so the documentation matches your destination market.
Procurement
Buying FYF-01003 by finish code
SANIKB makes the trim, so the order is written against codes rather than descriptions.
- Published MOQ
- 100 pcs
- Standard Lead Time
- 30–45 days after sample approval
MOQ is 100 pcs. Three finish codes sit on one purchase order, which keeps a mixed specification to one inspection and one container.
Private label cartons, logo printing, custom finish and packaging artwork are covered under the SANIKB OEM and ODM programme. Quotes are answered within 12 business hours.
Include these details with the RFQ
- Quantity per finish code
- Hole centres on the ware
- Deck thickness at the drilling
- Supply hose length and thread
- Destination market, port and incoterm
List the finish code on every PO line.
