Fluted Corner Bathtub on Plinth Base, Left/Right Hand, 59 & 67 in

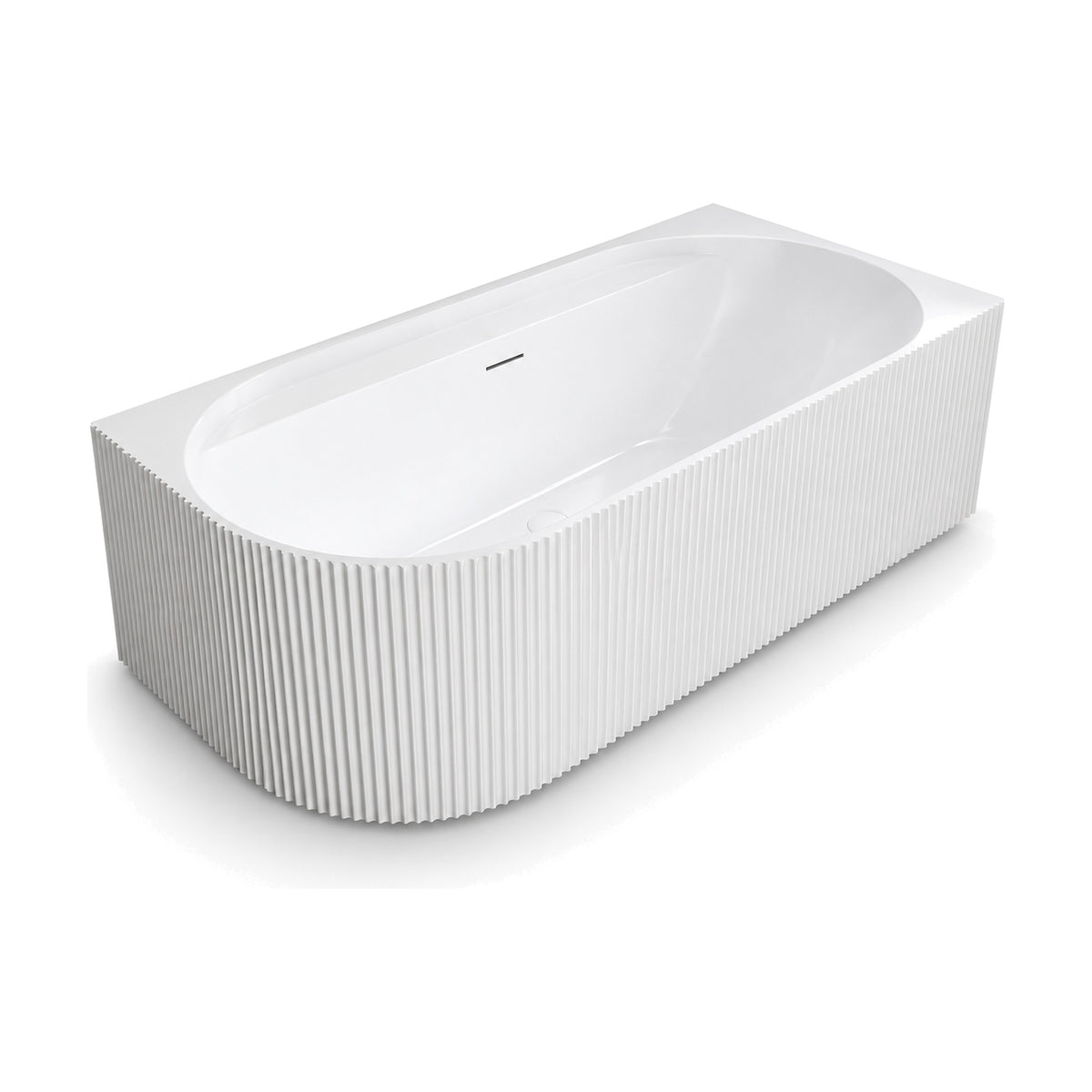

SANIKB CJ01 is a fluted corner freestanding bathtub in white acrylic, with vertical fluting on the exposed front and rounded end, set on a plinth base. The back and the squared end stand against two walls, and a smooth oval double-ended basin has a centered overflow and drain. Sizes: CJ01-150L and CJ01-150R at 1500 × 750 × 580 mm (59 × 29.5 × 22.8 in); CJ01-170L and CJ01-170R at 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in). Because the rim is not drilled for taps, water comes from a floor-standing or wall-mounted filler. The model is cUPC certified, with quotes issued within 12 business hours.
Compare it with other models in the corner bathtubs collection.
More in Corner Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
B8007Two-Person Corner Whirlpool Tub with Curved Front Window, 59 in59" × 59.1" × 22.4"Corner (two sides to the walls)
-
D-8303Corner Freestanding Bathtub, Tapered Front, Flared Skirt, 59 & 67 in59" / 67" × 30.7" × 23.6"Corner (two sides to the walls)
-
AB03Corner Freestanding Bathtub, Rounded Open End, Left/Right Hand, 67 in67" × 30.7" × 23.6"Corner (two sides to the walls)
-
FT020/FT021Single-Ended Corner Apron Bathtub, Rounded Outer Corner, 59 & 67 in59" / 67" × 29.5" × 23.6"Corner (two sides to the walls)
Tub sheet
Size and installation of CJ01
Every option below is a produced configuration with its own SKU. 2 sizes × 2 hands. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size | Hand |
|---|---|---|
| CJ01-150L | 59" x 30" | Left-hand |
| CJ01-150R | 59" x 30" | Right-hand |
| CJ01-170L | 67" x 31" | Left-hand |
| CJ01-170R | 67" x 31" | Right-hand |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 30"CJ01-150L/R | 67" x 31"CJ01-170L/R | |
|---|---|---|
| Overall L×W×D | 59″ × 29.5″ × 22.8″ 1500 × 750 × 580 mm | 67″ × 31.5″ × 22.8″ 1700 × 800 × 580 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Fluting & Base
Vertical fluting on the two open sides
CJ01 carries vertical fluting across its exposed front and rounded end. The back and the squared end, which stand against walls, are plain. The tub sits on a plinth base.
Fluted where it is seen
Only the room-facing sides are fluted: the front edge and the rounded end carry vertical flutes, while the back edge and the squared end, which meet the walls, are plain.
Smooth oval basin, centered drain
Inside, the basin is smooth and oval with both ends shaped as backrests. The overflow and drain are centered, with the drain 270 mm from the back edge, and the inner depth is 456 mm.
Plain-sided corner tubs sit alongside it in the corner bathtub range.
Fit & Footprint
Two sizes, each in left and right hand
CJ01 is made at 1500 × 750 mm and 1700 × 800 mm, both 580 mm (22.8 in) high, with an L and an R version of each.
- CJ01-150L / R
- 59" × 29.5" × 22.8" (1500 × 750 × 580 mm)
- CJ01-170L / R
- 67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
- Installation
- Corner, two walls, plinth base
- Filler
- Floor-standing or wall-mounted

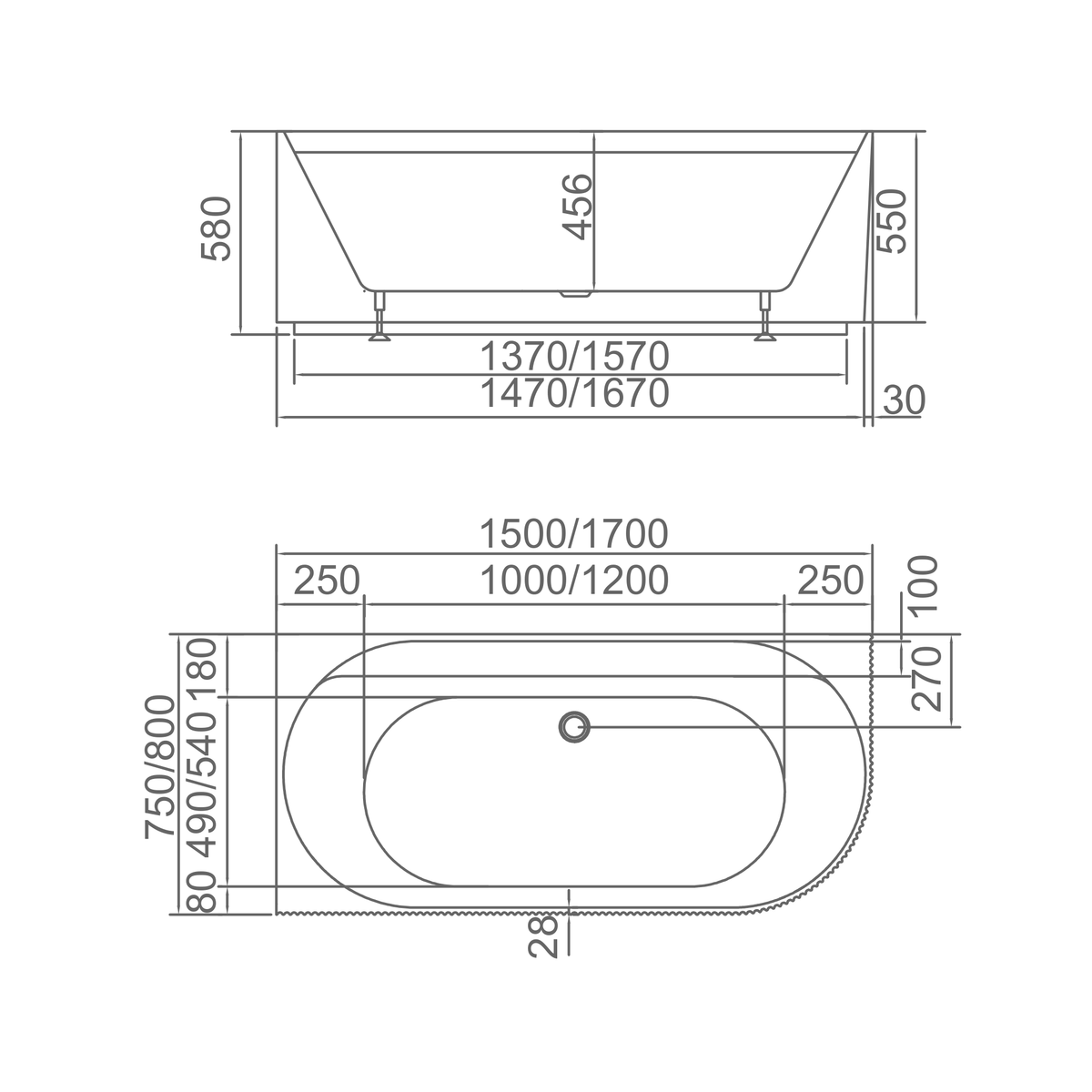

The drawing sets the basin floor 250 mm in from each end, 1000 mm (1500 size) or 1200 mm (1700 size) long, and 490 mm or 540 mm wide, 180 mm from the back edge and 80 mm from the front edge.
Check the approved drawing for the hand you order before the room is tiled.
Construction & Finish
Fluted white acrylic on a plinth
The pure acrylic shell of CJ01 is made in white, with flutes formed on the two exposed sides and a smooth finish inside the basin.
White
Fluting in one color
CJ01 is made in white, across the fluted sides and the smooth basin alike.
The plinth carries the tub, so there are no separate feet to set. The elevation also marks a 30 mm step at the rounded end, worth checking where floor trims meet the base.
Fluted faces have more edges to protect than a plain skirt. Agree carton protection for the fluting and a damage reporting process before shipment.
Inspect the fluted faces on arrival and note any marks or cracks before installation.
Compliance
CJ01: cUPC certified
All four CJ01 SKUs sit under one model name. Request documents against CJ01 and list the SKUs on the order.
CJ01 is cUPC certified across its sizes and hands. Request the current certificate number and its validity when a submittal is prepared for your market.
Send the destination market and the documents you need with the inquiry; a written response on CJ01 follows within 12 business hours.
Procurement
Ordering CJ01 by size and hand
Each size comes in left and right hand, giving four SKUs: CJ01-150L, CJ01-150R, CJ01-170L and CJ01-170R.
- Standard Lead Time
- 30-45 days after sample approval
- SKUs
- 4 (2 sizes × 2 hands)
Quantities per SKU are confirmed at quotation. Additional SANIKB models for the same project are in the bathtub manufacturer range.
Include these details with the RFQ
- Quantity for each of the four SKUs
- Room schedule showing the hand for each bathroom
- Destination market and port
- Floor-standing or wall-mounted filler
- Carton marking with size and hand
- Target ship date
The CJ01 lead time is indicative until confirmed in the quotation.
