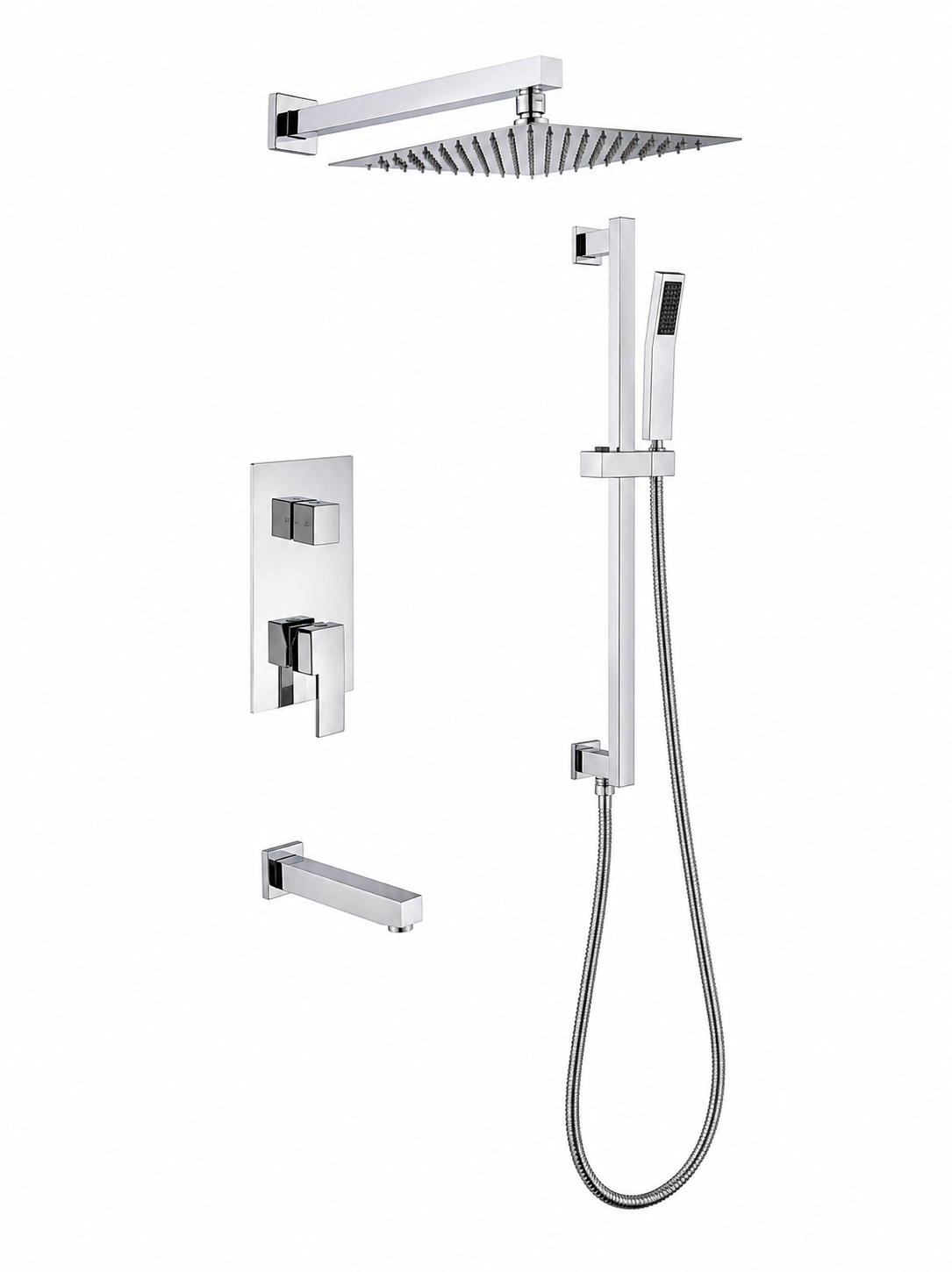

Chrome Square Rain Shower System with Slide Bar Handheld and Tub Spout

A diverter at the concealed valve routes flow to one outlet at a time. Users move between the overhead rain head, the slide-bar handheld and the tub filler spout from the wall. Only one outlet runs at once, which keeps pressure steady at whichever outlet is selected.

Yes. The handheld slides up and down a fixed bar, so one position suits a standing adult and another suits a seated or younger bather. Mount height for the bar is set at rough-in, so tell your installer where the bar should land before tile goes up.

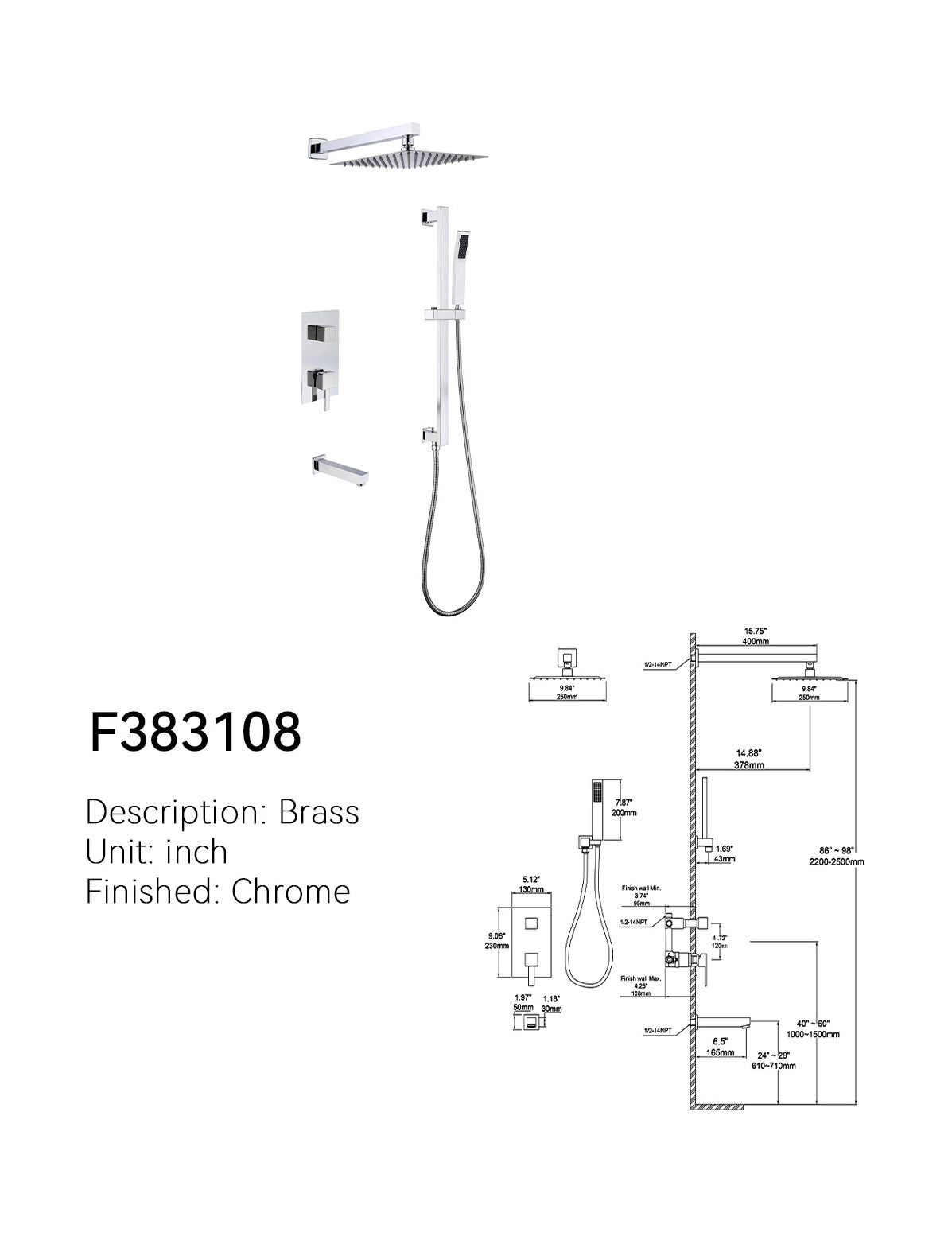

The valve installs behind the finished wall on a brass body. Confirm the in-wall valve depth and stud spacing against your framing before the trim goes on. The arm projects 15.75" (400 mm), so also check that the 9.84" head clears the shower niche and any glass panel. Getting this right at the start supports the bathroom's design and an informed decision on the order.

Yes, this concealed shower system has three outlets and suits hotel bathrooms where a tub and shower share a wall. It is cUPC certified with an MOQ of 100 pcs, and we supply the rough-in valve and finished trim together so contractors stage one package per room. Concealed systems like this also give the design team a cleaner wall than exposed pipework.

Yes. Custom finishes and private-label trim are available through our OEM and ODM programme, with project packaging on request. Give us your brand, the finish you want and the quantity, and we will confirm what can be produced before you commit to a purchase order.
