Brushed Nickel Square Tub and Shower Faucet Set, Single-Lever Concealed

Hotel, multifamily and showroom buyers who want a square wall plate can quote F348408 as a brushed nickel square concealed tub and shower faucet set, in-wall valve buried behind the tile so the wall shows trim only.

Round-plate kits in the same brushed nickel finish exist in our range. The choice between them comes down to the tile layout: a square plate sits naturally on rectangular tile, while a round plate suits a different wall pattern.

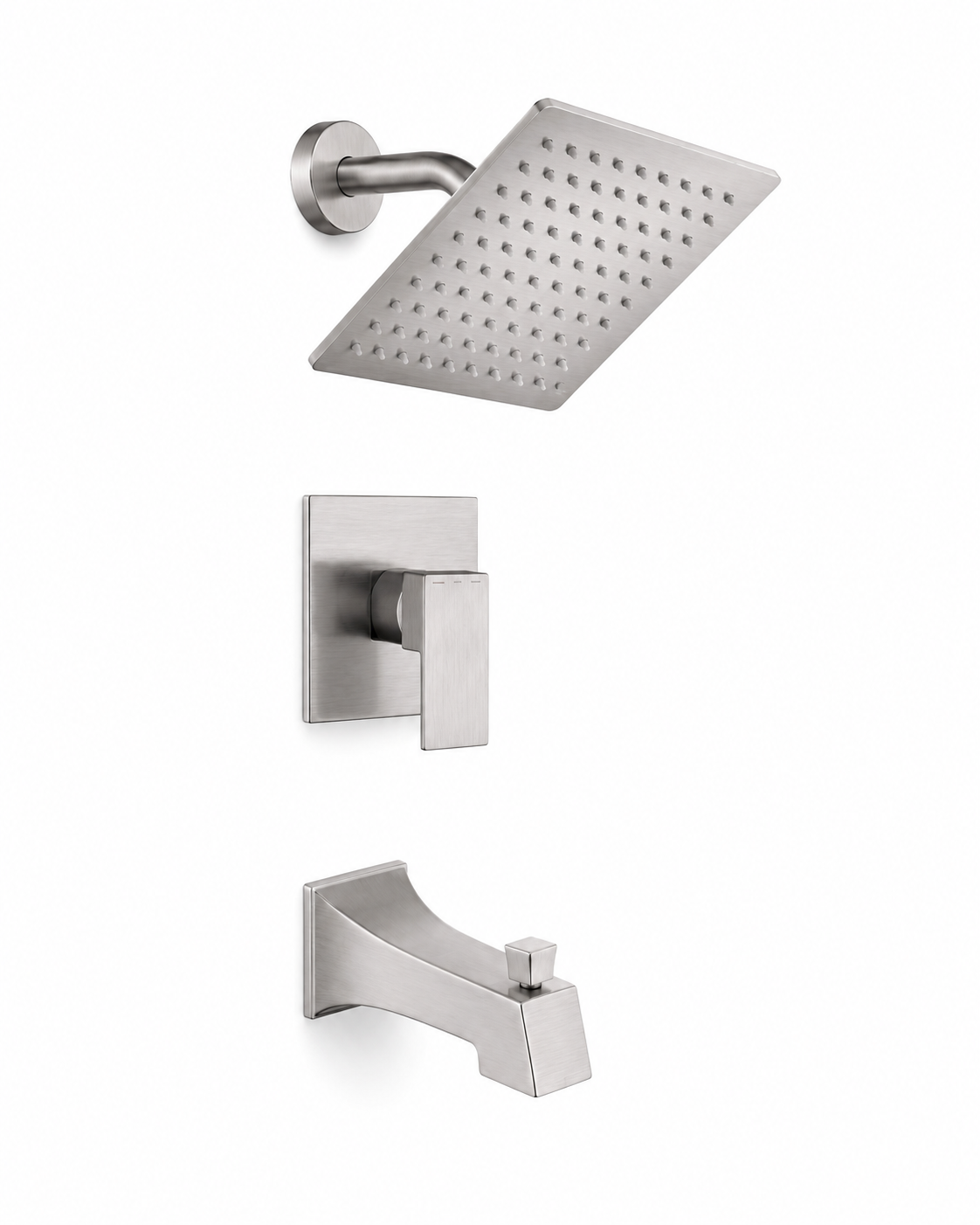

F348408 keeps three visible parts square: an 8" head, a 5.5" trim plate and a tub spout that projects 5.25". Head, plate and spout share one outline, so the wall reads as a single set.

Chrome or matte black rain-head systems are separate models with a different head and arm. If your specification calls for that, tell us and we will point you to the right model in the concealed shower faucets range.

For multifamily and hotel programs the same set repeats in every bathroom, which keeps rough-in dimensions and spare parts identical across units. Concealed installation also leaves the wall clean for tiling.

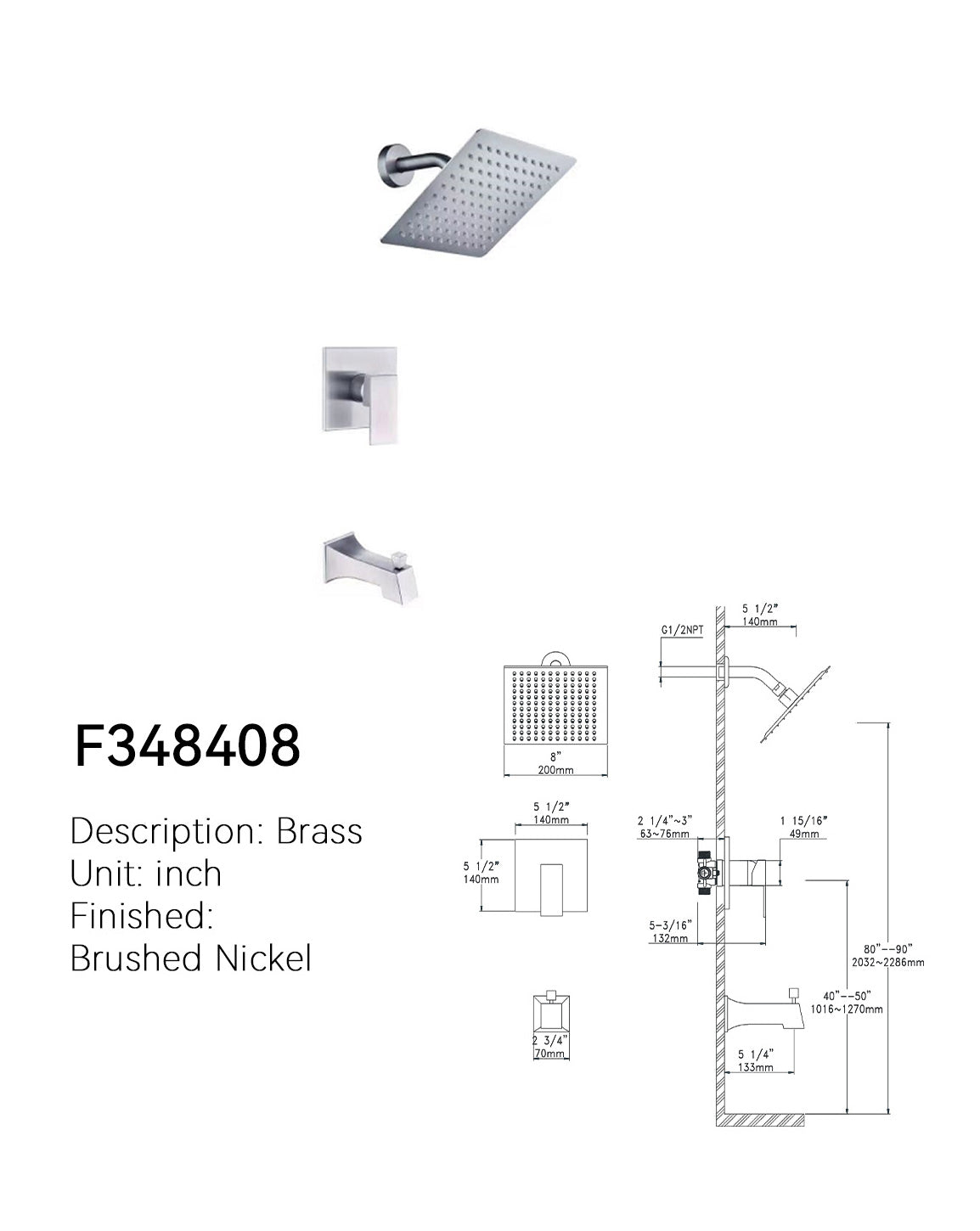

Three sizes decide the layout for a concealed installation, at rough-in and at fit-out.

Shower head

8" x 8" (200 x 200 mm)

Trim plate

5.5" x 5.5" (140 x 140 mm)

Tub spout

5.25" projection (133 mm)

Mount

Wall-mounted, concealed in-wall valve

Body

Solid brass

Finish

Brushed Nickel

The 140 mm plate covers a square of wall, so mark its center on the tile layout before the wall closes. The 133 mm spout projection sets how close the tub rim can sit to the wall. Settle both on the drawing, not on site.

Concealed shower faucet buyers usually ask three things first: who controls what, how the diverter behaves, and how service works after tiling. On this concealed shower, one lever does the mixing.

Behind the wall sits a solid brass body.

F348408 is cUPC certified. A concealed shower valve that sits inside a wall gets more scrutiny from inspectors than an exposed tap, because replacing it means opening the wall.

Valve and trim are checked together, so name the finished wall thickness on your drawing when you send the request. A buried valve cannot be changed once the wall is closed.

Minimum order is 100 pcs of this set, built at our factory in Foshan.

MOQ

100 pcs

Standard Lead Time

30-45 days (typical)

Count the complete sets per room type and per building, and we quote against your schedule. Each concealed shower faucet set is built to the same rough-in.

Private label packaging runs through the SANIKB OEM and ODM service.
