Corner Freestanding Bathtub, Tapered Front, Flared Skirt, 59 & 67 in

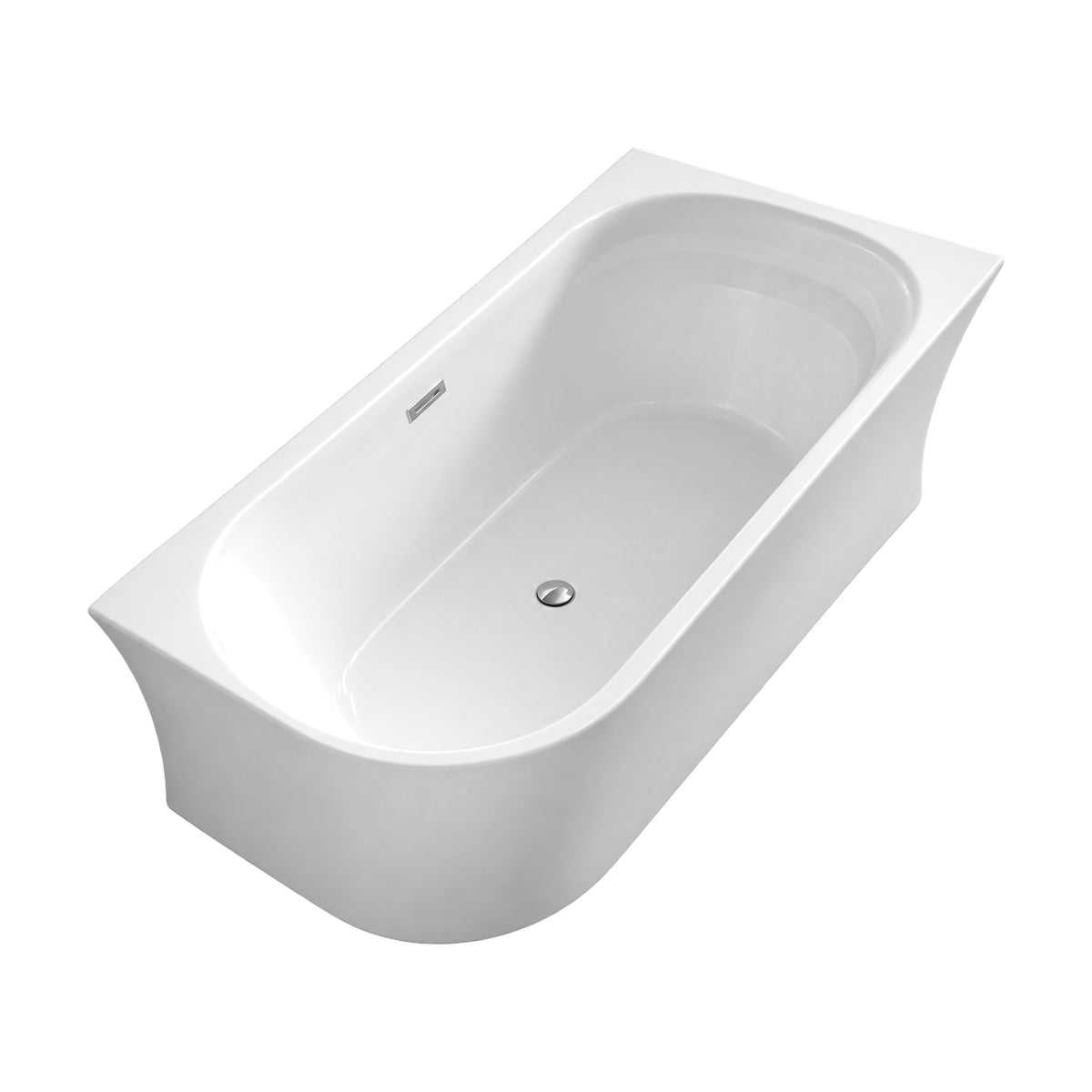

SANIKB D-8303 is a corner freestanding bathtub in white acrylic with a straight back, one square end for the second wall and a rounded open end. Its front edge tapers from 780 mm to 740 mm toward the square end, and the front skirt flares out at the floor. The oval basin is double ended with a center drain. The rim is left without tap holes, so the filler either stands beside the rounded open end or mounts on one of the two walls. There are four SKUs: D-8303-150L and D-8303-150R at 1500 × 780 × 600 mm (59 × 30.7 × 23.6 in), and D-8303-170L and D-8303-170R at 1700 × 780 × 600 mm (67 × 30.7 × 23.6 in). Every D-8303 SKU is cUPC certified, and quotations are sent within 12 business hours.
See more in the SANIKB corner bathtubs collection.
More in Corner Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
B8007Two-Person Corner Whirlpool Tub with Curved Front Window, 59 in59" × 59.1" × 22.4"Corner (two sides to the walls)
-
CJ01Fluted Corner Bathtub on Plinth Base, Left/Right Hand, 59 & 67 in59" / 67" × 29.5" / 31.5" × 22.8"Corner (two sides to the walls)
-
AB03Corner Freestanding Bathtub, Rounded Open End, Left/Right Hand, 67 in67" × 30.7" × 23.6"Corner (two sides to the walls)
-
FT020/FT021Single-Ended Corner Apron Bathtub, Rounded Outer Corner, 59 & 67 in59" / 67" × 29.5" × 23.6"Corner (two sides to the walls)
Tub sheet
Size and installation of D-8303
Every option below is a produced configuration with its own SKU. 2 sizes × 2 hands. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size | Hand |
|---|---|---|
| D-8303-150L | 59" x 31" | Left-hand |
| D-8303-150R | 59" x 31" | Right-hand |
| D-8303-170L | 67" x 31" | Left-hand |
| D-8303-170R | 67" x 31" | Right-hand |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 31"D-8303-150L/R | 67" x 31"D-8303-170L/R | |
|---|---|---|
| Overall L×W×D | 59″ × 30.7″ × 23.6″ 1500 × 780 × 600 mm | 67″ × 30.7″ × 23.6″ 1700 × 780 × 600 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Shape & Skirt
Tapered front and a skirt that flares at the floor
D-8303 sets its straight back and square end against two walls. The open end is rounded, the front edge tapers toward the square end, and the front skirt flares outward where it meets the floor.
780 mm wide, 740 mm at the square end

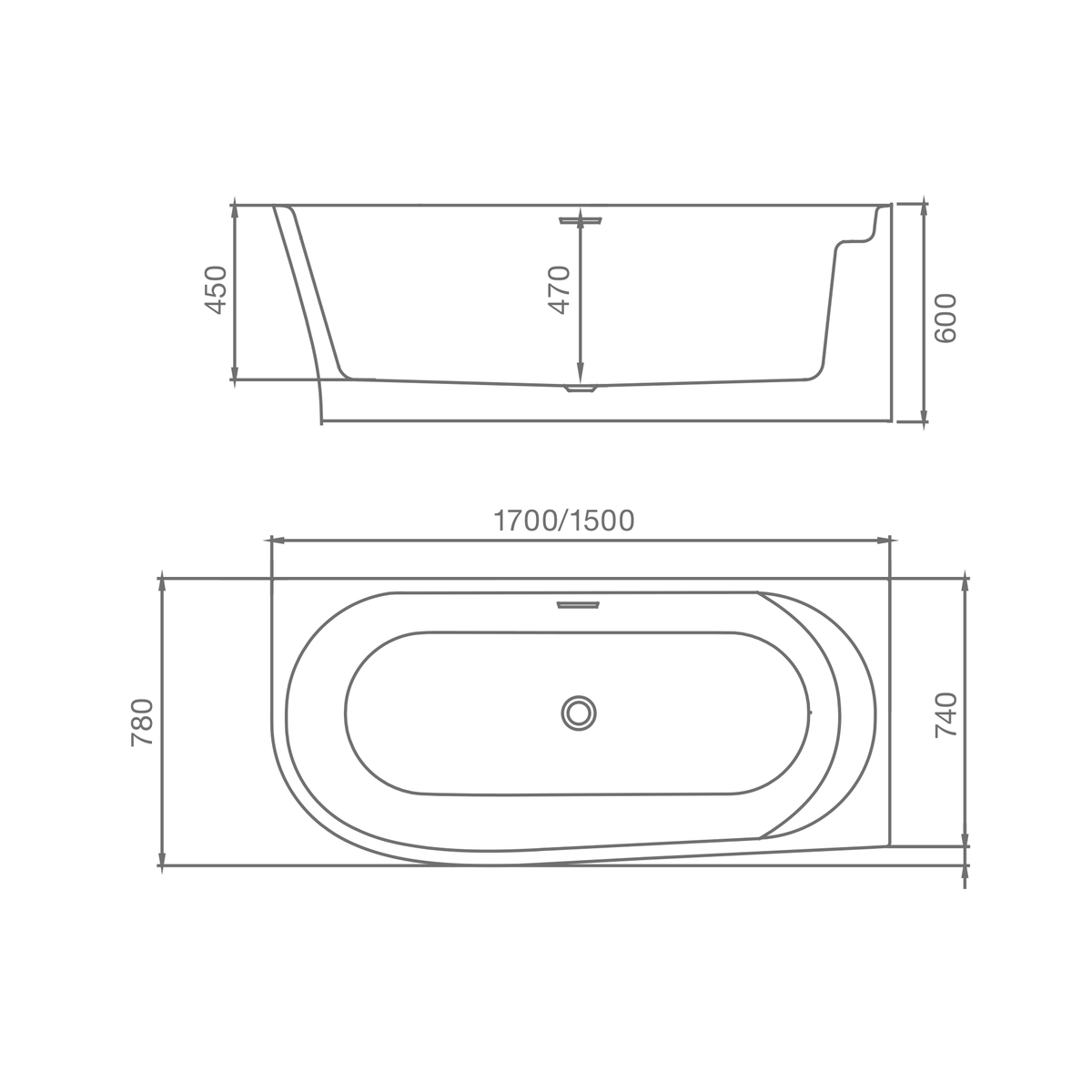

In plan the front edge narrows from 780 mm to 740 mm toward the flat end. That narrower square end is the one that meets the second wall.
Vertical square end, raked rounded end
The elevation shows the square end vertical and the rounded end raked. Inside, depth is 450 mm near the rounded end and 470 mm at the center, and the overflow sits on the back edge.
Compare other corner outlines in the corner bathtub range.
Fit & Footprint
1500 or 1700 mm long, 780 mm wide
Both lengths are 780 mm (30.7 in) wide and 600 mm (23.6 in) high, and each length is made in left and right hand.
- D-8303-150L / R
- 59" × 30.7" × 23.6" (1500 × 780 × 600 mm)
- D-8303-170L / R
- 67" × 30.7" × 23.6" (1700 × 780 × 600 mm)
- Installation
- Corner, against two walls, no feet
- Drain
- Center drain, overflow on the back edge
The corner outline for the hand you order is taken from its approved drawing before the walls are finished.
Check that the room corner is square, since the back and the square end of the tub are both straight edges.
Construction & Finish
White acrylic with a flared skirt
D-8303 is made from pure acrylic sheet in white, with a front skirt that flares out where it meets the floor.
White
One color, both hands
D-8303 is made in white only, so left-hand and right-hand units installed side by side on a project match.
The skirt stands directly on the floor without feet or a plinth. Its flare at the base is part of the outline, so allow for it when fixing skirting or floor trims.
Agree carton marking by hand and a transit damage procedure before the order ships.
Note any damage at unloading and report it within the agreed period.
Compliance
D-8303 certification: cUPC
Request documents against D-8303 and list the L and R SKUs on the order so each is covered.
D-8303 is cUPC certified. Ask for the current certificate number and its validity for your destination market before the model goes into a submittal.
Add your market and document requirements to the inquiry; a written reply for D-8303 is issued within 12 business hours.
Procurement
Ordering D-8303 by length and hand
Two lengths in two hands make four D-8303 SKUs: D-8303-150L, D-8303-150R, D-8303-170L and D-8303-170R.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Within 12 business hours
Quantities for each SKU are fixed at quotation. For other models on the same project, see the bathtub manufacturer range; own-brand packing is handled under OEM and ODM service.
Include these details with the RFQ
- Quantity per SKU, including hand
- Unit or room schedule by hand
- Destination market and port
- Floor or wall filler choice for each D-8303 room
- Carton marking
- Requested shipping window
Use the quotation, not this page, for the confirmed D-8303 lead time.
