Corner Freestanding Bathtub, Rounded Open End, Left/Right Hand, 67 in

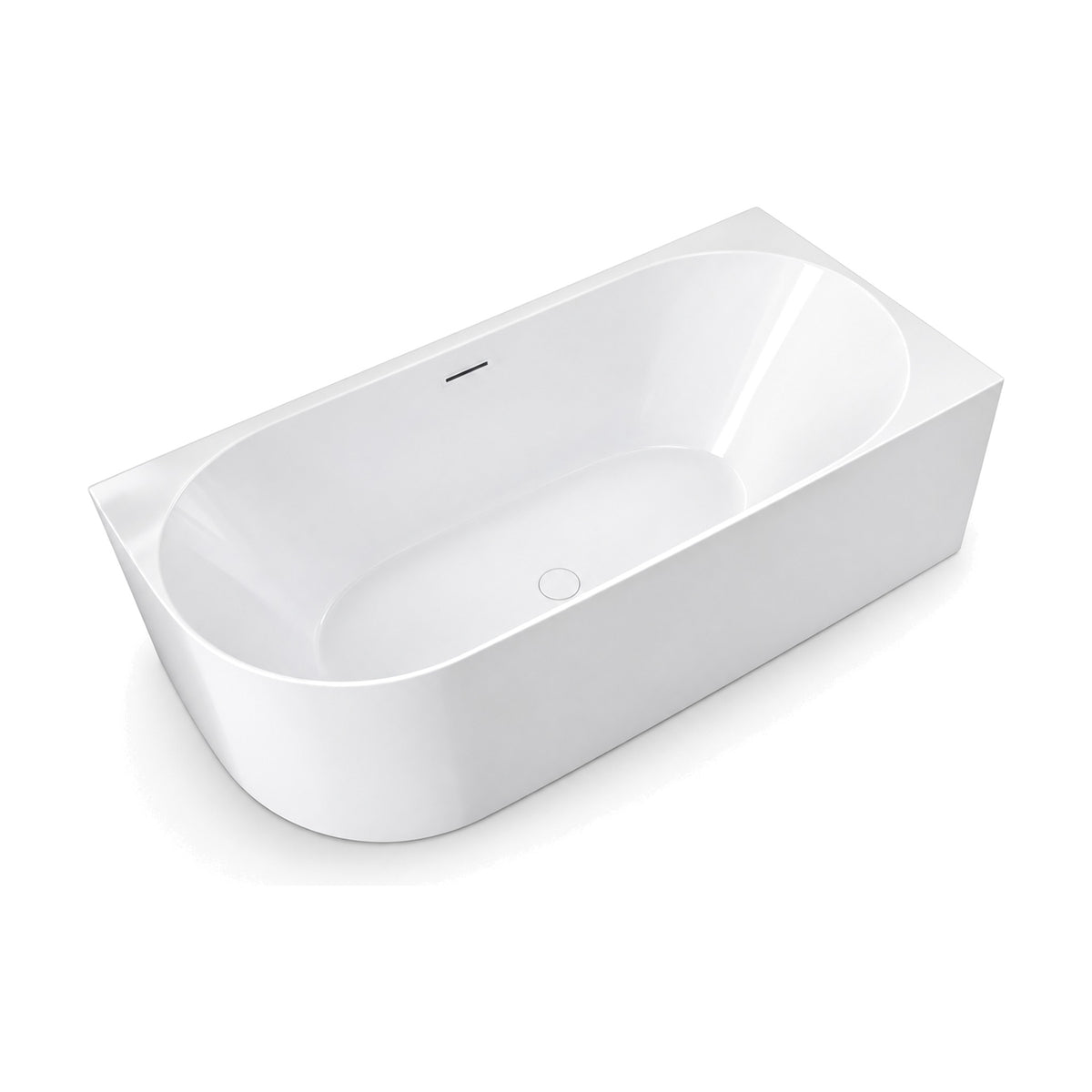

SANIKB AB03 is a corner freestanding bathtub in white acrylic, 1700 × 780 × 600 mm (67 × 30.7 × 23.6 in), made as AB03-170L and AB03-170R for left-hand and right-hand corners. The back and one squared end stand against two walls, the other end is rounded, and a slim rim frames an oval double-ended basin with wider flat decks at the squared end. Fill it from a floor-standing or wall-mounted filler, as the rim has no tap holes. AB03 is cUPC certified, and SANIKB returns written quotes within 12 business hours.
See every corner layout in the SANIKB corner bathtubs collection.
More in Corner Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
B8007Two-Person Corner Whirlpool Tub with Curved Front Window, 59 in59" × 59.1" × 22.4"Corner (two sides to the walls)
-
D-8303Corner Freestanding Bathtub, Tapered Front, Flared Skirt, 59 & 67 in59" / 67" × 30.7" × 23.6"Corner (two sides to the walls)
-
CJ01Fluted Corner Bathtub on Plinth Base, Left/Right Hand, 59 & 67 in59" / 67" × 29.5" / 31.5" × 22.8"Corner (two sides to the walls)
-
FT020/FT021Single-Ended Corner Apron Bathtub, Rounded Outer Corner, 59 & 67 in59" / 67" × 29.5" × 23.6"Corner (two sides to the walls)
Tub sheet
Size and installation of AB03
Every option below is a produced configuration with its own SKU. 1 size × 2 hands. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size | Hand |
|---|---|---|
| AB03-170L | 67" x 31" | Left-hand |
| AB03-170R | 67" x 31" | Right-hand |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Shape & Hand
Two walls, one rounded open end
AB03 is a corner tub: the long back and one squared end go against walls, and the opposite end is rounded and open to the room. Inside, a slim stadium-shaped rim surrounds an oval basin.
Left-hand and right-hand SKUs
AB03-170L and AB03-170R are the left-hand and right-hand versions of the same tub. An approved drawing is issued for each hand, so match the one you order to the corner on the floor plan.
Vertical squared end, flared rounded end

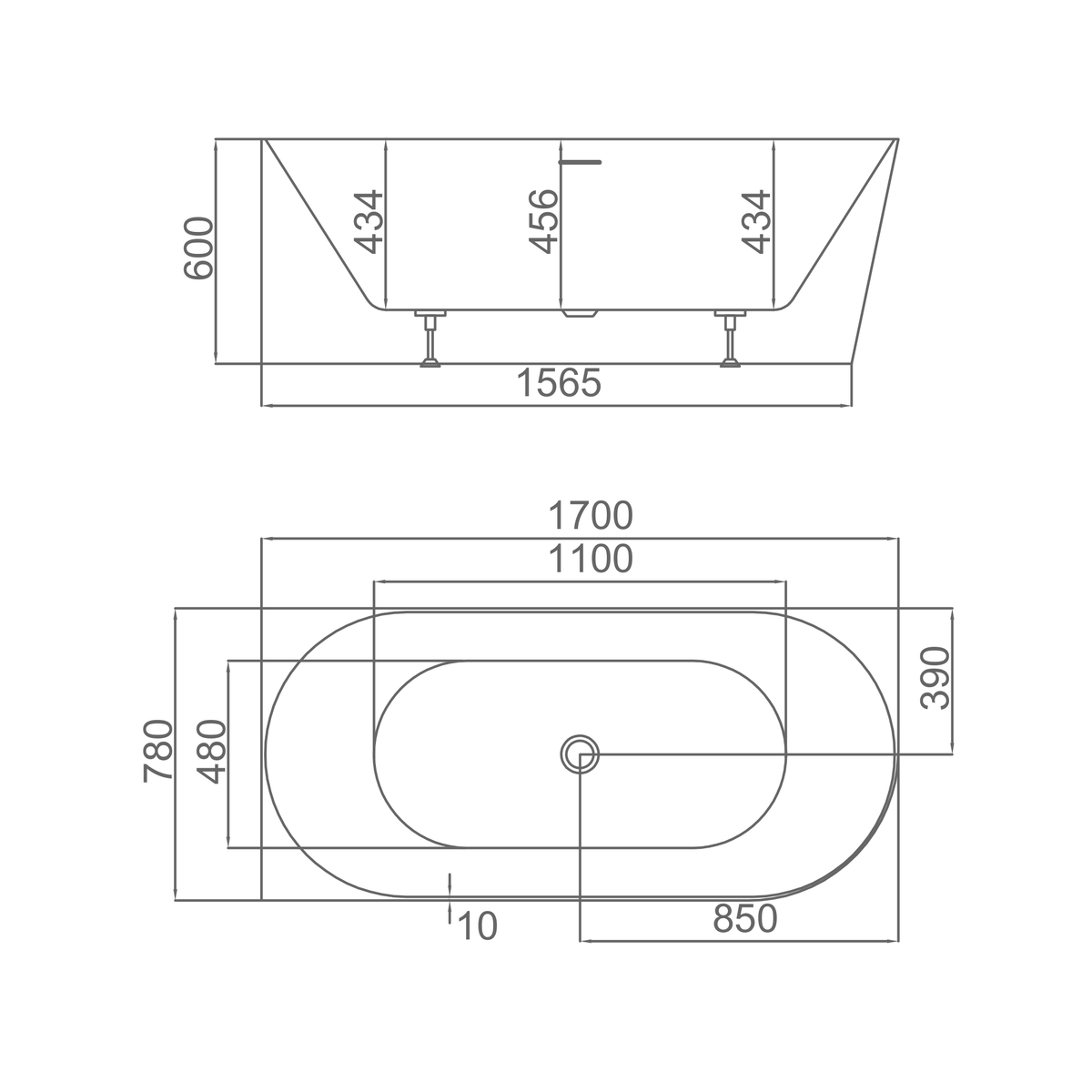

In elevation the squared end is vertical and the rounded end flares outward. The base is 1565 mm long against the 1700 mm overall length.
Other corner shapes, including fluted and tapered designs, are in the corner bathtub range.
Fit & Footprint
1700 × 780 mm for a two-wall corner
AB03 is made in one size in both hands: 67 in long, 30.7 in wide and 23.6 in high. The basin floor is 1100 × 480 mm.
- Overall Size
- 67" × 30.7" × 23.6" (1700 × 780 × 600 mm)
- SKUs
- AB03-170L, AB03-170R
- Installation
- Corner, two walls, flat to the floor
- Filler
- Floor-standing or wall-mounted
The drain is centered at 850 mm along the length and set 390 mm from the back edge. Inner depth is 434 mm at each end and 456 mm at the center.
Confirm the corner outline on the approved drawing for the hand you order before the walls are finished.
Construction & Finish
White acrylic with flat corner decks
AB03 uses pure acrylic sheet in white; its rim is thin at the front and widens into flat decks at the squared end.
White
Matching units in both hands
The L and R versions are made in the same white, so mirrored bathrooms on one project stay consistent.
The squared end carries wider flat decks at its corners, while the front rim is thin. The tub stands directly on the floor.
L and R units look alike until they are unpacked, so pack each hand in clearly marked cartons. Settle how transit damage is reported before loading.
Label cartons with the full SKU, including the L or R suffix.
Compliance
AB03 and cUPC
AB03-170L and AB03-170R share the AB03 model name, so documents are requested against AB03.
AB03 is cUPC certified in both hands. When a submittal is due, ask for the current certificate number and its validity for your market.
Tell us the destination and the documents required at inquiry stage; answers are given within 12 business hours.
Procurement
Ordering AB03 by hand
Order by hand, AB03-170L or AB03-170R, with the quantity of each confirmed at quotation.
- Standard Lead Time
- 30-45 days after sample approval
- Hands
- Left and right
If the project mixes corner and back-to-wall tubs, put each model on the same inquiry; other models are in the bathtub manufacturer range.
Include these details with the RFQ
- Quantity of AB03-170L and AB03-170R
- Floor plan or room list showing which hand goes where
- Destination market and port
- Filler scope: floor-standing or wall-mounted
- Carton marking with the hand suffix
- Shipping window
The quoted AB03 lead time replaces the indicative figure above.
