Towel Bar Size: The Spec Reference Buyers Actually Need
If you write specs for hotels, multifamily, tenant-improvement projects or a private-label bathroom hardware program, "towel bar" is rarely a one-line item. The wrong towel bar size means a 24-inch bar that holds one bath towel where the drawing called for two, brackets that don't land where the blocking is, or a finish that doesn't match the towel ring two feet away. None of that surfaces until installation day, and by then it is a change order. This guide is built from the factory floor to help procurement and spec writers lock length, configuration, mounting and — the detail buyers search most — the concealed set screw, before the PO is cut.
SANIKB manufactures wall-mounted SUS304 stainless steel bathroom accessories in seven finishes, and we ship the matching set screw and Allen key in the box on every bar. Below are the standard lengths, how to choose by towel count, single-versus-double tradeoffs, mounting-height conventions, bracket center-to-center spacing, and how the set-screw hardware actually works — with honest ranges where the exact figure depends on the model. When you are ready to price, our wholesale towel bars and the full bathroom hardware program are linked throughout.
Standard Towel Bar Lengths (Imperial and Metric)
"Towel bar length" usually refers to the nominal bar length — the overall dimension a spec sheet calls out. The three sizes that cover the overwhelming majority of residential and hospitality projects are 18 in, 24 in and 30 in. In metric markets these map closely to 450 mm, 600 mm and 750 mm. Note that nominal and exact center-to-center are not the same number: the mounting span between the two bracket centers is shorter than the nominal bar length because the posts sit inboard of the bar ends. Always confirm the actual center-to-center for blocking and backer placement; SANIKB supplies it on the dimension drawing per model.
An 18 in bar is a compact size for powder rooms and tight wall runs. The 24 in bar is the default residential bath-towel size and the most-specified length overall. The 30 in bar is the workhorse for hospitality and any wall that needs to carry more than one towel. There is no single universal "standard" — the right length is a function of how many towels the bar must hold and how much wall you have, which is exactly what the table below resolves.
What Size Towel Bar for 2 Towels?
This is the question that drives the most spec mistakes. A standard folded bath towel occupies roughly 11 to 13 inches of bar when hung to dry properly with air gap. That means a 24 in single bar comfortably carries one bath towel (or two hand towels) — it will not give two bath towels the spacing they need to dry. For two bath towels on a single horizontal bar, spec 30 in or longer, which gives each towel its own drying zone. The alternative, and often the better project answer, is a double towel bar: two parallel rails on one bracket pair, doubling capacity without doubling the wall footprint.
For guest baths, hotel rooms and shared family baths where two towels are the norm, the decision tree is simple: if you have the wall run, a 30 in single is clean and easy to load; if wall space is tight, a 24 in or 30 in double gives you the same two-towel capacity in a narrower footprint. Both are valid project specs — the choice comes down to wall width and the look the designer wants.
Towel Bar Sizing Table
| Bar length (nominal) | Metric (approx.) | Towels held | Best room / use |
|---|---|---|---|
| 18 in | 450 mm | 1 hand towel, or 1 small bath towel snug | Powder room, narrow wall, beside vanity |
| 24 in | 600 mm | 1 bath towel comfortably, or 2 hand towels | Standard residential bath — most-specified single |
| 30 in | 750 mm | 2 bath towels with drying gap | Hospitality, master bath, shared family bath |
| 24 in double | 600 mm | 2 bath towels (stacked rails) | Tight walls needing two-towel capacity |
| 30 in double | 750 mm | 2 to 4 towels depending on type | High-turnover hotel rooms, pool / spa baths |
These are working ranges, not absolutes — towel thickness and how staff or guests load the bar both shift real capacity. Use them to set the spec, then confirm the exact model dimensions on the SANIKB drawing.

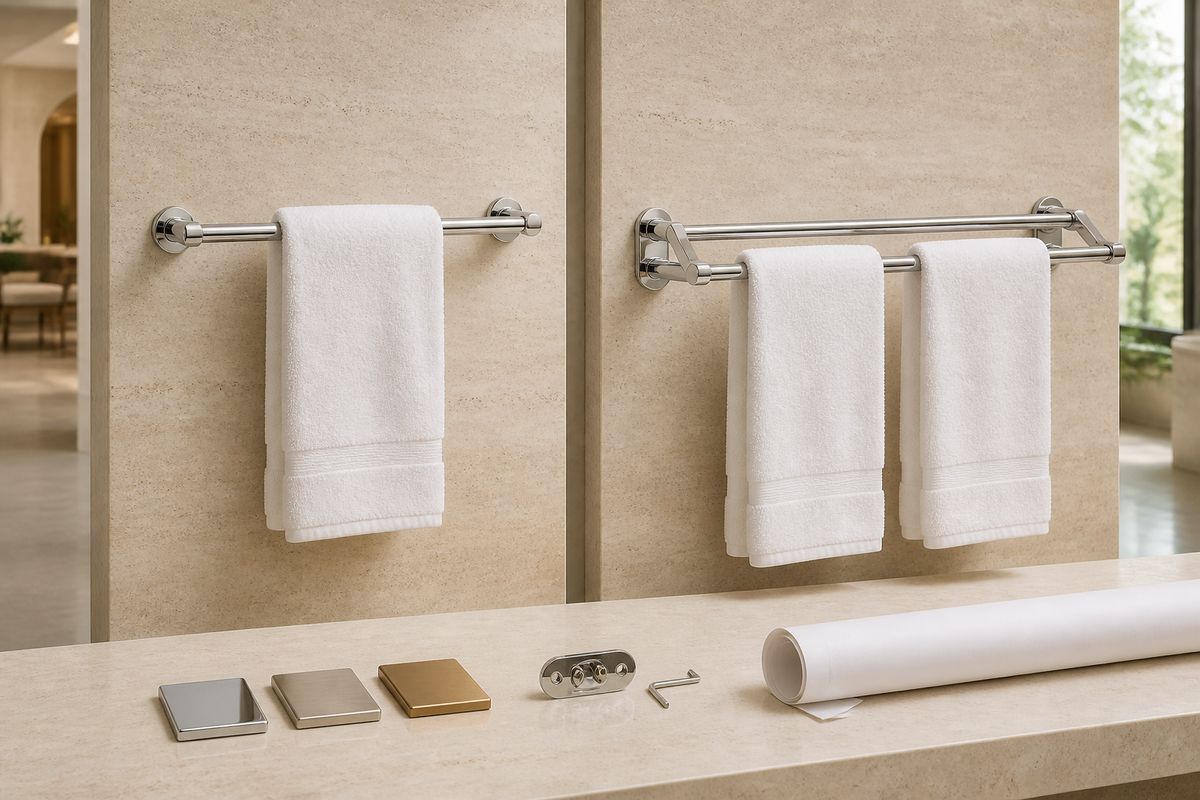

Single vs Double Towel Bar: The Tradeoff
A single bar is the cleaner line, costs less per unit, and is faster to install — one rail, two brackets. It is the right call when one towel per bar is the program (most residential vanities, powder rooms, and rooms where you are running multiple separate bars). A double towel bar puts two rails on the same bracket pair, so you get two-towel (or more) capacity in the same wall width as a single. That is the best double towel bar use case: hotel guest rooms, rentals and any high-turnover bath where capacity per square foot of wall matters more than the minimal look.
The tradeoffs to weigh in the spec: a double projects slightly further from the wall and reads heavier visually; a single is sleeker but caps you at one towel unless you go long. For project consistency, many buyers standardize on a 24 in single at the vanity plus a 30 in single or a double on the main towel wall. Whatever you choose, keep the finish and the bracket style consistent across the towel bars, the towel ring and the robe hooks in the same room — mismatched finishes are the most common field complaint on a multi-piece set.
SANIKB Towel Bar Models
TOWEL BAR CONFIGURATIONS TO SPECIFY
Confirm the exact model, finish, dimensions and project quantity on the current product page and submittal before purchase.
Current 821-series chrome single-bar configuration for coordinated bathroom hardware schedules.
View product & request pricing
Current brushed-gold bar for design-led hospitality and finish coordination.
View product & request pricing
Current commercial-series chrome single-bar configuration for contract schedules.
View product & request pricingSANIKB's wall-mounted SUS304 bars are built for projects that have to survive turnover, not for a single household. Three representative models from the line:
- Chrome single towel bar (821001) — the clean residential and light-commercial single, SUS304, concealed-screw wall mount, available across the seven-finish range.

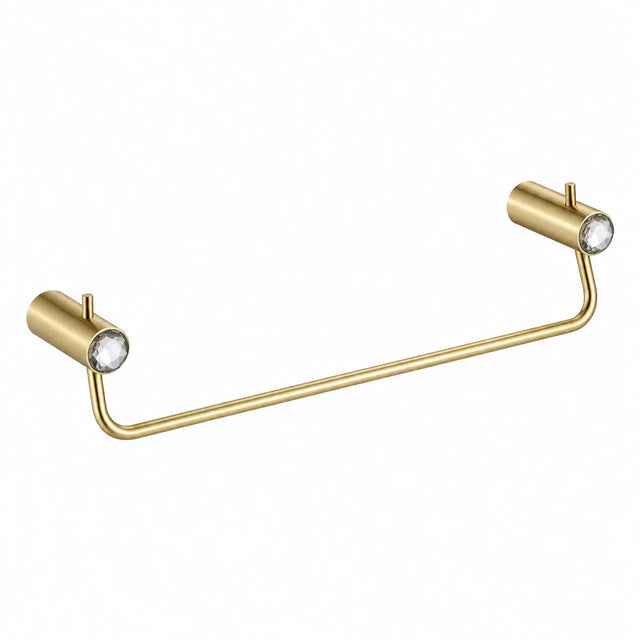

- Brushed gold single towel bar (823001) — the same single-bar geometry in a brushed gold finish for design-forward hospitality and private-label programs.
- Commercial chrome single towel bar (889001) — a heavier commercial-grade single bar specified for high-traffic and contract environments.
All SANIKB accessories are wall-mounted with concealed screws and made from SUS304 (18-8) stainless for corrosion resistance in wet baths. Available finishes are Chrome, Polished Chrome, Brushed Nickel, Polished Gold, Brushed Gold, Gun Grey and Antique Bronze, so a full set — bar, ring, hook, paper holder — can be matched across a project. For the project context on durable, contract-grade spec, see our guide to a contract-grade bathroom fixtures supplier, and for building a coordinated program see wholesale custom bathroom hardware sets sourcing.
Mounting Height and Bracket Spacing
Towel bar size is only half the install spec; mounting height and bracket layout are the other half. The common convention places the bar centerline around 48 in above finished floor for a standard bath towel, giving the towel room to hang without dragging the floor; in baths with longer towels or where the bar sits over a fixture, that height shifts up. Hand-towel bars beside a vanity sit lower, often in the 40 to 48 in band depending on counter height. These are conventions, not code — confirm against your project's accessibility and design requirements.
For bracket spacing, the load-bearing rule is to land both brackets on solid backing — stud, in-wall blocking, or an appropriate hollow-wall anchor rated for the load. Because the bracket center-to-center is inboard of the nominal length, do not assume a 24 in bar gives 24 in between fasteners. SANIKB provides the exact center-to-center on the per-model dimension drawing so your blocking and backer plates are placed correctly before the wall closes. Getting blocking right at rough-in is far cheaper than chasing anchors into tile later.
Set Screw Size for Towel Bars
The hardware detail buyers search most is the concealed set screw — the small fastener that locks the bar or its escutcheon onto the wall post once the post is mounted. On most wall-mounted bars this is a small hex (grub) set screw driven with an Allen key, tucked under the post or escutcheon so it is invisible once installed. There is no single universal "set screw size for a towel bar": the thread and the hex-key size vary by model and by manufacturer, with common small grub-screw sizes falling in the M3 to M5 / small SAE range depending on the post design.
Because the size varies by model, the practical answer for a spec buyer is: SANIKB ships the correct set screw plus the matching Allen key in the box with every bar, so installers are not hunting for a fastener on site, and on request we provide the exact set-screw spec (thread, length, hex size) for your model on the documentation pack. If a project standard requires a specific fastener call-out, tell us at quote stage and we confirm it per model rather than you guessing from a generic chart. Spec the fastener spec from the drawing, not from memory — that is how you avoid the "wrong Allen key" service call.
Frequently Asked Questions
What size towel bar do I need for 2 bath towels?
For two bath towels on one horizontal bar, spec 30 in or longer so each towel has its own drying gap; a 24 in bar only carries one bath towel comfortably. If wall space is tight, a double towel bar gives two-towel capacity in a narrower footprint than a 30 in single.
What set screw size does a towel bar use?
It varies by model. Most wall-mounted bars use a small hex (grub) set screw driven with an Allen key, commonly in the M3 to M5 / small SAE range depending on the post design. SANIKB ships the correct set screw and matching Allen key in the box, and provides the exact thread, length and hex size for your model on request.
What is the standard mounting height for a towel bar?
A common convention is roughly 48 in above finished floor to the bar centerline for a standard bath towel, with hand-towel bars beside a vanity sitting lower, often 40 to 48 in depending on counter height. These are conventions, not code, so confirm against your project's accessibility and design requirements.
What is the MOQ for SANIKB towel bars?
A single unit can be ordered to evaluate. Wholesale project pricing begins at a per-model minimum, with SANIKB's standard MOQ of 50 pcs per model; final MOQ depends on the model, finish and any customization and is confirmed on your quote.
Can SANIKB supply matching sets and OEM / private-label hardware?
Yes. All accessories share a finish range across seven options, so bars, rings, hooks and paper holders can be matched into a coordinated set. SANIKB also produces OEM and private-label programs — custom finish, packaging and branding — confirmed per program at quote stage.
What documentation do you provide for spec writers?
On request SANIKB supplies dimension drawings (including exact center-to-center and set-screw spec), cut sheets, material certificates for the SUS304 stainless, and packaging specs. Plumbing or building-code listings are confirmed per model and market rather than claimed blanket.
Request project pricing. Send your model(s), target quantity and destination port and a SANIKB engineer will return a quote with MOQ, lead time and a full documentation pack. Request a quote.
