Stainless Steel Sink Gauge & Thickness Chart: mm Conversion and Spec Reference for Importers

The Stainless Steel Sink Gauge Chart Importers Actually Cite

If you write specs or vet supplier quotes, you need one stainless steel sink gauge chart you can trust — not a marketing claim, but the conversion table plus the warning that nominal gauge is not a guaranteed thickness. Quick answer up front: in the gauge system, a lower number means thicker steel. The two grades that matter for residential and light-commercial kitchen sinks are 16 gauge (1.5 mm) and 18 gauge (1.2 mm). Everything else on the chart below is either heavy commercial (14 ga) or economy builder stock (20–22 ga) that you should recognize when a quote uses it as a price lever.

This page is the reference. We give you the master gauge-to-mm table, the tolerance reality, and the receiving-dock procedure to verify what you actually paid for — because a sheet stamped "18 gauge" on a packing list and a sheet that measures 1.2 mm at the bowl wall are not always the same thing. As a manufacturer running export production, SANIKB sees both the honest sheet and the shaved sheet, and we wrote this so your QC team can tell them apart. For wholesale program pricing across these gauges, see our wholesale stainless steel kitchen sinks range.

What "Gauge" Means in Stainless Steel Sinks

Gauge is an old sheet-metal numbering system: it describes nominal thickness, and the number runs inverse to the metal. A 16-gauge sink is thicker, heavier and more rigid than an 18-gauge sink; an 18-gauge sink is thicker than a 20-gauge sink. The system predates metric, which is why a buyer in a metric market has to convert "gauge" into millimetres before the spec means anything on a drawing.

Two cautions before you read a single quote. First, gauge measures thickness only — it says nothing about the steel grade. A thick sink in cheap 201 steel is worse than a correctly specified sink in SUS304 (18-8) stainless, the corrosion-resistant grade with roughly 18% chromium and 8% nickel. SANIKB builds in SUS304; never let a low gauge number distract you from confirming the alloy. Second, gauge is nominal. The chart number is the target, not a sworn measurement, and the gap between the two is exactly where margin gets quietly cut.

Master Gauge to mm Conversion Chart

This is the reference table for stainless steel (the gauge-to-thickness relationship differs slightly by metal; these are the standard values used for stainless sink sheet). Inch values are the nominal sheet-metal standard; millimetre values are the working conversion most spec sheets quote.

Read the chart this way: each step from 22 toward 14 adds roughly 0.15 to 0.4 mm and a noticeable jump in rigidity and sound deadening. The practical residential window is 18 ga to 16 ga. Below 18 ga the bowl drums and oil-cans under a stream of water; 14 ga is real metal but adds cost and weight that a residential program rarely needs. For context on where each grade is built and tested, see our breakdown of how a stainless sink is made in inside a stainless steel sink manufacturer: materials, process and QC points.

The Gauges SANIKB Actually Stocks

We do not list 14, 20 or 22 gauge as catalog SKUs. We stock the two gauges that match how the residential and light-project market actually buys, matched to the construction method each suits.

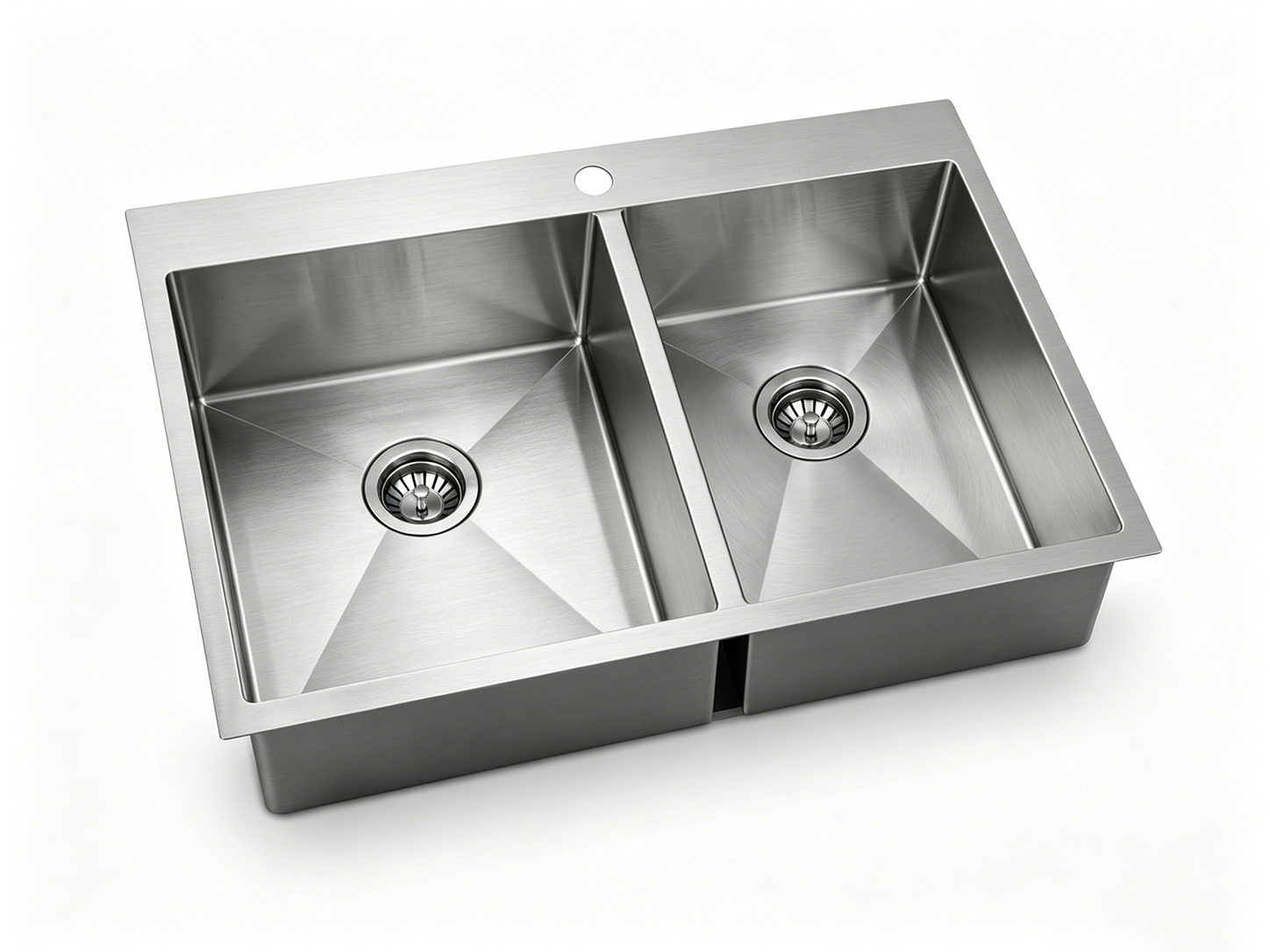

The logic: our drop-in and apron-front bodies use 16 gauge (1.5 mm) because a top-mount rim and an exposed apron carry load and benefit from the extra stiffness. Our handmade undermount line runs 18 gauge (1.2 mm), the grade that pairs a clean tight-radius weld with sound-dampening pads and an undercoat to kill drum noise — you get rigidity from the construction, not just raw sheet. Both lines are SUS304. All models carry a standard MOQ of 50 pcs per model; a single unit can be ordered first to evaluate.

Tolerance: Why Nominal Gauge Is Not a Guaranteed Thickness

Sheet steel is sold to a mill tolerance, not to an exact number. Cold-rolled stainless typically carries a thickness tolerance on the order of ±0.05–0.08 mm depending on width and mill spec. That is normal and acceptable — an honest 18-gauge sheet can legitimately measure 1.15–1.25 mm. The problem is the supplier who treats that tolerance as a one-way door, sourcing sheet that sits permanently at the thin edge, or worse, quoting "18 gauge" while actually feeding 20-gauge sheet into the press.

This is the single most common spec drift in low-cost stainless sink sourcing. Gauge is invisible on a finished, polished bowl. Two sinks can look identical in a catalog photo and differ by 0.3 mm of steel — which is the difference between a quiet rigid sink and one that flexes under a loaded dish rack. Because gauge is the easiest place to shave cost without changing the look, your contract has to name the millimetre value and your receiving has to verify it. Put the mm figure on the PO, not just the gauge word.

How to Verify Actual Thickness on Receipt

Do not measure at the rim or the flange. The folded edge, the rim roll and any reinforcement can read thicker than the body and will flatter a thin sink. Measure where it matters:

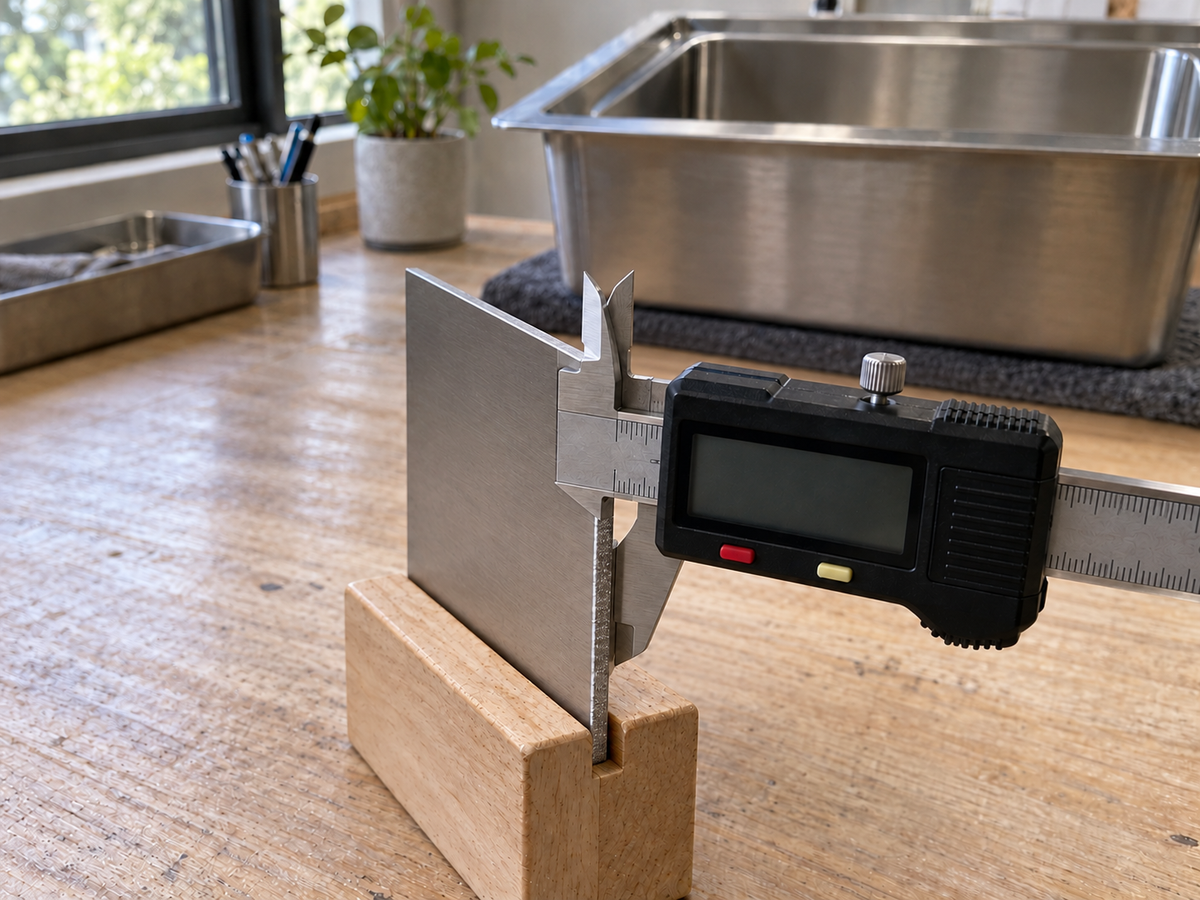

1. Use a caliper or a thickness gauge at the bowl wall — the flat vertical side panel of the bowl, mid-height, away from any fold, weld or stiffening rib. Digital calipers reach over a cut edge; a magnetic/ultrasonic thickness gauge reads on an intact bowl.
2. Check the bowl base separately. Some economy sinks deep-draw a single thinner sheet, so the base can read thinner than the walls after forming. Note both.
3. Sample across the lot, not one piece. Pull units from different cartons and pallets. A consistent 1.2 mm across the sample confirms 18 ga; a spread that dips toward 0.9–1.0 mm signals 20-gauge sheet sold as 18.
4. Compare against the contract mm value, allowing the mill tolerance above. A reading inside ±0.08 mm of nominal is fine; a reading a full gauge step low is a non-conformance.
5. Request the material certificate. SANIKB supplies SUS304 material certificates, dimension drawings and cut sheets on request, so your incoming inspection can tie the physical caliper reading back to documentation.

Build this into your incoming QC checklist alongside dimensional checks — the dimensions buyers most often get wrong are covered in our standard kitchen sink sizes dimension reference. For a wider view of how gauge fits the full sourcing decision, read our stainless steel sink gauge guide (14/16/18/20), the hub article this chart supports.

32" Equal 50/50 Double Bowl Undermount Stainless Steel SinkGet a quote

Choosing the Right Gauge for the Program

Specifying is a fit-for-purpose decision, not a "thicker is always better" reflex. For a mainstream residential undermount program where unit cost and quiet performance both matter, 18 gauge (1.2 mm) with proper sound deadening is the volume answer. For premium drop-in lines, exposed apron-front farmhouse models, or a hospitality spec that takes daily abuse and visible scrutiny, step up to 16 gauge (1.5 mm). Reserve 14 ga conversations for fabricated commercial foodservice; treat 20–22 ga as a red flag if it appears under a "kitchen sink" label at a price that looks too good. Browse both stocked gauges in one place in our stainless steel kitchen sinks collection, then send the models you want quoted.

Frequently Asked Questions

Is a 16-gauge sink always better than an 18-gauge sink?

Not automatically. 16 gauge (1.5 mm) is thicker and more rigid, which suits drop-in and exposed apron-front models. But a well-built 18-gauge (1.2 mm) handmade undermount with sound pads and an undercoat performs quietly and is the cost-effective volume choice for residential programs. Match gauge to construction and use case, not to the number alone.

What gauges does SANIKB stock, and do you make 14 or 20 gauge?

SANIKB stocks 16 gauge (1.5 mm) on drop-in and apron-front models and 18 gauge (1.2 mm) on the handmade undermount line, all in SUS304. We do not stock 14-gauge or 20-gauge sinks as catalog SKUs. We include them in the chart as industry context so buyers can recognize them in competing quotes.

How do I verify the actual thickness of a sink on receipt?

Measure with a caliper or thickness gauge at the flat bowl wall mid-height, away from the rim, folds, welds and ribs, and check the bowl base separately. Sample units across different cartons and pallets, then compare against the millimetre value on your contract, allowing a mill tolerance of about plus or minus 0.05 to 0.08 mm.

Why doesn't nominal gauge guarantee an exact thickness?

Sheet steel is sold to a mill tolerance, so an honest 18-gauge sheet can legitimately read between roughly 1.15 and 1.25 mm. The risk is suppliers who sit permanently at the thin edge or quote one gauge while feeding thinner sheet. Name the mm value in the contract and verify it at receiving rather than relying on the gauge word.

What is the MOQ and can I order a sample first?

A single unit can be ordered to evaluate before committing. Wholesale project pricing begins at SANIKB's standard MOQ of 50 pcs per model, with final MOQ depending on model, finish and any customization, confirmed on your quote.

Can you supply material certificates and drawings for our QC file?

Yes. On request SANIKB supplies SUS304 material certificates, dimension drawings, cut sheets and packaging specs so your incoming inspection can tie caliper readings back to documentation. Plumbing-code listings such as cUPC are confirmed per model and destination market, not claimed blanket.

Request project pricing. Send your model(s), target quantity and destination port and a SANIKB engineer will return a quote with MOQ, lead time and a full documentation pack. Request a quote.
