Smart Toilet Features: A Project Specification Checklist

A B2B checklist for turning smart toilet features into measurable project requirements, submittal evidence, sample checks and service planning.

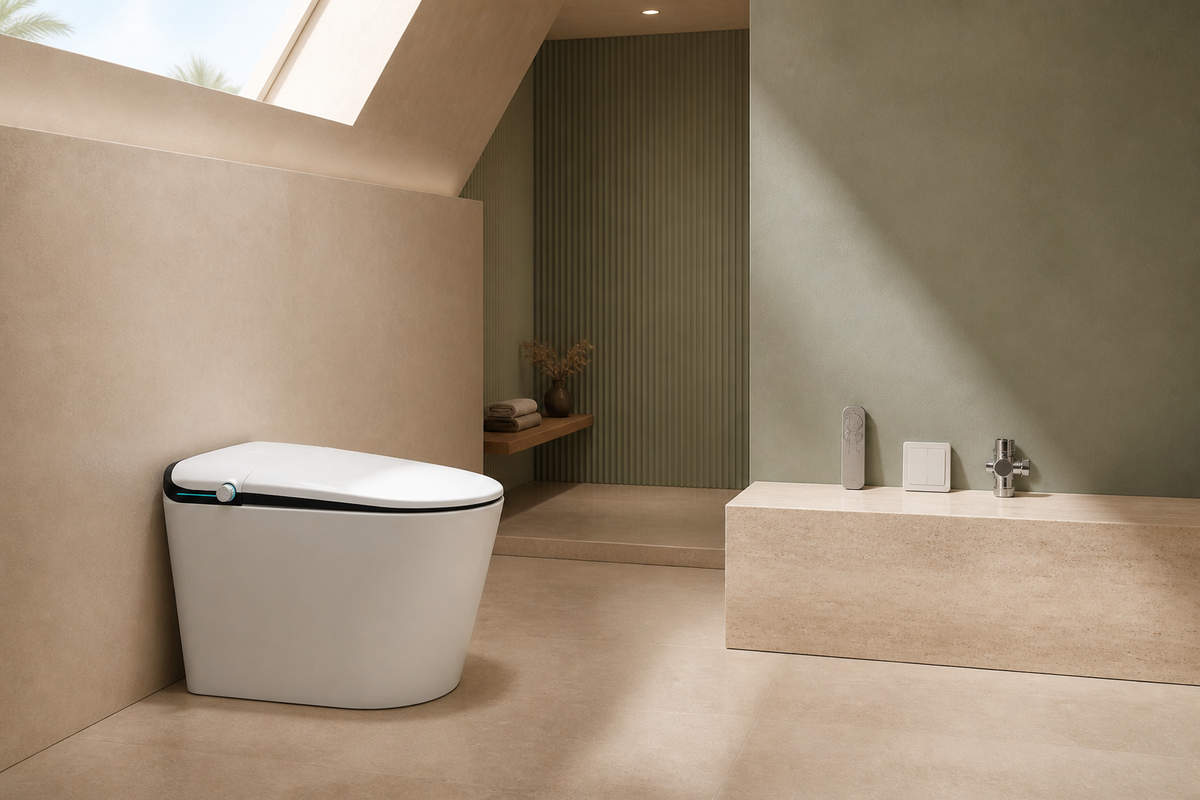

Smart toilet with remote, valve and outlet samples in a hotel specification mock-up
On this page

    The smart toilet features worth specifying are the ones that fit the room, have measurable operating requirements, can be checked on an approved sample, and remain serviceable after handover. Start with rough-in, drainage, water, power, dimensions, controls, and required listings. Add automatic lids, wash modes, drying, lighting, or voice control only when the project has a defined user need and an acceptance test.

    Cover image note: Planning illustration; verify functions on the exact ordered configuration.

    SANIKB sells smart toilets. This supplier-authored checklist is not an independent laboratory comparison, a product certification, or project-specific code advice. Verify the ordered model, current documents, listings, and site conditions before approval.

    Start With Non-Negotiable Project Inputs

    Feature selection should begin with a project brief, not a catalog count. Record destination market, building type, room layout, finished wall-to-drain dimension, drainage arrangement, dynamic water-pressure range, water quality concerns, electrical supply, service access, accessibility requirements, and who will maintain the units.

    A compact body is not automatically compatible with a compact room. Verify the complete product drawing, lid travel, user clearance, door swing, side-control reach, shutoff access, and receptacle location. A 12-inch nominal rough-in also needs the model’s permitted tolerance and the installed wall finish. For a retrofit, measure representative rooms rather than assuming every stack is identical.

    Use the smart toilet installation requirements guide to organize site data, then have the responsible trades and authority review the exact model instructions.

    Translate Each Feature Into Evidence

    A feature name tells a buyer very little about behavior. “Automatic flush,” for example, does not state the trigger sequence, delay, manual override, power-loss behavior, flush volume, or working-pressure range. Convert every requested function into an input, an evidence document, and a sample check.

    Feature area Specify Approval evidence Sample or commissioning check
    Flush Activation methods, volume, pressure range, delay, override, and outage behavior Current cut sheet, installation manual, and exact listing record where required Run each documented activation method under the approved site condition
    Bidet wash Wash modes, temperature and pressure settings, nozzle sequence, and inlet requirements Function matrix and user/service manuals Confirm controls, setting range, reset behavior, leakage, and safe shutdown
    Lid and seat Manual or automatic movement, soft-close behavior, heat settings, and obstruction response Model-specific operating instructions Check repeated operation in the actual room clearance
    Controls Remote, side knob, panel, foot sensor, voice option, batteries, and pairing method Approved control schedule and manual Pair, reset, label, and test every required control path
    Service Replaceable assemblies, access method, diagnostics, spares, and warranty process Parts list, exploded view, service workflow, and written terms Demonstrate access on the approved sample without damaging finishes
    Smart toilet feature matrix linking site inputs, specifications, cut sheets, sample checks and service records
    Show that a feature becomes specifiable only when tied to a measurable input and approval record. Planning illustration; verify against the current exact-model and project documents.

    Specify Flush and Controls as a User Sequence

    Map what the unit should do when a user approaches, sits, selects a wash function, stands, or uses a manual control. This exposes conflicts before the purchase order. A project may require automatic flush plus a side control; another may prefer a simpler remote-and-button arrangement. Neither is universally better.

    Document false-trigger controls and the permitted adjustment procedure. Reflective finishes, door movement, and circulation paths may affect sensor behavior, but do not invent a detection range or promise that a sensor will suit every room. Commission the exact model according to its manual and record the accepted settings.

    The current SANIKB cut sheet says ZY03 includes automatic flush, remote operation, and side-knob control. The current G5 cut sheet describes touchless or foot-touch flush and an automatic lid. These are supplier cut-sheet statements, not field-performance conclusions. Request the current revision and verify the required sequence on an approved sample.

    Coordinate Bidet Functions With Water Conditions

    Warm-water washing, multiple spray modes, nozzle movement, heated seats, and drying can be useful, but each adds inputs to the submittal. Record inlet-water requirements, any filter or backflow provisions, temperature and pressure controls, cleaning instructions, drainage behavior, and consumables. The project team should also review local plumbing requirements for the complete installed assembly.

    Personal hygiene devices have requirements beyond a conventional ceramic toilet. The scope of ASME A112.4.2/CSA B45.16 includes items such as backflow prevention, temperature safety, electrical components, life-cycle testing, and cleaning provisions. Refer to the current adopted requirements and exact model evidence; a feature list alone cannot establish compliance.

    A “self-cleaning nozzle” describes a product sequence, not a claim that the fixture disinfects the user or room. Ask what the sequence does, when it runs, which surfaces it reaches, and what manual cleaning is still required. Avoid antibacterial, sterilizing, or healthcare-use claims unless exact test evidence and project approval support them.

    Confirm Power, Voltage, and Outage Behavior

    Voltage must be a controlled configuration field. The current ZY07 cut sheet states AC 220V, while the current G5 cut sheet states 110V/220V. Do not assume that both ratings are supplied in one interchangeable unit. Confirm the ordered variant, frequency, plug or connection method, rated load, circuit and protective-device requirements, cord route, receptacle location, and local electrical review.

    Ask what remains operable during a power interruption and how a safe manual function is initiated, if provided. Require the answer in the model manual and include it in sample acceptance. Marketing words such as “tankless” or “instant heat” do not answer the electrical design question.

    Where an electrical safety listing is required, request the exact model record, configuration and rating. A laboratory logo, family certificate or record for another model is not enough; the project still needs current exact-product evidence for its destination.

    Make Serviceability a Feature Requirement

    Serviceability can be specified without claiming a lower failure rate or cost. Ask for replaceable-assembly part numbers, diagnostic steps, exploded views, access clearances, reset procedures, firmware or controller identification where applicable, and the written warranty for the destination and channel. Confirm whether the ceramic fixture must be removed to reach common service parts.

    Standardizing controls or parts across a project may simplify the owner’s plan, but compatibility must be documented by revision. Do not assume that two visually similar models share boards, valves, remotes, or seats. The maintenance and troubleshooting guide provides a first-check framework; the exact service manual remains controlling.

    Approve Features Through a Sample and QC Plan

    1. Issue a controlled feature matrix with required, optional, and excluded functions.
    2. Match the sample model, voltage, software or control revision, accessories, and finish to the proposed order.
    3. Review dimensions, rough-in, water and power requirements before energizing the sample.
    4. Test only documented functions and record settings, observations, and unresolved items.
    5. Verify required model-level listings through the current directory or certificate.
    6. Freeze the approved configuration and define change-control rules for production.
    7. Create receiving, commissioning, spare-parts, and service handover records.

    The smart toilet quality-control checklist and sample, quote, and purchase-order workflow can be used as companion documents.

    Planning illustration of a floor-mounted smart toilet showing water, power and service-access coordination
    Illustrate planning for electrical, water and replaceable components around an integrated floor-mounted unit. Planning illustration; verify against the current exact-model and project documents.

    SANIKB formats to verify for this project

    These seller-selected products illustrate available formats, not independent rankings. Confirm the exact variant, current drawing, finish, support, listing scope and project quantity before approval.

    Frequently Asked Questions

    Which smart toilet features are essential for a project?

    Compatibility and basic operation come first: correct rough-in and drainage, documented water and power inputs, a usable flush method, required controls, service access, instructions, and exact listing evidence where required. Comfort features should follow the user brief and maintenance plan.

    Is automatic flush better than manual flush?

    Not universally. Automatic flush changes the control sequence and commissioning work; a documented manual override may still be important. Compare the room, user brief, power-loss behavior, maintenance plan, and sample results rather than declaring one method better.

    Does a self-cleaning nozzle make a toilet germ-free?

    No such conclusion should be drawn from the feature name. Review the documented cleaning sequence and routine manual-cleaning instructions. Any antimicrobial, sterilization, or disease-reduction statement needs exact, relevant test evidence.

    How should buyers verify smart toilet certification?

    Ask for the current certificate or directory record, then match the exact model, manufacturer, standard, rating, configuration, and market. The current SANIKB cut sheets for ZY03, ZY07, and G5 state cUPC listing, but buyers should request the current listing record rather than treating this article as independent verification.
