SANIKB D-8023 - wide white oval freestanding bathtub with conical flared sides, thin rim and recessed plinth bandSANIKB D-8023 dimension drawing
01 / 02
01 / 02

Wide Flared Oval Freestanding Bathtub on Plinth Base, 67 in

SKU D-8023
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 37.8" × 23.6" (1700 × 960 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8023

SANIKB D-8023 is a wide oval freestanding bathtub, double-ended and made in white acrylic in a single size: D-8023 at 1700 x 960 x 600 mm (67 x 37.8 x 23.6 in). Steep, conical sides flare outward from a recessed plinth band up to a thin rim, with a drain at the center.

At 960 mm (37.8 in) across, check side clearances early in the layout. D-8023 is cUPC certified, and its thin rim has no tap holes, so it takes a floor-standing or wall-mounted filler; see the freestanding bathtub collection for narrower options.

Product PDF D-8023

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8023

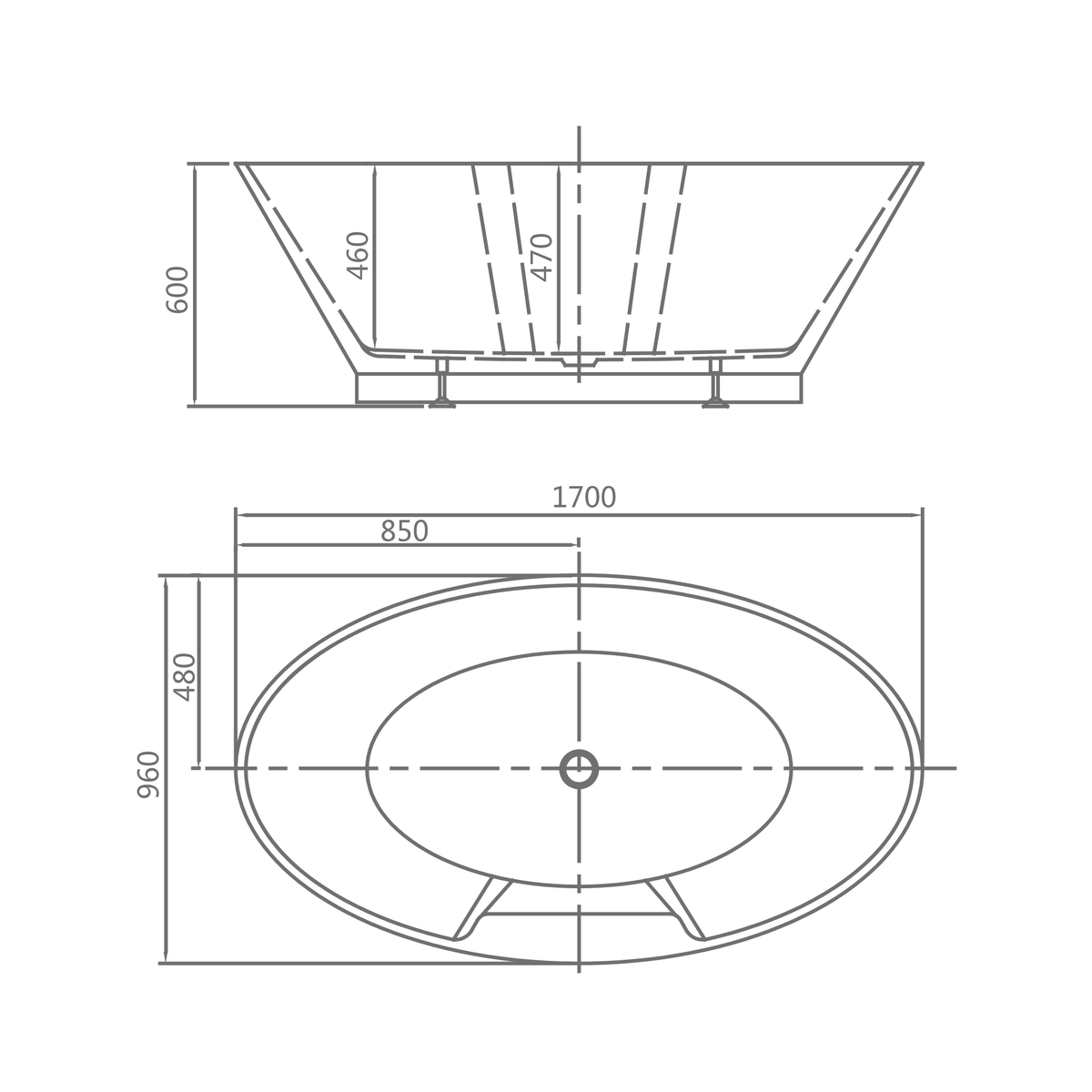

SANIKB D-8023 dimension drawing
Dimension drawing
Size range67" × 37.8" × 23.6" (1700 × 960 × 600 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Wide Flared Oval Freestanding Bathtub on Plinth Base, 67 in SKU D-8023
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Form

    Wide oval freestanding tub with conical flared sides

    D-8023 has an elliptical plan that is symmetric end to end. In elevation the sides rise steeply and flare outward, so the rim outline is larger than the base, and the plinth band below is set in.

    01 / PLINTH

    Recessed plinth band

    The body stands on a distinct plinth band recessed from the flared walls. The elevation drawing confirms the plinth base.

    02 / RIM DETAIL

    Flat facet and a rim recess

    Part of one inner wall is formed as a flat facet. The plan drawing also shows a trapezoidal notch at mid-length on one long side of the rim; its function and size are confirmed on the approved drawing.

    For other plinth-based and wide models, browse the freestanding tub range.

    Fit & Width

    1700 mm long and 960 mm wide

    D-8023 is supplied in one size, 67 by 37.8 by 23.6 inches (1700 by 960 by 600 mm). The 960 mm width is the figure to check first in a tight room.

    Overall Size
    1700 x 960 x 600 mm (67 x 37.8 x 23.6 in)
    Base
    Recessed plinth band
    Drain
    Centered, 850 mm from the end, 480 mm from the side
    Faucet Mount
    Floor-standing or wall-mounted filler

    The elevation shows inner depths of 460 mm (18.1 in) and 470 mm (18.5 in). Because the sides flare outward, the footprint at floor level is smaller than the rim outline; take clearances to walls and fixtures from the rim.

    Confirm the rim recess and the drain position on the approved drawing before the floor is set out.

    Material & Finish

    White acrylic with a flat inner facet

    D-8023 uses pure acrylic sheet and is made in white. Its surface finish is fixed on the approval sample.

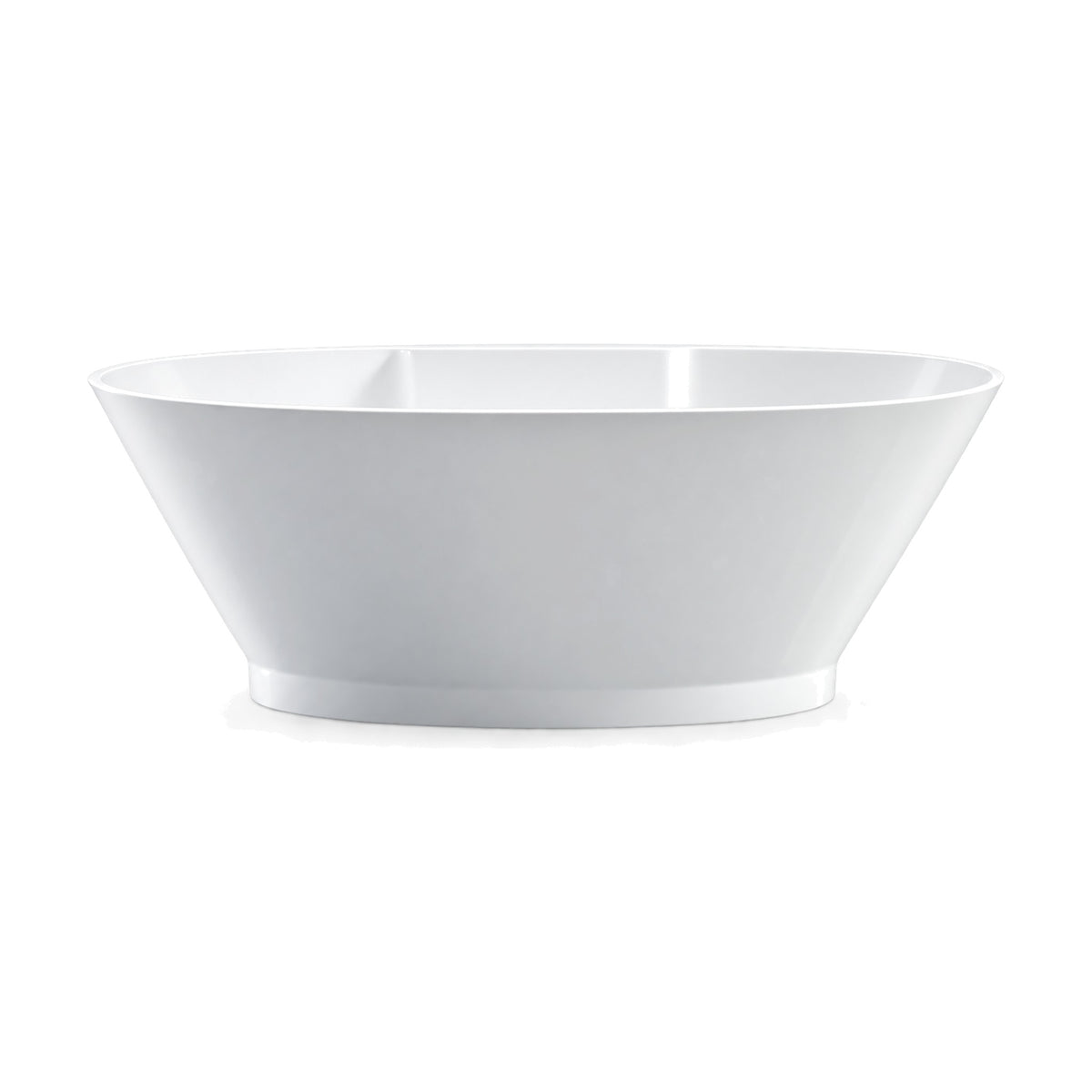

    SANIKB D-8023 - wide white oval freestanding bathtub with conical flared sides, thin rim and recessed plinth band

    White

    Approve the facet on the sample

    The flat facet on the inner wall and the flared sides show the finish at different angles. Check both on the sample before signing off production.

    The flared rim projects beyond the plinth and is exposed in handling. Agree how the rim is protected in the carton and how any damage is recorded on delivery.

    File the approved sample as the color and finish reference.

    Compliance

    cUPC certificate for D-8023 with the rim recess drawn

    Drawing with the rim recess

    Ask for the approved drawing of D-8023 to dimension the rim recess, so the document set describes the tub as delivered.

    D-8023 is cUPC certified. Ask for the certificate and its expiry date before the model goes into a submittal.

    Have the rim recess described and dimensioned on the approved drawing that accompanies the certificate. Both are confirmed in a quotation sent within 12 business hours.

    Procurement

    Ordering D-8023

    SANIKB makes D-8023 in a single size, so the quotation carries one SKU: D-8023.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    A 960 mm wide body sets the carton size and how many units fit in a container. Ask for the packed dimensions with the quotation so freight can be planned before the order is placed.

    Include these details with the RFQ

    • Quantity of D-8023
    • Destination market and port
    • Floor-standing or wall-mounted filler
    • Packed carton dimensions
    • Brand marking
    • Shipping window
    Request D-8023 Quote View OEM & ODM Program

    Lead time stays indicative until confirmed in the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How wide is D-8023?

    One size, SKU D-8023, at 1700 x 960 x 600 mm (67 x 37.8 x 23.6 in). The 960 mm (37.8 in) width is the dimension to check first against the room.

    What is the notch in the rim?

    The plan drawing shows a trapezoidal notch or recess at mid-length on one long side of the rim. Its function and size are confirmed on the approved drawing issued with the quotation.

    Is the wide D-8023 double-ended?

    Yes. The plan is symmetric end to end and the drain is centered, 850 mm (33.5 in) from the end and 480 mm (18.9 in) from the side.

    What does installing D-8023 involve?

    It stands on a recessed plinth on the finished floor. The rim has no tap holes, so a floor-standing or wall-mounted filler is used, positioned beside the tub or on the wall, and the waste position comes from the approved drawing.

    What is the surface finish and inner depth of D-8023?

    White acrylic from pure acrylic sheet, with the surface finish agreed on the approval sample. Inner depth reads 460 mm (18.1 in) at one point and 470 mm (18.5 in) at the other.

    What are the lead time and quote timing for D-8023?

    D-8023 is built within the standard lead time, 30-45 days after sample approval. The tub is cUPC certified, and the written quote, with packed dimensions if you ask for them, is returned within 12 business hours.
