16-1/2 x 18-1/2 Undermount Bar Sink, 14-5/8 Inch Wide Bowl

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

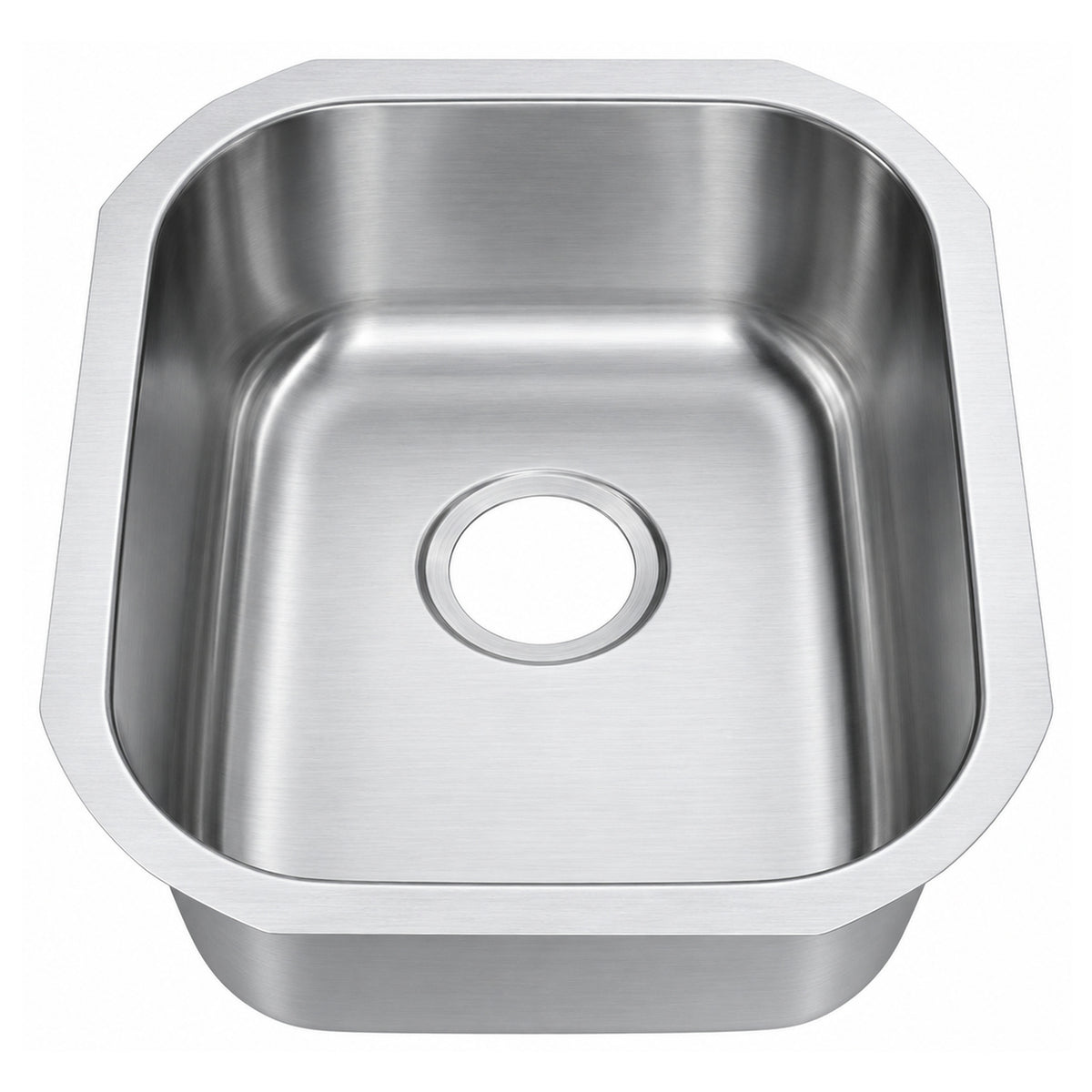

The larger of our two undermount bar and prep sinks, 4742A puts a 14-5/8" × 16-1/2" bowl in a 16-1/2" × 18-1/2" (419 × 470 mm) body.
It is made from 304 stainless steel, brushed satin, in 16G or 18G with four bowl depths from 6" to 9". Padding is attached to the underside, and the drain opening is 3-1/2".
More in Undermount Kitchen Sinks
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

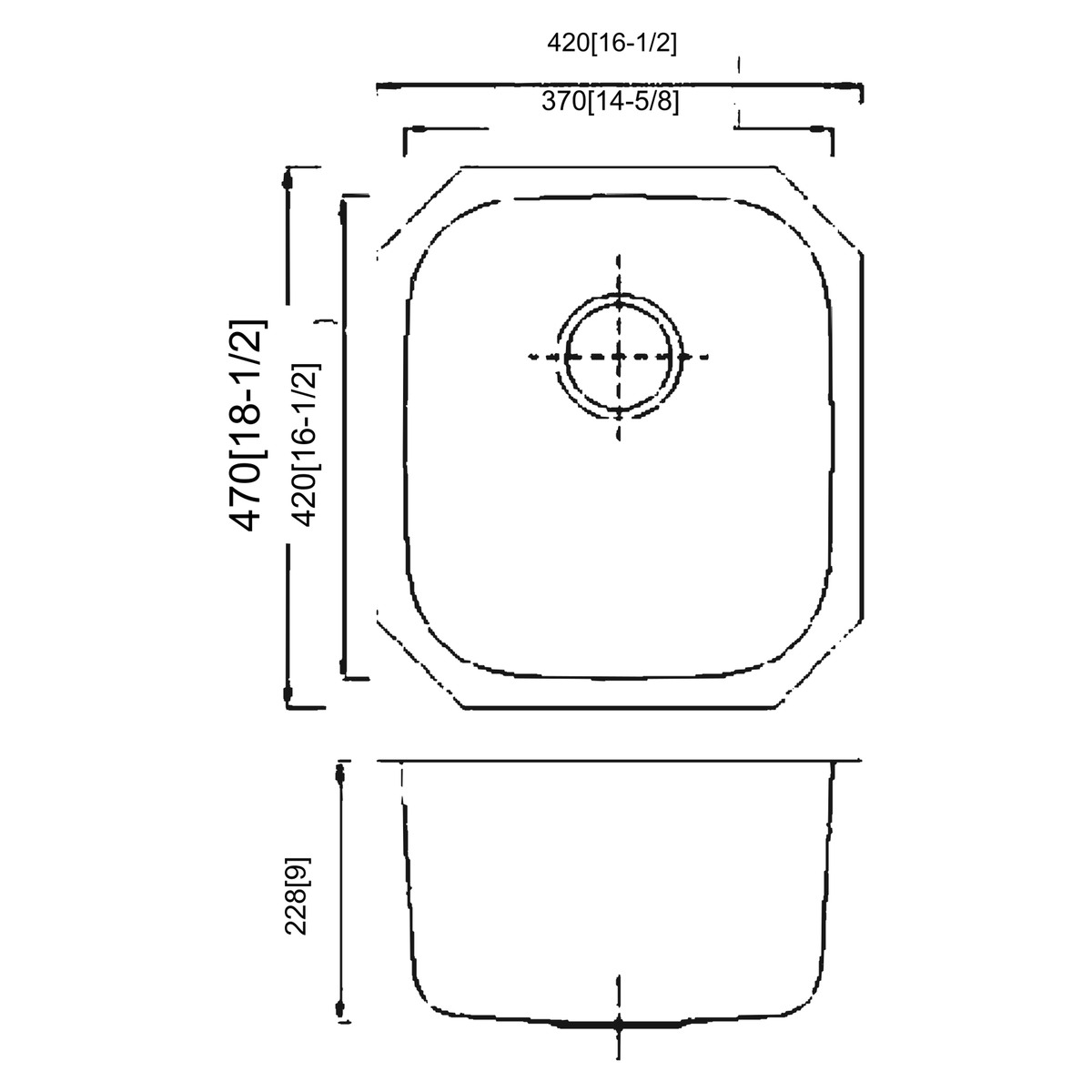

Dimension sheet
Sizes and cut data for 4742A
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
ROOM PLAN
16-1/2 x 18-1/2 undermount bar sink for tight runs
Start with the base cabinet: the 16-1/2" × 18-1/2" (419 × 470 mm) flange of this undermount bar sink must fit inside it.

Brushed Satin
304 stainless, 16G or 18G
Both gauges, 1.5 mm and 1.2 mm, are tooled for 4742A. The finish is brushed satin with noise-reduction padding underneath.
BOWL SHAPE
A 14-5/8 inch bowl in a small body
Wider bowl
At 14-5/8" across, this bowl is the wider of our two undermount bar sinks, for pans that a narrow bar bowl will not take.
Four depths
Depths of 6", 7", 8" and 9" are tooled. Match depth to the cabinet below and to what gets rinsed.
Single drain
One 3-1/2" drain opening serves the bowl, which runs 16-1/2" front to back inside an 18-1/2" body.
DIMENSIONS
4742A dimensions at a glance
- Model
- 4742A
- Overall size
- 16.5" × 18.5" (419 × 470 mm)
- Bowl
- 14-5/8" X 16-1/2"
- Bowl depths
- 6" / 7" / 8" / 9"
- Drain opening
- 3-1/2"
- Material
- 304 stainless steel
- Gauge
- 16G/18G
- Finish
- Brushed Satin
- Mount
- Undermount
LAYOUT NOTES
Where this bar and prep size works
Island prep corners, wet bars and secondary kitchen counters usually give up only a small cutout, and a 16-1/2" wide body stays within it.
Check door and drawer clearance in the cabinet below before choosing a bowl depth. A 9" bowl takes more of that space than a 6" one.
Our full range is in stainless steel kitchen sinks; MOQ for 4742A is 50 pcs with mixed 1×20 ft loads accepted.
CUTOUT PLANNING
Undermount installation and cabinet width for 4742A
As an undermount, the sink sits below the counter and the cut edge becomes the rim, so quartz and solid surface countertops are the usual match. Cabinet width matters less than on larger sinks: at 16-1/2" wide, 4742A fits most bar bases.
Hospitality counters use the 14-5/8" × 16-1/2" single bowl as a garnish or rinse station, and professional kitchens as a second prep sink.
REQUEST A QUOTE
Quote details for 4742A orders
Send us
- Model 4742A with gauge, 16G or 18G
- Bowl depth and quantity for each
- Destination and carton requirements
- OEM artwork if the run is private label
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
