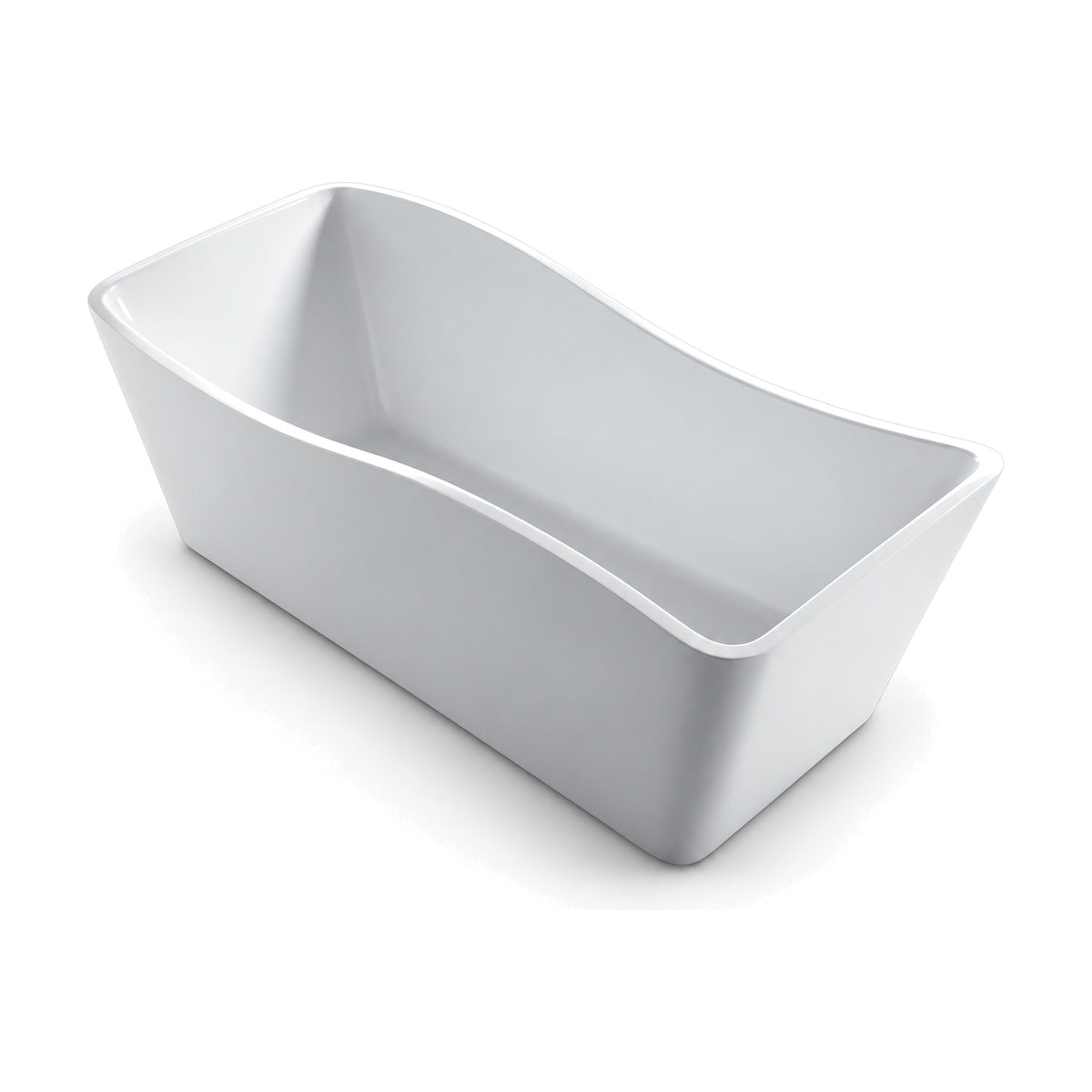

SANIKB D-8076 - white deep soaking freestanding tub with tapered sides and a wave-shaped rim

01 / 02

Wave-Rim Deep Soaking Freestanding Tub, 25.6 in High, 59 & 67 in

SKU D-8076-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 30.7" × 25.6" (1500 × 780 × 650 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8076-150

SANIKB D-8076 is a deep soaking rectangular freestanding bathtub in white acrylic, 650 mm (25.6 in) high, with sides that taper toward the base. Its thin rim rises in two arcs along each long side, meeting at the middle in a wave line. The plan has small rounded corners and a centered drain. Sizes are D-8076-150 at 1500 x 780 x 650 mm (59 x 30.7 x 25.6 in) and D-8076-170 at 1700 x 780 x 650 mm (67 x 30.7 x 25.6 in).

The rim has no tap holes; D-8076 takes a floor-standing or wall-mounted filler. It is cUPC certified, and a written quote for either length follows within 12 business hours. See the soaking tub collection.

Product PDF D-8076-150

More in Soaking Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 34

Tub sheet

Size and installation of D-8076

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 30.7" × 25.6" (1500 / 1700 × 780 × 650 mm)

Sizes59" x 31"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8076-150	59" x 31"
D-8076-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8076-150	67" x 31"D-8076-170
Overall L×W×D	59″ × 30.7″ × 25.6″ 1500 × 780 × 650 mm	67″ × 30.7″ × 25.6″ 1700 × 780 × 650 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Wave-Rim Deep Soaking Freestanding Tub, 25.6 in High, 59 & 67 in SKU D-8076-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Rim & Profile

A wave rim on a tapered soaking tub

Along each long side of D-8076 the thin rim rises in two arcs that meet at the middle, so the edge reads as a wave rather than a straight line. Below it, the walls taper in toward the base.

01 / WAVE RIM

Two arcs per long side

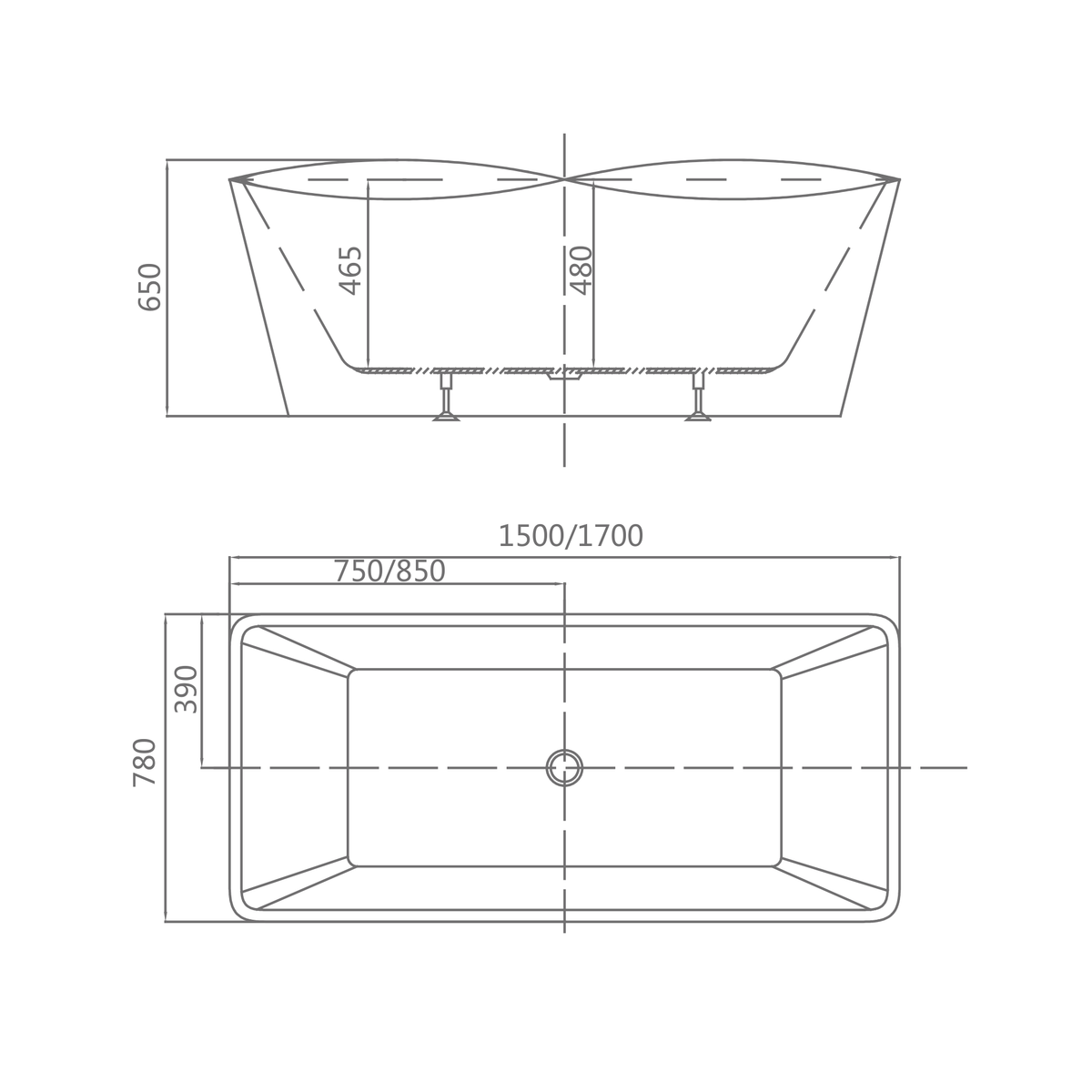

The drawing shows the rim edge on the long sides rising in two arcs that join at the center of the tub. The ends stay symmetric, so the wave looks the same from either end.

02 / DEPTH

650 mm overall height

At 650 mm (25.6 in) high, D-8076 stands 50 mm taller than a 600 mm freestanding tub, and the drawing gives an inner depth of 465 to 480 mm (18.3 to 18.9 in) for soaking.

Deeper tubs for soaking are grouped in the soaking tubs collection.

Fit & Sizes

Same 780 mm width in both lengths

D-8076 keeps a 780 mm (30.7 in) width and 650 mm (25.6 in) height in both sizes; only the length changes, from 1500 mm (59 in) to 1700 mm (67 in).

D-8076-150: 59" × 30.7" × 25.6" (1500 × 780 × 650 mm)
D-8076-170: 67" × 30.7" × 25.6" (1700 × 780 × 650 mm)
Drain Position: Center: 750/850 mm from end, 390 mm from side
Corners: Small-radius rounded, symmetric plan

The tapered walls bring the base inside the rim outline, so measure clearances at rim level. The rim reaches up to 650 mm (25.6 in), the overall height, so check the step-over height against the project requirements, especially for hotel rooms.

Set the floor waste at the center point shown on the approved drawing for the chosen length.

Material & Finish

White acrylic with a thin wave edge

Pure acrylic sheet in white forms the D-8076 shell. The rim is a thin edge that follows the wave line.

White

White shell, curved edge

The wave rim, tapered walls and rounded corners are all part of the white acrylic shell.

Sheen for D-8076 is confirmed on the approval sample, and the same sample is used to check that the two arcs run evenly on both long sides.

Hold the approved sample as the reference for rim shape and finish.

Compliance

cUPC certification for D-8076

Soaking model, traceable by SKU

Request D-8076 papers by model and SKU so each length is traceable in the submittal.

D-8076 is cUPC certified. The 1500 mm and 1700 mm versions are the same model, so ask for the certificate to show D-8076-150 and D-8076-170 together.

Say which market the tubs are going to and the document set is prepared for it at quotation. Written answers follow within 12 business hours.

Procurement

Ordering D-8076

Each D-8076 length is quoted separately, and lead time is 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

The sample is where the wave rim should be checked, from the side and from above, before production is released.

Include these details with the RFQ

D-8076-150 / D-8076-170 quantities
Floor filler or wall spout
Sample SKU to approve
Destination market
Carton and label marking
Preferred ship date

Request D-8076 Quote View OEM & ODM Program

Lead time is counted from the approved sample.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

What are the D-8076 dimensions for each length?

D-8076-150 measures 1500 x 780 x 650 mm (59 x 30.7 x 25.6 in) and D-8076-170 measures 1700 x 780 x 650 mm (67 x 30.7 x 25.6 in).

What makes D-8076 a deep soaking tub?

Its overall height is 650 mm (25.6 in), and the drawing shows an inner depth of 465 to 480 mm (18.3 to 18.9 in).

What does the D-8076 wave rim look like?

On each long side, the thin rim rises in two arcs that meet at the middle of the tub. The shape is symmetric, so both ends match.

Which faucet setups suit the taller D-8076 rim?

The rim has no tap holes, so D-8076 takes a floor-standing or wall-mounted filler. With the rim at up to 650 mm (the overall height), check that the spout of the chosen filler clears it.

How is D-8076 installed, and which way does it face?

The tub stands flat on the floor with no plinth or feet. The plan is symmetric and the drain is centered, 750 or 850 mm from the end and 390 mm from the side, so the tub can be turned either way; rough in the waste at that point.

How do we order samples and production?

Send the SKUs and quantities with your destination. A quote is returned within 12 business hours, and the production lead time for either length is 30-45 days after sample approval.
