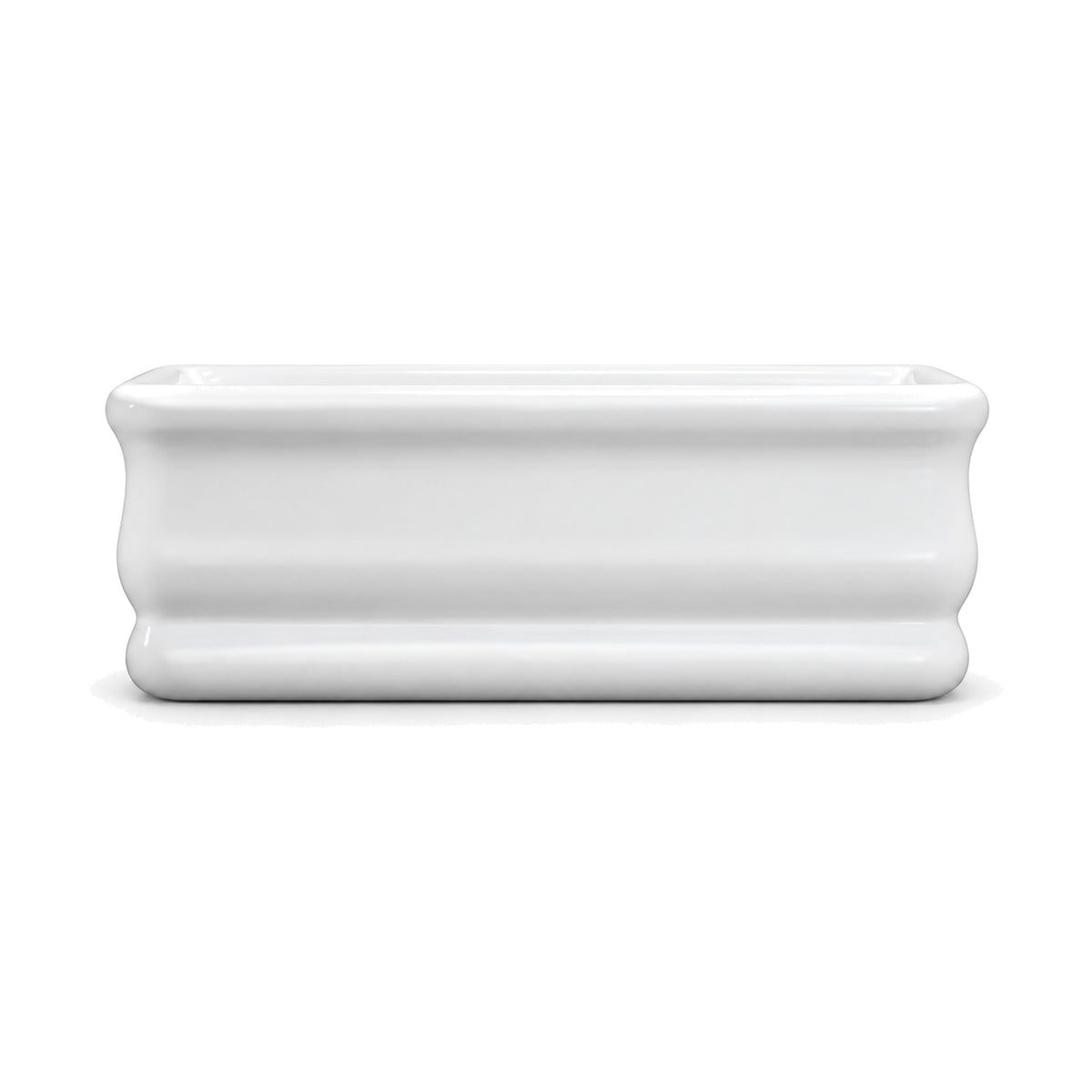

SANIKB D-8399 - gloss white rectangular freestanding tub with rolled rim, concave waist and rounded base band

01 / 02

Wave-Profile Rectangular Freestanding Tub with Rolled Rim, 59 & 67 in

SKU D-8399-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8399-150

SANIKB D-8399 is a wave profile freestanding tub on a rectangular plan: a thick rolled band at the top, a concave waist and a rounded band at the bottom that meets the floor. The shell is gloss white acrylic with rounded corners and a center drain, and it is double-ended, so either end serves as the backrest.

The sculpted shell comes as D-8399-150 in 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) or D-8399-170 in 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). With no tap holes in the rim, it takes a floor-standing or wall-mounted filler, and it is cUPC certified. View similar pieces in the freestanding bathtub collection.

Product PDF D-8399-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8399

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)

Sizes59" x 31"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8399-150	59" x 31"
D-8399-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8399-150	67" x 31"D-8399-170
Overall L×W×D	59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Wave-Profile Rectangular Freestanding Tub with Rolled Rim, 59 & 67 in SKU D-8399-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Profile & Rim

Rolled top band over a concave waist

D-8399 is shaped in three bands when viewed from the side: a rolled rim, an inward-curving middle and a bulging base band. The end walls follow the same wave in the drawing.

01 / RIM

Rolled rim, double rim line

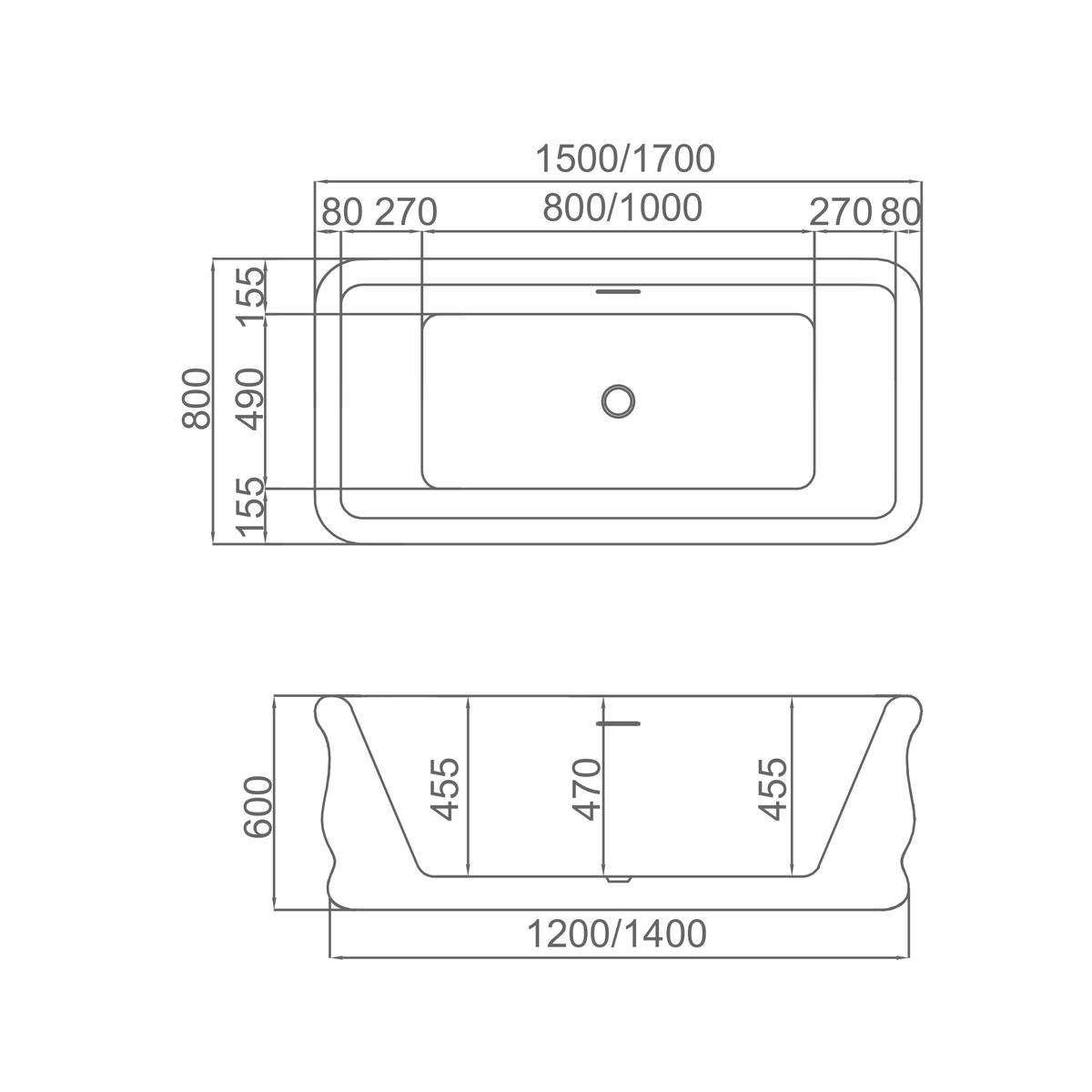

The drawing shows a double rim line around the rounded-rectangle plan. Along the length it is dimensioned 80 + 270 mm at each end, and across the width as 155 + 490 + 155 mm.

02 / BASE

Base band on the floor

The lower band swells out again and sits flat on the floor. Its length is drawn at 1200 mm for the 1500 mm tub and 1400 mm for the 1700 mm tub.

Other shaped and textured designs sit in the freestanding bathtub range.

Fit & Footprint

1500 or 1700 mm long, 1200 or 1400 mm at the base

The D-8399 range runs from D-8399-150 at 59 x 31.5 x 23.6 inches (1500 x 800 x 600 mm) to D-8399-170 at 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm).

D-8399-150: 59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
D-8399-170: 67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
Base Length (as drawn): 47" / 55" (1200 / 1400 mm)
Inner Depth (as drawn): 17.9" ends, 18.5" center (455 / 470 mm)

The inner length is drawn at 800 mm on the shorter tub and 1000 mm on the longer one, inside the end walls. The drain is centered, so the floor waste falls in the middle of the base.

Confirm the D-8399 waste position on the approved drawing for the size in the order.

Construction & Finish

Gloss white acrylic with a molded wave

D-8399 is made from pure acrylic sheet. The sculpted bands are formed in the shell itself, and the finish is gloss white.

White

Light across the curves

Gloss picks out the rolled top, the concave waist and the base band as separate highlights. Review the sample under project lighting before sign-off.

The bottom band bulges out again below the concave waist, so check clearance to a wall or vanity at floor level as well as at the rim.

The approved D-8399 sample becomes the standard for finish and profile.

Compliance

D-8399 cUPC status

Per-size certificates

Ask for D-8399-150 or D-8399-170 by SKU on each document request.

D-8399 is cUPC certified in 1500 and 1700 mm lengths. Current certificate details are available on request for submittals.

List your destination market and required documents when you enquire, and the written reply arrives within 12 business hours.

Procurement

Buying D-8399

D-8399 is quoted by size, with either length produced 30-45 days after sample approval.

Size SKUs: D-8399-150, D-8399-170
Standard Lead Time: 30-45 days after sample approval

The rolled top band is the most prominent edge on this shell. Ask for rim and base protection in the D-8399 packing terms.

Include these details with the RFQ

D-8399-150 / D-8399-170 quantities
Destination and port
Faucet: floor-mounted or wall
Private-label marking
Desired shipping window

Request D-8399 Quote View OEM & ODM Program

D-8399 lead time is stated on the quotation.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

What are the D-8399 sizes?

D-8399-150 is the 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) size and D-8399-170 the 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) size, both with the same wave profile.

What does the D-8399 side profile look like?

It has three bands: a thick rolled top, a concave middle and a bulging lower band that sits on the floor. The end walls are wavy in the drawing as well.

How large is the D-8399 base?

The base is drawn at 1200 mm (47 in) long on the 1500 mm tub and 1400 mm (55 in) on the 1700 mm tub.

Which end of D-8399 is meant for reclining?

Either end. D-8399 is double-ended with a center drain, and inner depth is drawn at 470 mm (18.5 in) in the middle and 455 mm (17.9 in) at the ends.

What faucet does D-8399 need?

There are no tap holes in the rolled rim, so D-8399 takes a floor-standing filler or a wall-mounted spout. Fix its location against the approved drawing so the spout clears the rolled rim.

What should an RFQ for D-8399 list?

Quantities for each SKU, the destination port and the faucet type. SANIKB replies within 12 business hours, and the wave-profile shell is produced 30-45 days after sample approval.
