Walk-In Whirlpool and Air Tub with Sloped Seat Back, 27.6 in Wide, 52 in

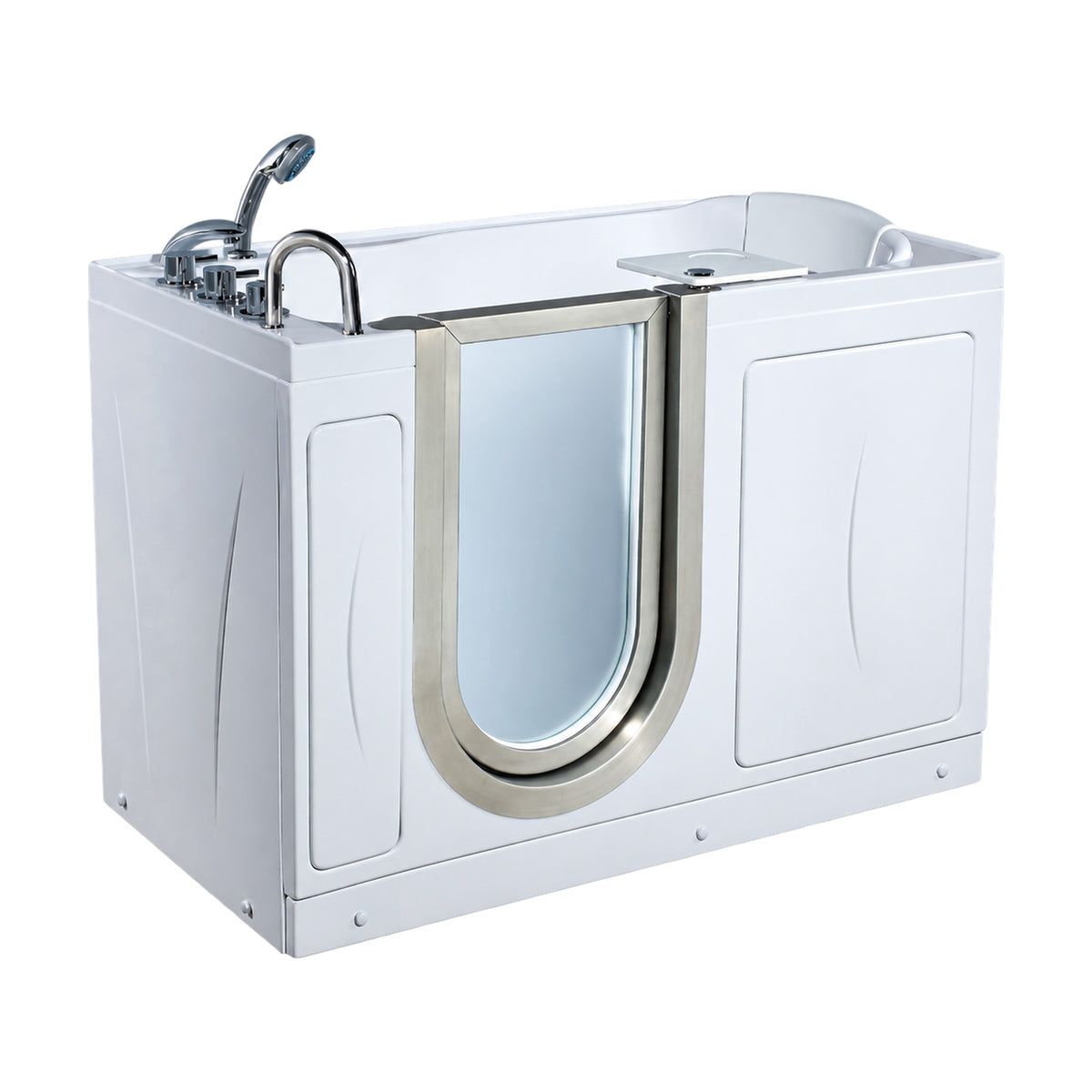

SANIKB BG-316 is a walk-in whirlpool and air tub in gloss white acrylic, 700 mm (27.6 in) wide, with a U-shaped glass door beside the control end and a built-in seat with a sloped backrest. BG-316L and BG-316R are the L and R versions, each 1325 × 700 × 920 mm (52 × 27.6 × 36.2 in). An arched chrome grab bar and two diagonal corner bars serve the control end, and the end deck holds a hand shower, a curved spout and three lever valves, with four round buttons on the deck. BG-316 is cUPC certified, and a written quote follows within 12 business hours.
Find related models in the SANIKB walk-in tub collection.
More in Walk-In Tubs
MOQ per model · one 40HQ container, quantity set by tub size
-
BG327Tall Walk-In Whirlpool and Air Tub with Tapered Glass Door, 52 in52" × 29.5" × 47.2"Walk-in, side entry door
-
BG329Compact Walk-In Soaking Tub with Seat and Black Fittings, 49 in49" × 26.0" × 37.8"Walk-in, side entry door
-
B8080Low Lie-Down Walk-In Whirlpool Tub with Glass Door, 60 & 72 in60" / 72" × 30.0" / 31.9" × 21.1" / 21.5"Walk-in, side entry door
-
BG-321Walk-In Whirlpool and Air Tub with Inward Door and Back Jets, 52 in52" × 29.7" × 36.0"Walk-in, side entry door
-
BG-312Walk-In Whirlpool and Air Tub with Headrest and Grab Bars, 52 in52" × 28.3" × 40.9"Walk-in, side entry door
-
BG-311Walk-In Whirlpool and Air Jet Tub with 4 Deck Buttons, 52 in52" × 31.7" × 36.2"Walk-in, side entry door
-
BG-310Walk-In Whirlpool Tub with Built-In Seat and Hand Shower, 52 in52" × 29.5" × 38.5"Walk-in, side entry door
-
BG-308ADouble-Ended Walk-In Whirlpool Tub with Center Door, 60 in60" × 31.7" × 39.2"Walk-in, side entry door
-
BG-306Narrow Walk-In Whirlpool Tub with Grab Bars, 25.2 in Wide, 52 in52" × 25.2" × 37.9"Walk-in, side entry door
-
BG-304Walk-In Whirlpool Tub with Inward-Opening Glass Door, 52 in52" × 30.3" × 41.3"Walk-in, side entry door
-
BG-305Walk-In Whirlpool Tub with Stepped Seat and Grab Bars, 55 in55" × 29.3" × 35.9"Walk-in, side entry door
Tub sheet
Size and installation of BG-316
Every option below is a produced configuration with its own SKU. 1 size × 2 hands. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size | Hand |
|---|---|---|
| BG-316L | 52" x 28" | Left-hand |
| BG-316R | 52" x 28" | Right-hand |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Seat & Jets
Sloped seat back surrounded by jets
BG-316 has a built-in seat with a sloped backrest. Its whirlpool and air system uses two large jets, about ten small air holes and slot jets around the seat area.
Whirlpool plus air, four deck buttons
Slot jets are set around the seat, while the two large jets and the small air holes are positioned as marked on the approved drawing. Four round buttons sit in a row on the deck beside the faucet set.
Diagonal corner bars and an arched bar
Two diagonal bars sit at the control-end corners, alongside an arched chrome bar. The grab bar set supplied is confirmed on the approved drawing.
Other whirlpool and air models are in the whirlpool tubs collection.
Fit & Versions

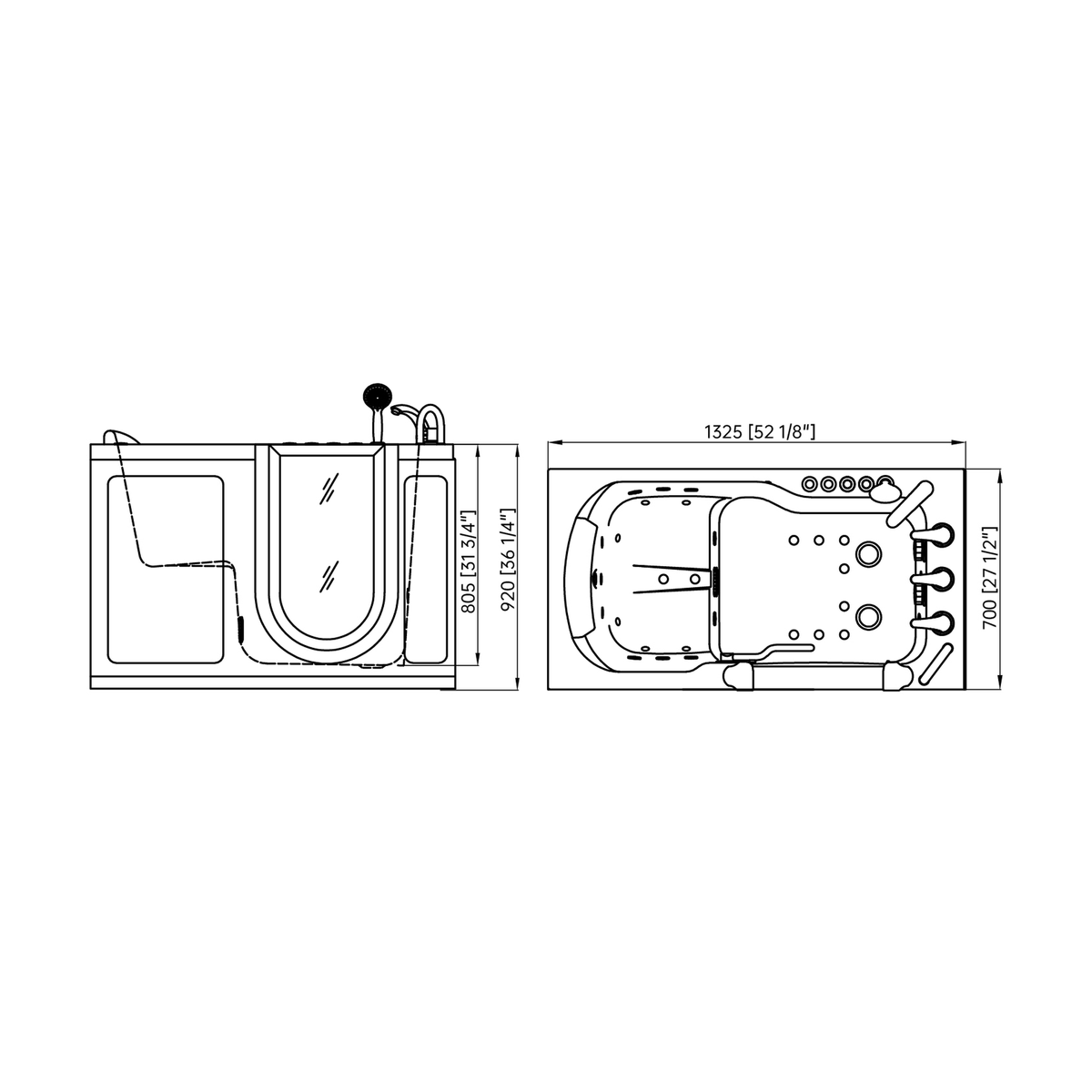

700 mm wide, 920 mm high
BG-316 is 700 mm (27.6 in) across, with a length of 1325 mm (52 in) and a height of 920 mm (36.2 in).
- BG-316L
- 52" × 27.6" × 36.2" (1325 × 700 × 920 mm)
- BG-316R
- 52" × 27.6" × 36.2" (1325 × 700 × 920 mm)
- Door
- U-shaped glass, next to the control end
- System
- Whirlpool and air
Take the handing of each version from the approved drawing; the door swing direction is confirmed at quotation.
Bring the supplies up at the control end of the BG-316 version being ordered.
Construction & Finish
Gloss white acrylic shell
The BG-316 shell is pure acrylic sheet in gloss white, and the U-shaped front door is glazed.
White
One gloss finish
BG-316 is made only in gloss white, so every L and R unit in an order carries the same finish.
The four round deck buttons and the end-deck faucet set sit on the gloss deck. State at quotation whether they are fitted at the factory or packed loose.
Agree the packing for the glass door and the chrome fittings, and how any damage is reported.
Report transit damage on BG-316 in writing, dated at delivery.
Compliance
cUPC certification for BG-316
Request BG-316 documents together with the approved drawing so the handing on both matches.
BG-316 is cUPC certified. Ask for the certificate number and the certificate's validity for this model.
Include the market and the documents needed for the jets and deck buttons in the enquiry, and BG-316 replies go out in writing within 12 business hours.
Procurement
Ordering BG-316
The BG-316 range covers BG-316L and BG-316R. The quotation sets quantities for each and the fitting scope.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Sent within 12 business hours
The standard BG-316 lead time is 30-45 days after sample approval. Branded cartons and inserts are arranged via the SANIKB OEM and ODM program.
Include these details with the RFQ
- Quantities for BG-316L and BG-316R, line by line
- Market and port
- Faucet set and corner grab bars: in scope or not
- Supply voltage for the whirlpool and air system
- Shipping window
BG-316 lead time is indicative until a quotation is in hand.
