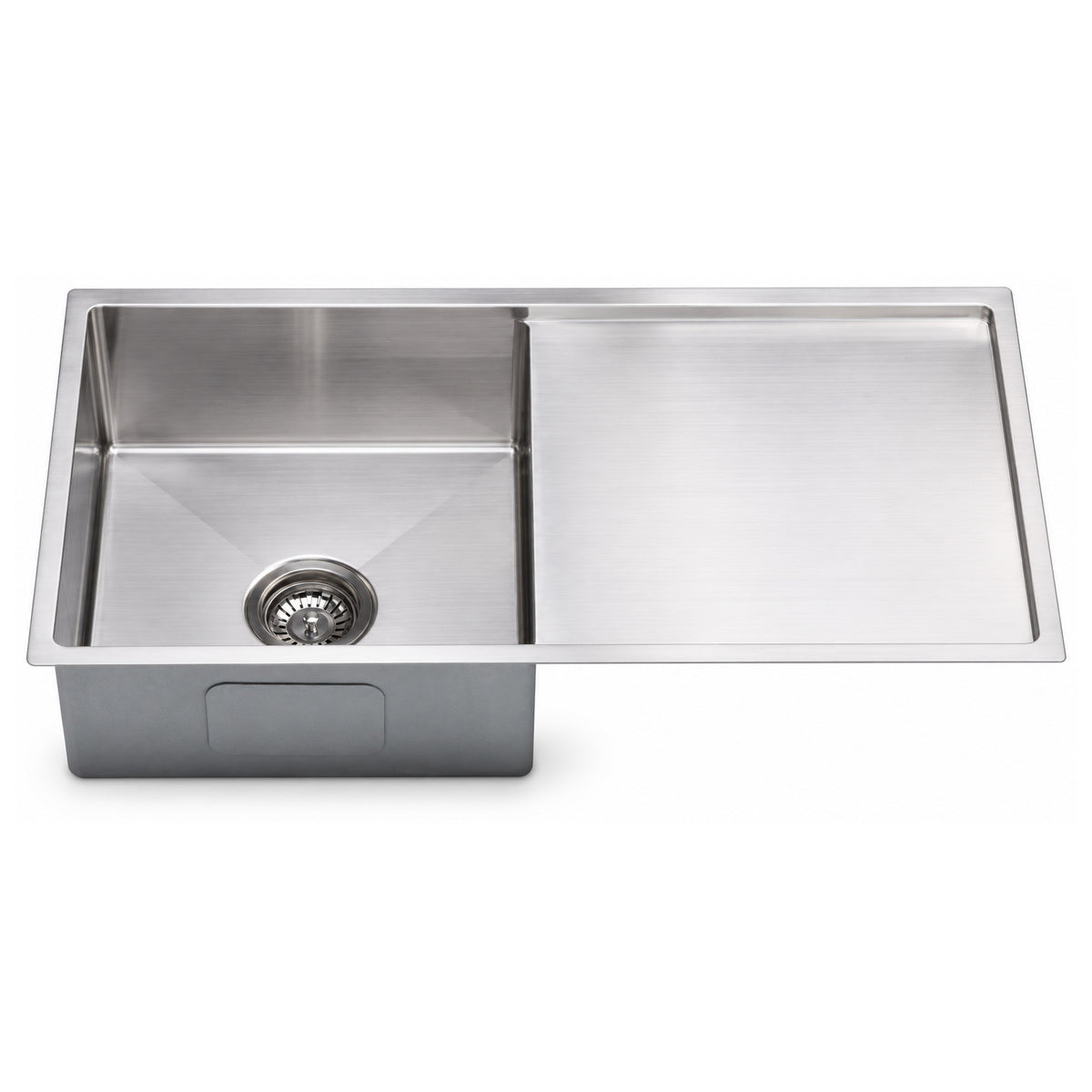

Undermount Single Bowl Kitchen Sink with Right Drainboard 840x440mm

SKU HM8444DB
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Single Bowl With Drainboard
Size 33.1" × 17.3" (840 × 440 mm) Custom sizes
Mount Undermount

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

Undermount kitchen sink with right drainboard in 304 stainless steel, 840 × 440 mm (33.1" × 17.3") overall. An 800 × 400 mm recess holds a 400 mm square bowl and a 400 mm board, 200 mm deep, with a 3-1/2" drain opening.

Choose 16G or 18G steel and a Zero, R10, R15 or R19 corner. Packed one piece per box, with a minimum order of 50 pcs direct from our factory.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for HM8444DB

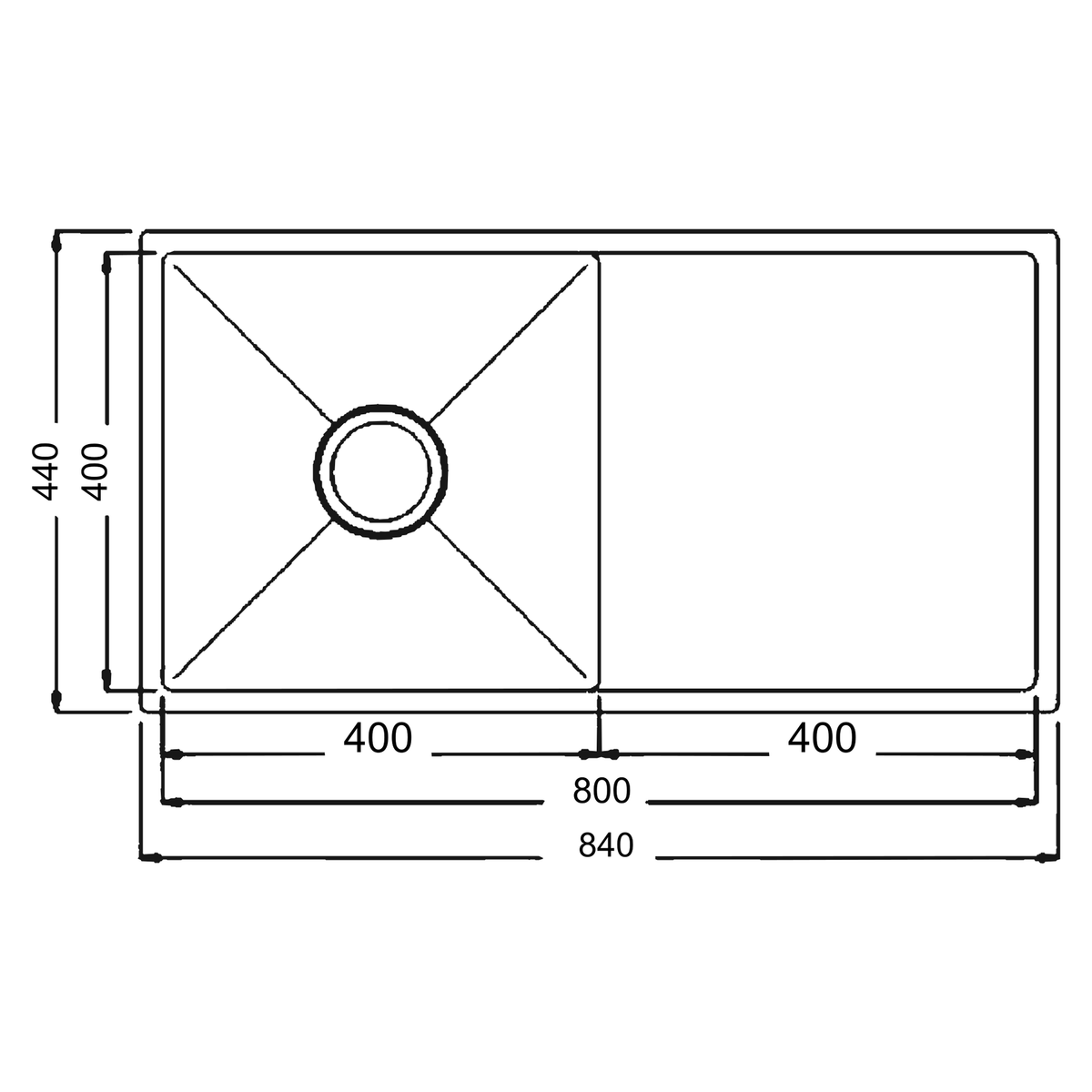

SANIKB HM8444DB dimension drawing
Dimension drawing
Overall size33.1" × 17.3" (840 × 440 mm)
Bowl800 x 400 mm
Depth200mm"
Gauge16G /18G
Drain3-1/2"
CornerZero/R10/R15/R19
Material304 stainless steel
SANIKB HM8444DB compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Undermount Single Bowl Kitchen Sink with Right Drainboard 840x440mm SKU HM8444DB
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    840 × 440 MM

    Single bowl undermount kitchen sink, drainboard on the right

    840 mm long and 440 mm front to back, HM8444DB combines a wash bowl and a drainboard in one stainless steel body. Inside that outline, an 800 × 400 mm recess divides into a 400 mm square bowl and a 400 mm board.

    The board sits on the right. The bowl stays on the left, and rinsed dishes rest on the board to the right.

    As a single bowl undermount sink with drainboard attached, it suits layouts where a separate drying rack would take up counter space.

    Confirm on the approved drawing how the stone fabricator should cut for bowl and board together.

    DIMENSIONS

    HM8444DB measurements, depth and drain

    Model
    HM8444DB
    Overall size
    33.1" × 17.3" (840 × 440 mm)
    Installation type
    Undermount
    Bowl and board recess
    800 × 400 mm
    Depth
    200 mm
    Drain opening
    3-1/2"
    Gauge
    16G / 18G
    Corner radius
    Zero / R10 / R15 / R19
    Material
    304 stainless steel
    Packing
    1PC / Box

    CORNER CHOICE

    Zero, R10, R15 or R19 inside the bowl

    Zero radius

    Sharp internal corners give a crisp, architectural bowl across the full 400 mm width.

    R10

    A small radius that keeps the square look of this undermount kitchen sink while easing the corners for cleaning.

    R15 and R19

    Larger radii round the bowl further. Pick them where the project prefers softer corners.

    CUTOUT PAPERS

    Drawing and spec sheet for the cutout

    SANIKB HM8444DB — Undermount Single Bowl Kitchen Sink with Right Drainboard 840x440mm

    Layout drawing before fabrication

    Ask for the spec sheet and the dimensioned bowl-and-board layout. The overall footprint is not the countertop opening, so the stone fabricator should cut only from the approved drawing. The sink is installed beneath the stone, so cutout and reveal matter as much as the outline.

    RFQ DETAILS

    Gauge, corner radius and quantity

    Minimum order
    50 pcs
    Packing
    1PC / Box

    Among stainless steel undermount sinks, HM8444DB is one SKU. The 16G or 18G steel and the corner radius are chosen on the quotation, so state both on every line and ask for the matching drawing.

    Send the model and quantity, and we reply within 12 business hours. Private-label cartons and changed sizes go through our OEM and ODM service.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    How should the right drainboard be allowed for in the countertop layout?

    Position the sink, faucet and adjacent work surface for the board as well as the bowl. The overall footprint is 840 × 440 mm, but the countertop opening comes from the approved drawing. Request the dimensioned bowl-and-board layout before the stone is cut.

    Is HM8444DB an undermount kitchen sink with a drainboard or a bowl-only model?

    It is the drainboard type: a single bowl undermount sink with drainboard in one body. The 800 × 400 mm recess splits into a 400 mm square bowl and a 400 mm board, 200 mm deep. Specify the right-hand board on the order.

    Which gauge and corner radius can we order?

    Gauges are 16G and 18G, and corners are Zero, R10, R15 or R19. The page carries a single HM8444DB SKU, so state the gauge and corner on the quotation request, and confirm that the drawing and any grid or basket dimensions match the choice you made.

    What should the installer check below the undermount sink?

    Coordinate the waste position, sink support and service access with the cabinet drawing. The drain opening is 3-1/2 inch; confirm the selected waste fitting and its clearance below the 200 mm bowl before rough-in is fixed. Also leave access to the fittings.

    What is the minimum order and how is it packed?

    HM8444DB is packed 1PC per box, with 50 pcs as the minimum order. Share the model, gauge, corner radius and quantity, and we quote directly from our Foshan factory. OEM and ODM changes to size or cartons are handled on the same quotation, so nothing needs a second round of paperwork.
