SANIKB 4738A — 15 x 18-1/2 Undermount Bar Sink, 13-Inch Wide Single BowlSANIKB 4738A dimension drawingSANIKB 4738A compatible accessories
01 / 03

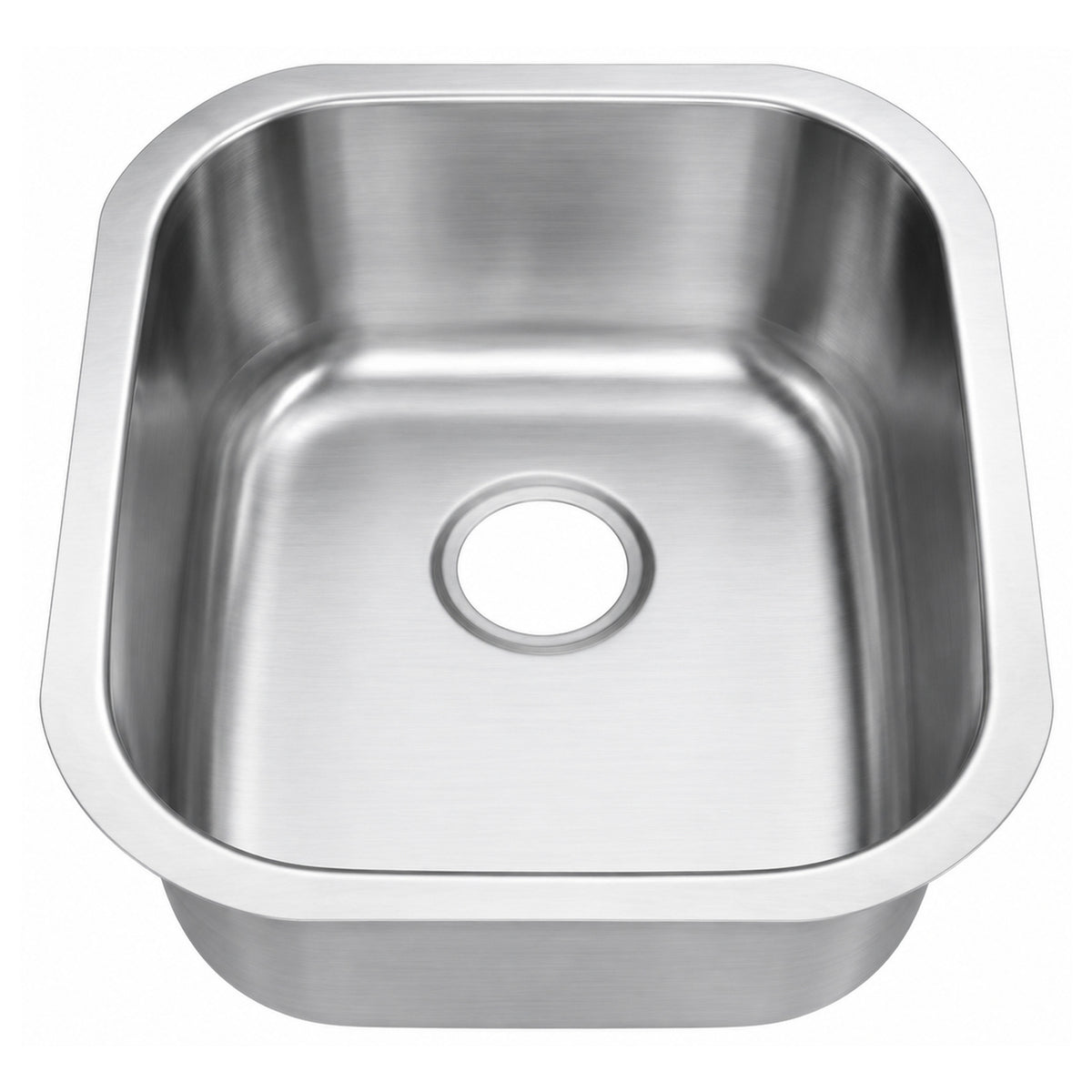

15 x 18-1/2 Undermount Bar Sink, 13-Inch Wide Single Bowl

SKU 4738A
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Undermount Single Bowl Bar Sink
Size 15.0" × 18.5" (381 × 470 mm) Custom sizes
Mount Undermount
Finish
Brushed Satin

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

4738A is a compact bar and prep sink for undermount installs: a 13" × 16-1/2" single bowl inside a 15" × 18-1/2" (381 × 470 mm) body, in 304 stainless steel with a brushed satin finish.

Choose 16G or 18G and a 6", 7", 8" or 9" bowl depth. The drain opening is 3-1/2" and noise-reduction padding is attached underneath.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for 4738A

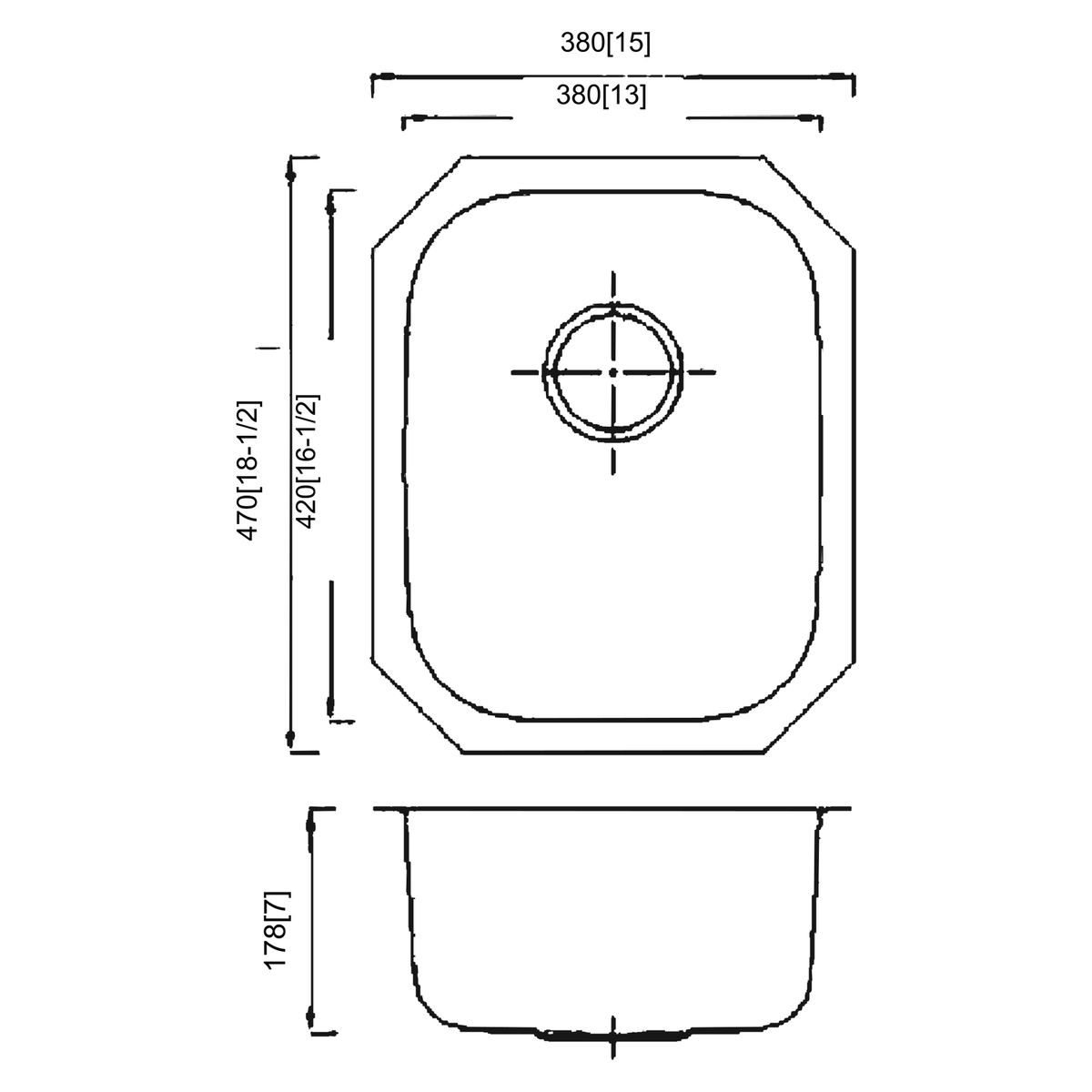

SANIKB 4738A dimension drawing
Dimension drawing
Overall size15.0" × 18.5" (381 × 470 mm)
Bowl13" X 16-1/2"
Depth6" / 7" / 8" / 9"
Gauge16G/18G
Drain3-1/2"
FinishBrushed Satin
Material304 stainless steel

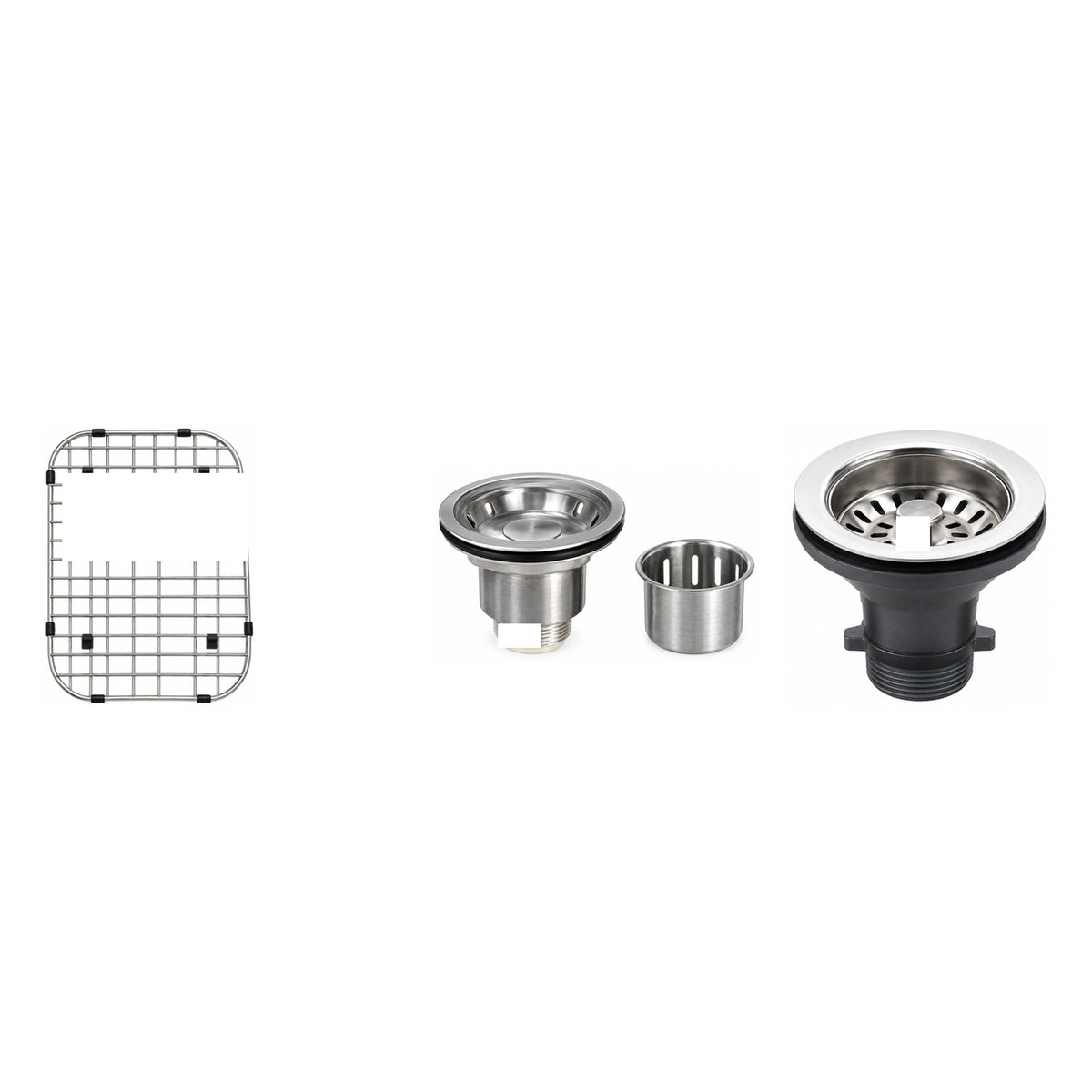

SANIKB 4738A compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about 15 x 18-1/2 Undermount Bar Sink, 13-Inch Wide Single Bowl SKU 4738A
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    MOQ 50

    15 x 18-1/2 undermount bar sink by the carton

    Fifty pieces is the MOQ for 4738A, a 15 x 18-1/2 undermount bar sink, and a mixed 1×20 ft container is accepted.

    The sink mounts under the counter, so the 15" × 18-1/2" flange must fit inside the base cabinet.

    Among our undermount bar sinks this is the narrow one; pick the wide-basin bar model if the cabinet allows more width.

    SIZE DATA

    4738A outline, bowl and drain

    Model
    4738A
    Overall size
    15.0" × 18.5" (381 × 470 mm)
    Bowl
    13" X 16-1/2"
    Bowl depths
    6" / 7" / 8" / 9"
    Drain opening
    3-1/2"
    Material
    304 stainless steel
    Gauge
    16G/18G
    Finish
    Brushed Satin
    Mount
    Undermount

    The counter cutout follows the bowl, not the outer flange. Send your countertop drawing and we confirm the opening.

    BUILD CHOICES

    4738A gauge, depth and finish options

    16G or 18G

    Gauge is 1.5 mm or 1.2 mm. Both are tooled, so a bar program can run a heavier and a lighter line.

    Four bowl depths

    Choose 6", 7", 8" or 9" deep. A shallow bowl leaves more cabinet space below; a deep one holds more.

    Brushed satin, padded

    Brushed satin finish, with noise-reduction padding attached to the underside of the bowl.

    DOCUMENTS

    Spec sheet for cabinet shops

    SANIKB 4738A — 15 x 18-1/2 Undermount Bar Sink, 13-Inch Wide Single Bowl

    Brushed Satin

    Spec sheet for 4738A

    It sets out outline, bowl and drain sizes for fabricators and showroom listings. Similar sizes are in undermount kitchen sinks.

    UNDER THE COUNTER

    Undermount cutout, cabinet width and rim planning for 4738A

    Undermount mounting leaves the cut counter edge as the visible rim, so granite, quartz or solid surface countertops are the usual match. At 15" wide, 4738A leaves room around it even where cabinet width is tight.

    The 13" × 16-1/2" bowl suits a prep station beside the main sink, in home kitchens and professional kitchens alike.

    REQUEST A QUOTE

    Send these details for a 4738A quote

    Quote checklist

    • Gauge: 16G or 18G
    • Bowl depth: 6", 7", 8" or 9"
    • Quantity and destination port
    • Private label artwork, if any

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    What is the minimum order for the 15 x 18-1/2 undermount bar sink?

    Minimum is 50 pcs for 4738A. A mixed 1×20 ft container is accepted, so the bar sink can travel with other stainless models in one load. Tell us the destination country and the split between gauges and depths, and the quotation shows the exact breakdown for every line.

    Which of the four bowl depths should I specify for 4738A?

    Pick from 6", 7", 8" and 9", all tooled. A 6" bowl keeps more room in a small base cabinet for plumbing and storage, while a 9" bowl suits rinsing larger items such as bar trays and pitchers. Name one depth per order line, and different depths can share the same container.

    Can 4738A be ordered with our own brand on the carton?

    Yes. SANIKB builds the sink in its own Foshan factory, so brand artwork and carton marking are arranged with the quotation. Send the logo files, the gauge and depth split, and the quantity for each line. The branded setup and the sinks come back together in one quotation.

    What documents come with a 4738A quotation?

    We send the spec sheet for 4738A with the quotation. It shows the 15" × 18-1/2" outline, the 13" × 16-1/2" bowl, 3-1/2" drain and 304 stainless material, which is what showroom listings and cabinet drawings need. Quotations are answered within 12 business hours.
