Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8361-150

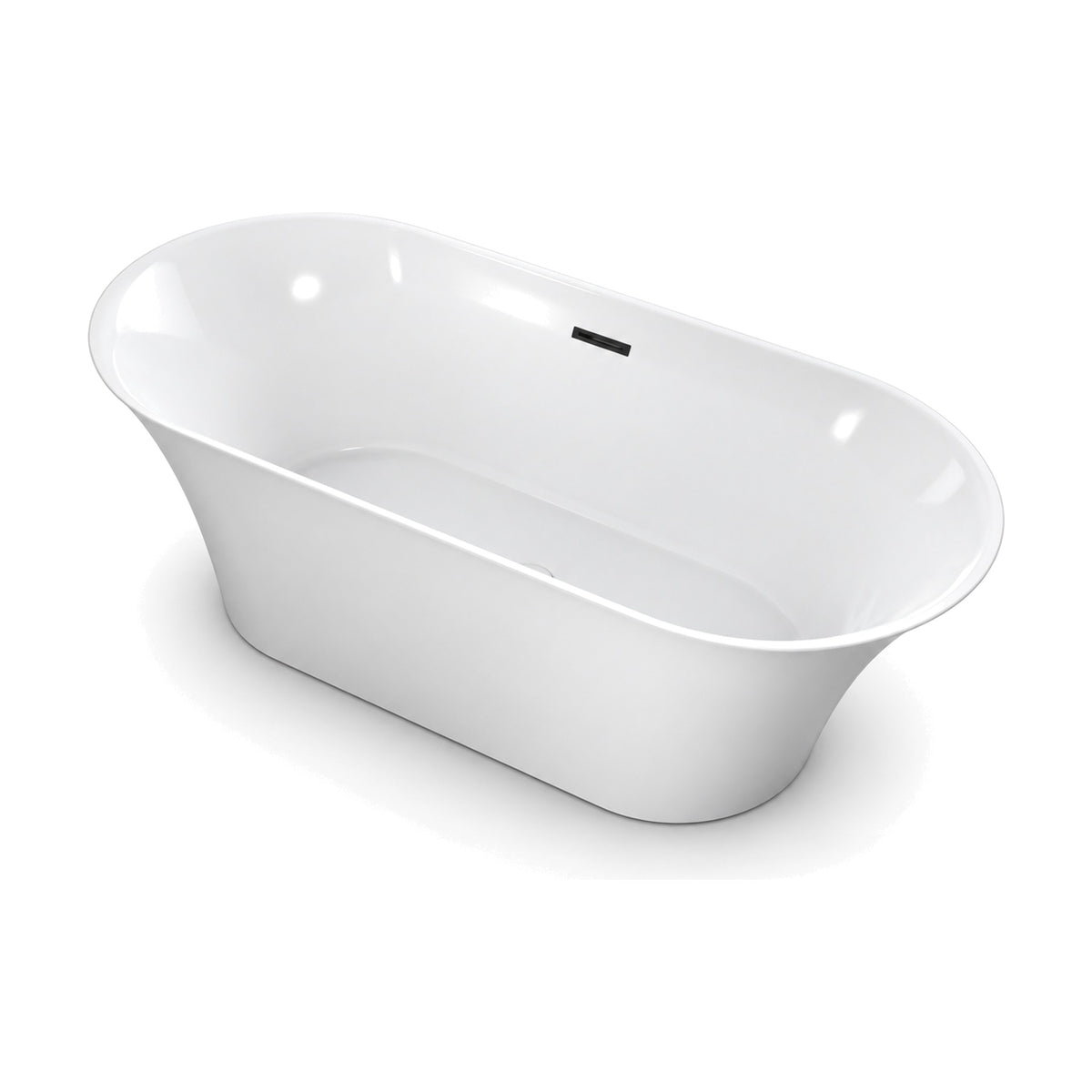

SANIKB D-8361 - gloss white tulip profile oval freestanding bathtub with flared walls and level thin rimSANIKB D-8361 dimension drawing
01 / 02
01 / 02

Gloss White Tulip Profile Oval Freestanding Bathtub, Flared Walls, 59 & 67 in

SKU D-8361-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8361-150

SANIKB D-8361 has a tulip profile: from a narrower body, its walls flare outward to a level, thin rim, so the widest outline of the tub is at the top. The shell is gloss white acrylic on a round-ended stadium plan, with a centered drain and a dark overflow cover at the middle of one long side. Two sizes are made, D-8361-150 at 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) and D-8361-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The rim has no tap holes; the tub takes a floor-standing or wall-mounted filler. D-8361 is cUPC certified, and a quotation is issued within 12 business hours.

View the freestanding bathtub collection for other profiles.

Product PDF D-8361-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8361

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

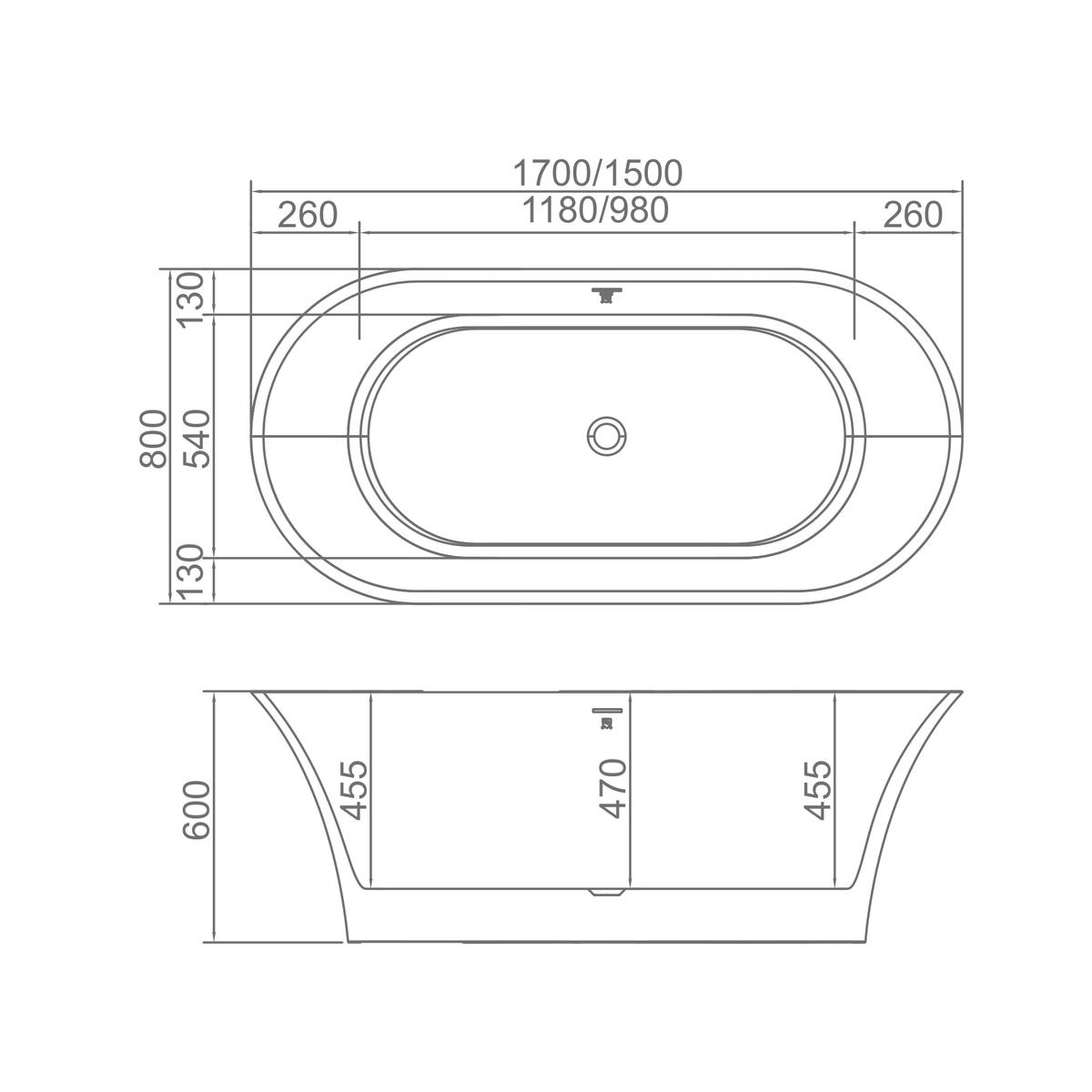

SANIKB D-8361 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8361-15059" x 31"
D-8361-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8361-15067" x 31"D-8361-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Gloss White Tulip Profile Oval Freestanding Bathtub, Flared Walls, 59 & 67 in SKU D-8361-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Profile

    Tulip profile with walls flaring to the rim

    D-8361 is narrower through the body and widens toward the top, so the rim outline is the largest part of the tub. The plan is a symmetric stadium with round ends and no flat side.

    01 / PROFILE

    Flared walls, level rim

    The flare runs continuously around D-8361, and the thin rim stays level from end to end. Seen from the side, the shape reads like a tulip rather than a straight-walled tub.

    02 / OVERFLOW

    Overflow at mid-length

    The overflow is at the center of one long side and is finished with a dark cover against the white shell. The trim finish is confirmed on the approval sample.

    Compare flared and tapered shapes in the SANIKB freestanding tubs.

    Fit & Plumbing

    Rim at 800 mm, basin at 540 mm

    The rim outline of D-8361 is 800 mm (31.5 in) wide on both lengths, and the inner basin is 540 mm (21.3 in) wide. Height is 600 mm (23.6 in).

    D-8361-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8361-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Inner Length
    980 mm (39 in) / 1180 mm (46 in)
    Faucet Mount
    Floor-standing or wall-mounted filler

    Because the D-8361 walls flare out, the footprint at floor level is smaller than the rim outline. Space the tub from walls and cabinets by the rim dimension, not by the base.

    Take the drain position for D-8361 from the approved drawing of the size ordered.

    Material & Finish

    Gloss white acrylic along a flared wall

    D-8361 is formed in pure acrylic sheet with a gloss white finish.

    SANIKB D-8361 - gloss white tulip profile oval freestanding bathtub with flared walls and level thin rim

    White

    Highlights along the flare

    On a flared shell, gloss picks up light along the curve of the wall. Check the approved D-8361 sample under the lighting planned for the room.

    The outward-flaring rim is the first part of D-8361 to take a knock in a warehouse. Ask how the rim edge is protected in the carton.

    Agree how rim damage found on delivery is recorded and reported.

    Compliance

    cUPC certification for D-8361

    Paperwork matched to the SKU

    Quote D-8361-150 or D-8361-170 on each document request so the certificate references match the goods.

    D-8361 is cUPC certified. Request the current certificate details for model D-8361 and the SKU on order before submitting the tub for approval.

    Put the destination market in the enquiry and a written answer is sent within 12 business hours.

    Procurement

    Planning a D-8361 order

    SANIKB manufactures D-8361 and quotes the two lengths as separate SKUs.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    The standard lead time quoted for D-8361 is 30-45 days after sample approval. Include the overflow trim finish in the sample so it is approved together with the shell.

    Include these details with the RFQ

    • D-8361-150 and D-8361-170 quantities
    • Overflow trim finish
    • Destination market and port
    • Floor-standing or wall-mounted filler
    • Private-label carton marking
    • Target ship date
    Request D-8361 Quote View OEM & ODM Program

    Until the quotation is issued, treat the D-8361 lead time as a guide.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the D-8361 dimensions?

    D-8361-150 gives 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in); D-8361-170 gives 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The inner basin is 540 mm (21.3 in) wide, and 980 mm (39 in) or 1180 mm (46 in) long depending on size.

    What does tulip profile mean on D-8361?

    The body is narrower lower down and the walls flare outward to a level thin rim, so the widest outline is at the top. The ends are round and the plan is symmetric.

    Can the bather face either way in D-8361?

    Yes. D-8361 is double ended with a centered drain, so both ends work as backrests and there is no handed version.

    How is D-8361 filled?

    The D-8361 rim has no tap holes, so the tub is filled from a floor-standing filler or a wall-mounted spout. Allow for the flared rim when setting the filler distance from the tub.

    How deep is D-8361 inside, and what is the finish?

    The drawing gives 455 mm (17.9 in) at each end and 470 mm (18.5 in) at the drain. The shell is pure acrylic sheet in gloss white.

    How do we order D-8361?

    Send quantities for each SKU together with the overflow trim finish you want against the gloss white shell. Replies are sent within 12 business hours, and D-8361 is built to a standard lead time of 30-45 days after sample approval.
