Tulip Pedestal Rounded-Rectangle Freestanding Tub, 59 & 67 in

SKU D-8302-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 30.7" × 23.6" (1500 × 780 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8302-150

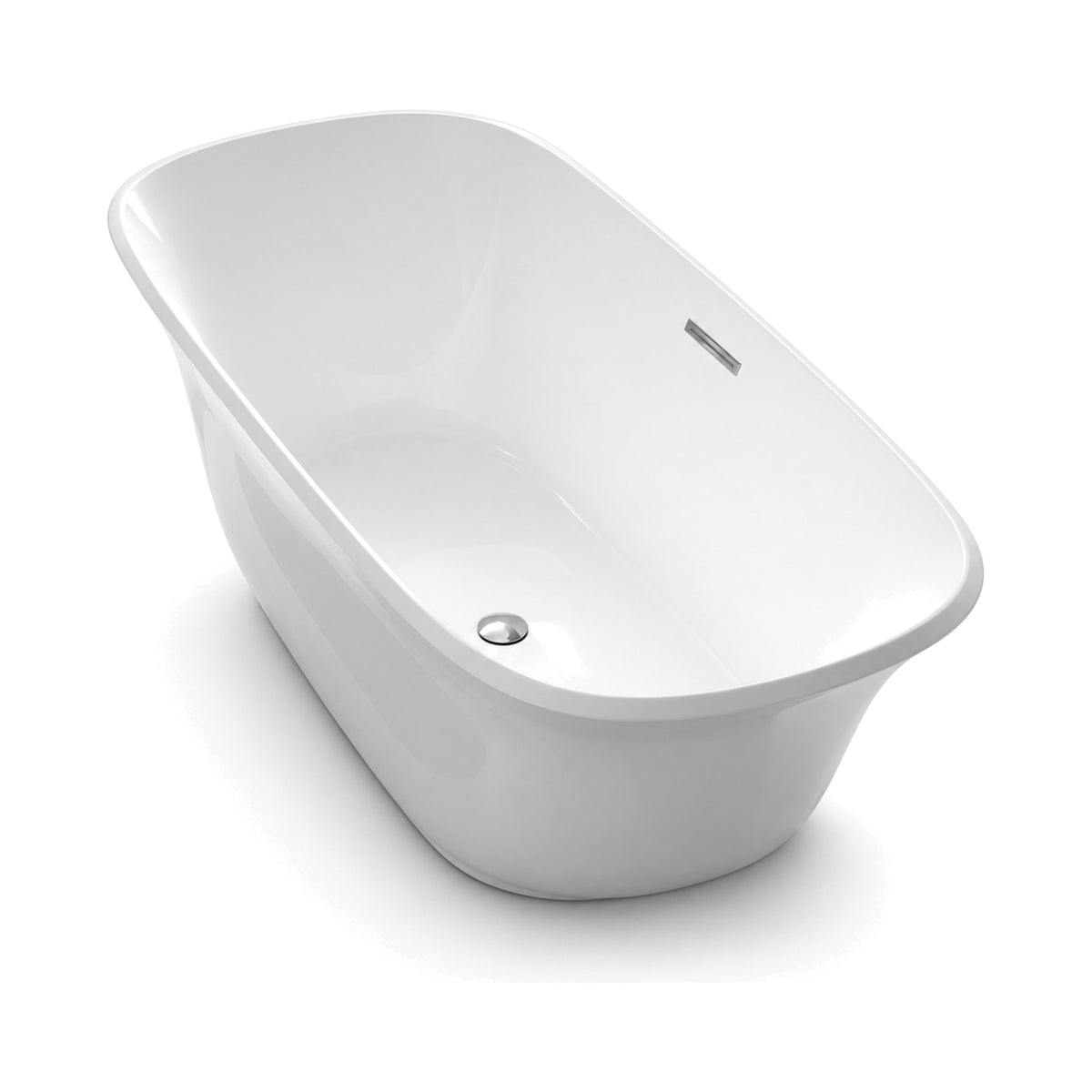

SANIKB D-8302 is a double-ended acrylic freestanding bathtub with a soft rounded-rectangle plan and a tulip profile: the gloss white body flares out toward a slim rim and curves in to a narrow pedestal foot. It is made in two sizes, D-8302-150 at 1500 × 780 × 600 mm (59 × 30.7 × 23.6 in) and D-8302-170 at 1700 × 790 × 600 mm (67 × 31.1 × 23.6 in). The drain sits at the center and the overflow at the rim. With no tap holes in the slim rim, D-8302 is filled from a floor-standing or wall-mounted filler.

D-8302 is cUPC certified in both lengths, and quotes are returned within 12 business hours. Flat-base options are in the SANIKB freestanding bathtub range.

Product PDF D-8302-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8302

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 30.7" / 31.1" × 23.6" (1500 / 1700 × 780 / 790 × 600 mm)

Sizes59" x 31"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8302-150	59" x 31"
D-8302-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8302-150	67" x 31"D-8302-170
Overall L×W×D	59″ × 30.7″ × 23.6″ 1500 × 780 × 600 mm	67″ × 31.1″ × 23.6″ 1700 × 790 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Tulip Pedestal Rounded-Rectangle Freestanding Tub, 59 & 67 in SKU D-8302-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Profile & Base

Tulip-shaped body on a central pedestal

D-8302 has a cushion-shaped plan that is symmetric from end to end. In elevation the walls flare out toward the rim and draw in to a low pedestal under the middle of the tub.

01 / PEDESTAL

A 1000 mm foot under a longer body

The drawing shows the tub carried on a central pedestal 1000 mm (39.4 in) long, so both ends of the body overhang the base. That narrow foot band is what gives D-8302 its tulip outline.

02 / BACKRESTS

Matching slopes at both ends

Both ends are shaped for reclining, and the drain is placed at the middle of the basin, so neither end is taken up by waste fittings. The overflow is set at the rim.

Pedestal and flat-base designs can be compared side by side in the freestanding bathtub collection.

Fit & Footprint

1500 or 1700 mm long, 600 mm high

D-8302 is made in two lengths at the same 600 mm (23.6 in) height. The width grows by 10 mm between them, from 780 mm to 790 mm.

59 in Size: 59" × 30.7" × 23.6" (1500 × 780 × 600 mm), D-8302-150
67 in Size: 67" × 31.1" × 23.6" (1700 × 790 × 600 mm), D-8302-170
Base: Central pedestal foot, 1000 mm (39.4 in) long
Faucet Mounting: No tap holes; floor-standing or wall-mounted filler

The drawing marks inner depths of 450 mm and 470 mm (17.7 and 18.5 in). The drain is at the middle of the tub, directly above the pedestal, so take the floor waste position from the approved drawing rather than from the outer body.

Check the pedestal length and inner depth for the chosen size on the approved drawing before the bathroom layout is fixed.

Construction & Finish

Gloss white acrylic on a tulip body

D-8302 is formed from pure acrylic sheet and finished in gloss white, with a slim rim above the flared walls.

White

Exterior on show from every side

A freestanding tulip body is seen all the way round, so the gloss white exterior matters as much at sample approval as the basin does.

Confirm at quotation how the drain and overflow trim is supplied and in which finish, since the trim is visible at the rim.

A pedestal base and a flared body make an irregular load. Agree how each unit is braced inside its carton and how transit damage is reported.

Inspect the flared exterior on arrival and log any marks within the reporting window agreed in the supply contract.

Compliance

cUPC certification for D-8302

Both lengths on one file

When 59 in and 67 in units ship together, list each SKU on the paperwork so site teams can match cartons to rooms.

D-8302 is cUPC certified. For a submittal, ask for the certificate number and validity date with both SKUs, D-8302-150 and D-8302-170, named on it.

Tell us the destination market and the documents your inspector expects for D-8302, and a written reply follows within 12 business hours.

Procurement

Ordering D-8302

Both D-8302 lengths are produced on a lead time of 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

Approve one sample before production so the tulip profile, pedestal and gloss finish are fixed for the whole order.

Include these details with the RFQ

Split between D-8302-150 and D-8302-170
Floor-standing or wall-mounted filler
Finish of the rim overflow and drain trim
Destination market and port
Private label for the tulip tub cartons
Requested shipping window

Request D-8302 Quote View OEM & ODM Program

Plan containers from the quoted date rather than from this page.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

What sizes is the D-8302 pedestal tub made in?

Two: D-8302-150 at 1500 × 780 × 600 mm (59 × 30.7 × 23.6 in) and D-8302-170 at 1700 × 790 × 600 mm (67 × 31.1 × 23.6 in). Both stand 600 mm high.

What is D-8302 supported on?

It stands on a central pedestal foot, which the drawing gives as 1000 mm (39.4 in) long. The body flares out above that foot in a tulip shape.

How many reclining ends does the D-8302 tulip tub have?

Two, one at each end. D-8302 is double-ended with the drain in the middle, so the bather can face either way.

How is the D-8302 pedestal tub filled?

The rim has no tap holes, so D-8302 takes a floor-standing or wall-mounted filler, positioned so the spout reaches past the slim rim into the basin.

How deep is the D-8302 basin?

The drawing marks two inner depths, 450 mm and 470 mm (17.7 and 18.5 in). Confirm the depth for your length on the approved drawing.

What details should go into a D-8302 enquiry?

Quantities per SKU, faucet type, trim finish and destination port. Replies go out within 12 business hours, and production runs 30-45 days after sample approval.
