Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8015-150

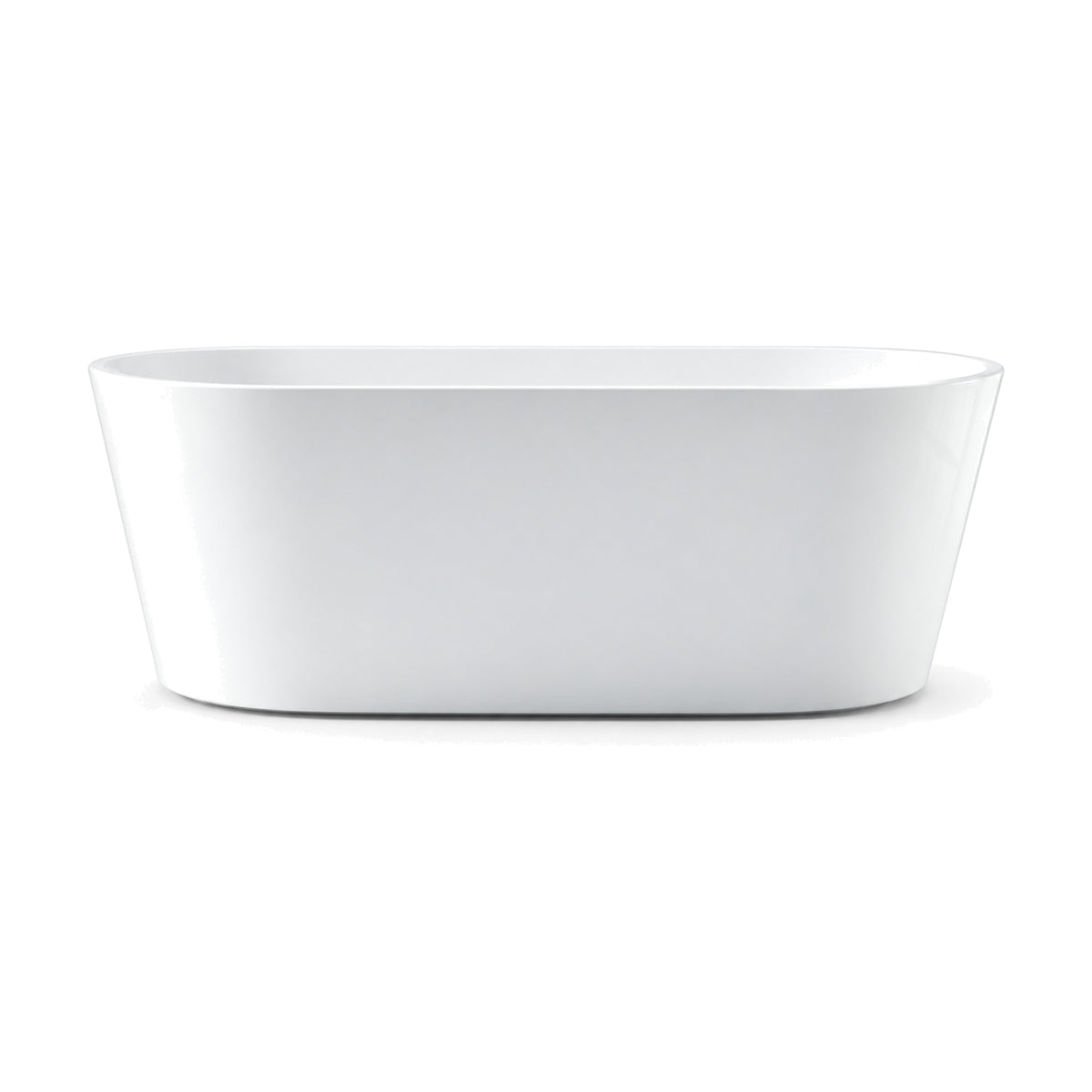

SANIKB D-8015 - white oval freestanding bathtub with slightly tapered walls, thin rounded rim and flat baseSANIKB D-8015 dimension drawing
01 / 02
01 / 02

Tapered-Wall Oval Freestanding Bathtub in Three Lengths, 59-67 in

SKU D-8015-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8015-150

SANIKB D-8015 is a tapered-wall oval freestanding bathtub, double-ended, offered in three lengths on one 800 mm width: D-8015-150 at 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), D-8015-160 at 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) and D-8015-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). Its white acrylic walls taper slightly toward a flat base, and a thin rounded rim finishes the top.

The drain sits at mid-length on every size, and the thin rim has no tap holes, so a floor-standing or wall-mounted filler is used. D-8015 is cUPC certified; compare it with other freestanding bathtubs.

Product PDF D-8015-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8015

Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

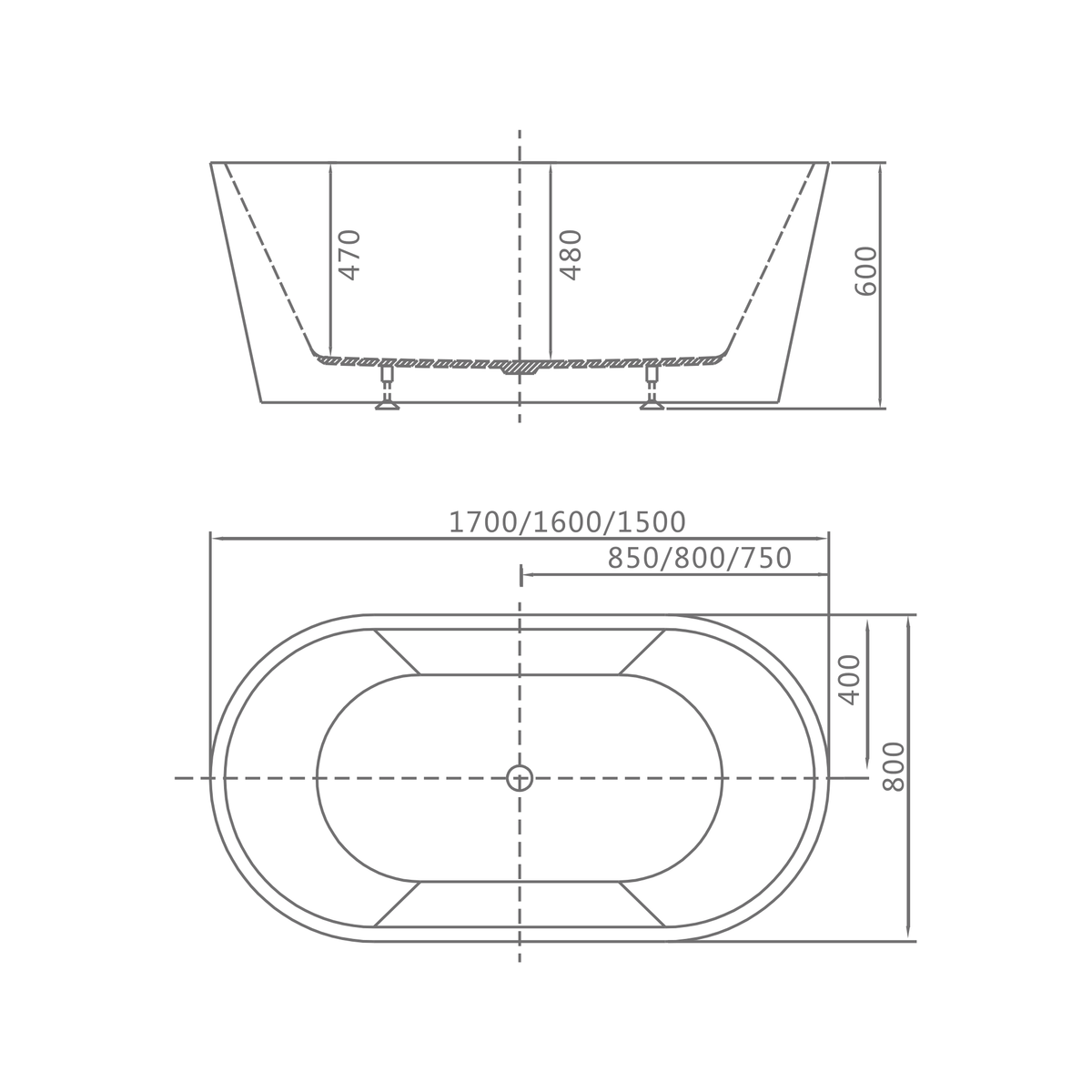

SANIKB D-8015 dimension drawing
Dimension drawing
Size range59" / 63" / 67" × 31.5" × 23.6" (1500 / 1600 / 1700 × 800 × 600 mm)
Sizes59" x 31"63" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8015-15059" x 31"
D-8015-16063" x 31"
D-8015-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 3 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8015-15063" x 31"D-8015-16067" x 31"D-8015-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
63″ × 31.5″ × 23.6″
1600 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Tapered-Wall Oval Freestanding Bathtub in Three Lengths, 59-67 in SKU D-8015-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Profile

    White oval freestanding tub with slightly tapered walls

    D-8015 has a stadium plan with both ends semicircular. The profile is identical at each end, and the walls narrow slightly as they come down to the flat base.

    01 / RIM

    Thin, rounded rim

    The rim is kept thin with a rounded edge, following the stadium outline all the way round, so the top of the tub reads as a fine line.

    02 / SYMMETRIC ENDS

    Same profile at both ends

    Both ends share the same curve and height. That makes the tub double-ended, and either end can take the backrest position.

    More symmetric oval models are grouped in the freestanding tub collection.

    Three Lengths

    59, 63 and 67 inch lengths on an 800 mm width

    All three D-8015 sizes are 800 mm (31.5 in) wide and 600 mm (23.6 in) high, so only the length changes between SKUs.

    D-8015-150
    1500 x 800 x 600 mm (59 x 31.5 x 23.6 in)
    D-8015-160
    1600 x 800 x 600 mm (63 x 31.5 x 23.6 in)
    D-8015-170
    1700 x 800 x 600 mm (67 x 31.5 x 23.6 in)
    Drain
    Centered, 400 mm from the side

    The drain is drawn at half the length on each size: 750 mm (29.5 in), 800 mm (31.5 in) and 850 mm (33.5 in) from the end, always 400 mm (15.7 in) from the side. Inner depths on the drawing are 470 mm (18.5 in) and 480 mm (18.9 in).

    The rim has no tap holes, so the filler stands on the floor beside the tub or comes off the wall.

    Set the floor waste from the approved drawing of the exact length ordered, as the drain offset changes with each size.

    Material & Finish

    White acrylic with a thin rounded rim

    The D-8015 shell is formed from pure acrylic sheet in white.

    SANIKB D-8015 - white oval freestanding bathtub with slightly tapered walls, thin rounded rim and flat base

    White

    Finish matched to the sample

    D-8015 is made in white. Approve the surface finish on the sample before production starts.

    Where an order mixes the three lengths, write the approved finish against each SKU so every size matches.

    The thin rim is the exposed edge in transit. Ask how it is protected in the carton.

    Record any transit damage on arrival and report it under the SKU concerned.

    Compliance

    cUPC documents for each D-8015 length

    Documents per length

    Request paperwork against D-8015-150, D-8015-160 or D-8015-170 by SKU so the drain offset on the drawing matches the tub delivered.

    D-8015 is cUPC certified in all three lengths. For a submittal, request the certificate and its current validity alongside the approved drawing for each length used.

    Mention the destination market when you inquire and the documents to be supplied are set out in the quotation, sent within 12 business hours.

    Procurement

    Ordering D-8015 in three lengths

    SANIKB produces D-8015 in 1500, 1600 and 1700 mm lengths and quotes each SKU on its own line.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    For projects with rooms of different lengths, one shape in three sizes keeps the bathrooms consistent. Sample the length that makes up the bulk of the order; lead time counts from that approval.

    Include these details with the RFQ

    • Quantity per SKU: D-8015-150, D-8015-160, D-8015-170
    • Destination port
    • Filler: floor-standing or wall-mounted
    • Surface finish to match the approved sample
    • Carton marking
    • Ship date required
    Request D-8015 Quote View OEM & ODM Program

    Lead time is indicative until the quotation confirms it.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What lengths is D-8015 available in?

    Three, all 800 mm (31.5 in) wide and 600 mm (23.6 in) high: D-8015-150 at 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), D-8015-160 at 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) and D-8015-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Is D-8015 single- or double-ended?

    Double-ended. Both ends share the same profile and the drain is centered, 400 mm (15.7 in) from the side and at mid-length on each size.

    What faucet mount does D-8015 take?

    A floor-standing filler beside the tub or a wall-mounted spout, since the rim has no tap holes. Fix its position together with the drain on the approved drawing.

    How is the floor waste set for D-8015?

    From the outside, the tapered wall meets the floor directly, with no feet or plinth. Set the floor waste from the approved drawing, since the drain distance from the end is 750, 800 or 850 mm depending on the size.

    What finish and depth does D-8015 have?

    White acrylic from pure acrylic sheet, with the surface finish matched to the approval sample. The two inner depths shown on the drawing are 470 mm (18.5 in) and 480 mm (18.9 in).

    How long is the lead time on D-8015?

    The standard lead time for all three D-8015 lengths is 30-45 days after sample approval. D-8015 is cUPC certified, and quantities split by length are answered with a written quote within 12 business hours.
