Tapered D-Shape Back-to-Wall Bathtub, Slim Rim, 59 & 67 in
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

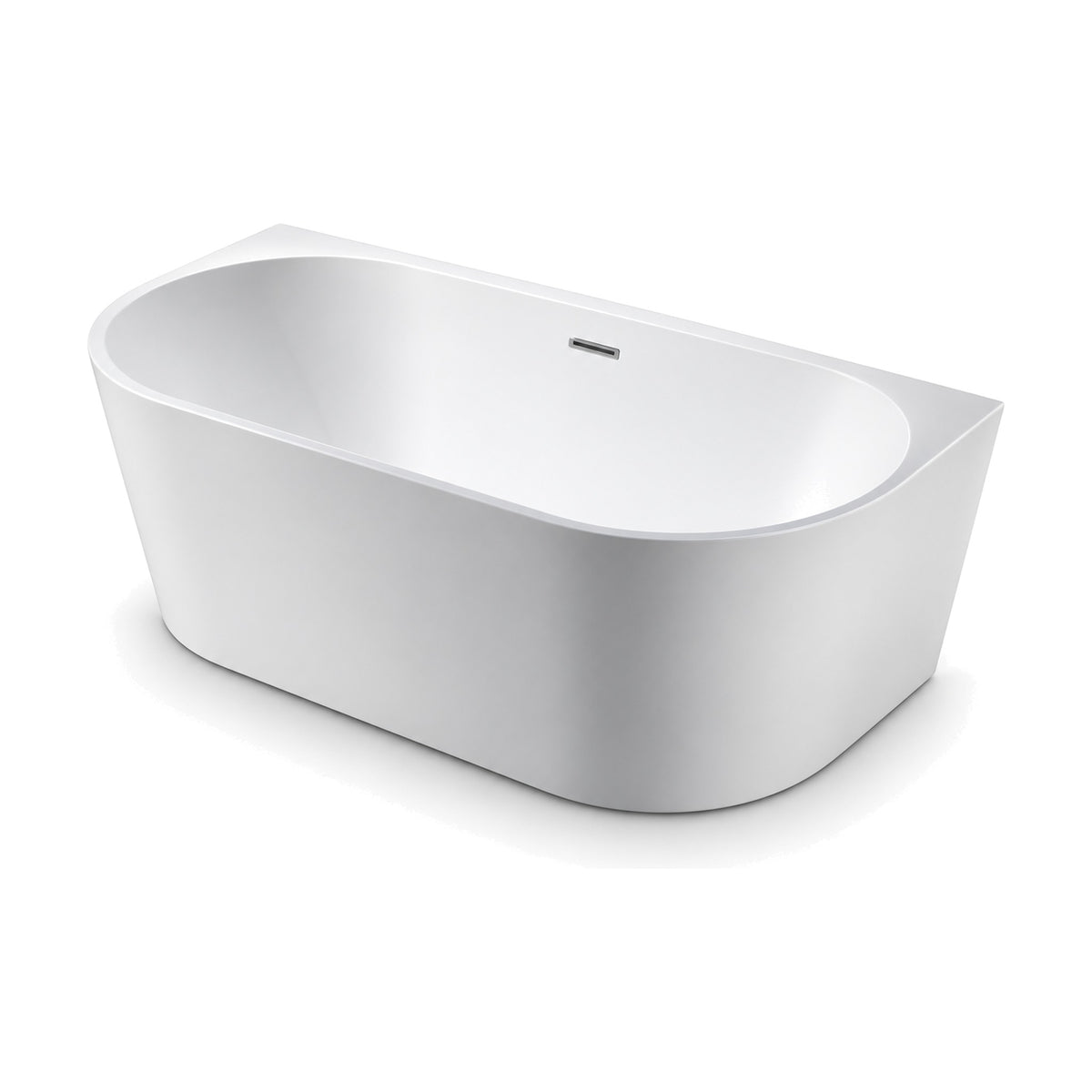

SANIKB D-8011 is a D-shaped acrylic back-to-wall bathtub whose sides taper down to a flat base, so the base is smaller than the rim outline. The straight back has square corners for the wall, the front and ends are rounded, and the rim is slim. It is made as D-8011-150 at 1500 × 800 × 580 mm (59 × 31.5 × 22.8 in) and D-8011-170 at 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in). The drain is centered and the overflow is on the back wall. The rim has no tap holes; the tub takes a floor-standing or wall-mounted filler.
Gloss level is confirmed on the approval sample, and the base footprint on the approved drawing. D-8011 is made in white, and quotes are sent within 12 business hours. See SANIKB freestanding bathtubs.
More in Freestanding Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
Tub sheet
Size and installation of D-8011
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8011-150 | 59" x 31" |
| D-8011-170 | 67" x 31" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 31"D-8011-150 | 67" x 31"D-8011-170 | |
|---|---|---|
| Overall L×W×D | 59″ × 31.5″ × 22.8″ 1500 × 800 × 580 mm | 67″ × 31.5″ × 22.8″ 1700 × 800 × 580 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Project Fit
Back to wall freestanding tub for trade projects
Hotel renovations, multifamily blocks, retail bath displays and showrooms often ask for a tub that sits against one wall and still looks finished from the other three sides. D-8011 is a tapered back to wall bathtub built for that layout, and this freestanding bathtub gives distributors a back to wall freestanding tub that stands on its own base.
Hotels and multifamily
Two lengths, 1500 mm and 1700 mm, let one tub style serve a compact bathroom and a larger one while width and height stay common.
Showrooms and retail floors
Sides that narrow toward a flat base give a display a lighter outline than a straight-walled box. Fit one to the wall and the shape reads from the room side.
Either end for the bather
Both ends are backrests, so the user can lean at either end while the drain stays centered and the overflow stays on the back wall.
Other back-to-wall and freestanding outlines are in the SANIKB freestanding bathtubs range.
Outline
D-shape plan with a straight back
Seen from above, D-8011 is a D: a straight back edge with square corners against the wall, and a rounded front and rounded ends facing the room.
From the side, the walls slope inward from the rim to a flat base, so the base is smaller than the rim outline. The tub stands directly on that base without feet. As a freestanding tub it needs no surround, only the wall behind it.
Slim rim detailing carries no tap holes, which keeps the top edge clean along the whole curve and gives the freestanding design clean lines from every room-side angle. All plumbing decisions move to the wall or the floor.
A tapered back to wall bathtub like this one gives designers a softer plan than a rectangle. The curve is at the front, where guests see it, and the straight edge does the practical work at the wall. That split is the whole idea of the D-8011 shape.
Dimensions
580 mm high, 800 mm wide, two lengths
Both sizes share an 800 mm (31.5 in) width and a 580 mm (22.8 in) height. Only the overall length changes between D-8011-150 and D-8011-170.
- D-8011-150
- 59" × 31.5" × 22.8" (1500 × 800 × 580 mm)
- D-8011-170
- 67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
- Installation
- Back-to-wall, flat base
- Faucet Mount
- Floor or wall
- Drain
- Centered
- Overflow
- Back wall
- Material and Finish
- Acrylic, white
Use the overall length for the bathroom space and the 800 mm width for the clear space beside the tub. Because the sides taper, the base footprint is smaller than the rim, so take the floor waste position from the approved drawing and not from the rim outline.
Against the wall runs the straight long edge. Plan the wall finish, any niche and the overflow position together before the tub is set.
Choose D-8011-150 or D-8011-170 per room type, and keep the model code on every line of the order.
Site Planning
Setting out a D-8011 bathroom
Back-to-wall tubs reward early layout work, because one long side disappears behind the wall finish.
Start with the room width. At 800 mm (31.5 in) wide, D-8011 leaves the rest of a narrow or small bathroom for the door swing, vanity and a clear walking line, and the 1500 mm version suits rooms where the 1700 mm length would crowd the opposite wall.
For multifamily and hotel schedules, the same width and the same 580 mm (22.8 in) height across both lengths means one rough-in height and one filler specification can cover every room type.
For showrooms, a freestanding installation on a level floor against a finished wall lets buyers walk the room side. Add the chosen filler; the rounded front and ends are the view they will see first.
Material
White acrylic body and filler choices
D-8011 is a double ended freestanding tub made from pure acrylic sheet in white.
Ask for D-8011-150 and D-8011-170 paperwork separately, so each size files against its own drawing in a project submittal.
Three sides of the tub are exposed in the room, including the tapered walls. Check them on the approval sample, where the gloss level is also agreed, and again when the cartons arrive.
With no tap holes in the rim, the tub takes a floor mounted or wall mounted filler, so wall mounted faucets and floor-standing units both fit. Decide which one early, because a floor filler needs a pipe run through the slab and a wall filler needs the wall opened and blocked. Both are standard choices for this tub.
Ordering
Quantities, lead time and OEM for D-8011
Factory-direct from SANIKB in Foshan, D-8011 is quoted per size with the quantities fixed in the quotation.
- MOQ
- 35–40 pcs · 1×40HQ
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Within 12 business hours
Container planning starts from the MOQ of 35–40 pcs in one 40HQ. With various sizes in one project, a mixed order of both lengths is a normal request, so send the split you need and our factory will reflect it in the quote.
Private label and carton marking are handled through the SANIKB OEM and ODM program.
Send with your request
- Quantity for D-8011-150 and D-8011-170
- Destination market and port
- Finish approval on the sample
- Filler type, floor or wall
- Carton label and marking
- Requested ship date
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
