Straight-Wall Stadium Freestanding Bathtub, 59 & 67 in

SKU D-8022-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8022-150

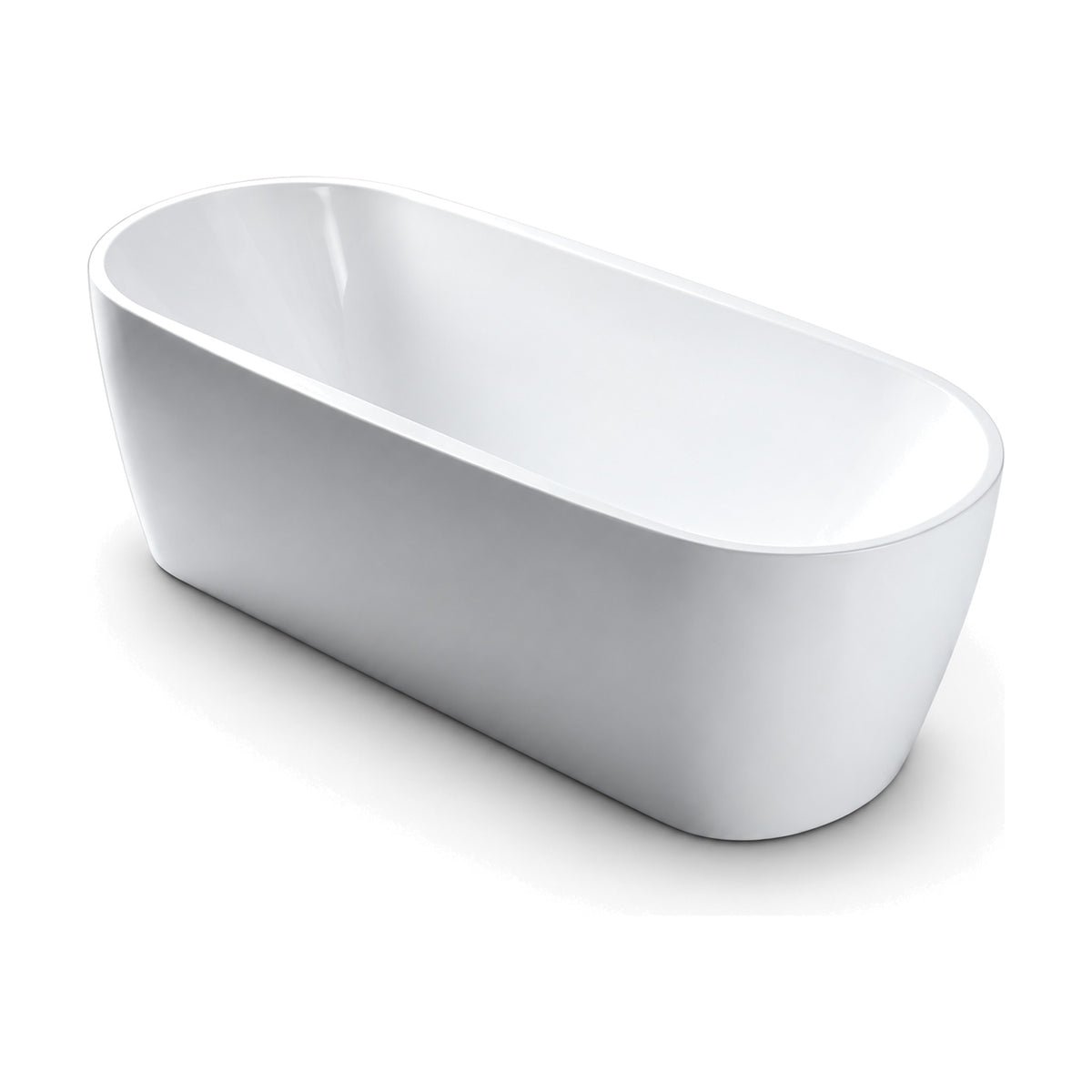

SANIKB D-8022 is a double-ended stadium freestanding bathtub with near-vertical walls, a thin rim and a flat base, made in white acrylic. It comes in two sizes that differ in both length and width: D-8022-150 at 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in) and D-8022-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

The drain is centered on both sizes. The rim has no tap holes, so the filler is floor-standing or wall-mounted. D-8022 is cUPC certified and sits in the freestanding bathtub collection.

Product PDF D-8022-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8022

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

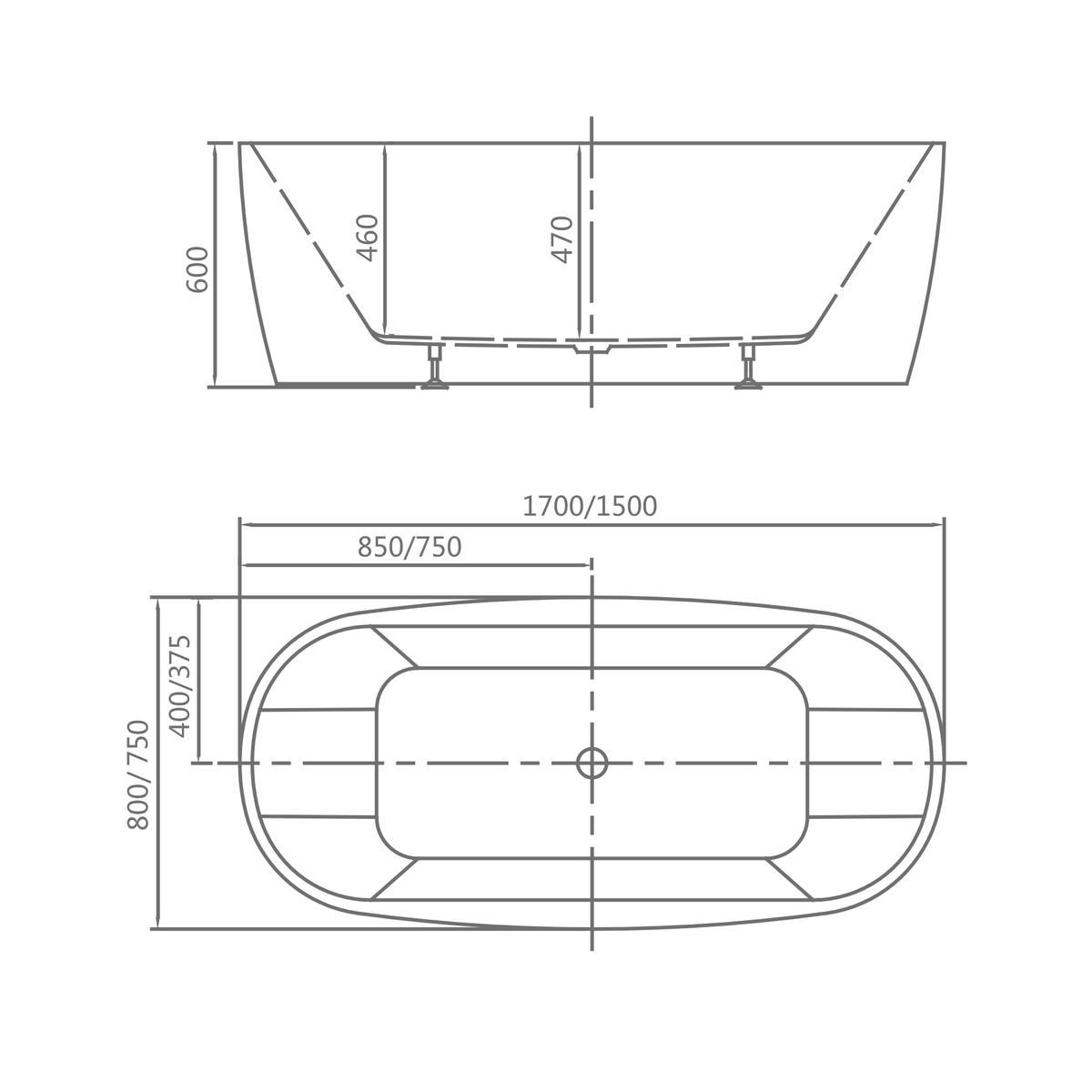

SANIKB D-8022 dimension drawing
Dimension drawing
Size range59" / 67" × 29.5" / 31.5" × 23.6" (1500 / 1700 × 750 / 800 × 600 mm)
Sizes59" x 30"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8022-15059" x 30"
D-8022-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 30"D-8022-15067" x 31"D-8022-170
Overall L×W×D
59″ × 29.5″ × 23.6″
1500 × 750 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Straight-Wall Stadium Freestanding Bathtub, 59 & 67 in SKU D-8022-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape

    Straight-sided freestanding tub with almost vertical walls

    D-8022 has near-straight long sides and rounded ends. The drawing shows the long sides slightly convex in plan, and the walls rise almost vertically from a flat base.

    01 / WALLS

    Near-vertical walls

    Because the walls barely lean, the outline at the floor is close to the outline at the rim, so the floor plan and the tub edge nearly coincide when setting out.

    02 / RIM

    Thin rim, matching ends

    A thin rim follows the stadium outline. Both ends are rounded to the same profile, which makes the tub double-ended with the drain at the center.

    Other upright and stadium shapes are grouped in the freestanding tub range.

    Two Footprints

    1500 x 750 mm or 1700 x 800 mm

    D-8022 changes width as well as length between its sizes: the 1500 mm SKU is 750 mm (29.5 in) wide and the 1700 mm SKU is 800 mm (31.5 in) wide. Both are 600 mm (23.6 in) high.

    D-8022-150
    1500 x 750 x 600 mm (59 x 29.5 x 23.6 in)
    D-8022-170
    1700 x 800 x 600 mm (67 x 31.5 x 23.6 in)
    Drain
    Centered; 750 or 850 mm from the end
    Faucet Mount
    Floor-standing or wall-mounted filler

    On the 1500 mm size the drain is 750 mm (29.5 in) from the end and 375 mm (14.8 in) from the side; on the 1700 mm size it is 850 mm (33.5 in) and 400 mm (15.7 in). Inner depths are drawn at 460 mm (18.1 in) and 470 mm (18.5 in).

    Check the width of the SKU ordered as well as the length; the two sizes do not share a footprint.

    Material & Finish

    White acrylic in a plain upright profile

    D-8022 is made in white from pure acrylic sheet. The surface finish is agreed on the approval sample.

    SANIKB D-8022 - white stadium freestanding bathtub with near-vertical walls, thin rim and flat base

    White

    A plain profile shows the finish

    With upright walls and a thin rim, D-8022 carries little molded detail, so surface quality is judged mainly on the long sides. Check them on the sample.

    Agree packing for the thin rim and the rounded ends, and set out how damage found on delivery is recorded and reported.

    Keep the approved sample on file for repeat orders of either size.

    Compliance

    cUPC paperwork matched to each D-8022 footprint

    Width on the drawing

    Check that the drawing in the submittal shows the 750 mm or 800 mm width that matches the D-8022 SKU being installed.

    D-8022 is cUPC certified in both footprints. Because the two SKUs differ in width, ask for the certificate and approved drawing against each SKU you plan to submit.

    Inquiries that state the destination market receive the document list with the quotation, issued within 12 business hours.

    Procurement

    Ordering D-8022 in two footprints

    SANIKB supplies D-8022 as two SKUs, D-8022-150 and D-8022-170, each quoted separately.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    If a project has both smaller and standard bathrooms, the two footprints can be combined on one inquiry. Lead time starts once the sample is approved, so request it early in the schedule.

    Include these details with the RFQ

    • Split of the order between D-8022-150 and D-8022-170
    • Destination market and discharge port
    • Floor-standing or wall-mounted filler
    • Scope of drain and overflow fittings
    • Label and carton marking
    • Requested ship date
    Request D-8022 Quote View OEM & ODM Program

    The quotation, not this page, sets the final lead time.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Do the two D-8022 sizes share a width?

    D-8022-150 measures 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in) and D-8022-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The shorter size is also 50 mm narrower.

    Where is the drain on D-8022?

    It is centered on both sizes: 750 mm from the end and 375 mm from the side on the 1500 mm tub, and 850 mm from the end and 400 mm from the side on the 1700 mm tub. The tub is double-ended.

    What faucet mounting does D-8022 use?

    The rim has no tap holes, so D-8022 takes a floor-standing filler beside the tub or a wall-mounted spout, with its position fixed on the approved drawing.

    How does the wall shape of D-8022 affect installation?

    Its outer walls stand directly on the finished floor, with no plinth or feet. The near-vertical walls mean the floor outline is close to the rim outline, which simplifies setting out the waste and surrounding finishes.

    How are the finish and depth of D-8022 specified?

    White acrylic formed from pure acrylic sheet; the surface finish is agreed on the approval sample. Its drawn inner depths are 460 mm (18.1 in) and 470 mm (18.5 in).

    What lead time should a D-8022 project plan for?

    Allow the standard lead time of 30-45 days after sample approval for either D-8022 footprint. It is cUPC certified, and an inquiry giving units per footprint is quoted in writing within 12 business hours.
