SANIKB HMD11646DB-8 — Square-Drain Double Bowl Undermount Sink with Drainboard, 1160 x 460 mmSANIKB HMD11646DB-8 dimension drawingSANIKB HMD11646DB-8 compatible accessories
01 / 03

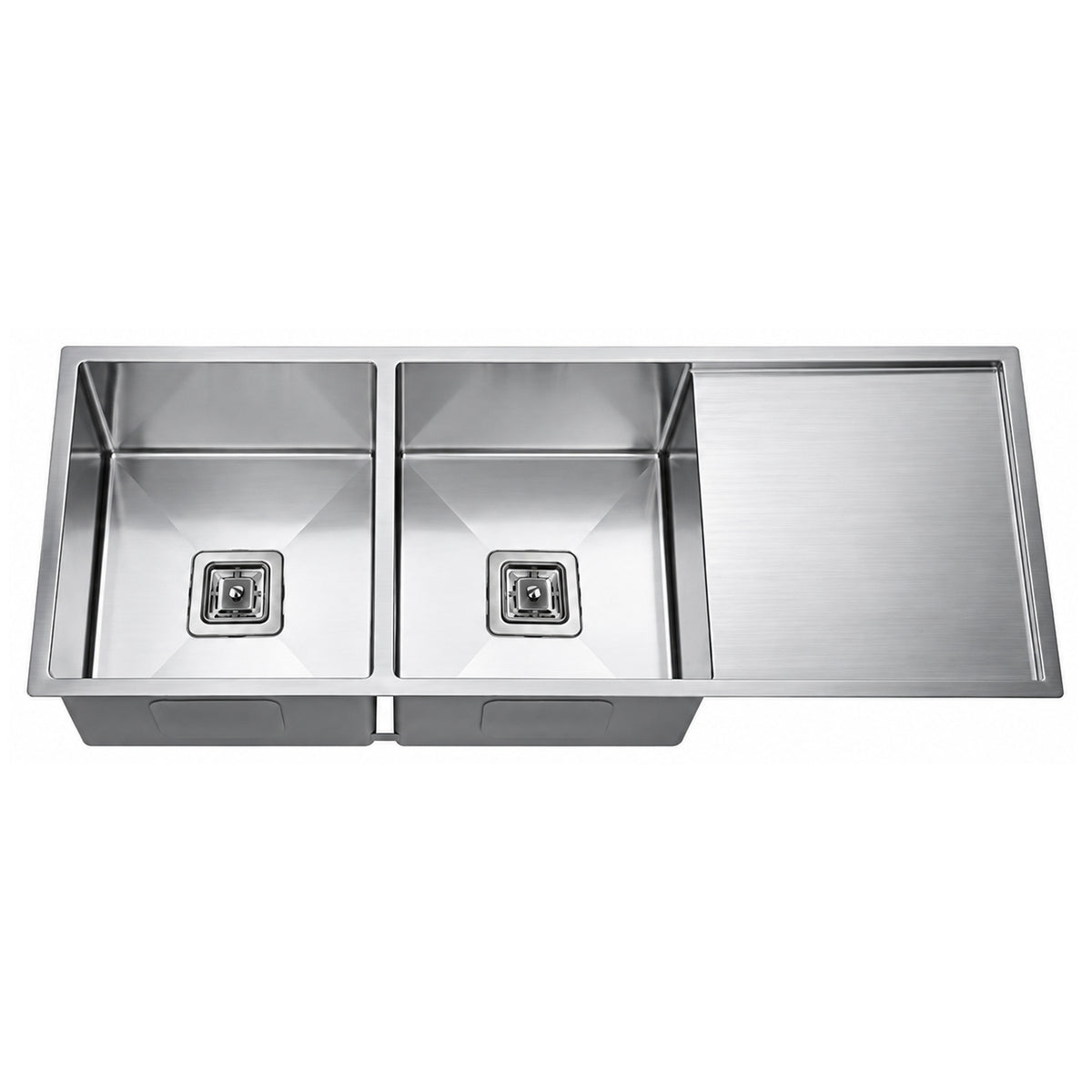

Square-Drain Double Bowl Undermount Sink with Drainboard, 1160 x 460 mm

SKU HMD11646DB-8
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Double Bowl With Drainboard
Size 45.7" × 18.1" (1160 × 460 mm) Custom sizes
Mount Undermount

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

HMD11646DB-8 pairs two 340 mm bowls with a 405 mm drainboard in 304 stainless steel, inside a 1160 × 460 mm outline (45.7" × 18.1"). Both bowls are 230 mm deep and drain through square openings.

Choose 16G (1.5 mm) or 18G (1.2 mm) and a corner radius of Zero, R10, R15 or R19. Built at our Foshan factory for undermount installation.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for HMD11646DB-8

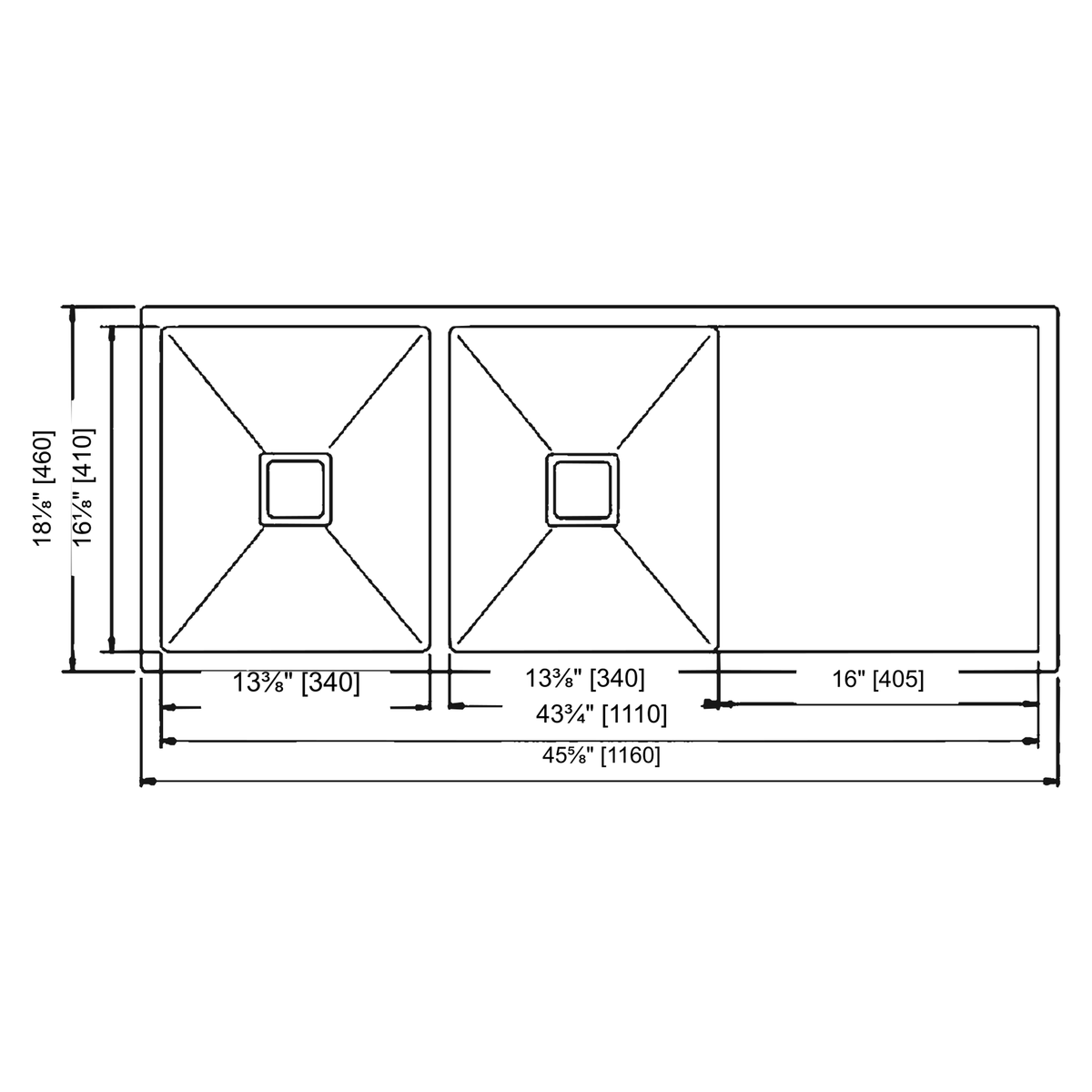

SANIKB HMD11646DB-8 dimension drawing
Dimension drawing
Overall size45.7" × 18.1" (1160 × 460 mm)
Bowl1110 x 410 mm
Depth230mm"
Gauge16G /18G
CornerZero/R10/R15/R19
Material304 stainless steel
SANIKB HMD11646DB-8 compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Square-Drain Double Bowl Undermount Sink with Drainboard, 1160 x 460 mm SKU HMD11646DB-8
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    COUNTER RUN

    Fitting a double bowl undermount sink with drainboard

    Plan the counter run first. This sink needs 1160 mm along its long side and 460 mm across, which is 45.7" × 18.1". At that length it falls in the 36 in and wider class, so it belongs on a long kitchen run rather than a compact counter.

    Twin bowls, 340 mm

    Two bowls of 340 mm sit side by side, so washing and rinsing can be done in separate bowls.

    405 mm drainboard

    An integrated board beside the bowls lets washed items drain where they were washed.

    230 mm deep

    Both bowls reach 230 mm. Check that the base cabinet leaves room for a trap under each.

    Square drain openings

    The drains are square rather than round, so match strainers and waste kits to that shape.

    SPECIFICATIONS

    Sizes behind HMD11646DB-8

    Model
    HMD11646DB-8
    Overall size
    45.7" × 18.1" (1160 × 460 mm)
    Bowl dimension
    1110 x 410 mm
    Twin bowls
    340 mm each
    Drainboard
    405 mm
    Depth
    230 mm
    Drain openings
    Square
    Corner radius
    Zero/R10/R15/R19
    Material
    304 stainless steel
    Gauge
    16G /18G
    Mount
    Undermount
    Packing
    1PC / Box

    CORNER RADIUS

    Zero, R10, R15 or R19 corners

    Corner radius is chosen per order from four options: Zero, R10, R15 and R19. Zero leaves tight inside corners, and R10 to R19 round them off in steps.

    Decide the radius before the countertop is templated. On an undermount sink the cutout corners show from above, so the fabricator needs the figure early.

    Gauge is the other choice: 16G is 1.5 mm and 18G is 1.2 mm. Both are tooled for this model.

    ORDERING

    HMD11646DB-8: one sink, one box

    Each sink ships 1PC / Box, so the carton count equals the unit count on the packing list. MOQ is 50 pcs, and a mixed 1×20 ft container is accepted.

    Name the gauge and corner radius on every order line. Quotes come back from our Foshan factory within 12 business hours.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    How much counter does a double bowl undermount sink with drainboard take?

    Outline is 1160 × 460 mm (45.7" × 18.1"), and the bowl dimension is 1110 x 410 mm. Plan the base cabinet run and the countertop opening around that length. The sink sits in the 36 in and wider class, so check wall obstructions and cabinet joints before the counter is templated. Ask for the spec sheet first.

    Which corner radius should we order for the drainboard sink?

    All four are tooled: Zero, R10, R15 and R19. Ask your fabricator which radius their cutting method handles cleanly, then use one radius across the project so every unit matches. Zero is the sharpest and R19 the roundest, which makes R10 and R15 the middle steps.

    What do square drain openings change for waste fittings?

    Both bowls use square drain openings rather than round ones, so strainers and waste kits have to be square to suit. Check the fitting you plan to use against the spec sheet before ordering. Two bowls mean two openings, so count two waste fittings for every sink on the order.

    Can SANIKB brand the HMD11646DB-8 for our range?

    Yes. We build the sink ourselves in Foshan, so logo and packaging changes are handled inside the factory. HMD11646DB-8 ships 1PC / Box, so branded packaging means one carton design per sink. Send artwork and quantity, with gauge and corner radius per line, and see how a programme is set up on our OEM/ODM service page.
