Elongated Washdown Wall-Hung Toilet, 23-Inch Concealed-Cistern Bowl
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

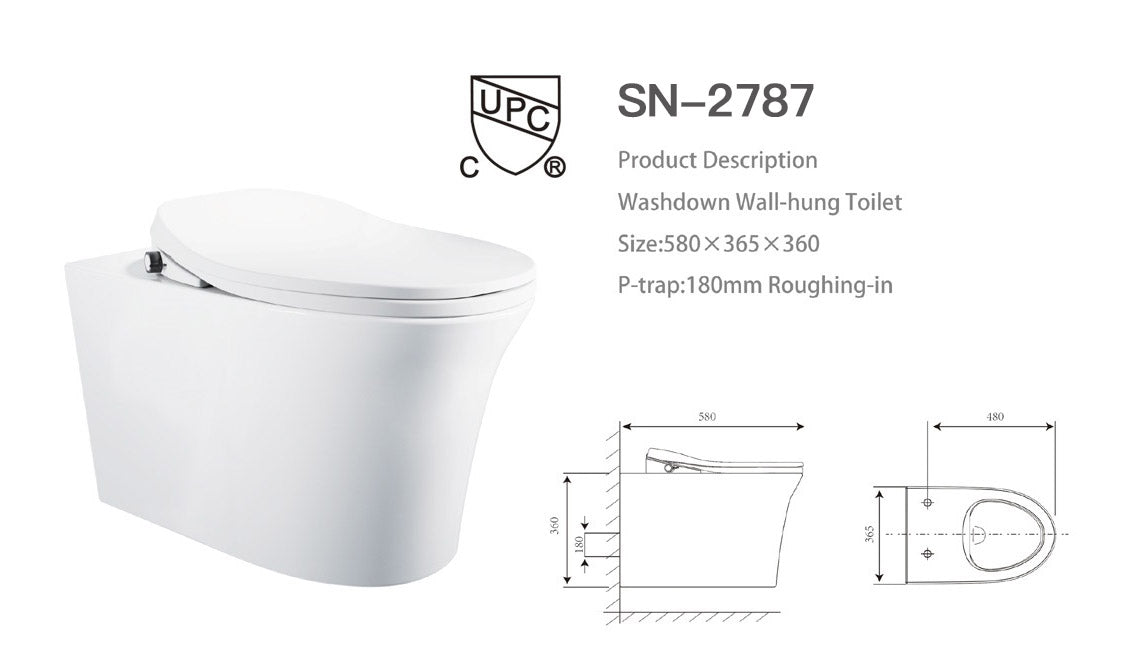

Elongated wall-hung bowl for concealed cisterns, 580 × 365 × 360 mm, washdown flushing, in glossy white vitreous china. P-trap outlet with a 180 mm rough-in.
Our Foshan factory builds it for projects with room depth to spare, and quotations come by model code. Add the frame set and any private-label needs to your request, and the reply will cover them together.
More in Wall Hung Toilet
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.
Fit data
Rough-in, flush and size of SN-2787
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
ROOM PLANNING
Elongated wall hung toilet, 580 mm projection
Plan the room around 580 mm of bowl length, 365 mm of width and 360 mm of height. Those three dimensions decide how an elongated wall hung toilet clears the door swing, the vanity and the side walls.
- Model
- SN-2787
- Overall size
- 22.8" × 14.4" × 14.2" (580 × 365 × 360 mm)
- Bowl shape
- Elongated
- Nominal size
- 23-inch
- Flush
- Washdown
- Mounting
- Wall-hung (concealed cistern)
- Outlet
- P-trap, 180 mm rough-in
- Material
- Vitreous china ceramic
- Finish
- Glossy white
- Certification
- Confirmed with quotation
- MOQ
- 30 pcs
Frame depth behind the wall comes on top of these bowl figures.
WASHDOWN FORMAT
Washdown bowl, 23-inch elongated outline
An elongated rim in the 23-inch class runs longer front to back than a D-shape. SN-2787 pairs it with washdown flushing in glossy white vitreous china.
A sister model with the same 580 × 365 × 360 mm envelope is sold as a 3/6 litre dual-flush bowl. SN-2787 is sold as the washdown bowl, so choose it when the project does not specify dual flush.
A concealed cistern means only the bowl shows in the room. The P-trap outlet, 180 mm rough-in, is the connection to coordinate with the plumber.
PROJECT FIT
Rooms that suit a longer bowl
Larger residential bathrooms
Measure first: 580 mm of bowl length must clear the door swing and any vanity in front of it.
Guest rooms and suites
Specify the bowl once, then repeat the model code on every floor of a hospitality fit-out.
Commercial washrooms
A concealed cistern sits inside the wall, so draw the frame and its access point in the same drawing set.
ORDER TERMS
Quantities, loading and reply times
- Minimum order
- 30 pcs
- Container loading
- Mixed 1×20 ft accepted
- Quotation reply
- Within 12 business hours
SN-2787 is quoted by model code alone, since the bowl has a single variant.
SEND US
Details for an SN-2787 enquiry
For private-label supply, start from our OEM and ODM service page.
Please include
- Number of SN-2787 and the other models in the same shipment
- Port of discharge
- Frame and cistern set already chosen for the project
- Seat and actuator requirements
- Label or packing marks for a private-label order
