Specifications and Dimensions

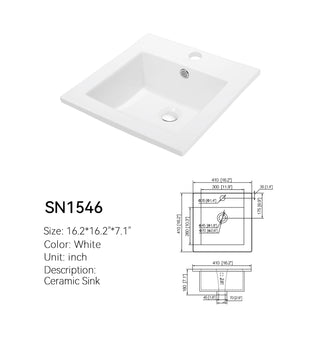

The SN1546 square ceramic vanity sink has a square footprint of 410 x 410 mm (16.2 x 16.2 in) and an overall height of 180 mm (7.1 in). The basin sits within a 35 mm (1.4 in) rim, with interior references of 300 mm (11.9 in) and 260 mm (10.3 in) marked on the spec drawing. The faucet hole is 35 mm (1.4 in) in diameter and sits 175 mm (6.9 in) from the back edge. The drain opening is 45 mm (1.8 in) in diameter, set within a 70 mm (2.8 in) recess. Dimensioned drawings can be supplied for vanity cutout planning.
