Compact Washdown Wall-Hung Toilet, 21-Inch D-Shape Bowl
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.
Short D-shape bowl for concealed-cistern installation: 535 mm long, 365 mm wide and 310 mm high, with a P-trap outlet. Vitreous china ceramic, glossy white.
Our Foshan factory makes it for trade buyers who specify by model code. State your quantity and destination in the quote request, and add any OEM/ODM labelling the project needs, so the first reply is complete.
More in Wall Hung Toilet
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.
Fit data
Rough-in, flush and size of SN-104
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
SIBLING CHECK
SN-104 against the other wall-hung bowls
A D shape wall hung toilet rounds the front rim and squares the back. SN-104 follows that outline at 535 mm long and 365 mm wide.
Against its sister D-shape bowl in the SN wall-hung family, SN-104 is slightly shorter and slightly wider. Both stand 310 mm high, so the choice comes down to length against width in your room.
Against the square-bowl model, SN-104 swaps straight sides for a rounded front. The square bowl is the longer of the two, which counts in a short bathroom.
Against the elongated models, SN-104 is clearly shorter and lower. Quote it when depth in front of the bowl is the constraint.

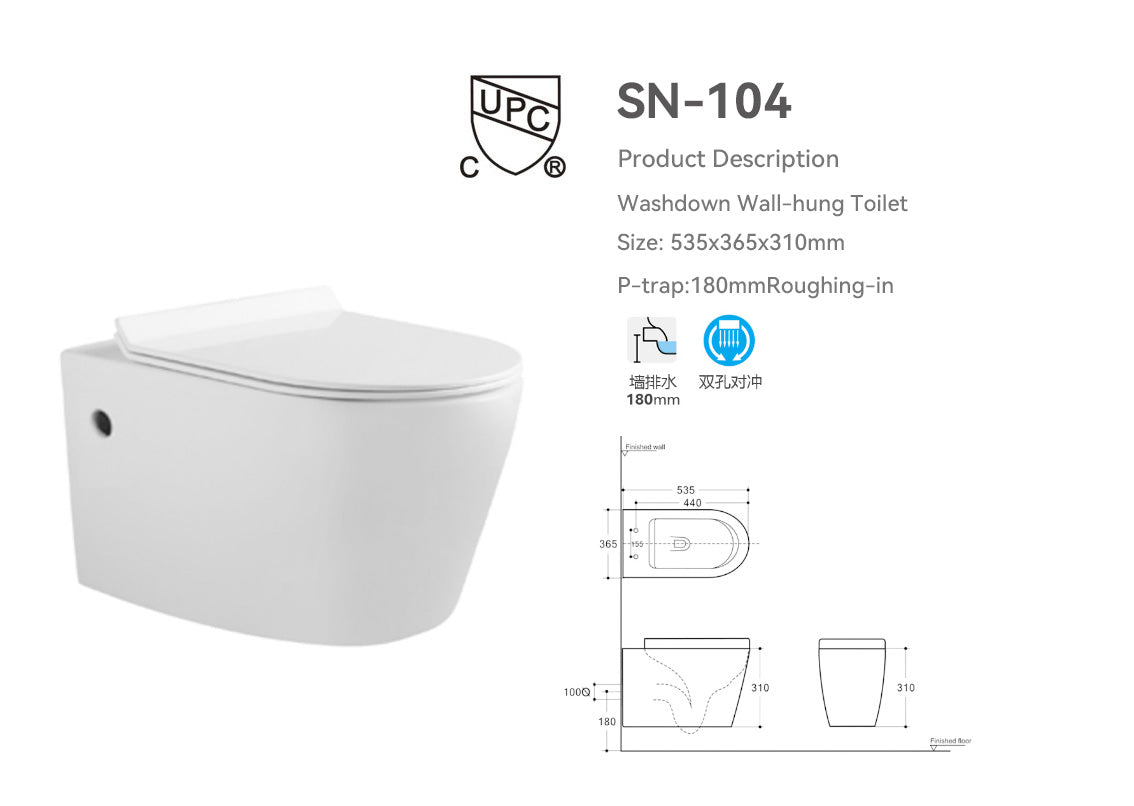

DATA SHEET
Millimetres, inches and outlet data
- Model
- SN-104
- Overall size
- 21.1" × 14.4" × 12.2" (535 × 365 × 310 mm)
- Bowl shape
- D-shape
- Flush
- Washdown
- Mounting
- Wall-hung (concealed cistern)
- Outlet
- P-trap, 180 mm rough-in
- Material
- Vitreous china ceramic
- Finish
- Glossy white
- Certification
- Confirmed with quotation
- MOQ
- 30 pcs
Overall size and outlet type are in the table above. The SN-104 spec sheet is available on request.
BUILD
Configuration: one bowl, one outlet, one colour
Wall-hung over a concealed cistern
Frame and cistern sit inside the wall, so they are chosen together with the bowl and not as an afterthought.
P-trap outlet, 180 mm rough-in
Compare the 180 mm rough-in with the soil pipe position in your wall build-up before the order is placed.
Glossy white, one variant
A single glossy white variant means an order line needs only the model code SN-104.
QUOTE
From shortlist to quotation
Send the model code, quantity and port, and the quotation follows within 12 business hours.
Helpful to include
- How many SN-104, and which other models share the container
- Discharge port and delivery month
- Frame and cistern already specified on site
- Seat type, if you want it quoted
- Label or carton marking for a private-label run
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
