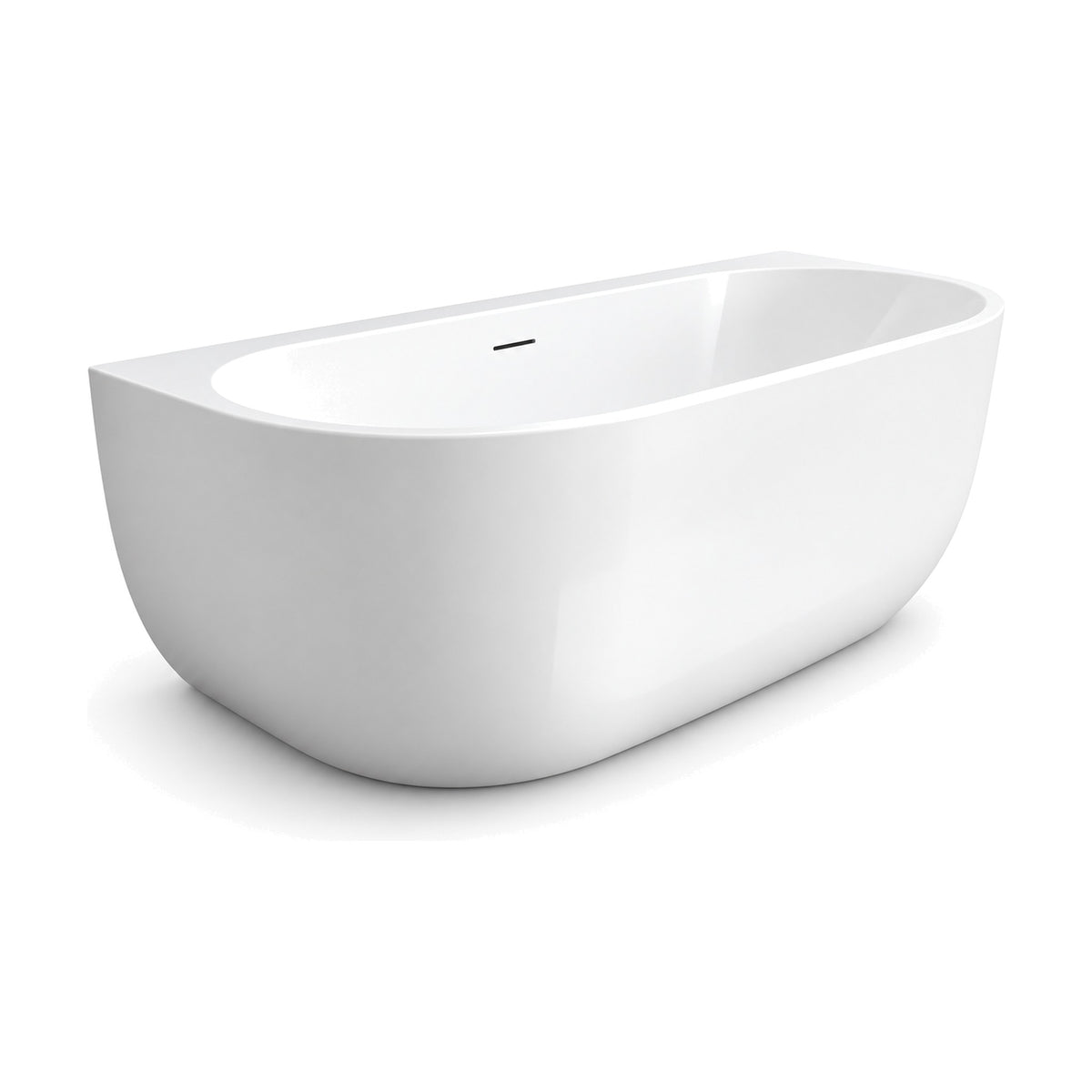

SANIKB AB02 - glossy white slim-rim D-shaped back-to-wall bathtub with flat wall side and wall-side overflow slotSANIKB AB02 dimension drawing
01 / 02
01 / 02

Slim-Rim D-Shape Back-to-Wall Bathtub, 67 x 29.5 x 23.6 in

SKU AB02-170
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Back-to-wall freestanding bathtub
Size 67" × 29.5" × 23.6" (1700 × 750 × 600 mm) Custom sizes
Mount Back-to-wall (one long side to the wall)
Finish
White
Product PDF AB02-170

SANIKB AB02 is a D-shaped acrylic back-to-wall bathtub that pairs a full 1700 mm length with a 750 mm width, a thin rim and matching flared ends. It is made in one size, SKU AB02-170: 1700 × 750 × 600 mm (67 × 29.5 × 23.6 in). One long side is flat to the wall and the front corners are rounded. Both ends flare out the same way, so the bather can recline at either end, and the drain is centered. An overflow slot sits in the middle of the wall side. The rim has no tap holes; the tub takes a floor-standing or wall-mounted filler.

Inner depth is 456 mm (18.0 in), and the base is 1370 mm (54 in) long. AB02 is glossy white and cUPC certified, and quotes are returned within 12 business hours. See SANIKB freestanding bathtubs.

Product PDF AB02-170

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of AB02

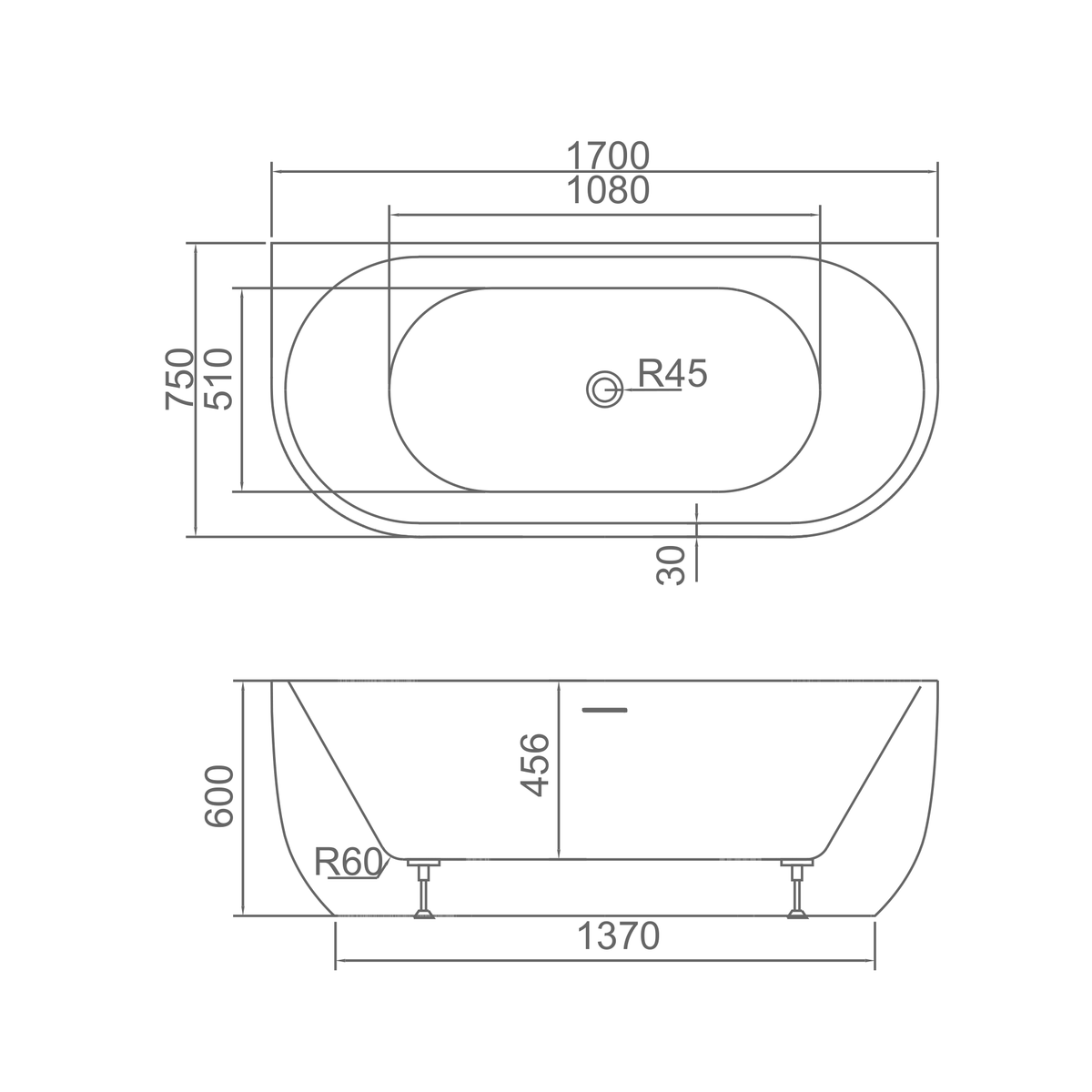

SANIKB AB02 dimension drawing
Dimension drawing
Size range67" × 29.5" × 23.6" (1700 × 750 × 600 mm)
InstallationBack-to-wall (one long side to the wall)
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Slim-Rim D-Shape Back-to-Wall Bathtub, 67 x 29.5 x 23.6 in SKU AB02-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Rim

    Thin-rim D-shape with matching flared ends

    AB02 has a straight back with square corners and a rounded front. Both ends flare identically, and the rim is thin all round.

    01 / OVERFLOW

    Overflow slot on the wall side

    The overflow is a slot in the middle of the long wall on the wall side rather than at one end. The drain is centered in the basin.

    02 / FAUCET

    Floor or wall filler

    AB02 has no tap deck and no tap holes in the rim. It takes a floor-standing or wall-mounted filler, set out in the bathroom plumbing.

    Specifiers comparing slim-rim back-to-wall tubs often check width first, and AB02 is 750 mm (29.5 in) across. Other shapes and widths are in the SANIKB bathtub range.

    Fit & Footprint

    1700 × 750 mm, 600 mm high

    AB02-170 measures 1700 × 750 × 600 mm, or 67 × 29.5 × 23.6 in. The basin floor is 1080 × 510 mm (42.5 × 20.1 in).

    Overall Size
    67" × 29.5" × 23.6" (1700 × 750 × 600 mm)
    Installation
    Back-to-wall, flat to floor
    Faucet Mount
    Floor or wall
    Basin
    456 mm (18.0 in) inner depth, center drain

    The base is 1370 mm (54 in) long, so the footprint at floor level is shorter than the rim. Set out the floor-standing or wall-mounted filler against the approved drawing.

    The flat back and square back corners are confirmed on the approved drawing before the wall is finished.

    Construction & Finish

    Smooth glossy white acrylic

    AB02 is formed from pure acrylic sheet with a smooth, glossy white surface.

    SANIKB AB02 - glossy white slim-rim D-shaped back-to-wall bathtub with flat wall side and wall-side overflow slot

    White

    White only

    AB02 is made in white, which keeps repeat orders on a matching finish.

    With a thin rim and no tap deck, the tub outline stays plain; the faucet position is fixed by the wall or floor plumbing instead.

    Settle carton protection and the damage-reporting process before the first order ships.

    Note any transit damage on the delivery receipt.

    Compliance

    cUPC certification, AB02

    Filed under AB02

    Keep the certificate and drawing for AB02 separate from other tub models on the same project.

    AB02 is cUPC certified. Before submittal, request the certificate number and its validity for this model and your market.

    Include the market and the documents you need in the inquiry, and SANIKB will reply in writing within 12 business hours.

    Procurement

    Ordering AB02

    AB02 is made in one size, SKU AB02-170. Faucet scope is agreed at quotation because the rim has no tap holes.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Sent within 12 business hours

    Plan the sample round early: standard lead time is 30-45 days after sample approval. Private label work runs through the SANIKB OEM and ODM program.

    Include these details with the RFQ

    • Quantity of AB02-170
    • Destination market and discharge port
    • Faucet scope: none, wall-mounted or floor-standing
    • Carton marking
    • Preferred shipping month
    Request AB02 Quote View OEM & ODM Program

    The lead time stays indicative until the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How big is AB02?

    1700 × 750 × 600 mm, or 67 × 29.5 × 23.6 in, as SKU AB02-170. Inner depth is 456 mm (18.0 in) and the base is 1370 mm (54 in) long.

    Which side of AB02 sits against the wall?

    The straight long side with square corners goes to the wall. The front corners are rounded, and the overflow slot is in the middle of the wall side.

    Is there a tap deck on AB02?

    No. The thin rim has no tap holes, so AB02 takes a floor-standing or wall-mounted filler. Set the faucet position in the plumbing layout against the approved drawing.

    Can the bather recline at either end of AB02?

    Yes. AB02 is double-ended; both ends flare the same way, and the drain is centered.

    What finish does AB02 come in?

    Glossy white, formed from pure acrylic sheet. The tub stands flat on the floor.

    How do we order AB02?

    Send the quantity, market, port and faucet scope, and you will get a written reply within 12 business hours. The standard window for AB02 is 30-45 days after sample approval, and the tub is cUPC certified.
