SANIKB D-8085 - gloss white single-ended stadium freestanding bathtub with end drain, round overflow and flat rim bandSANIKB D-8085 dimension drawing
01 / 02
01 / 02

Single-Ended Stadium Freestanding Bathtub with End Drain, 67 in

SKU D-8085
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 31.5" × 23.6" (1700 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8085

SANIKB D-8085 is a single-ended freestanding bathtub with a stadium-oval outline, made in gloss white acrylic in one size: D-8085 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The drain and a round overflow are grouped at one end, and the opposite end is shaped as a curved backrest. Straight upright walls rise to a level, flat rim band.

With the fittings at the foot, the backrest end stays clear. The rim has no tap holes; plan a floor-standing or wall-mounted filler at the drain end. D-8085 is cUPC certified and belongs to the freestanding bathtub range.

Product PDF D-8085

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8085

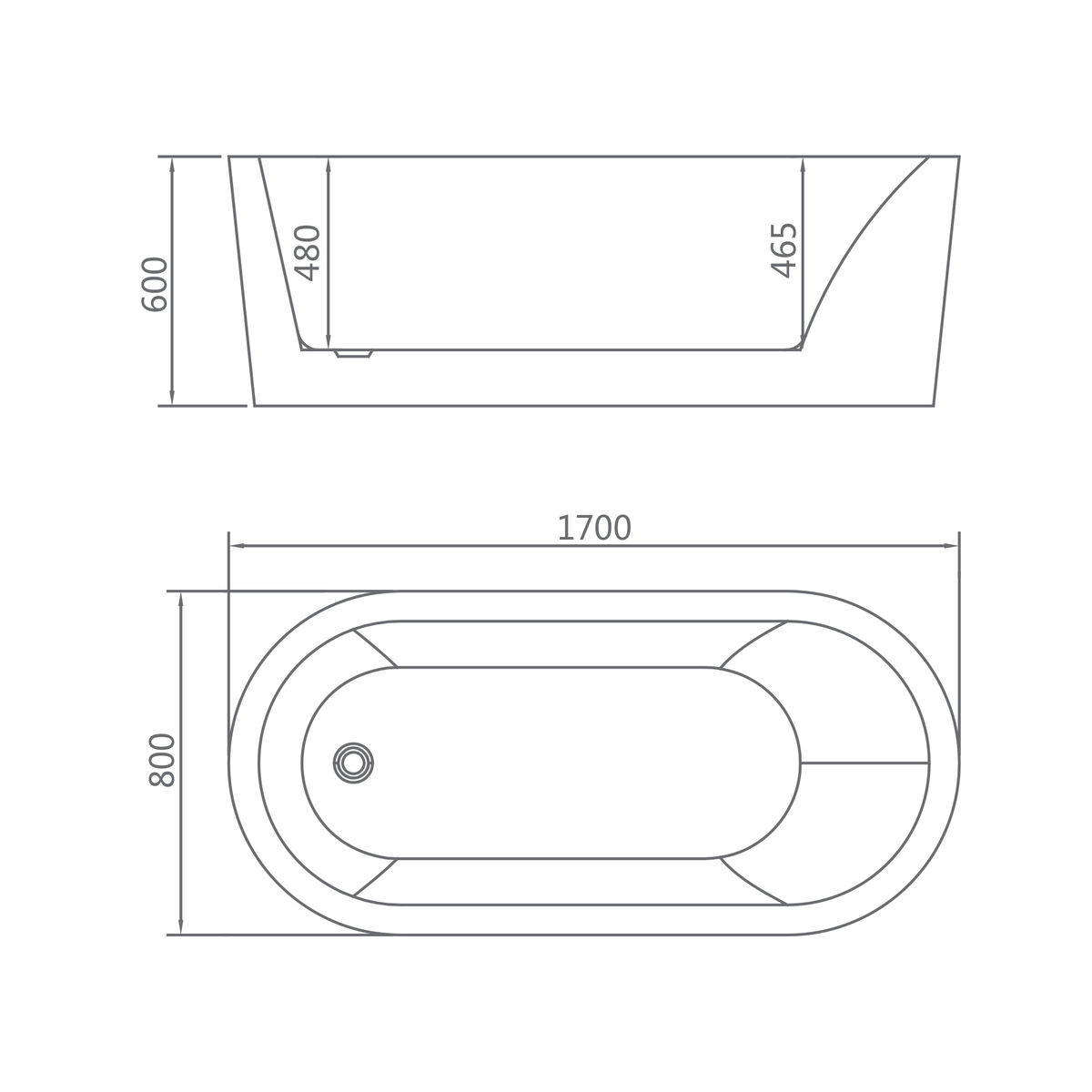

SANIKB D-8085 dimension drawing
Dimension drawing
Size range67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Single-Ended Stadium Freestanding Bathtub with End Drain, 67 in SKU D-8085
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Layout

    Single-ended freestanding tub with a curved backrest

    D-8085 has a symmetric stadium outline on the outside and a single-ended interior. The curved backrest sits at the opposite end from the drain.

    01 / END DRAIN

    Drain and overflow at one end

    The drain and the round overflow are both at the foot end. On the drawing the drain sits at the left end; its exact offset from that end is confirmed on the approved drawing.

    02 / PROFILE

    Level rim, flared outer ends

    The rim is level all round and finished as a flat band. The long walls are straight and upright, while both outer ends flare in elevation.

    If the room layout needs the fittings at the center instead, compare double-ended shapes in the freestanding tub collection.

    Fit & Depth

    67 inches long with a deeper drain end

    D-8085 is made in one size: 1700 by 800 by 600 mm, or 67 by 31.5 by 23.6 inches.

    Overall Size
    1700 x 800 x 600 mm (67 x 31.5 x 23.6 in)
    Backrest
    Single-ended, curved backrest opposite the drain
    Drain
    End drain with round overflow
    Faucet Mount
    Floor-standing or wall-mounted filler

    Inner depth is drawn at 480 mm (18.9 in) at the drain end and 465 mm (18.3 in) at the backrest end. The tub is not handed, and its outline is symmetric, so turning it round puts the drain at whichever end of the room suits the plumbing.

    Decide which end of the room the drain faces before the floor waste is set, then confirm its position on the approved drawing.

    Material & Finish

    Gloss white acrylic with a flat rim band

    D-8085 is formed from pure acrylic sheet and made in white with a gloss finish.

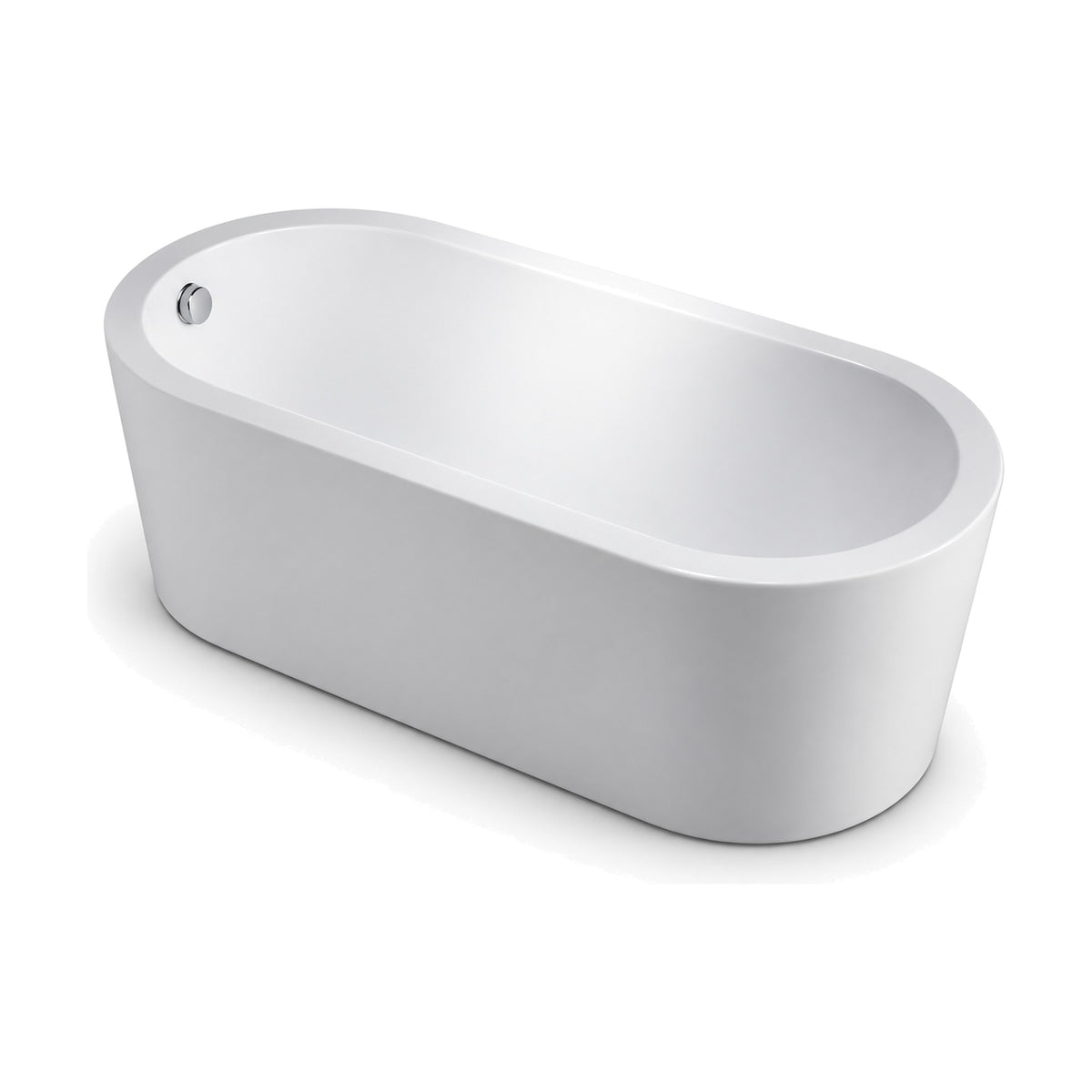

    SANIKB D-8085 - gloss white single-ended stadium freestanding bathtub with end drain, round overflow and flat rim band

    White

    A plain profile, one finish

    Upright walls and a flat rim band keep the profile plain, so the gloss white surface carries the look. Sign off the finish on the approval sample before production.

    The flat rim band is the broad horizontal surface that stays in view after installation. Ask for rim protection in the packing and agree how surface marks found on arrival are reported.

    Keep the approved sample as the finish reference for later orders.

    Compliance

    cUPC certificate and end-drain drawing for D-8085

    One SKU, one file

    D-8085 has a single SKU, D-8085, so the drawing, certificate and packing list can all be issued under that one reference.

    D-8085 is cUPC certified. Request the certificate number and its expiry date so the model can go into a project submittal without gaps.

    For an end-drain tub, ask for the approved drawing with the certificate so the plumbing layout can be checked against it. Both are confirmed in the quotation, issued within 12 business hours.

    Procurement

    Ordering D-8085

    D-8085 is built by SANIKB in one size, which keeps ordering to a single line on the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    With only one SKU to approve, a single sample of D-8085 covers the whole order. The lead-time clock starts when that sample is signed off.

    Include these details with the RFQ

    • Quantity of D-8085
    • Destination market and port
    • Filler position relative to the drain end
    • Drain and overflow fitting finish
    • Carton marking
    • Shipping window
    Request D-8085 Quote View OEM & ODM Program

    Until the quotation is issued, read the lead time as a planning figure.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What is the single size of D-8085?

    One size, SKU D-8085: 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The outline is a stadium oval with straight upright walls and a flat rim band.

    Which end is the backrest on?

    D-8085 is single-ended. The curved backrest is at the opposite end from the drain and round overflow. The drawing shows the drain at the left end, but the tub is not handed, so it can be turned to place the drain at either end of the room.

    Where should the faucet go on D-8085?

    Off the tub: the rim has no tap holes, so D-8085 is paired with a floor-standing or wall-mounted filler. Position it to suit the drain end, and confirm it on the approved drawing before supply pipes are run.

    How deep is D-8085 at each end?

    The drawing gives 480 mm (18.9 in) at the drain end and 465 mm (18.3 in) at the backrest end. Overall height is 600 mm (23.6 in).

    What material and finish is it?

    Gloss white acrylic formed from pure acrylic sheet, with a flat rim band that is level all round. The tub sits flat on the floor without feet or a plinth.

    What lead time and quote timing apply to D-8085?

    Plan on 30-45 days after sample approval, the standard lead time for D-8085. With the quantity and destination port in hand, a written quote for this cUPC certified tub is sent within 12 business hours.
