Single-Ended Back-to-Wall Bathtub with Wide Tap Deck, 59 & 67 in
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

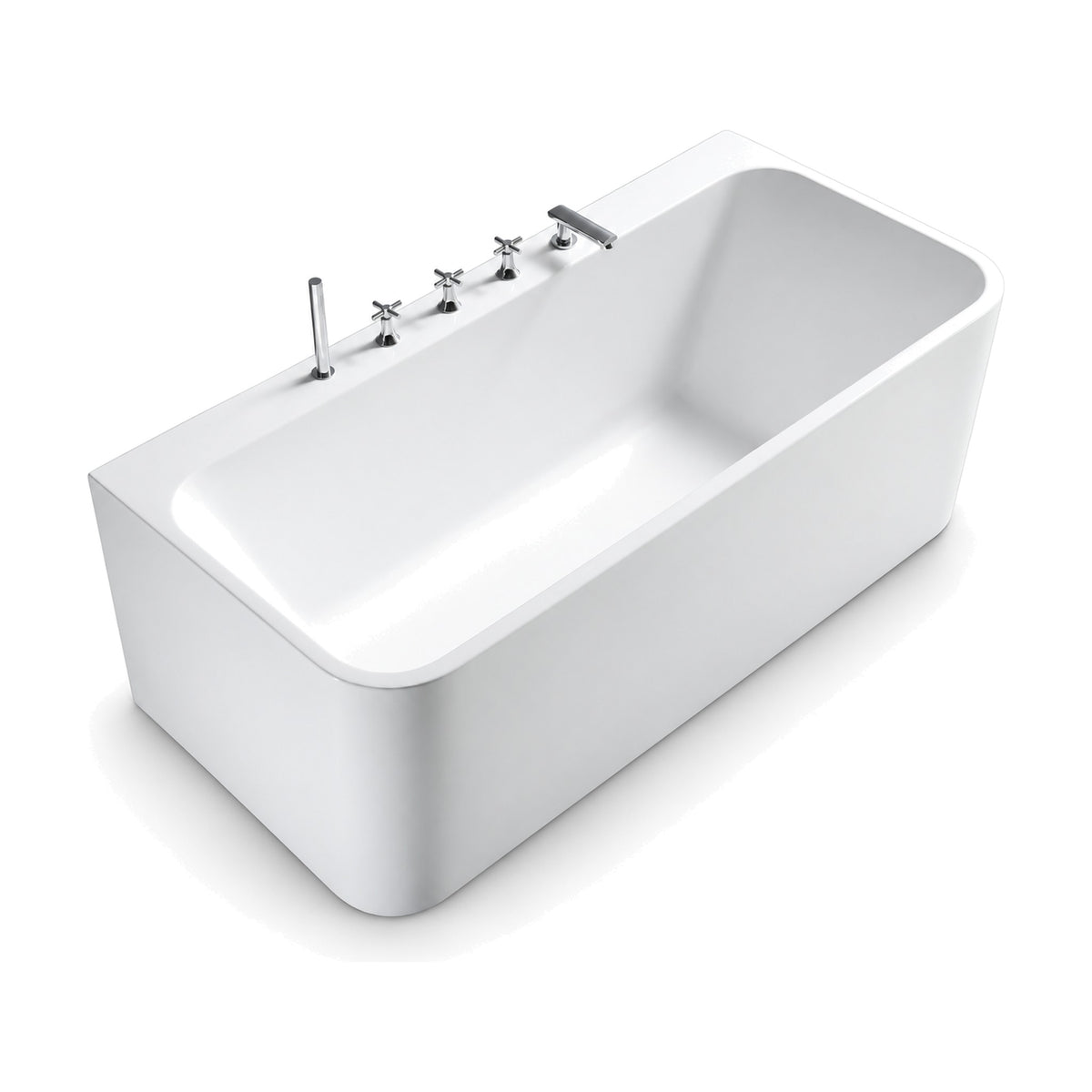

SANIKB FT017/FT018 is a single-ended back-to-wall bathtub in white acrylic, built around a wide flat rear deck for deck-mounted taps. It is shown with a 5-hole set in that deck: a spout, three cross-handle valves and a hand shower. The hole pattern is fixed on the approved drawing, and whether the five fittings ship with the tub is agreed at quotation. The back is flat for the wall, the front corners are rounded, and the shell sits flat on the floor. Two lengths share a 750 mm width: FT018 at 1500 × 750 × 590 mm (59 × 29.5 × 23.2 in) and FT017 at 1700 × 750 × 590 mm (67 × 29.5 × 23.2 in). For FT017/FT018, send quantities per length and a quote follows within 12 business hours.
Browse more back-to-wall tubs in the freestanding bathtubs collection.
More in Freestanding Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
Tub sheet
Size and installation of FT017/FT018
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| FT018 | 59" x 30" |
| FT017 | 67" x 30" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 30"FT018 | 67" x 30"FT017 | |
|---|---|---|
| Overall L×W×D | 59″ × 29.5″ × 23.2″ 1500 × 750 × 590 mm | 67″ × 29.5″ × 23.2″ 1700 × 750 × 590 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Deck & Taps
Wide rear deck for a 5-hole tap set
FT017/FT018 is designed around its rear deck. The deck is wide and flat along the back, the front corners are rounded, and the back edge is straight for the wall.
Five tap holes in the rear deck
Taps mount on the rear deck. FT017/FT018 is shown with five fittings there: a spout, three cross-handle valves and a hand shower. The drilling pattern is confirmed on the approved drawing, and whether the fittings are part of the order is agreed at quotation.
Single-ended bowl
One end of the bowl is shaped as the backrest, so the bather faces the opposite end. Check which end that is on the approved drawing when laying out the room.
Tubs filled from a floor-standing or wall-mounted filler instead of deck taps are also in the freestanding bathtub range.
Fit & Footprint
A 750 mm width in two lengths
FT017/FT018 is 750 mm (29.5 in) wide and 590 mm (23.2 in) high in both lengths. Length is the only dimension that changes between the two FT017/FT018 SKUs.
- FT018
- 59" × 29.5" × 23.2" (1500 × 750 × 590 mm)
- FT017
- 67" × 29.5" × 23.2" (1700 × 750 × 590 mm)
- Installation
- Back to wall, standing flat on the floor
- Tap Mounting
- Deck mounted on the rear deck
Overall dimensions are given here. Bowl depth and drain position come from the approved drawing issued with the quotation, and the supply pipes to the rear deck are planned from the same drawing.
Confirm access to the tap connections under the rear deck before the wall and floor are finished.
Construction & Finish
White acrylic shell, flat to the floor
Pure acrylic sheet in white forms the FT017/FT018 shell, including the wide flat rear deck that takes the tap holes.
White
Made in white
FT017/FT018 is made in white. The surface finish is confirmed on the approval sample before production starts.
The tub sits flat on the floor rather than on feet or a plinth, so the floor under it should be level across the full length.
Taps set into the deck add exposed points. Agree how the deck is protected in the carton and how any transit damage is reported.
Put the damage reporting window in writing before the order ships.
Compliance
FT017/FT018 and compliance documents
Both FT017/FT018 SKUs fall under one model. Ask for documents against FT017/FT018 and note which lengths are on the order.
Compliance documents for model FT017/FT018 are matched to the destination market. For submittals, request the current document reference and its validity for the market where the tubs will be installed.
Name the documents your project requires in the inquiry; we reply in writing on FT017/FT018 within 12 business hours.
Procurement
Ordering FT017/FT018 in two lengths
Quote FT018 for the 1500 mm length and FT017 for the 1700 mm length.
- Standard Lead Time
- 30-45 days after sample approval
- SKUs
- FT018 · FT017
Quantities are confirmed at quotation. See the bathtub manufacturer range if other models will ship with this one.
Include these details with the RFQ
- Quantity per length
- Destination market and port
- Deck drilling: 5-hole or another pattern
- Tap set scope
- Carton marking and labels
- Required delivery window
The FT017/FT018 lead time stays indicative until the quotation is confirmed.
