Sculpted Waist Freestanding Bathtub with Rolled Rim, 67 in

From above, D-8329 is a symmetric stadium with a level rolled rim. Below the rim, the body narrows at mid-length, so the outline at floor level has a waist.

Other rolled-rim and slim-rim shapes sit in the SANIKB freestanding range.

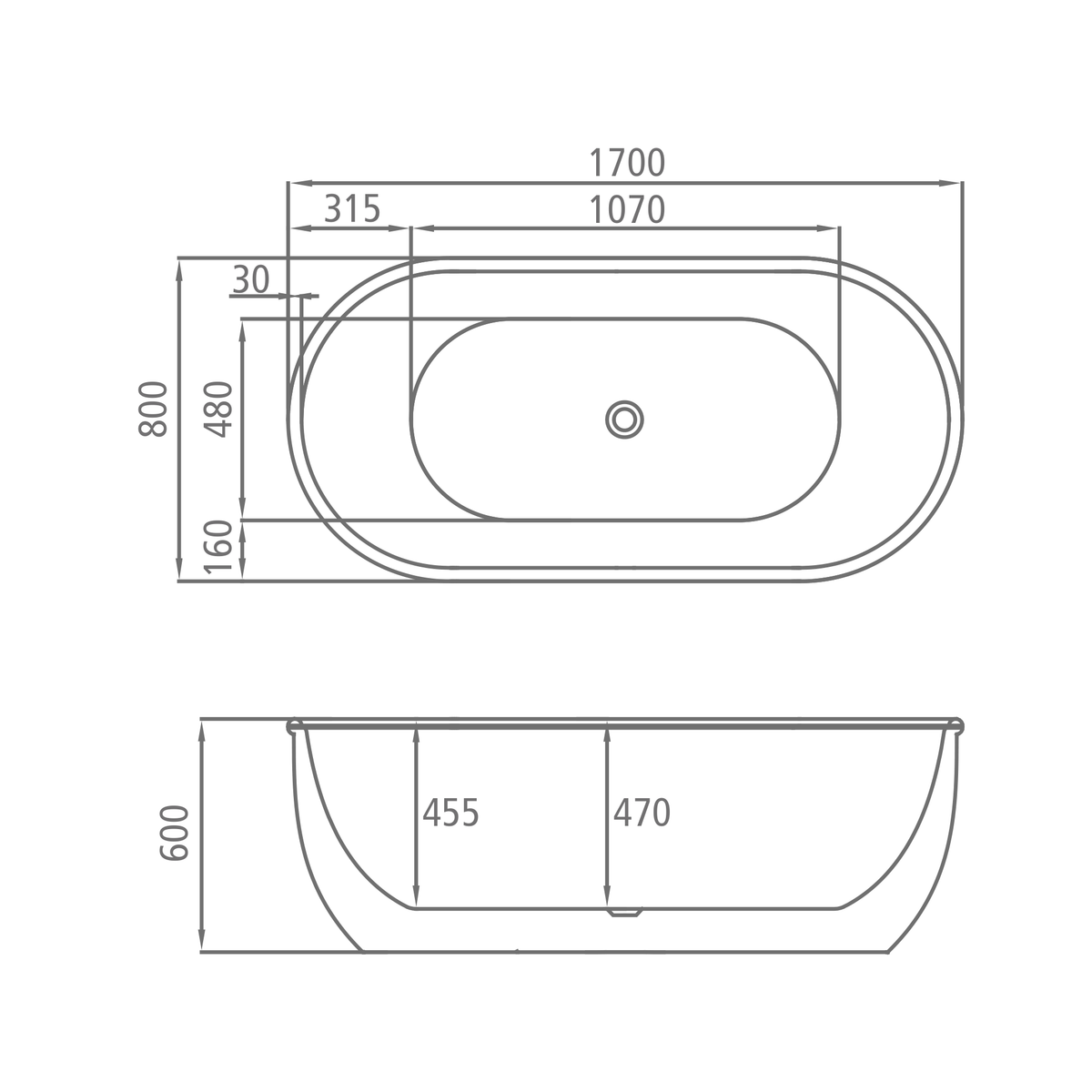

D-8329 is made in one size, D-8329: 1700 mm (67 in) long, 800 mm (31.5 in) wide and 600 mm (23.6 in) high. The basin floor is 1070 mm (42 in) long, 315 mm (12 in) in from each end.

D-8329

67" × 31.5" × 23.6" (1700 × 800 × 600 mm)

Inner Basin

1070 × 480 mm (42 × 18.9 in)

Inner Depth

455-470 mm (17.9-18.5 in), deepest at drain

Faucet Mount

Floor-standing or wall-mounted filler

The waist narrows the D-8329 footprint at mid-length, but the rim still needs its full 800 mm (31.5 in) width in the layout. Plan a floor filler clear of the rolled rim.

Set the center waste from the approved D-8329 drawing.

The D-8329 shell is pure acrylic sheet with a gloss white finish.

White

Gloss on a curved body

The pinched waist gives D-8329 changing curves along its length, and gloss shows each one. Approve a sample to fix the finish before production.

A sculpted body with a rolled rim needs close-fitting packing. Ask how D-8329 is braced inside its carton.

Inspect the rim and waist on arrival and record any damage on the delivery note.

D-8329 is cUPC certified. Request the current certificate details against D-8329 before the tub goes into a submittal.

Note the destination market in the enquiry; a written reply is issued within 12 business hours.

SANIKB manufactures D-8329 in a single 1700 mm size.

Size

1700 × 800 × 600 mm

Standard Lead Time

30-45 days after sample approval

Delivery of D-8329 is planned on a standard lead time of 30-45 days after sample approval. If a project also needs a shorter tub, name the other models to be quoted alongside it.

A firm D-8329 ship date comes with the quotation.
