Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8026
SANIKB D-8026 - white rectangular freestanding tub with S-curved ends flaring out from a narrower baseSANIKB D-8026 dimension drawing
01 / 02
01 / 02

S-Curve Flared-End Freestanding Bathtub, Double Ended, 71 in

SKU D-8026
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 71" × 31.5" × 22.8" (1800 × 800 × 580 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8026

SANIKB D-8026 is a 71 inch double ended freestanding bathtub in white acrylic, built in one size: D-8026 at 1800 x 800 x 580 mm (71 x 31.5 x 22.8 in). Its ends flare outward in an S-curve from a narrower rectangular base, a pagoda-like outline capped by a thin, level rim. Inside, both ends are sloped for reclining, and the drain is centered. The rim has no tap holes; the tub takes a floor-standing or wall-mounted filler.

D-8026 is cUPC certified; written quotes are issued within 12 business hours. Compare it with the freestanding bathtub range.

Product PDF D-8026

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8026

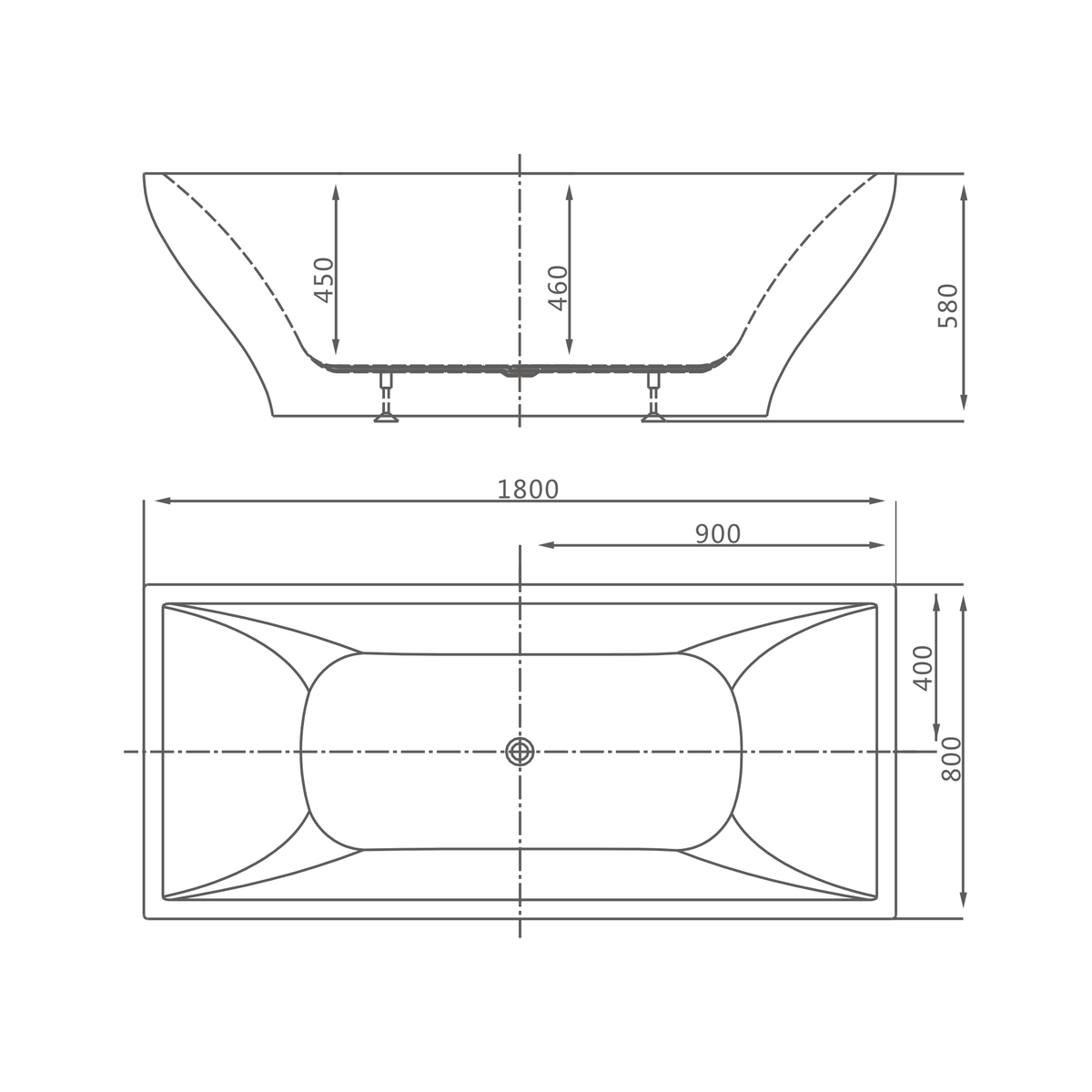

SANIKB D-8026 dimension drawing
Dimension drawing
Size range71" × 31.5" × 22.8" (1800 × 800 × 580 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about S-Curve Flared-End Freestanding Bathtub, Double Ended, 71 in SKU D-8026
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Silhouette

    S-curved ends flaring from a narrow base

    Seen from the side, each end of D-8026 rises from a narrower rectangular base and flares outward in an S-curve to meet a thin, level rim. The plan is a square-cornered rectangle, symmetric end to end.

    01 / END PROFILE

    Pagoda-like flare at each end

    The S-curve runs the same way at both ends, so the silhouette reads identically from either side of the room. The base is narrower than the rim outline.

    02 / INNER ENDS

    Sloped backrests facing each other

    Both inner ends are sloped and the drain is in the middle, so two identical backrest positions face each other across the basin.

    Longer rectangular and oval tubs are grouped in the freestanding collection.

    Fit & Plumbing

    1800 x 800 mm footprint, 580 mm high

    D-8026 is one size only: 1800 mm (71 in) long, 800 mm (31.5 in) wide and 580 mm (22.8 in) high. The drawn inner depth is 450 to 460 mm (17.7 to 18.1 in).

    D-8026
    71" × 31.5" × 22.8" (1800 × 800 × 580 mm)
    Drain Position
    Center: 900 mm from the end, 400 mm from the side
    Faucet Mounting
    Floor-standing or wall-mounted
    Base
    Rectangular, flat to floor

    At 1800 mm, D-8026 needs a room long enough to leave walking space past both flared ends, because the rim projects beyond the base. The waste goes in at the exact center of the footprint.

    Check that the 1800 mm tub clears the door opening and stair turns on the delivery route.

    Construction & Finish

    White acrylic, flat base on the floor

    The shell is pure acrylic sheet in white. D-8026 has no feet; its rectangular base rests flat on the floor.

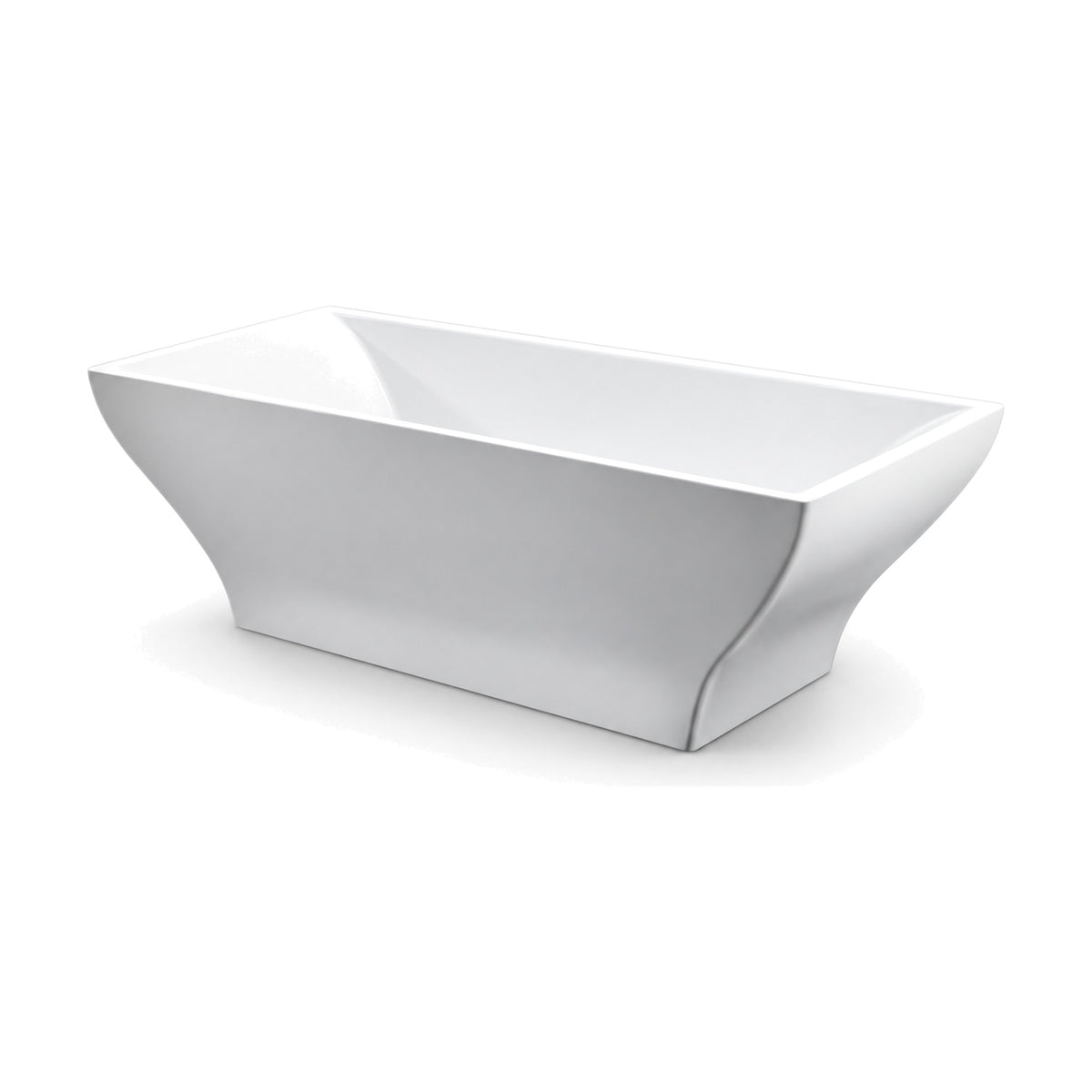

    SANIKB D-8026 - white rectangular freestanding tub with S-curved ends flaring out from a narrower base

    White

    One tone for a long silhouette

    The whole D-8026 shell, inside and out, is made in white.

    Gloss or matte for D-8026 is confirmed on the approval sample, and that sample then stays as the reference for the order.

    Keep one approved sample at the receiving warehouse for side-by-side checks.

    Compliance

    cUPC certification for D-8026

    Single SKU on file

    With one size only, the D-8026 document set needs no SKU cross-reference.

    D-8026 is cUPC certified and ships as a single SKU, D-8026, so the certificate reference and the order line match one to one.

    Give the destination market in the first email and the paperwork is prepared to suit. Written replies go out within 12 business hours.

    Procurement

    Ordering D-8026

    D-8026 is quoted as one line for the 1800 mm size, with a lead time of 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    within 12 business hours

    Check the S-curve on the approved sample from both ends, since the flare is the feature buyers see first.

    Include these details with the RFQ

    • Quantity of D-8026
    • Faucet: floor-standing or wall
    • Sample quantity for approval
    • Destination market and port
    • Carton and pallet marking
    • Required shipping month
    Request D-8026 Quote View OEM & ODM Program

    Treat the lead time as starting on sample sign-off.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What size is D-8026?

    D-8026 comes in one size, D-8026: 1800 x 800 x 580 mm (71 x 31.5 x 22.8 in). The drawing gives an inner depth of 450 to 460 mm (17.7 to 18.1 in).

    Can either end of D-8026 be used as the backrest?

    Double ended. Both inner ends are sloped and the drain is at the center, 900 mm from either end and 400 mm from the side, so either end can be the backrest.

    What faucet types suit D-8026?

    The rim has no tap holes, so D-8026 takes a floor-standing or wall-mounted filler. With a floor filler, leave space beside the flared end so the spout clears the rim.

    What does the D-8026 S-curve profile look like?

    From the side, each end flares outward from a narrower rectangular base in an S-shaped curve, up to a thin level rim. The result is a pagoda-like outline on a square-cornered rectangular plan.

    What color and finish does D-8026 have?

    The shell is white pure acrylic sheet inside and out. Whether the surface is gloss or matte is confirmed on the approval sample, which then serves as the finish reference.

    What details should a D-8026 enquiry carry?

    Send the quantity, destination port and faucet arrangement. A D-8026 quote is returned within 12 business hours, and the single size is built on a lead time of 30-45 days after sample approval.
