SANIKB D-8355 - white back-to-wall bathtub with rounded ends, flat rear deck with 3-hole faucet and body curving to the baseSANIKB D-8355 dimension drawing
01 / 02
01 / 02

Round-End Back-to-Wall Bathtub, Curved Body, Rear Tap Deck, 59 & 67 in

SKU D-8355-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Back-to-wall freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Back-to-wall (one long side to the wall)
Finish
White
Product PDF D-8355-150

SANIKB D-8355 is a back-to-wall acrylic bathtub with a stadium-shaped bowl: round ends, a straight wall side and a flat rear deck with three holes for a deck-mounted faucet. Below the rim the body curves in toward the base. It is made as D-8355-150 at 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8355-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in). Both ends are backrests, the drain is centered, and the overflow is in the middle of the wall side.

The rear deck is about 85 mm (3.3 in) deep; whether the faucet is supplied is agreed at quotation. D-8355 is made in white, with the gloss level confirmed on the approval sample. It is cUPC certified, and quotes follow within 12 business hours. Browse SANIKB freestanding bathtubs.

Product PDF D-8355-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8355

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

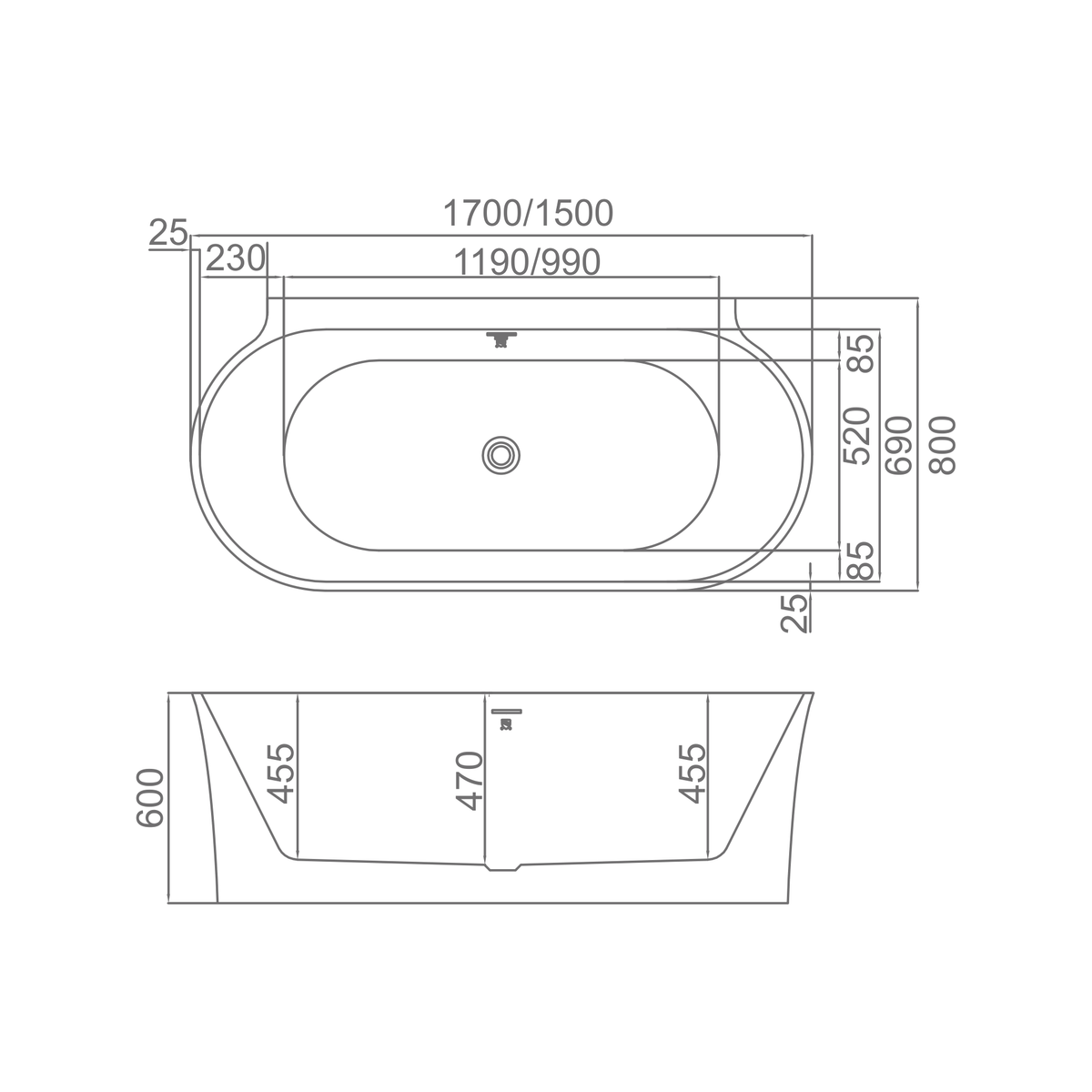

SANIKB D-8355 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationBack-to-wall (one long side to the wall)
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8355-15059" x 31"
D-8355-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeBack-to-wall freestanding bathtub
MountingBack-to-wall (one long side to the wall)
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8355-15067" x 31"D-8355-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Round-End Back-to-Wall Bathtub, Curved Body, Rear Tap Deck, 59 & 67 in SKU D-8355-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Deck

    Stadium bowl with a straight rear deck

    In plan, D-8355 is a stadium-shaped bowl with round ends. The back edge runs straight along the middle and meets the bowl with concave curves, forming a flat deck on the wall side.

    01 / REAR DECK

    Deck-mounted faucet on the wall side

    The rear deck has three holes for a deck-mounted faucet. Tap scope and hole positions are agreed when the quotation is prepared.

    02 / BODY

    Body curving in toward the base

    The outer wall curves inward from the rim to the floor, so the base is smaller than the rim outline. The overflow sits at the center of the wall side, above a center drain.

    Compare D-8355 with other deck-mounted back-to-wall shapes in the SANIKB bathtub range.

    Fit & Footprint

    Same 800 mm width in two lengths

    Both sizes are 800 mm (31.5 in) wide and 600 mm (23.6 in) high; only the length changes, between 1500 mm and 1700 mm.

    D-8355-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8355-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Installation
    Back-to-wall, flat to floor
    Faucet Mount
    Deck-mounted on the rear deck

    Inner length is 1190 mm (47 in) on the 1700 mm size and 990 mm (39 in) on the 1500 mm size, with an inner width of 520 mm (20.5 in). Inner depth runs 455, 470 and 455 mm (17.9, 18.5 and 17.9 in) along the length.

    The rear deck is about 85 mm (3.3 in) deep. Deck width and hole positions are confirmed on the approved drawing before the wall supplies are roughed in.

    Construction & Finish

    White acrylic body

    The D-8355 body is pure acrylic sheet in white.

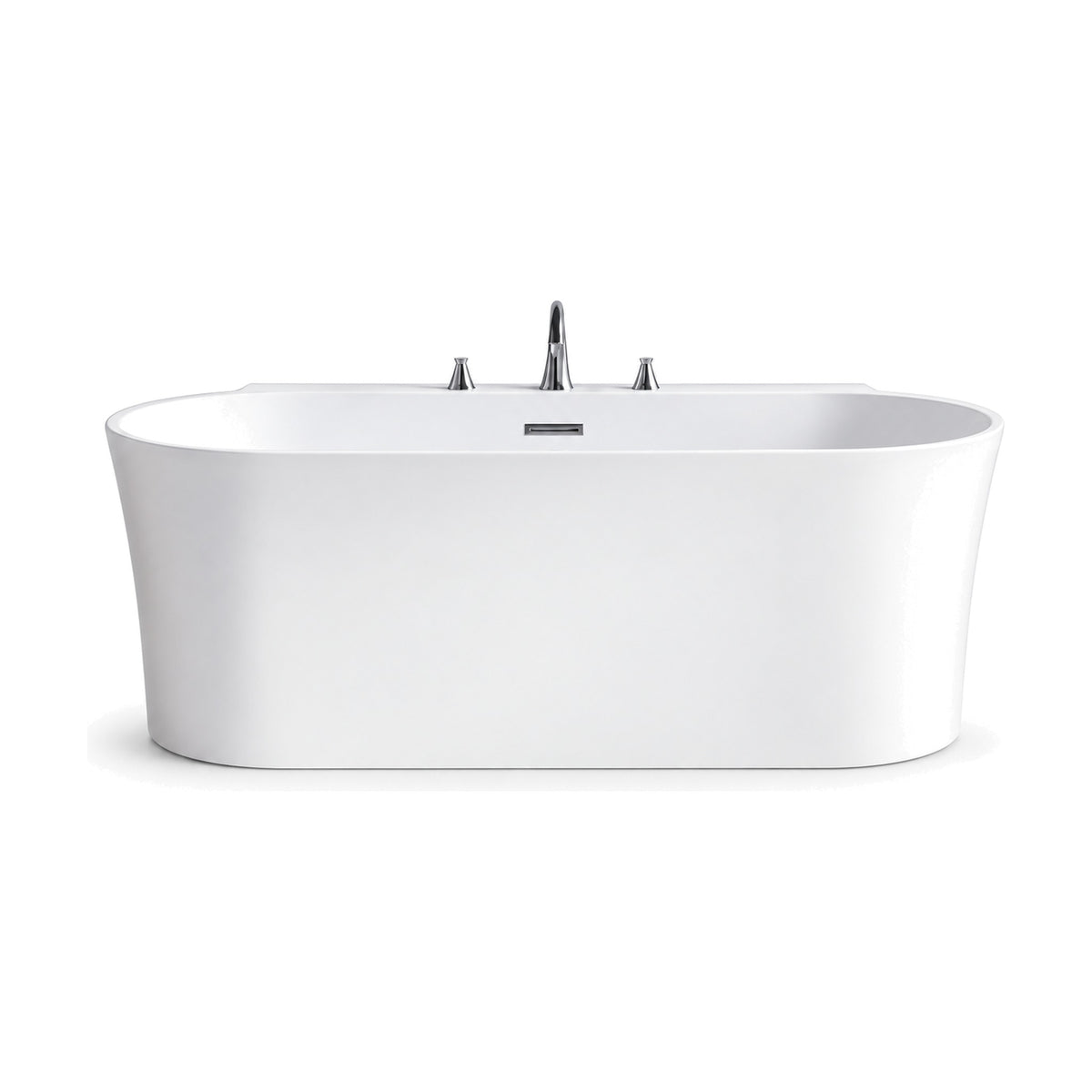

    SANIKB D-8355 - white back-to-wall bathtub with rounded ends, flat rear deck with 3-hole faucet and body curving to the base

    White

    Made in white

    D-8355 is made in white. Gloss level is confirmed on the approval sample.

    The curved body and rounded ends are exposed in the room, so inspect those faces closely on the sample.

    Agree how the curved sides are protected in the carton and how damage is reported on arrival.

    Sign off the finish on the approved sample before production.

    Compliance

    cUPC certification, both D-8355 sizes

    One file per SKU

    Request drawings and certificates for each D-8355 size by SKU, since the inner lengths differ.

    D-8355 is cUPC certified. Ask for the certificate number and its validity for D-8355-150 and D-8355-170 before the submittal is compiled.

    Put the target market and the documents you need in the inquiry. Written replies are sent within 12 business hours.

    Procurement

    Ordering D-8355

    Two SKUs are offered, D-8355-150 and D-8355-170. Quantities and faucet scope are set in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Sent within 12 business hours

    Standard lead time is 30-45 days after sample approval, so the sample stage sets the start date. For private label marking, see the SANIKB OEM and ODM program.

    Include these details with the RFQ

    • Quantity per SKU
    • Market and port of delivery
    • Faucet scope for the rear deck
    • Carton and label marking
    • Shipping window
    Request D-8355 Quote View OEM & ODM Program

    Read the lead time as indicative until the quotation confirms it.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What sizes is D-8355 made in?

    D-8355-150 is 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8355-170 is 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in). Width and height are the same; inner length is 990 mm (39 in) and 1190 mm (47 in).

    Where does the faucet go on D-8355?

    On the flat rear deck along the wall side, which has three holes for a deck-mounted faucet. The deck is about 85 mm (3.3 in) deep, and hole positions are confirmed on the approved drawing.

    Is D-8355 double ended?

    Yes. Both round ends are backrests, the drain is centered, and the overflow sits at the center of the wall side.

    How is D-8355 installed?

    It is back-to-wall: the straight rear deck goes against the wall, and the rounded ends and front stay exposed. The tub sits flat on the floor, with the body curving in toward the base.

    Which color is D-8355 offered in?

    D-8355 is made in white, formed from pure acrylic sheet. Gloss level is confirmed on the approval sample.

    How do we request a quotation for D-8355?

    Give quantities per SKU, market, port and faucet scope. The reply is sent within 12 business hours and states the lead time, standard at 30-45 days after sample approval. D-8355 is cUPC certified.
