Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8328-150

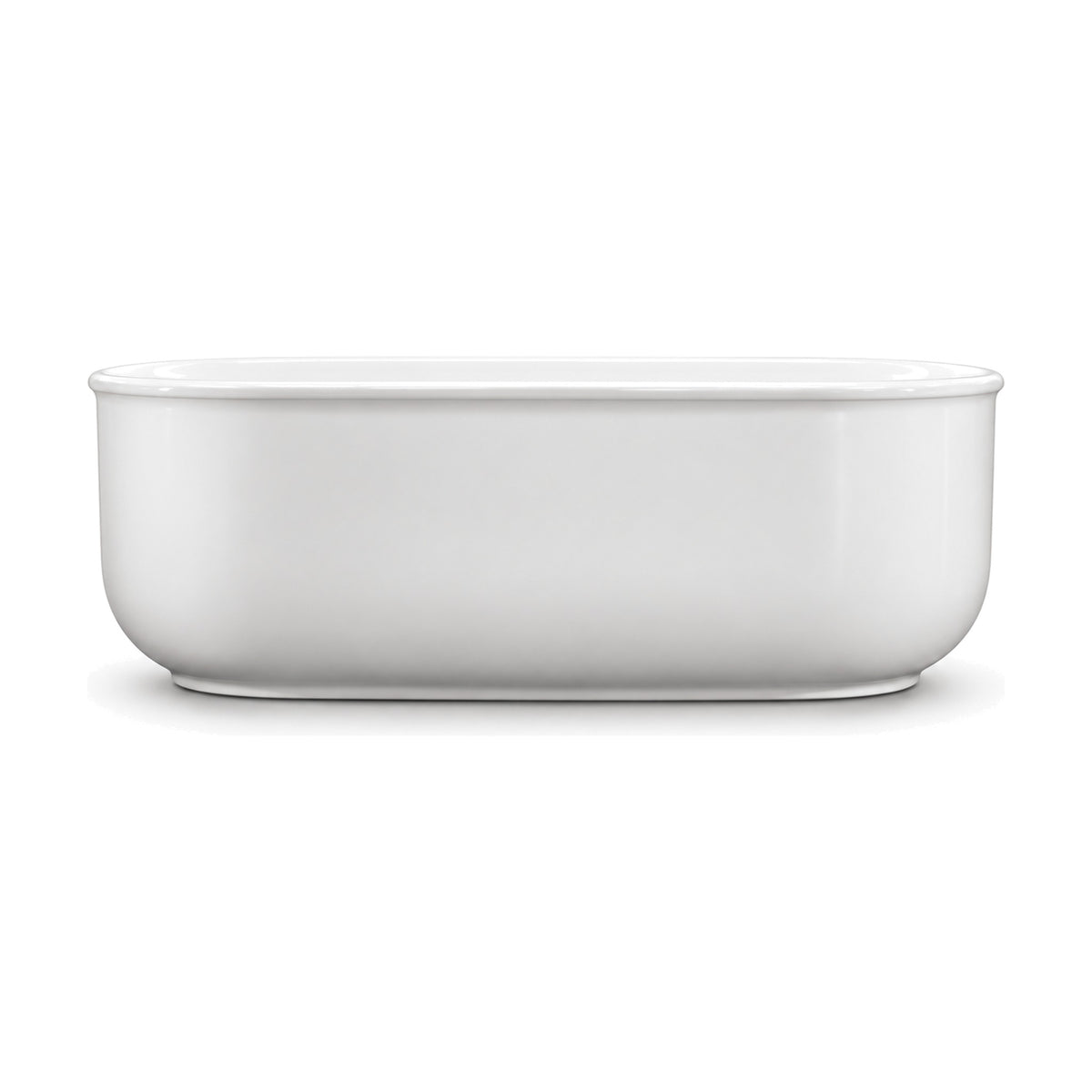

SANIKB D-8328 - gloss white capsule freestanding tub with rolled bullnose lip and near-vertical sidesSANIKB D-8328 dimension drawing
01 / 02
01 / 02

Rolled Bullnose Rim Capsule Freestanding Tub, Near-Vertical Sides, 59 & 67 in

SKU D-8328-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8328-150

SANIKB D-8328 is a capsule-shaped freestanding tub in gloss white acrylic with near-vertical sides and a rounded bullnose lip that overhangs the wall slightly. At the bottom, the shell curves under onto a thin flat base. The 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) size is SKU D-8328-150, and the 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) size is D-8328-170. The rolled lip has no tap holes, so the tub takes a floor-standing or wall-mounted filler, and the drain is at the center. Every D-8328 is cUPC certified; expect a quotation within 12 business hours.

Find more profiles in the freestanding bathtub range.

Product PDF D-8328-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8328

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

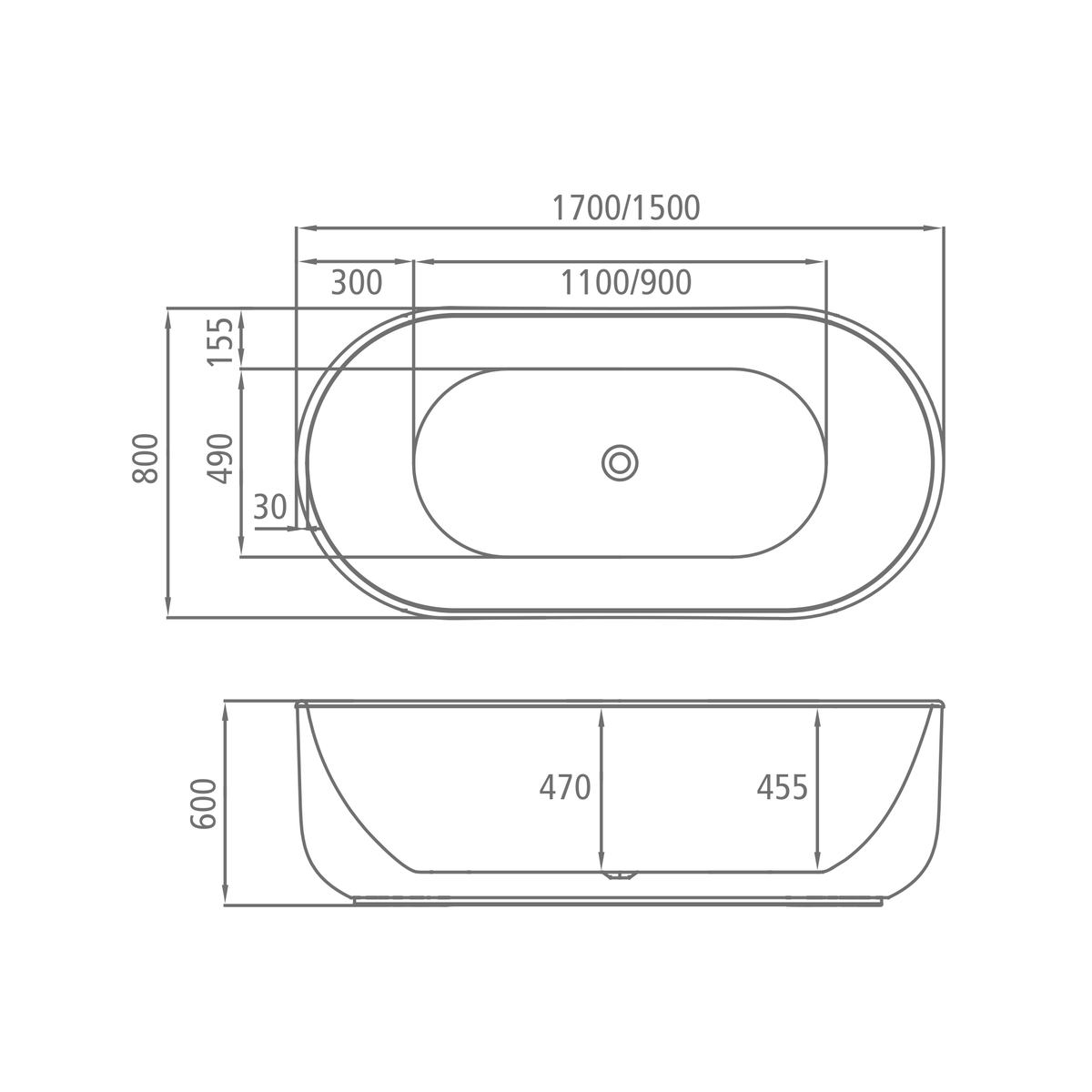

SANIKB D-8328 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8328-15059" x 31"
D-8328-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8328-15067" x 31"D-8328-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Rolled Bullnose Rim Capsule Freestanding Tub, Near-Vertical Sides, 59 & 67 in SKU D-8328-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Profile

    Rolled 30 mm lip over near-vertical sides

    D-8328 has a stadium plan with a level rim and a centered drain. Its sides rise almost straight up and finish in a rounded bullnose lip.

    01 / LIP

    30 mm rolled bullnose

    The D-8328 lip is drawn at 30 mm (1.2 in) and overhangs the wall slightly, giving a thicker top edge than a slim-rim tub.

    02 / BASE

    Curved under to a thin base

    At floor level the shell curves inward onto a thin flat base. D-8328 has no feet and rests directly on the floor.

    Slim-rim alternatives are grouped in the SANIKB freestanding collection.

    Fit & Plumbing

    A 490 mm wide basin floor

    D-8328 runs 1500 or 1700 mm (59 or 67 in) end to end, with an 800 mm (31.5 in) width and a 600 mm (23.6 in) height. The drawing sets the basin floor 300 mm (12 in) in from each end, 900 or 1100 mm (35 or 43 in) long.

    D-8328-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8328-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Inner Width
    490 mm (19.3 in) at the basin floor, 155 mm in from each side
    Inner Depth
    470 mm (18.5 in) at the drain, 455 mm (17.9 in) at each end

    The rolled lip sets the outer dimension of D-8328 at the rim, so measure clearances from the lip rather than from the wall of the shell. The lip has no tap holes; plan a floor-standing or wall-mounted filler.

    Confirm the waste position for D-8328 on the approved drawing of the ordered length.

    Material & Finish

    Gloss white acrylic with a rolled edge

    D-8328 is molded from pure acrylic sheet, and the whole shell, lip included, is gloss white.

    SANIKB D-8328 - gloss white capsule freestanding tub with rolled bullnose lip and near-vertical sides

    White

    A rounded lip catches the light

    On D-8328 the gloss surface follows the bullnose lip around the tub. Use the approved sample to fix the finish for the order.

    The overhanging lip is the widest point of D-8328 and the most exposed in handling. Ask how the lip is padded in the carton for both lengths.

    Agree how any lip damage found on delivery is recorded and reported.

    Compliance

    cUPC certification for D-8328

    Documents by SKU

    Ask for D-8328-150 and D-8328-170 paperwork separately so each size has a clean reference.

    D-8328 is cUPC certified. Request the current certificate details against the model and the SKU on order before the submittal is prepared.

    Give the destination market in the enquiry, and expect a written reply within 12 business hours.

    Procurement

    Ordering D-8328

    SANIKB manufactures D-8328 and quotes its two lengths as separate SKUs.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    Production of D-8328 follows a standard lead time of 30-45 days after sample approval. Approve the sample with the lip profile in view, since it defines the look of the tub.

    Include these details with the RFQ

    • D-8328-150 and D-8328-170 quantities
    • Destination market and port
    • Floor filler or wall spout
    • Drain and overflow fittings needed
    • Carton and label marking
    • Shipping window requested
    Request D-8328 Quote View OEM & ODM Program

    The D-8328 delivery date is set on the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which lengths is D-8328 built in?

    Two lengths on the same 800 mm (31.5 in) width: D-8328-150 is 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), D-8328-170 is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The inner basin is 490 mm (19.3 in) wide.

    What kind of rim sits on top of D-8328?

    A rolled bullnose lip, drawn at 30 mm (1.2 in), that overhangs the near-vertical sides slightly. The finish is gloss white acrylic.

    Is D-8328 double ended?

    Yes. Both ends are backrests and the drain is at the center, so the tub has no handed version.

    What faucet does D-8328 need?

    The rolled lip of D-8328 has no tap holes, so choose a floor-standing filler or a wall-mounted spout.

    How is the D-8328 base finished?

    The shell curves under onto a thin flat base and sits directly on the floor. Level the floor at the tub position before installation.

    What is needed for a D-8328 quotation?

    Quantities of the 1500 and 1700 mm versions, the port of discharge, and a request for a sample so the rolled lip can be checked. SANIKB replies on D-8328 within 12 business hours; production takes 30-45 days after sample approval as standard.
