Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8079-150

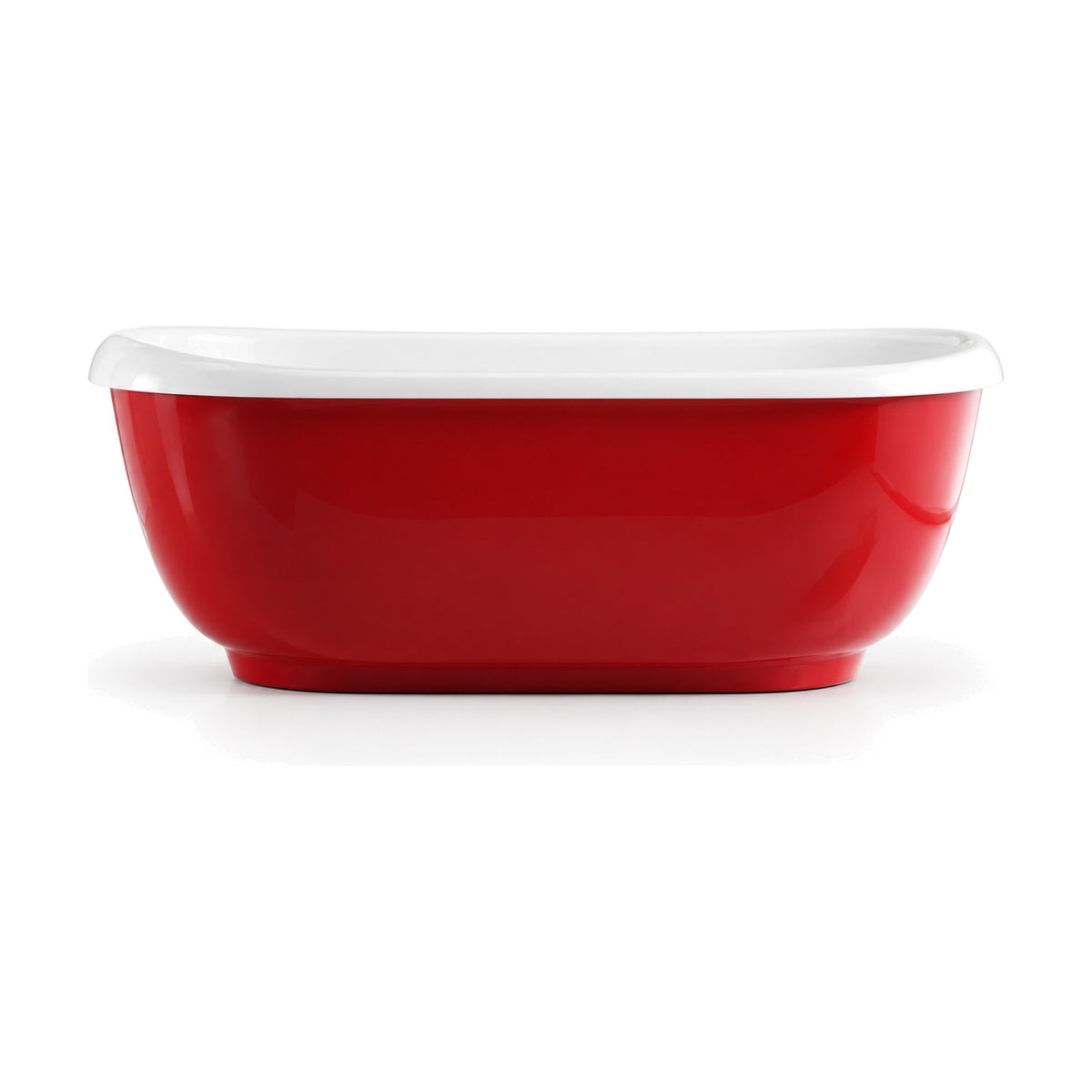

SANIKB D-8079 - red freestanding soaking tub with white interior, thick white rolled rim and low inset plinth ringSANIKB D-8079 dimension drawing
01 / 02
01 / 02

Red Roll-Top Freestanding Soaking Tub on Plinth, 59 & 67 in

SKU D-8079-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 29.3" × 26.2" (1500 × 745 × 665 mm) Custom sizes
Mount Freestanding
Finish
Red exterior with white interior
Product PDF D-8079-150

SANIKB D-8079 is a two-tone freestanding soaking tub with a gloss red exterior, a white interior and a thick white rolled rim, standing on a low inset plinth ring. It is 665 mm (26.2 in) high and made in two lengths: D-8079-150 at 1500 x 745 x 665 mm (59 x 29.3 x 26.2 in) and D-8079-170 at 1700 x 745 x 665 mm (67 x 29.3 x 26.2 in).

The rim rises slightly at one end in a mild slipper profile. It has no tap holes, so the filler is floor-standing or wall-mounted. D-8079 is cUPC certified; see more soaking tubs.

Product PDF D-8079-150

More in Soaking Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 34

Tub sheet

Size and installation of D-8079

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

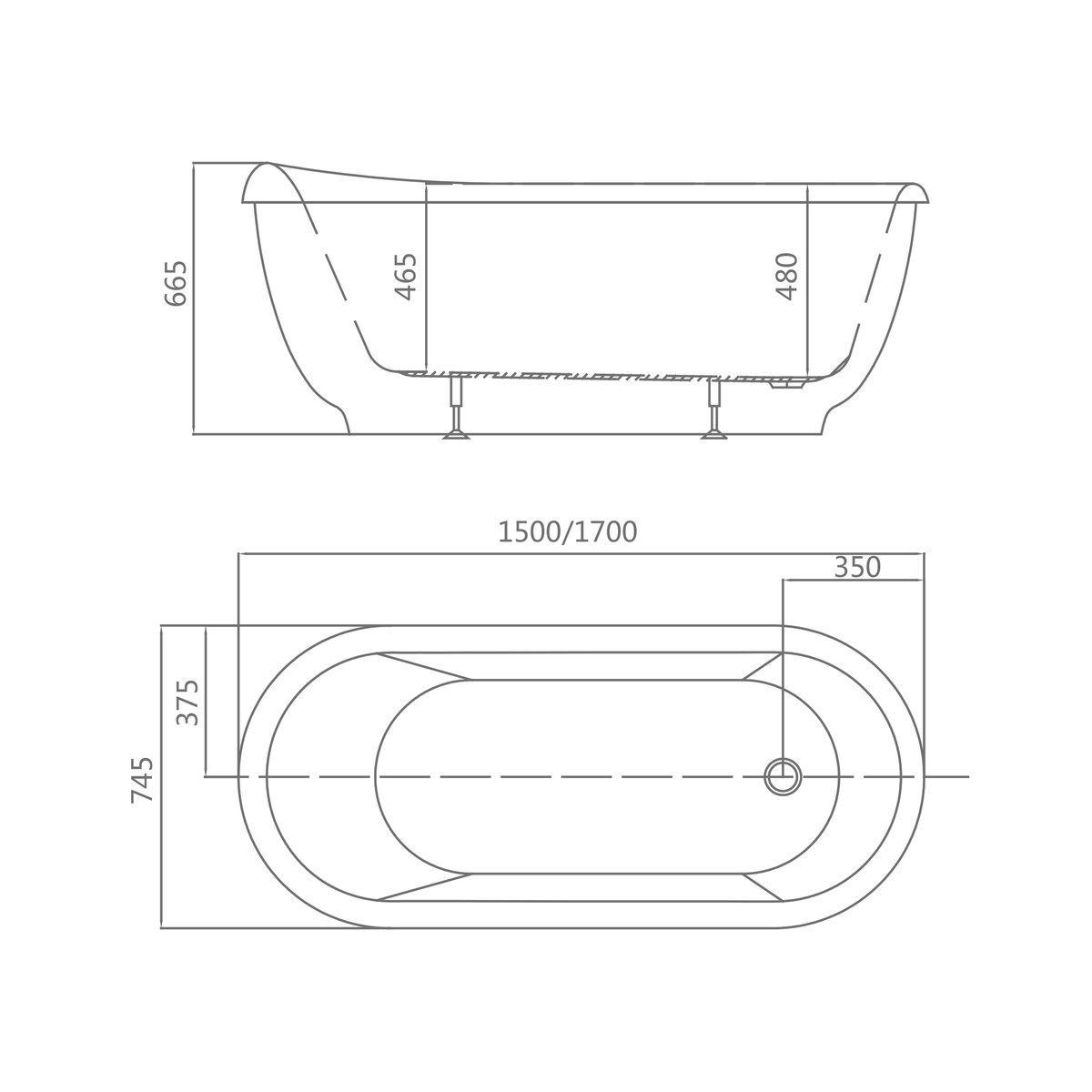

SANIKB D-8079 dimension drawing
Dimension drawing
Size range59" / 67" × 29.3" × 26.2" (1500 / 1700 × 745 × 665 mm)
Sizes59" x 29"67" x 29"
InstallationFreestanding
Finish Red exterior with white interior
MaterialAcrylic

Order codes

SKUSize
D-8079-15059" x 29"
D-8079-17067" x 29"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 29"D-8079-15067" x 29"D-8079-170
Overall L×W×D
59″ × 29.3″ × 26.2″
1500 × 745 × 665 mm
67″ × 29.3″ × 26.2″
1700 × 745 × 665 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Red Roll-Top Freestanding Soaking Tub on Plinth, 59 & 67 in SKU D-8079-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Color & Profile

    Red freestanding bathtub with a white rolled rim and raised end

    D-8079 pairs a red shell with a white interior and rim. On the drawing the rolled rim lifts slightly above the rim line at the left end, giving a mild slipper profile, while the plan outline stays symmetric.

    01 / RIM

    Thick white rolled rim

    The rolled rim is white, matching the interior, and draws a clean white line between the red exterior and the basin.

    02 / BASE

    Low inset plinth ring

    The tub stands on a low plinth ring set in from the walls. Built as a deep soaking model, it stands 665 mm (26.2 in) high overall.

    Other deep models are grouped in the soaking tub collection, and further shapes in the freestanding range.

    Fit & Drain

    Two lengths at 665 mm overall height

    D-8079 is 745 mm (29.3 in) wide and 665 mm (26.2 in) high in both sizes.

    D-8079-150
    1500 x 745 x 665 mm (59 x 29.3 x 26.2 in)
    D-8079-170
    1700 x 745 x 665 mm (67 x 29.3 x 26.2 in)
    Drain
    350 mm from the right end, centered across the width
    Faucet Mount
    Floor-standing or wall-mounted filler

    Inside, the drawing marks depths of 465 mm (18.3 in) and 480 mm (18.9 in). The drain is 350 mm (13.8 in) from the right end and 375 mm (14.8 in) from the side, at the end opposite the raised rim.

    Confirm the drain end on the approved drawing before the floor waste is fixed.

    Material & Finish

    Gloss red and white acrylic

    D-8079 is formed from pure acrylic sheet in red: a gloss red exterior with a white interior and rim.

    SANIKB D-8079 - red freestanding soaking tub with white interior, thick white rolled rim and low inset plinth ring

    Red exterior with white interior

    Color matched on the sample

    Approve the exact red on the sample and quote that sample reference on repeat orders, so later production is matched to it.

    Ask for the red shell to be fully wrapped before cartoning, and agree how scratches found on arrival are documented.

    Keep the approved red sample as the color reference.

    Compliance

    cUPC certificate and color reference for D-8079

    Color on the document

    Ask for the color to be stated against D-8079-150 or D-8079-170 on the paperwork, so a red and white tub is what the submittal describes.

    D-8079 is cUPC certified. Ask for the certificate, its validity date and a color reference for the red finish before the tub is written into a specification.

    If your project approves color separately from the plumbing documents, say so in the inquiry. The quotation sets out the documents and is sent within 12 business hours.

    Procurement

    Ordering D-8079 in red

    SANIKB manufactures D-8079 in two lengths, each quoted as a separate SKU in red with a white interior and rim.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    Approve the red on the sample before the order is confirmed; the lead time is counted from that approval. Both lengths can go on one inquiry if the project uses them.

    Include these details with the RFQ

    • Quantity of D-8079-150 and D-8079-170
    • Color: red exterior, white interior and rim
    • Destination market and port
    • Floor-standing or wall-mounted filler
    • Carton marking
    • Shipping window
    Request D-8079 Quote View OEM & ODM Program

    The red must be approved first, so treat the lead time as a guide until the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What lengths is the red D-8079 made in?

    Two lengths: D-8079-150 at 1500 x 745 x 665 mm (59 x 29.3 x 26.2 in) and D-8079-170 at 1700 x 745 x 665 mm (67 x 29.3 x 26.2 in). The 745 mm width and 665 mm height do not change between them.

    What color is D-8079?

    D-8079 is made in red: a gloss red exterior, a white interior and a thick white rolled rim. The exact red is approved on the sample before production.

    Does D-8079 have a raised end?

    Yes. The drawing shows the left end of the rolled rim raised slightly above the rim line, a mild slipper profile. The drain is at the right end, 350 mm from the end.

    What base and faucet arrangement does D-8079 use?

    It stands on a low inset plinth ring on the finished floor. The rim has no tap holes, so the filler is floor-standing or wall-mounted; take the waste position from the approved drawing.

    How deep is the D-8079 soaking tub?

    Inner depths are drawn at 465 mm (18.3 in) and 480 mm (18.9 in), within an overall height of 665 mm (26.2 in). It is built as a deep soaking tub.

    Does the red finish affect D-8079 lead time?

    Standard lead time is 30-45 days after sample approval, and for a colored tub that approval covers the red. D-8079 is cUPC certified; a quotation naming the color is returned within 12 business hours.
