SANIKB D-8301 - gloss white rectangular freestanding tub with straight back edge, rounded front corners and flared endsSANIKB D-8301 dimension drawing
01 / 02
01 / 02

Rectangular Freestanding Tub with Straight Back Edge, 59-67 in

SKU D-8301-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8301-150

SANIKB D-8301 is a straight-back rectangular tub for freestanding installation, in gloss white acrylic. The back edge is straight with two square rear corners and the two front corners are rounded, so it can stand with its back close to a wall. The walls flare out toward a slim rim, both ends flare alike, and the drain is centered.

Lengths run from D-8301-150 at 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) through D-8301-160 at 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) to D-8301-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). Water comes from a wall-mounted spout or a floor-standing filler, as the rim has no tap holes, and every length is cUPC certified. See the freestanding bathtub range.

Product PDF D-8301-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8301

Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

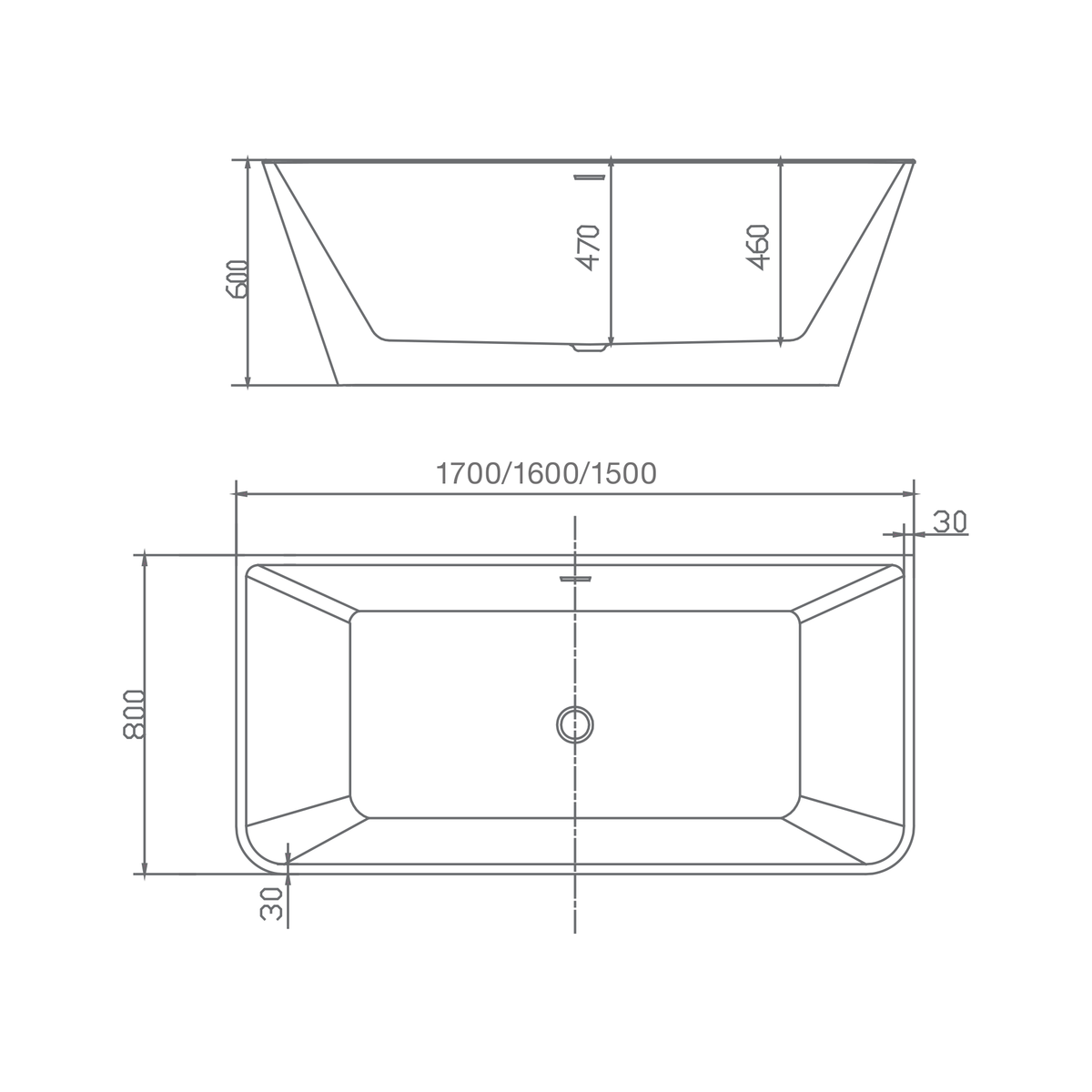

SANIKB D-8301 dimension drawing
Dimension drawing
Size range59" / 63" / 67" × 31.5" × 23.6" (1500 / 1600 / 1700 × 800 × 600 mm)
Sizes59" x 31"63" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8301-15059" x 31"
D-8301-16063" x 31"
D-8301-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 3 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8301-15063" x 31"D-8301-16067" x 31"D-8301-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
63″ × 31.5″ × 23.6″
1600 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Rectangular Freestanding Tub with Straight Back Edge, 59-67 in SKU D-8301-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Plan & Profile

    Straight back, rounded front, flared ends

    The D-8301 plan combines a straight back edge with two square corners and a rounded front. In elevation both ends flare outward symmetrically toward the rim.

    01 / BACK EDGE

    Wall-side placement

    With a straight back edge and square rear corners, D-8301 can be set parallel to a wall with a small, even gap. The overflow is on this back side, away from the room.

    02 / RIM

    30 mm rim deck

    The drawing gives a 30 mm (1.2 in) rim deck at the ends and front. Inner depth is drawn at 470 mm and 460 mm (18.5 and 18.1 in).

    More rectangular and oval outlines are grouped in the freestanding collection.

    Fit & Footprint

    Three lengths, one straight back edge

    D-8301 comes in 1500, 1600 and 1700 mm lengths (59, 63 and 67 in), each 800 mm (31.5 in) wide and 600 mm (23.6 in) high.

    D-8301-150
    59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
    D-8301-160
    63" x 31.5" x 23.6" (1600 x 800 x 600 mm)
    D-8301-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Faucet Mounting
    Floor-standing or wall; no rim holes

    The 1600 mm size sits between the other two for rooms where 1700 mm will not fit but more than 1500 mm is free. Since the back edge is straight, measure the wall run as well as the distance out into the room.

    Confirm the drain and back-side overflow for D-8301 on the approved drawing before the waste goes in.

    Construction & Finish

    Gloss white acrylic shell

    D-8301 is made from pure acrylic sheet, with a gloss white surface.

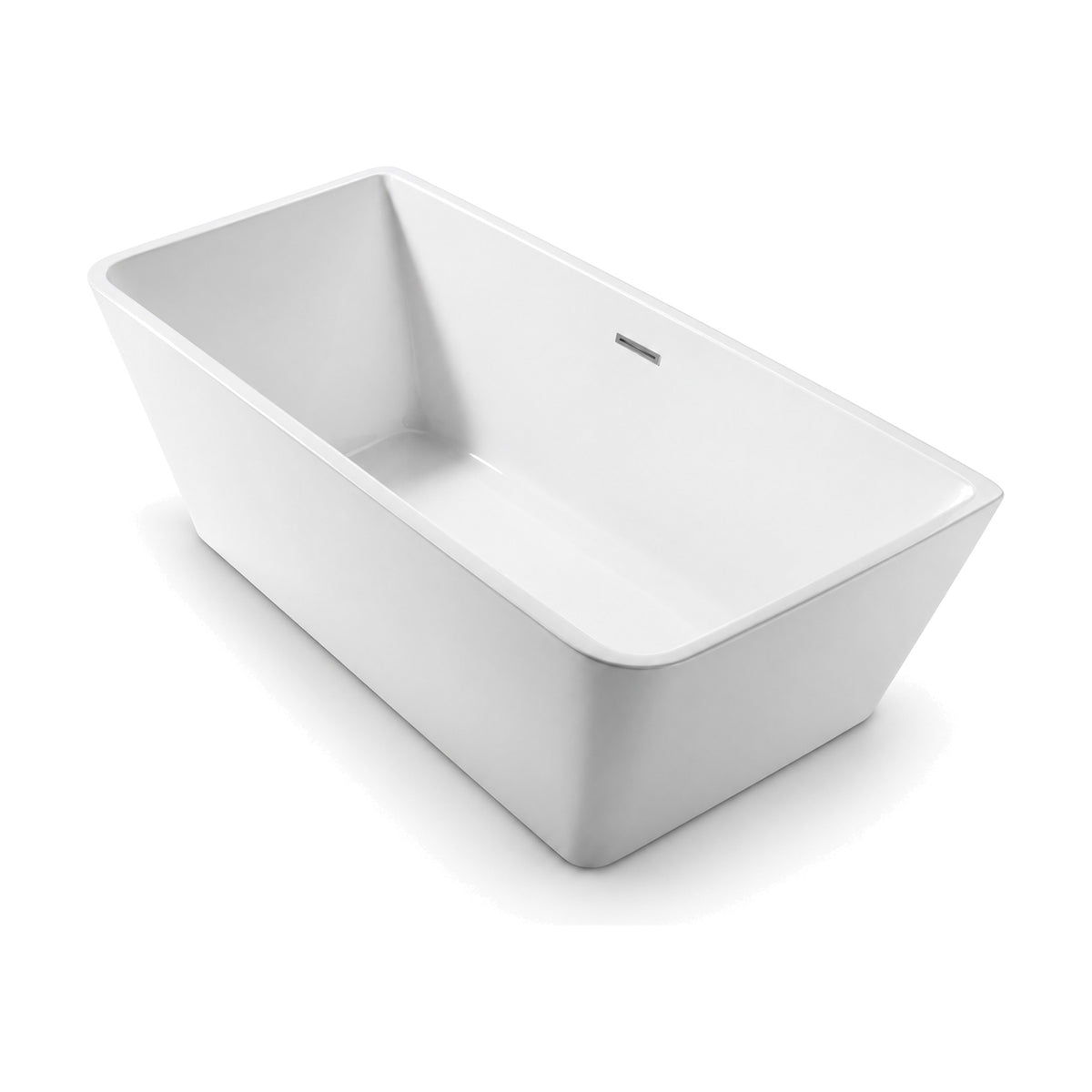

    SANIKB D-8301 - gloss white rectangular freestanding tub with straight back edge, rounded front corners and flared ends

    White

    Finish on show

    Even with the back near a wall, the rounded front and flared ends stay in view. Approve the gloss and white tone on a D-8301 sample.

    D-8301 rests flat on the floor. Where it stands close to a wall, finish and level the floor and the wall junction before the tub goes in.

    Store the approved D-8301 sample as the production finish reference.

    Compliance

    D-8301 and cUPC certification

    Three SKUs, three records

    Cite D-8301-150, D-8301-160 or D-8301-170 when requesting documents.

    All three D-8301 lengths are cUPC certified. Certificate number and validity are provided for submittal packages.

    Say which market the tubs are going to and what documents are needed; you will have a written reply within 12 business hours.

    Procurement

    Ordering D-8301 in three lengths

    Each D-8301 length is a separate SKU on the quotation. Production of D-8301 takes 30-45 days after sample approval.

    Size SKUs
    D-8301-150, D-8301-160, D-8301-170
    Standard Lead Time
    30-45 days after sample approval

    Where a project has rooms of different sizes, give the split across the three D-8301 lengths in the enquiry.

    Include these details with the RFQ

    • Quantity per length: D-8301-150, D-8301-160, D-8301-170
    • Destination port
    • Floor or wall filler, if required
    • Label and carton marking
    • Shipping window
    Request D-8301 Quote View OEM & ODM Program

    D-8301 lead time is set on the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What lengths does the straight-back D-8301 come in?

    Three lengths share the 800 mm width and 600 mm height, so D-8301-150 is 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), D-8301-160 is 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) and D-8301-170 is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Can D-8301 stand with its back to a wall?

    Its back edge is straight with square corners, so it can stand parallel to a wall. The front corners are rounded and the overflow is on the back side.

    Is D-8301 shaped for reclining at both ends?

    Yes, it is double ended. Both ends flare symmetrically and the drain is at the center.

    How deep is D-8301 inside?

    The drawing shows inner depths of 470 mm and 460 mm (18.5 and 18.1 in), with a 30 mm rim deck at the ends and front.

    Which faucet mounting suits D-8301 near a wall?

    D-8301 has no tap holes in its 30 mm rim deck. With the straight back edge set near a wall, a wall-mounted spout or a floor-standing filler can serve it; set the position on the approved drawing.

    How are D-8301 quotes handled?

    Send quantities per length with the destination port. Written quotes follow within 12 business hours and production runs 30-45 days after sample approval.
