Oval Wall Hung Basin with Right Tap Ledge

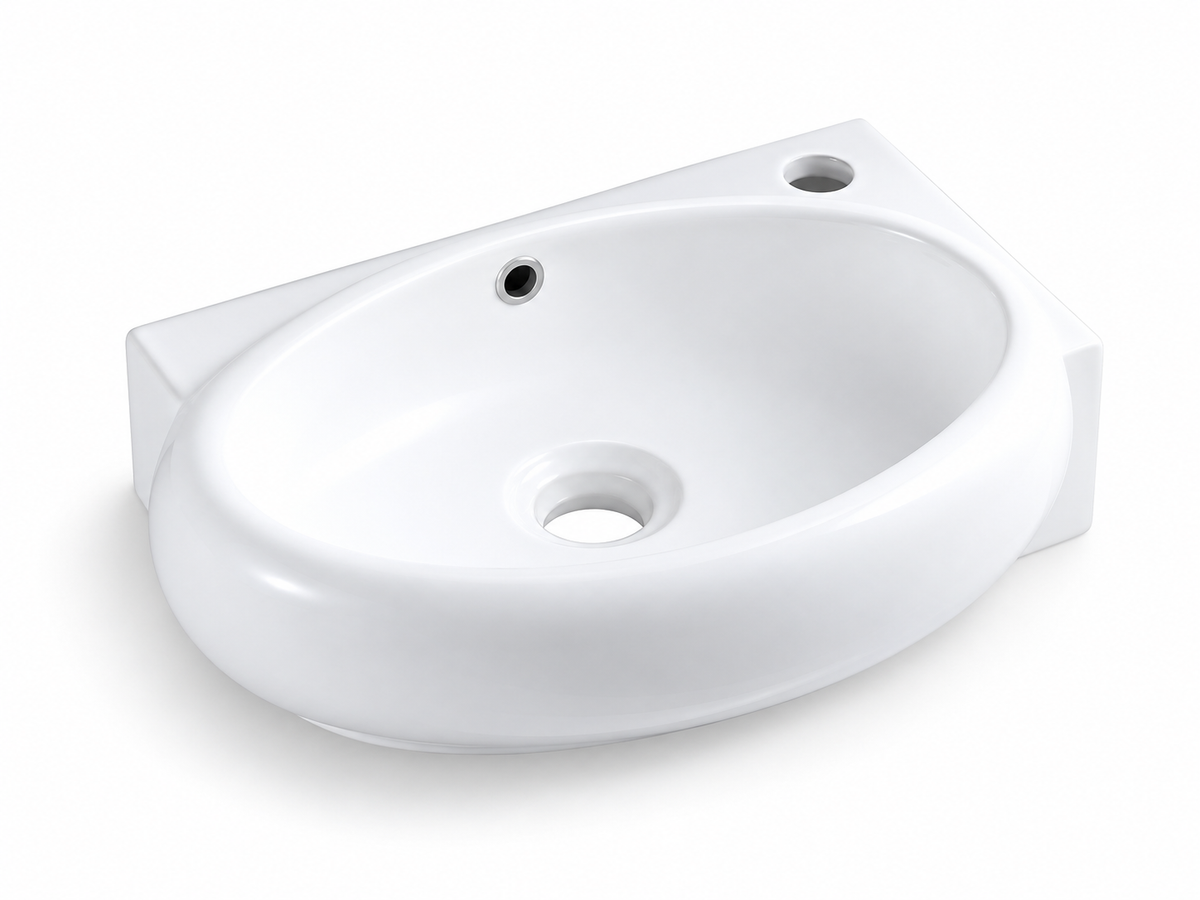

D198 brings an oval bowl forward of a rectangular ceramic rear ledge. The oval wall hung basin with right tap ledge positions one tap opening at the right of that rear area in the factory plan. The curved front projects beyond the straight backing, while the washing cavity remains a single smooth oval. A round overflow sits in its inner rear wall, separate from the floor opening. The white ceramic body measures 400 × 280 × 120 mm overall. The catalogue specifies wall-hung installation for this model. Follow the projecting oval and the offset tap position together when identifying D198; the rectangular rear ledge does not describe the bowl outline.
Shape & size
Shape and size of D198
A curved bowl ahead of a straight rear section
An oval front projects beyond the rear ledge
The bowl’s rounded outside front extends forward of the rectangular backing. Its single plain cavity follows the oval, with no dividing wall.
One tap opening at the right of the rear area
The offset tap belongs to the ceramic rear ledge
The factory top plan separates the right-side tap position from the floor opening. The rectangular rear area remains distinct from the projecting bowl contour.
A small round opening in the inner back wall
Overflow and floor openings occupy separate surfaces
The round overflow appears beneath the rear ledge. A larger separate floor opening sits inside the smooth oval washing cavity.
400 × 280 × 120 mm overall
Specify D198 as the complete wall-hung ceramic body
The source states wall-hung installation and full outside measurements. The 120 mm figure is body height; neither internal depth nor mounting hardware specification is published.
D198
400 × 280 × 120 mm
D198 projecting oval wall-hung body with right tap ledge
