Matte Navy Fluted Double-Ended Freestanding Tub, 59-67 in

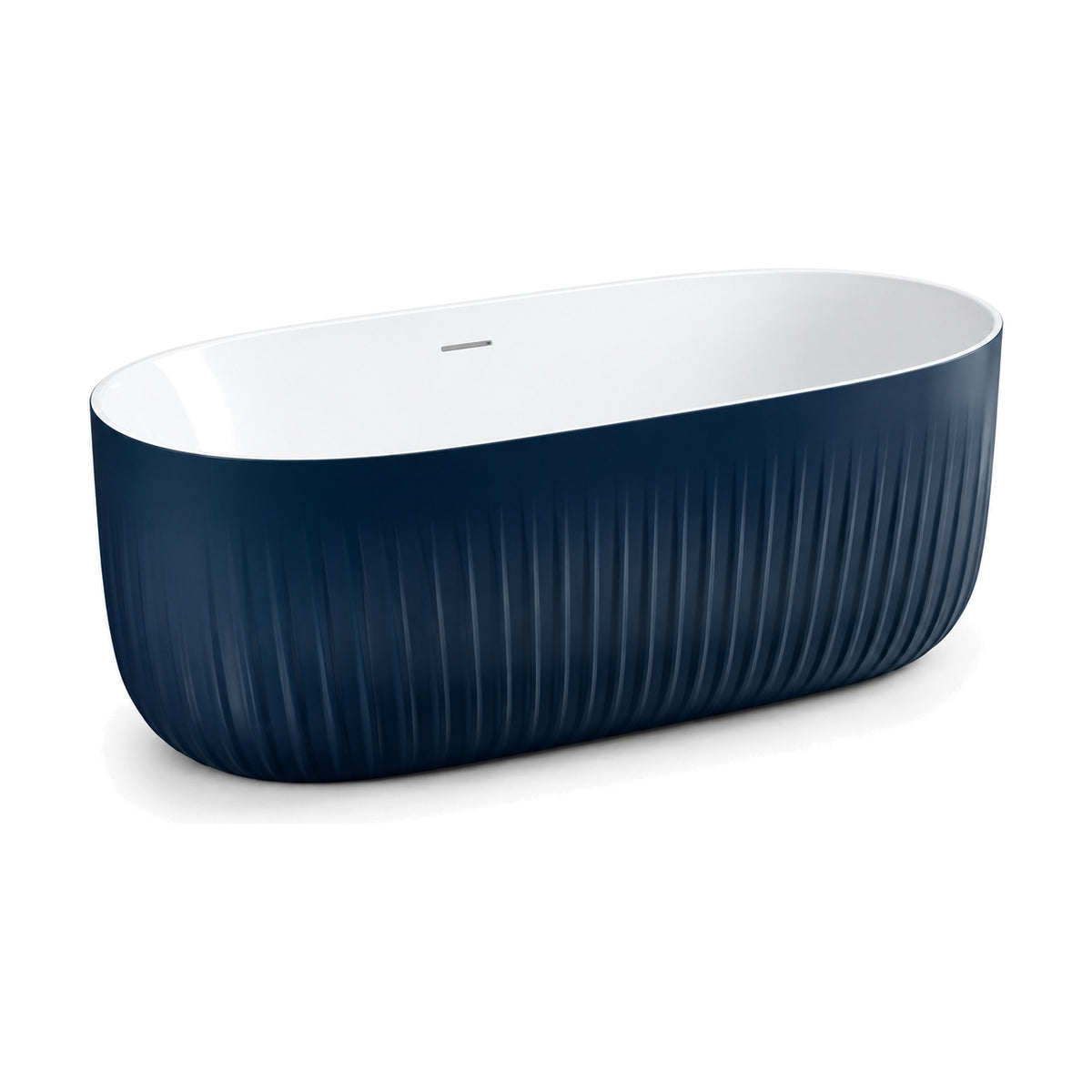

D-8501 sets a navy shell around a white basin. The outside is matte navy, cut into close vertical flutes that run up to a thin white rim.

Plain white and other exterior finishes are in the freestanding bathtub range.

All three sizes are 800 mm (31.5 in) wide and 600 mm (23.6 in) high; only the length changes. Inner depths are 445 mm (17.5 in) and 470 mm (18.5 in).

D-8501-150

59" × 31.5" × 23.6" (1500 × 800 × 600 mm)

D-8501-160

63" × 31.5" × 23.6" (1600 × 800 × 600 mm)

D-8501-170

67" × 31.5" × 23.6" (1700 × 800 × 600 mm)

Layout

Double-ended, center drain

One width and height across the range lets a project mix lengths room by room without changing the look of the tub or the faucet choice.

Take the drain location for each length from the approved drawing.

D-8501 is made from pure acrylic sheet, matte navy on the exterior and white on the interior.

Navy exterior with white interior

Two colors on one order line

Write matte navy outside and white inside into the quotation, and hold both to the approval sample.

Flute edges and a dark matte surface both show handling marks. Ask for soft wrapping over the fluted wall, and check the navy for scuffs when each carton is opened.

The approved sample sets the navy tone for all three lengths.

Each of the three D-8501 lengths carries cUPC certification. Request the certificate number against each SKU that goes into the submittal.

Add the destination market to the enquiry; the written answer on D-8501 paperwork comes within 12 business hours.

Each length is quoted separately on a lead time of 30-45 days after sample approval.

Standard Lead Time

30-45 days after sample approval

Lengths

1500 / 1600 / 1700 mm

The approval sample confirms the navy tone, the flute depth and the white rim before production, and the lead time counts from that approval.

The issued quotation is what fixes the lead time for each length.
