Narrow Wall Basin with Right Tap Deck

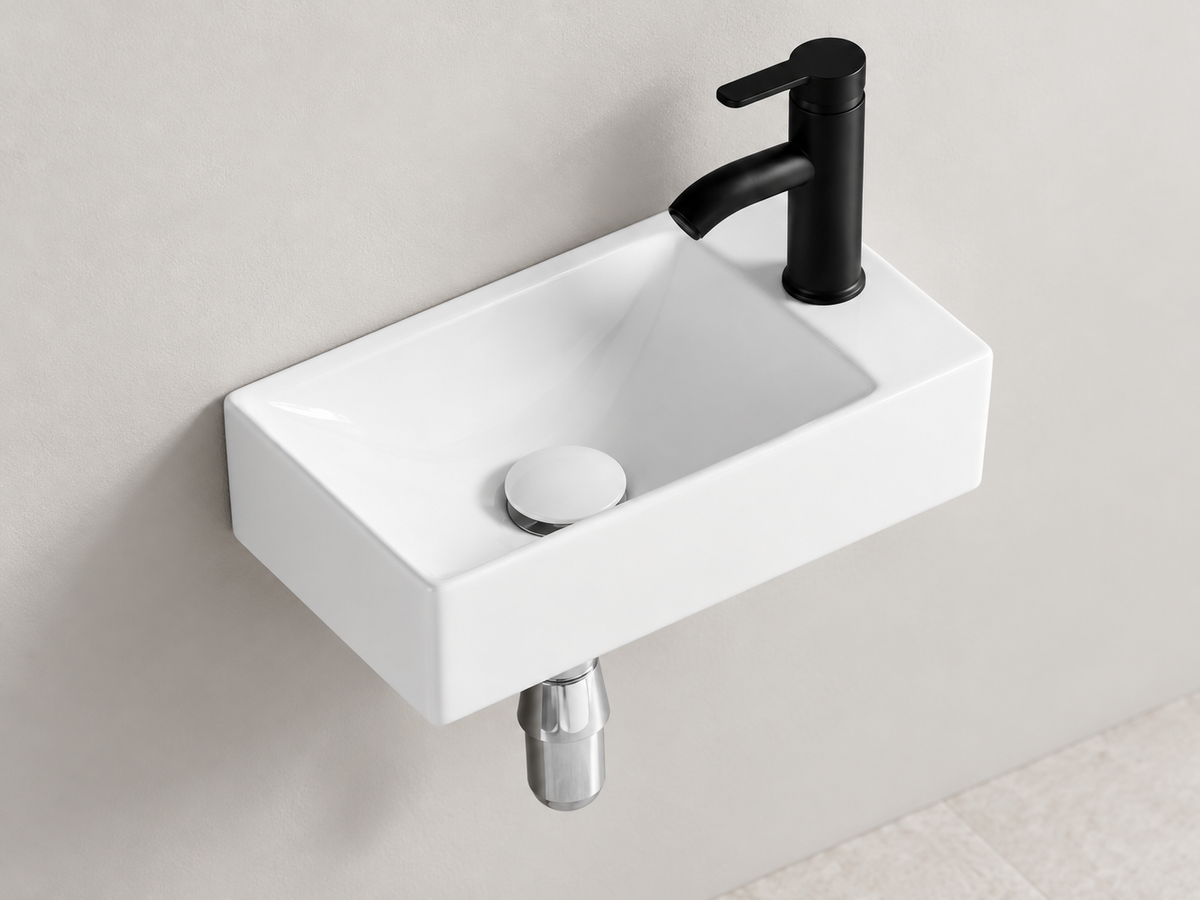

The narrow wall basin with right tap deck places a rectangular bowl on the left and a single tap opening on the right platform. Straight outside walls define its white ceramic body. The catalogue size label states 380 × 220 × 110 mm, while the original side drawing marks the height as 100 mm. Both references belong to this one factory model, rather than two size options. Preserve that source difference when specifying the basin. The overall footprint includes the tap platform, so it does not describe the inner bowl alone. Coordinate the wall fixing and connections with the exact body.
Shape & size
Shape and size of SHY-3126L
Right tap deck
One tap opening sits beside the bowl
The complete top plan shows the bowl on the left and a separate narrow platform on the right. One circular tap opening is placed in that platform. This side platform is part of the ceramic body beside the recessed bowl.

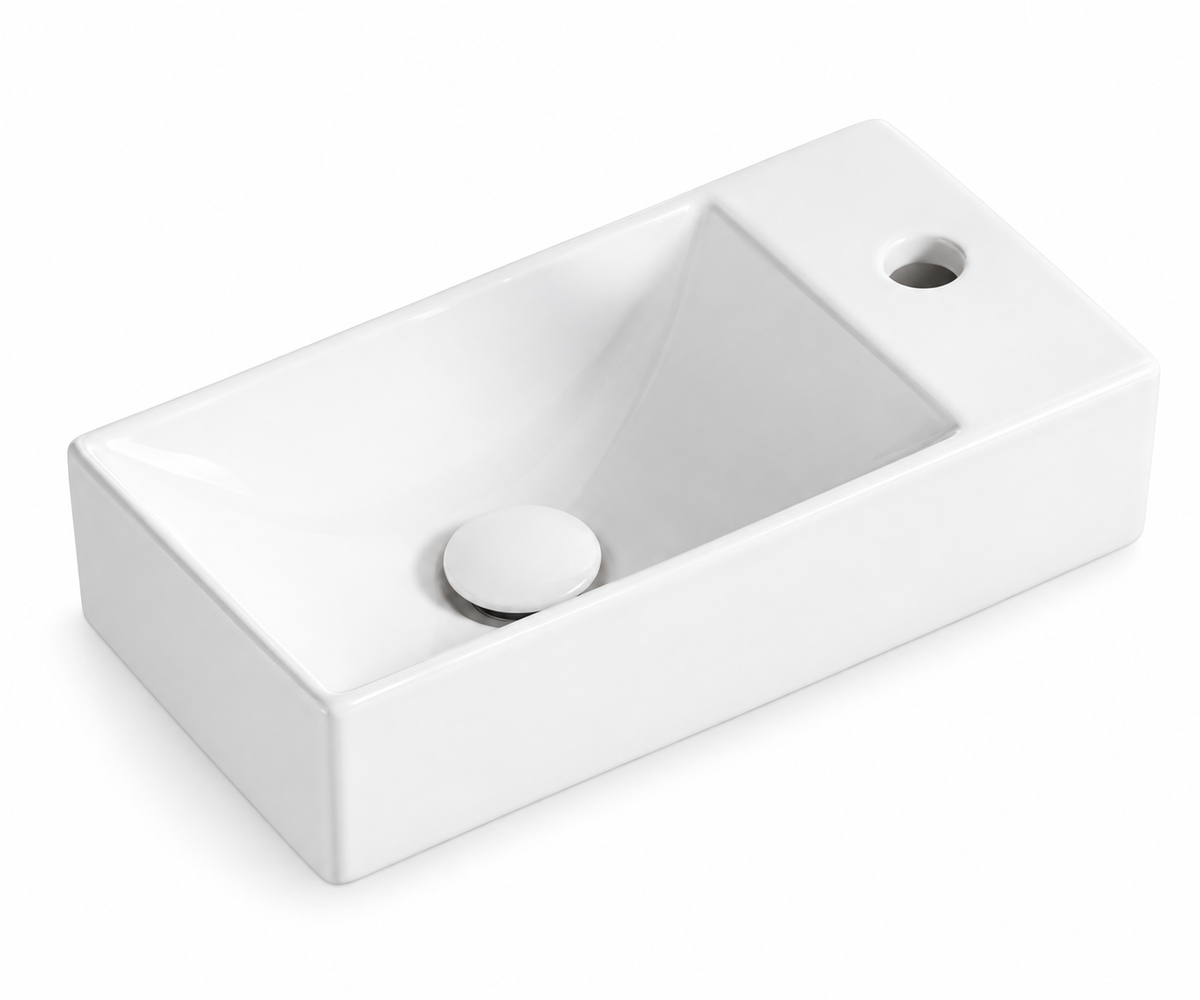

Left bowl
A rectangular bowl within straight walls
The white bowl has straight rectangular sides with slight softening at the inner corners. A circular drain detail lies within it. The outer body stays box-shaped rather than forming a curved projecting front.
Straight body
A low rectangular side profile
The original side drawing presents a straight-sided rectangular body. It marks 220 mm across that view and 100 mm in height. This drawing height is preserved as source evidence alongside the different catalogue size label.
Source measurements
One model with two height references
The printed size is 380 × 220 × 110 mm, while the drawing shows 100 mm for height. This is a catalogue discrepancy, not two selectable sizes. Confirm the intended overall height before final specification.
