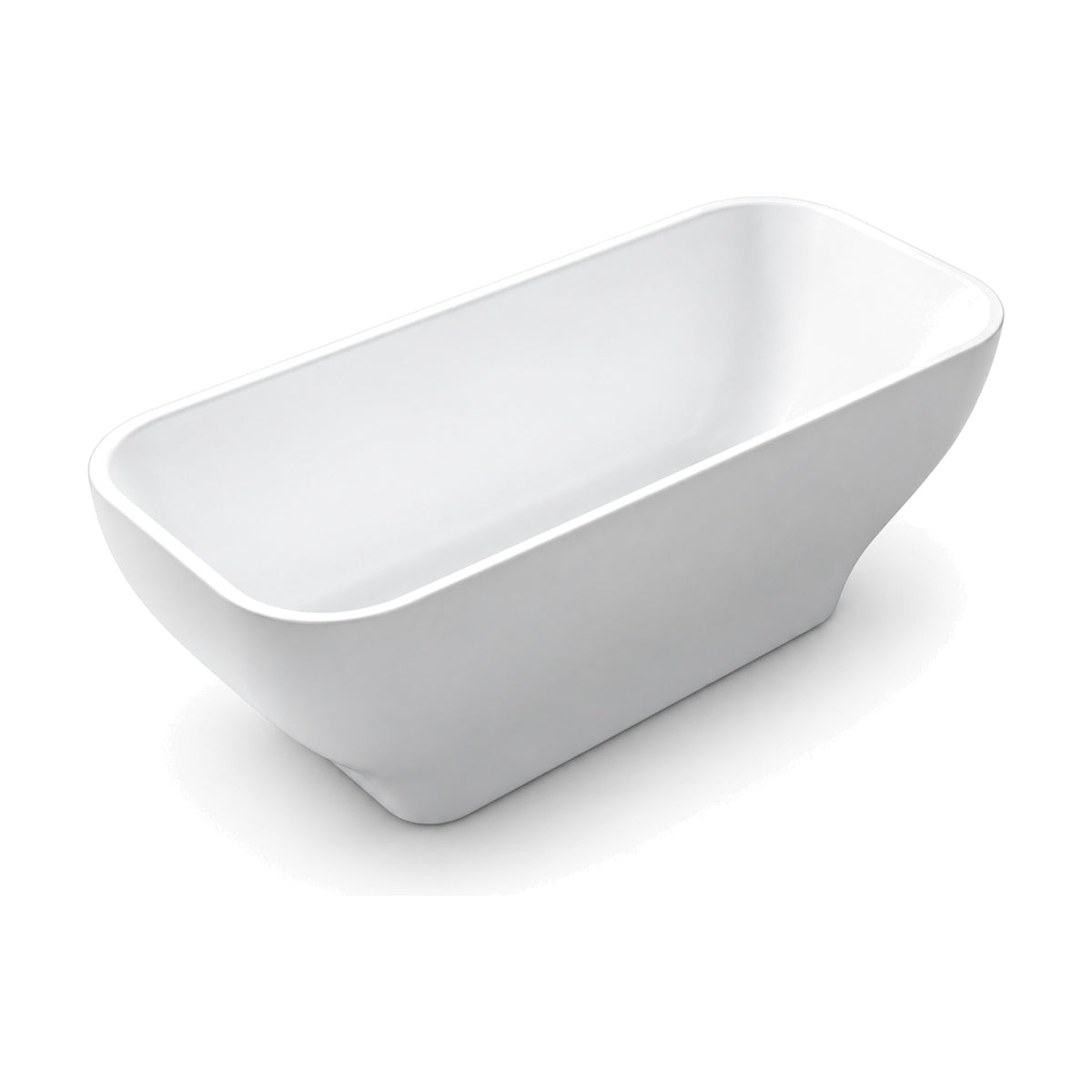

SANIKB D-8029 - narrow white rounded-rectangle freestanding tub with a thin rim, S-curved ends and a flat baseSANIKB D-8029 dimension drawing
01 / 02
01 / 02

Narrow Rounded Rectangle Freestanding Tub, 27.6 in Wide, 59 & 67 in

SKU D-8029-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 27.6" × 23.6" (1500 × 700 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8029-150

SANIKB D-8029 is a narrow, double-ended acrylic freestanding bathtub, 700 mm (27.6 in) wide, with a rounded-rectangle plan, a thin rim and S-curved ends that draw in toward a narrower flat base. Two lengths are made: D-8029-150 at 1500 × 700 × 600 mm (59 × 27.6 × 23.6 in) and D-8029-170 at 1700 × 700 × 600 mm (67 × 27.6 × 23.6 in). The drain is centered in both directions. There are no tap holes in the thin rim, so D-8029 is filled from a floor-standing or wall-mounted filler.

D-8029 is cUPC certified, with quotes sent within 12 business hours. Browse the SANIKB freestanding bathtub collection.

Product PDF D-8029-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8029

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

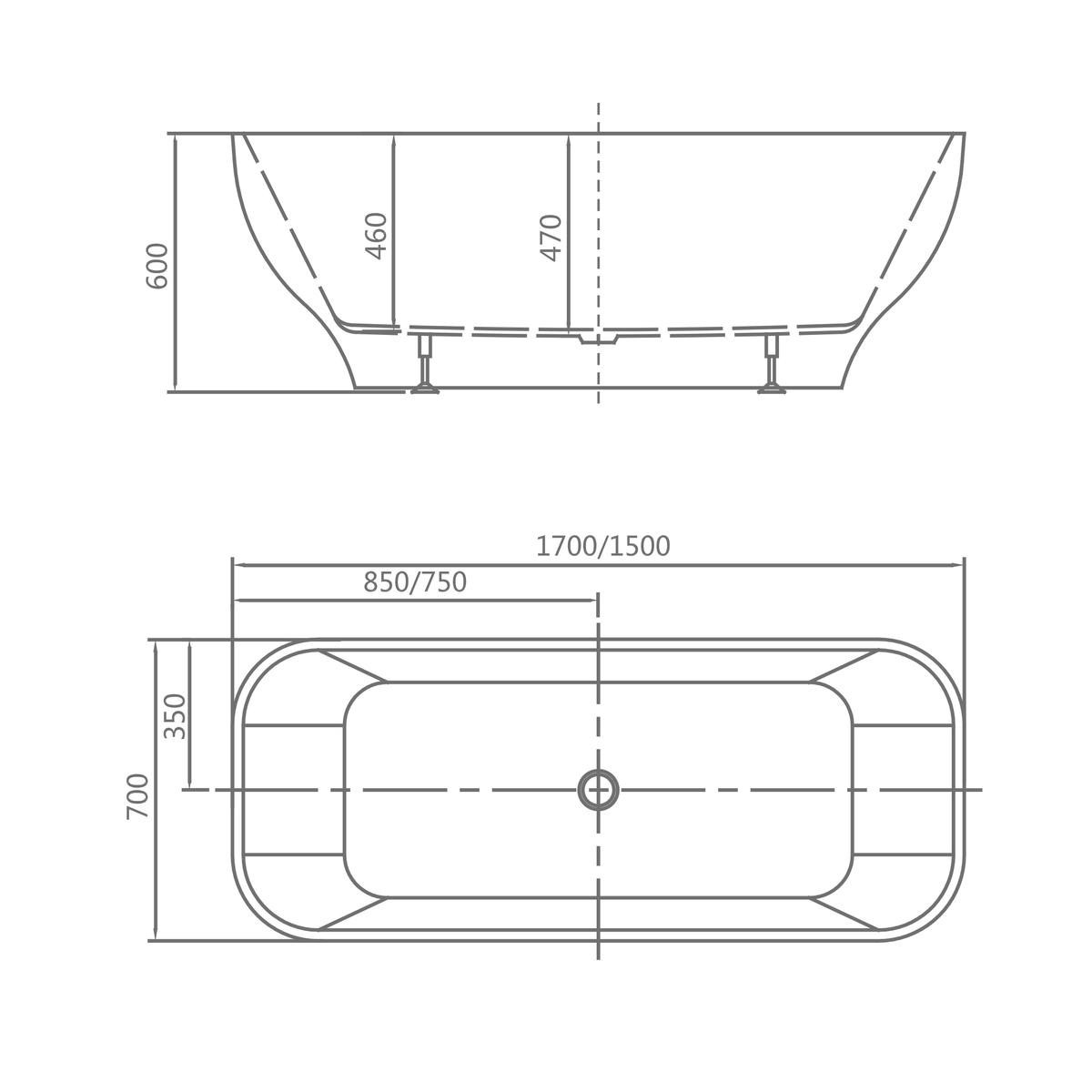

SANIKB D-8029 dimension drawing
Dimension drawing
Size range59" / 67" × 27.6" × 23.6" (1500 / 1700 × 700 × 600 mm)
Sizes59" x 28"67" x 28"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8029-15059" x 28"
D-8029-17067" x 28"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 28"D-8029-15067" x 28"D-8029-170
Overall L×W×D
59″ × 27.6″ × 23.6″
1500 × 700 × 600 mm
67″ × 27.6″ × 23.6″
1700 × 700 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Narrow Rounded Rectangle Freestanding Tub, 27.6 in Wide, 59 & 67 in SKU D-8029-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Width

    A 700 mm wide rounded rectangle

    D-8029 keeps the width to 700 mm for tighter rooms. The sides curve in toward the base, and each end follows an S-curve in elevation.

    01 / NARROW PLAN

    Width held at 27.6 inches

    Both lengths share the 700 mm width, so D-8029 can stand between fixtures where a wider freestanding tub would crowd the floor.

    02 / END PROFILE

    S-curved ends, drain on center

    The drawing shows each end rising in an S-curve. The drain sits 350 mm from the side and at mid-length, so either end can take the bather's back.

    Wider rounded-rectangle models are in the freestanding bathtub collection.

    Fit & Clearance

    Narrow 700 mm body in two lengths

    D-8029 measures 1500 or 1700 mm long, 700 mm wide and 600 mm (23.6 in) high.

    59 in Size
    59" × 27.6" × 23.6" (1500 × 700 × 600 mm), D-8029-150
    67 in Size
    67" × 27.6" × 23.6" (1700 × 700 × 600 mm), D-8029-170
    Drain
    Centered: 350 mm from the side, 750 / 850 mm from the end
    Base
    Flat, narrower than the rim

    Inner depths on the drawing are 460 mm and 470 mm (18.1 and 18.5 in). Settle the filler type, floor-standing or wall-mounted, before the floor waste and supply lines are roughed in.

    If a floor-standing filler is chosen, allow for its footprint beside the 700 mm body when planning the walkway.

    Construction & Finish

    Acrylic shell with a thin rim

    D-8029 is formed from pure acrylic sheet in white, with a thin rim above the inward-curving sides.

    SANIKB D-8029 - narrow white rounded-rectangle freestanding tub with a thin rim, S-curved ends and a flat base

    White

    Narrow plan, full-height walls

    At 600 mm (23.6 in) the walls stand at full height even though the plan is only 700 mm wide.

    The finish sheen of D-8029 is confirmed on the approval sample, and incoming units are inspected against that sample.

    For apartment refits, measure door and corridor widths along the delivery route as well as the bathroom itself.

    Agree how transit damage is recorded and reported before the first shipment.

    Compliance

    cUPC certification for D-8029

    Narrow size on record

    Where a submittal relies on the 700 mm width, attach the approved drawing so the reviewer sees the measured figure.

    D-8029 is cUPC certified. Ask for the certificate number and validity date, and have both SKUs, D-8029-150 and D-8029-170, named on it.

    Tell us which market the tubs are going to, and SANIKB replies in writing within 12 business hours.

    Procurement

    Ordering D-8029

    Both narrow D-8029 lengths are produced on a lead time of 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    within 12 business hours

    Where both lengths go into the same building, give the count for each SKU so cartons can be labeled by room type.

    Include these details with the RFQ

    • Quantity of D-8029-150
    • Quantity of D-8029-170
    • Floor-standing or wall-mounted filler
    • Drain trim
    • Destination market and port
    • Delivery window
    Request D-8029 Quote View OEM & ODM Program

    Confirm the lead time on the quotation before booking freight.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How wide is D-8029?

    700 mm (27.6 in) in both lengths. D-8029-150 is 1500 × 700 × 600 mm (59 × 27.6 × 23.6 in) and D-8029-170 is 1700 × 700 × 600 mm (67 × 27.6 × 23.6 in).

    Is D-8029 double-ended?

    Yes. The drain is at the center of the length, 350 mm from the side, and both ends are shaped for reclining.

    How is the narrow D-8029 filled?

    From a floor-standing or wall-mounted filler, since the rim has no tap holes. On a 700 mm body, a wall-mounted filler keeps the floor beside the tub clear.

    Does D-8029 stand on exposed feet or a pedestal?

    No. The sides curve in to a flat base that reaches the floor, so no feet or pedestal are visible.

    What inner depth does the D-8029 drawing give?

    Two figures: 460 mm and 470 mm (18.1 and 18.5 in), inside a body 600 mm (23.6 in) high.

    How long does an order of narrow D-8029 tubs take?

    Production of D-8029 takes 30-45 days after sample approval, for either length. Send quantities and destination for a quote, which is answered within 12 business hours.
