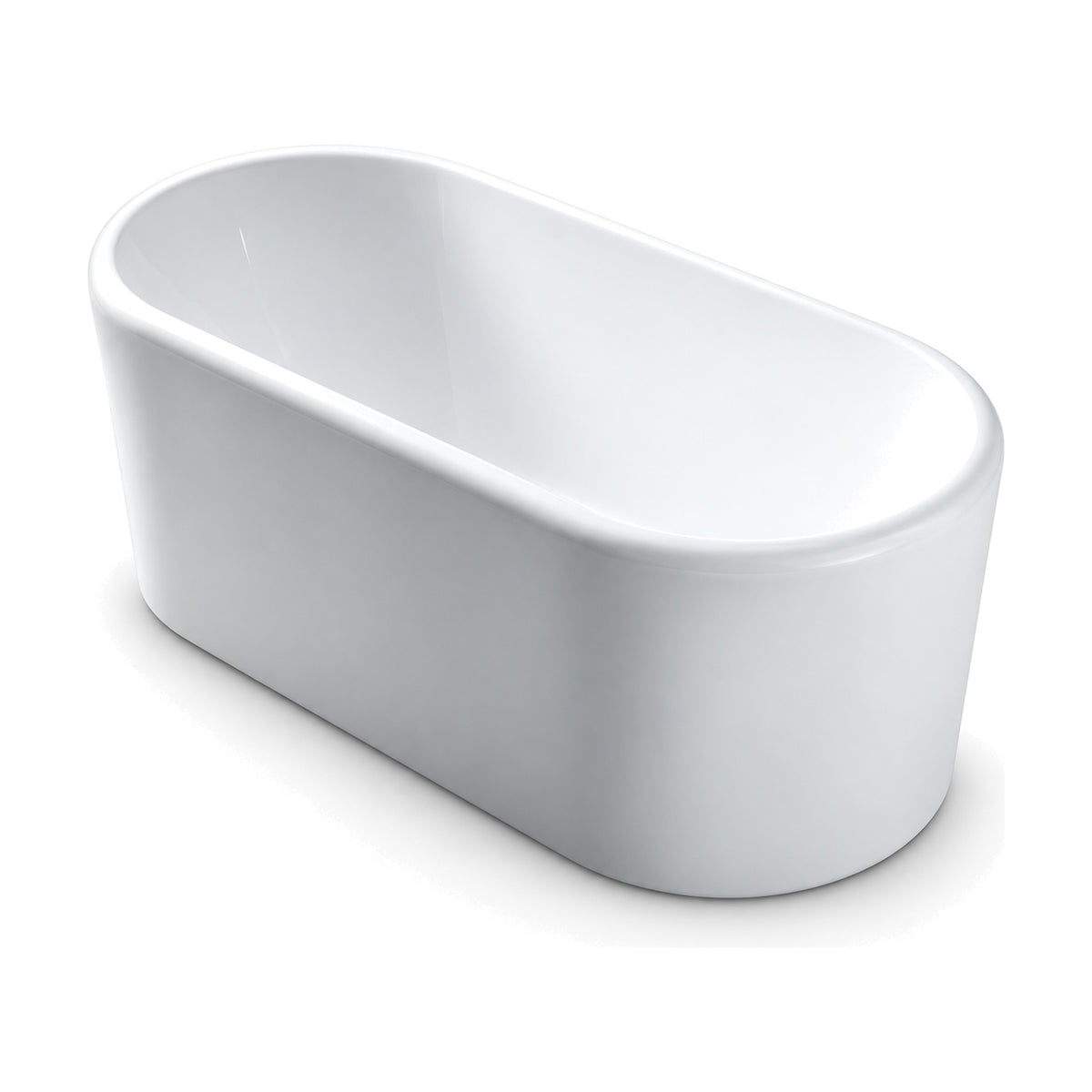

SANIKB D-8062 - gloss white narrow roll-top freestanding bathtub with straight upright sides and semicircular ends

01 / 02

Narrow Roll-Top Freestanding Bathtub with End Drain, 59 & 67 in

SKU D-8062-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 27.6" × 22.8" (1500 × 700 × 580 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8062-150

SANIKB D-8062 is a narrow roll-top freestanding bathtub in gloss white acrylic, 700 mm (27.6 in) wide in both of its sizes: D-8062-150 at 1500 x 700 x 580 mm (59 x 27.6 x 22.8 in) and D-8062-170 at 1700 x 700 x 580 mm (67 x 27.6 x 22.8 in). Straight upright sides and semicircular ends rise to a rounded rolled rim that is level all round.

Inside, a steep backrest rises at one end with the drain at the other. The roll-top rim has no tap holes, so D-8062 takes a floor-standing or wall-mounted filler. It is cUPC certified; view the freestanding bathtub range.

Product PDF D-8062-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8062

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 27.6" × 22.8" (1500 / 1700 × 700 × 580 mm)

Sizes59" x 28"67" x 28"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8062-150	59" x 28"
D-8062-170	67" x 28"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 28"D-8062-150	67" x 28"D-8062-170
Overall L×W×D	59″ × 27.6″ × 22.8″ 1500 × 700 × 580 mm	67″ × 27.6″ × 22.8″ 1700 × 700 × 580 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Narrow Roll-Top Freestanding Bathtub with End Drain, 59 & 67 in SKU D-8062-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Roll-Top Form

Narrow roll-top bathtub with an end drain

D-8062 has a symmetric stadium outline with a rounded roll-top rim. Inside, the basin is offset toward the drain end and rises to one steep backrest at the other.

01 / BACKREST

One steep internal backrest

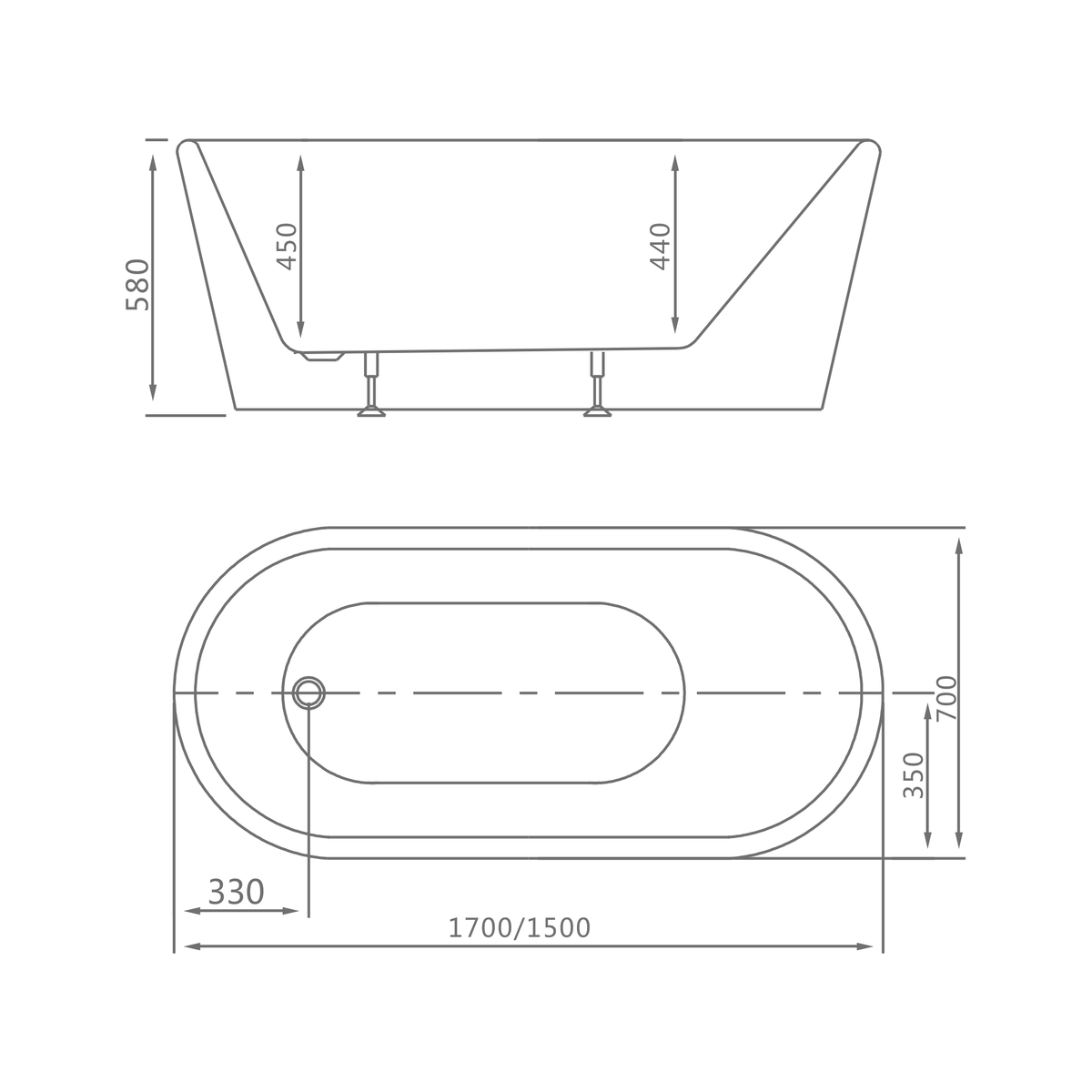

The drawing shows a single-ended interior, with the backrest at the opposite end from the drain. The outside stays symmetric, with both outer ends flared equally.

02 / DRAIN

End drain on the center line

The drain is drawn 330 mm (13 in) from the left end and 350 mm (13.8 in) from the side, which places it on the center line of the 700 mm width.

Compare other rim styles and widths in the freestanding tub collection.

Narrow Footprint

700 mm wide in 59 and 67 inch lengths

Both D-8062 sizes are 700 mm (27.6 in) wide and 580 mm (22.8 in) high; only the length changes.

D-8062-150: 1500 x 700 x 580 mm (59 x 27.6 x 22.8 in)
D-8062-170: 1700 x 700 x 580 mm (67 x 27.6 x 22.8 in)
Drain: End drain, 330 mm from the end
Faucet Mount: Floor-standing or wall-mounted filler

At the drain end the basin is drawn 450 mm (17.7 in) deep, and at the backrest end 440 mm (17.3 in). The 700 mm width suits rooms that cannot take an 800 mm tub with walking space beside it.

The drain is at one end, so decide which way the tub faces before the floor waste is set, and confirm on the approved drawing.

Material & Finish

Gloss white acrylic with a rolled rim

The shell of D-8062 is pure acrylic sheet, formed in white and finished in gloss.

White

Rolled rim, gloss finish

The rounded roll-top rim catches light along its whole length. Approve the gloss on the sample, looking along the rim as well as across the walls.

The rounded rim is the first edge to take knocks in transit. Agree rim protection in the packing and the way arrival damage is reported.

Keep the approved sample as the gloss reference.

Compliance

cUPC certification for the narrow D-8062

Two SKUs, one width

D-8062-150 and D-8062-170 share the 700 mm width, but request documents under each SKU so the length on the drawing matches the delivery.

Both D-8062 lengths are cUPC certified. Request the certificate with its validity date and the approved drawing showing the end drain before the tub is submitted.

Give the destination market in the inquiry; the quotation that confirms the documents is returned within 12 business hours.

Procurement

Ordering the narrow D-8062

SANIKB manufactures D-8062 in two lengths on a 700 mm width and quotes each as its own SKU.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: Written quote within 12 business hours

Where width is the limit in a set of rooms, such as an apartment refurbishment, list the rooms and the length each needs so the quotation follows the schedule.

Include these details with the RFQ

Number of D-8062-150 and D-8062-170 units
Destination market and port
Floor-standing or wall-mounted filler
Drain and overflow fittings
Brand marking on cartons
Target delivery window

Request D-8062 Quote View OEM & ODM Program

Confirm the lead time against the written quotation before fixing site dates.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

How long and wide is D-8062?

Two lengths on the same 700 mm width: D-8062-150 at 1500 x 700 x 580 mm (59 x 27.6 x 22.8 in) and D-8062-170 at 1700 x 700 x 580 mm (67 x 27.6 x 22.8 in).

Where are the backrest and drain in D-8062?

The drawing shows it single-ended: one steep internal backrest with the drain at the other end, 330 mm from the end. Because the outer shape is symmetric and no handed version is needed, turning the tub round brings the drain to whichever end the plumbing requires.

Which filler type suits D-8062?

With no tap holes in the roll-top rim, D-8062 takes a floor-standing filler or a wall spout. Plan it near the drain end and confirm its position on the approved drawing.

What decides the orientation of D-8062 on site?

The outer wall meets the finished floor all round, with no exposed feet or plinth. The floor waste lines up with the end drain, so fix the direction the tub faces before the floor is finished.

What finish and inner depths does the roll-top D-8062 have?

The tub is gloss white acrylic, formed from pure acrylic sheet, and the rim is a rounded roll-top. The drawing puts inner depth at 450 mm (17.7 in) by the drain and 440 mm (17.3 in) at the backrest end.

How soon can D-8062 be produced?

Standard lead time for D-8062 is 30-45 days after sample approval. This cUPC certified tub is quoted in writing within 12 business hours of receiving the room list and lengths.
