SANIKB D-8375 - matte white rectangular freestanding tub with rounded corners, tapered sides and thin rimSANIKB D-8375 dimension drawing
01 / 02
01 / 02

Matte White Rectangular Freestanding Tub, Rounded Corners, 59 & 67 in

SKU D-8375-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8375-150

SANIKB D-8375 is a matte rectangular freestanding tub in white acrylic. Its corners are rounded in plan, the sides taper down to a smaller flat base, and a 15 mm rim edges the top. It is double-ended, with the drain in the center of the floor and the overflow midway along one long side.

Choose D-8375-150, 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), or the longer D-8375-170, 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). With no tap holes in the rim, it takes a floor-standing or wall-mounted filler, and both sizes are cUPC certified. Browse the freestanding bathtub range for more shapes.

Product PDF D-8375-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8375

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

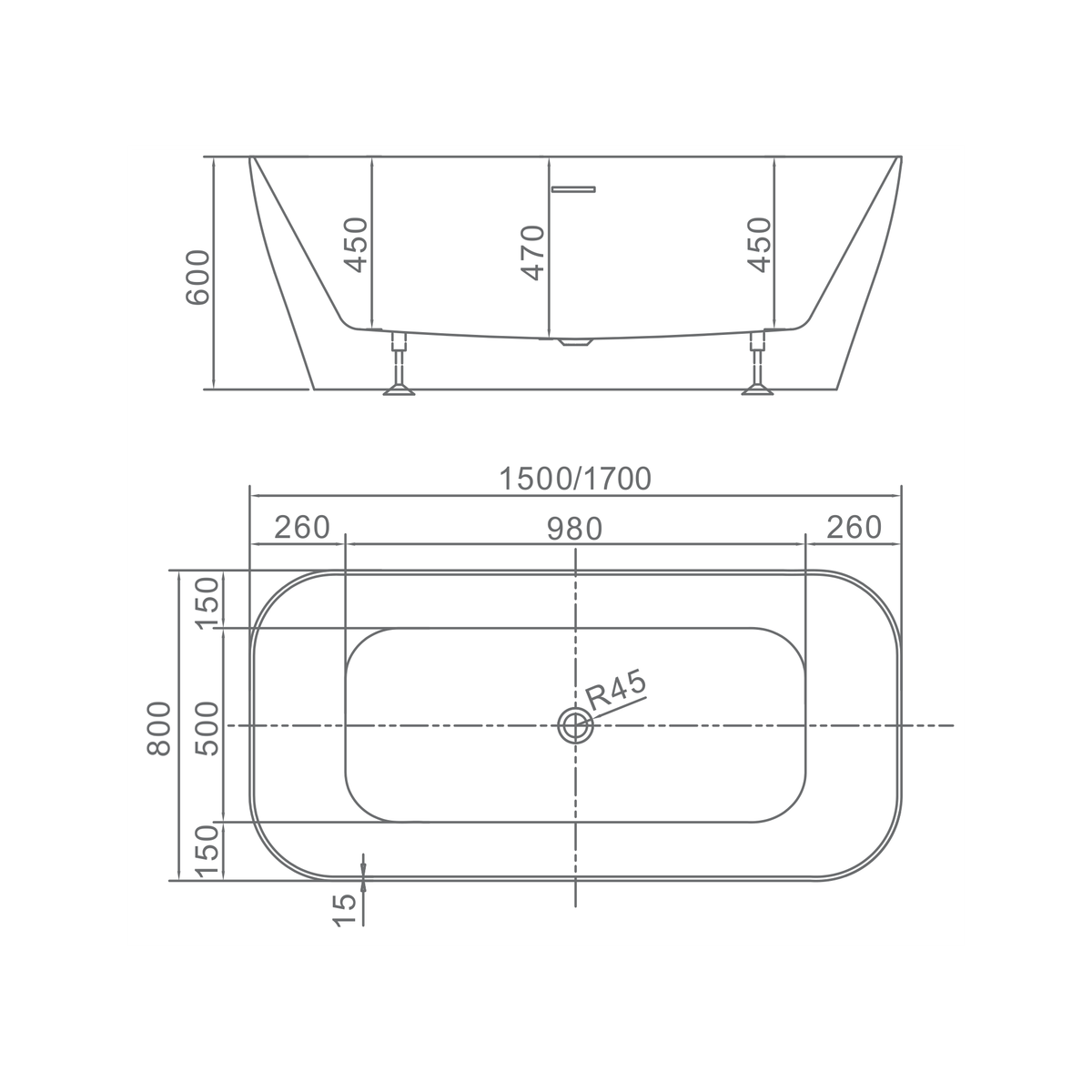

SANIKB D-8375 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8375-15059" x 31"
D-8375-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8375-15067" x 31"D-8375-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Matte White Rectangular Freestanding Tub, Rounded Corners, 59 & 67 in SKU D-8375-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Layout

    Rounded rectangle with a center drain

    D-8375 has a rounded-rectangle plan that is symmetric end to end, with no flat side. Walls taper inward to a smaller base, and the drain is placed at the center.

    01 / BACKREST

    Backrest at either end

    D-8375 is double-ended, so the bather can recline at either end. Inner depth on the drawing is 470 mm at the middle and 450 mm toward the ends.

    02 / RIM

    15 mm rim, overflow on the long side

    The drawing gives the rim as 15 mm (0.6 in). The overflow sits midway along a long side, leaving both ends free of fittings.

    Other straight-edged freestanding shapes are in the freestanding bathtub collection.

    Fit & Footprint

    800 mm wide in 1500 and 1700 mm lengths

    D-8375-150 covers 59 x 31.5 x 23.6 inches (1500 x 800 x 600 mm), and D-8375-170 extends the same section to 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm).

    D-8375-150
    59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
    D-8375-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Inner Depth (as drawn)
    17.7" at the ends, 18.5" at center (450 / 470 mm)
    Faucet Mounting
    Floor-standing or wall; no rim tap holes

    On the 1500 mm drawing the length is dimensioned as 260 + 980 + 260 mm and the 800 mm width as 150 + 500 + 150 mm, with the drain drawn at a 45 mm radius. Use the drawing for the 1700 mm size to set its own drain point.

    Set the floor waste for D-8375 to the approved drawing of the size being ordered.

    Construction & Finish

    Matte white acrylic

    D-8375 is formed from pure acrylic sheet and finished in matte white.

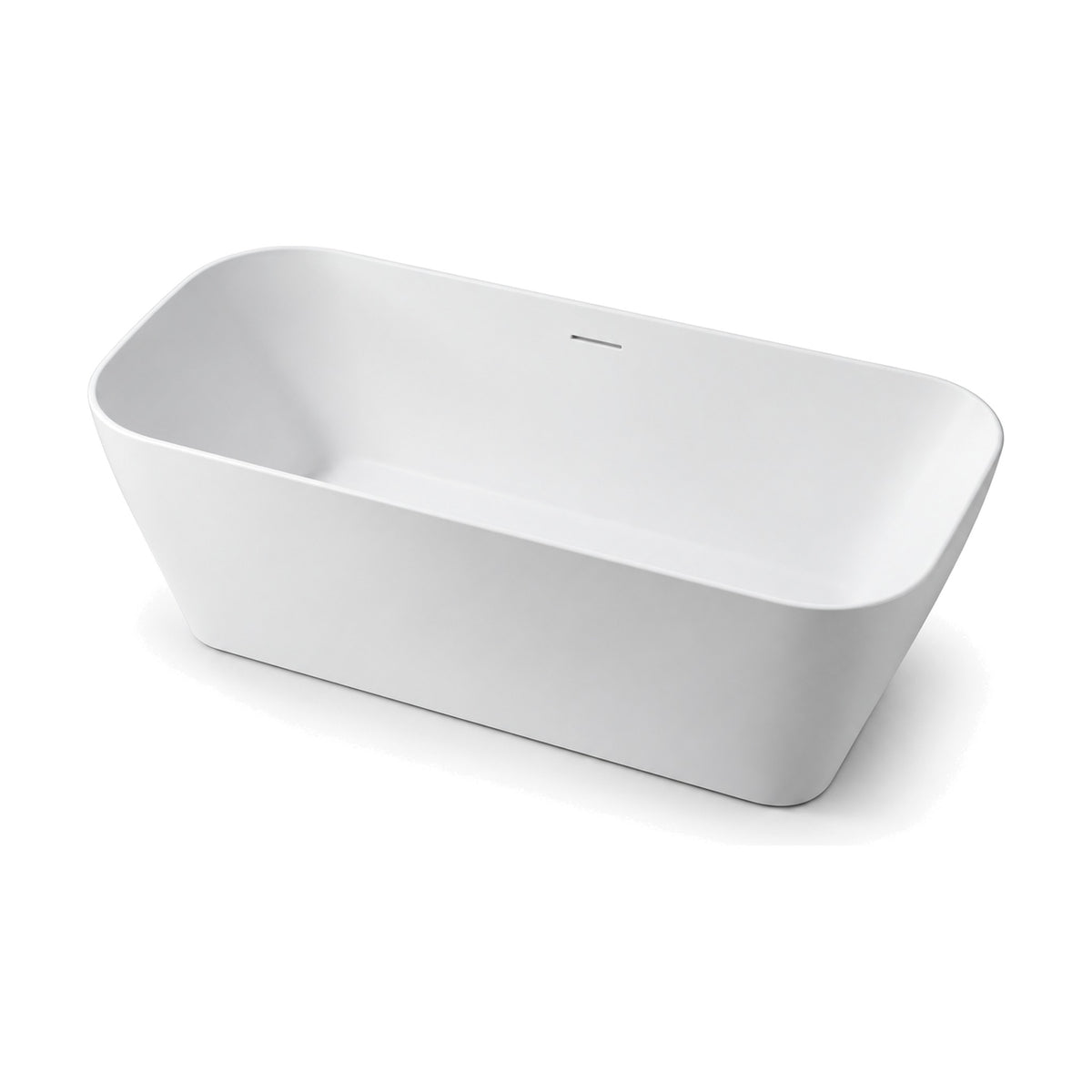

    SANIKB D-8375 - matte white rectangular freestanding tub with rounded corners, tapered sides and thin rim

    White

    Low-sheen exterior

    A matte surface reads softer than gloss beside glazed ceramic fittings. If the bathroom mixes finishes, approve D-8375 on a sample next to the other pieces.

    Because the sides taper to a smaller base, the footprint on the floor is less than the 800 mm top width. Level and finish the floor under D-8375 before it is placed.

    The approved D-8375 sample sets the finish standard for the order.

    Compliance

    cUPC certified D-8375

    One SKU per request

    Quote D-8375-150 or D-8375-170 when asking for certificates.

    D-8375 is cUPC certified in both sizes. Request the certificate number and validity against the SKU going into the submittal.

    Include the destination market and required documents in your enquiry; written answers are sent within 12 business hours.

    Procurement

    Placing an order for D-8375

    D-8375 is quoted by SKU, and production follows 30-45 days after sample approval.

    Size SKUs
    D-8375-150, D-8375-170
    Standard Lead Time
    30-45 days after sample approval

    Agree surface protection for the matte shell of D-8375, together with corner guards, in the packing specification.

    Include these details with the RFQ

    • Quantities of D-8375-150 and D-8375-170
    • Destination port
    • Filler: floor-standing or wall-mounted
    • Carton marking or private label
    • Shipping window
    Request D-8375 Quote View OEM & ODM Program

    Final D-8375 lead time appears on the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What sizes does the matte D-8375 come in?

    The 59 in D-8375-150 measures 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), and the 67 in D-8375-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Can the bather recline at either end of the matte D-8375?

    Yes, it is double ended. The drain is in the center and the overflow sits midway on a long side, so either end can be the backrest.

    How deep is D-8375 inside?

    The drawing shows 470 mm (18.5 in) of inner depth at the center, easing to 450 mm (17.7 in) toward each end.

    What faucet does D-8375 take?

    There are no tap holes in the rim, so D-8375 takes a floor-standing or wall-mounted filler. Mark it on the layout against the approved drawing so the spout reaches over the rim.

    What finish is D-8375?

    Matte white acrylic from pure acrylic sheet, with a 15 mm rim and rounded corners. It is cUPC certified.

    What goes into a quote request for D-8375?

    Send quantities per SKU, the destination port and filler type. A written quote follows within 12 business hours, and goods are ready 30-45 days after sample approval.
