Matte Stadium Oval Freestanding Bathtub with Tapered Walls, 59 & 67 in

SKU D-8377-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 24.0" (1500 × 800 × 610 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8377-150

SANIKB D-8377 is a double-ended freestanding bathtub in matte white acrylic, built on a stadium-oval plan with fairly straight walls that taper down to a smaller flat base. It is made in two sizes: D-8377-150 at 1500 x 800 x 610 mm (59 x 31.5 x 24.0 in) and D-8377-170 at 1700 x 800 x 610 mm (67 x 31.5 x 24.0 in). The slim 15 mm (0.6 in) rim has no tap holes, so the tub takes a floor-standing or wall-mounted filler, and the drain and overflow sit at the center. D-8377 is cUPC certified, and quotes are returned within 12 business hours.

See other shapes in the SANIKB freestanding bathtub range.

Product PDF D-8377-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8377

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

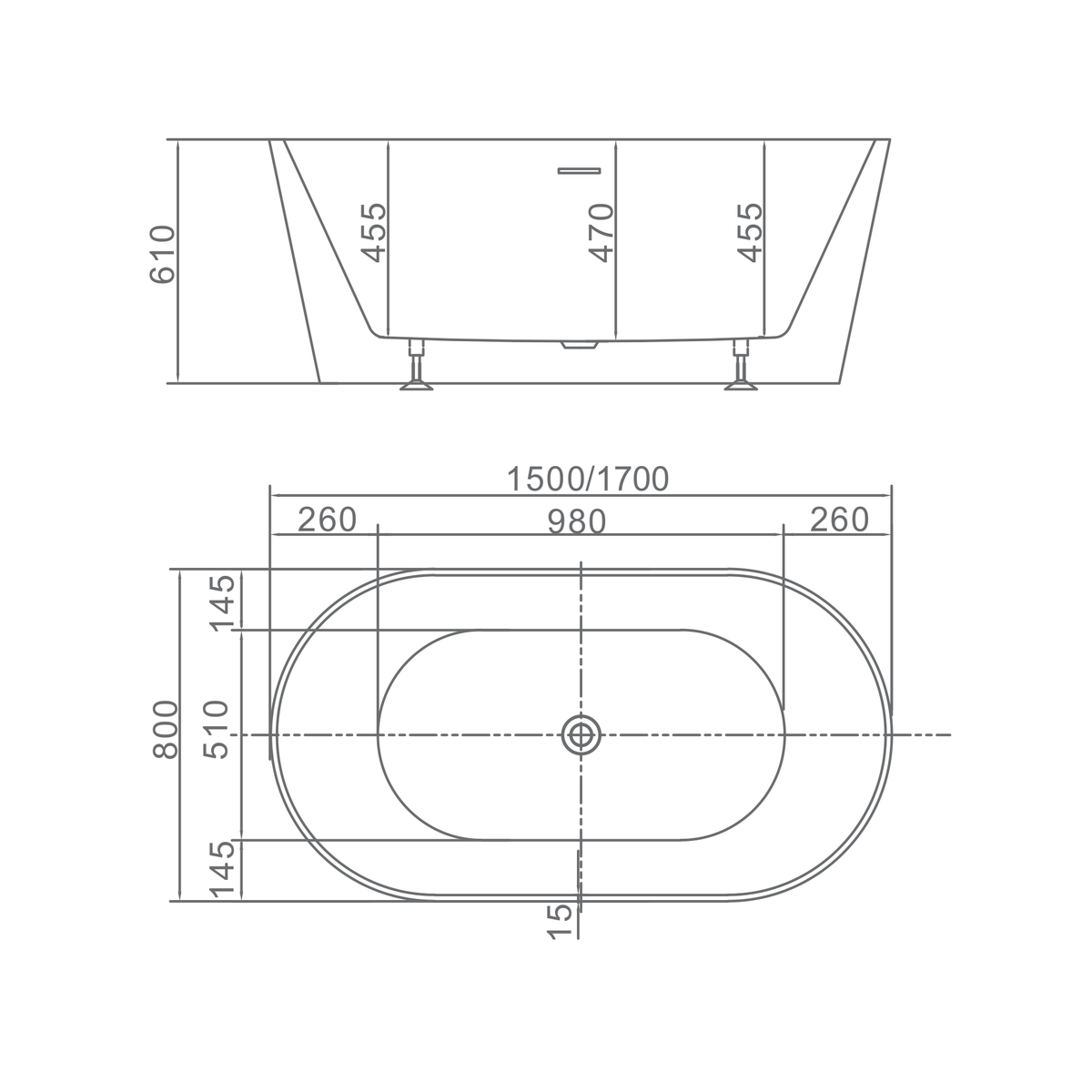

SANIKB D-8377 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 24.0" (1500 / 1700 × 800 × 610 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8377-15059" x 31"
D-8377-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8377-15067" x 31"D-8377-170
Overall L×W×D
59″ × 31.5″ × 24.0″
1500 × 800 × 610 mm
67″ × 31.5″ × 24.0″
1700 × 800 × 610 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Matte Stadium Oval Freestanding Bathtub with Tapered Walls, 59 & 67 in SKU D-8377-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Profile

    Stadium oval plan with walls tapering to a flat base

    D-8377 is drawn on a symmetric stadium plan: two straight long sides joined by fully rounded ends, with no flat side for a wall. Both ends are shaped as backrests, and the drain sits in the middle of the tub.

    01 / PROFILE

    Straight walls that narrow toward the floor

    The walls of D-8377 run fairly straight and taper down to a smaller flat base, so the footprint at floor level is tighter than the rim outline. The rim itself is slim, drawn at 15 mm (0.6 in).

    02 / BATHING WELL

    455 to 470 mm inner depth

    On the D-8377 drawing the inner depth is 455 mm (17.9 in) at each end and 470 mm (18.5 in) at the center drain. The 1500 mm size has a 980 mm (39 in) inner length and a 510 mm (20.1 in) inner width between 145 mm (5.7 in) side walls.

    Buyers weighing a matte finish against gloss can compare other profiles in the freestanding bathtub collection.

    Fit & Plumbing

    Two lengths on an 800 mm width

    D-8377 comes in 1500 mm (59 in) and 1700 mm (67 in) lengths; width and height stay at 800 mm (31.5 in) and 610 mm (24.0 in) on both sizes. The plan is symmetric, so the tub can face either way in the room.

    D-8377-150
    59" × 31.5" × 24.0" (1500 × 800 × 610 mm)
    D-8377-170
    67" × 31.5" × 24.0" (1700 × 800 × 610 mm)
    Faucet Mount
    Floor-standing or wall-mounted filler; no tap holes
    Drain
    Center drain, double-ended

    On both D-8377 sizes the floor waste has to be set at the middle of the footprint rather than at one end. Allow walking room on whichever long side will take a floor filler or a cleaning route.

    Set the floor waste position from the approved D-8377 drawing for the size ordered.

    Material & Finish

    Pure acrylic sheet in matte white

    D-8377 is formed from pure acrylic sheet and made in white with a matte surface.

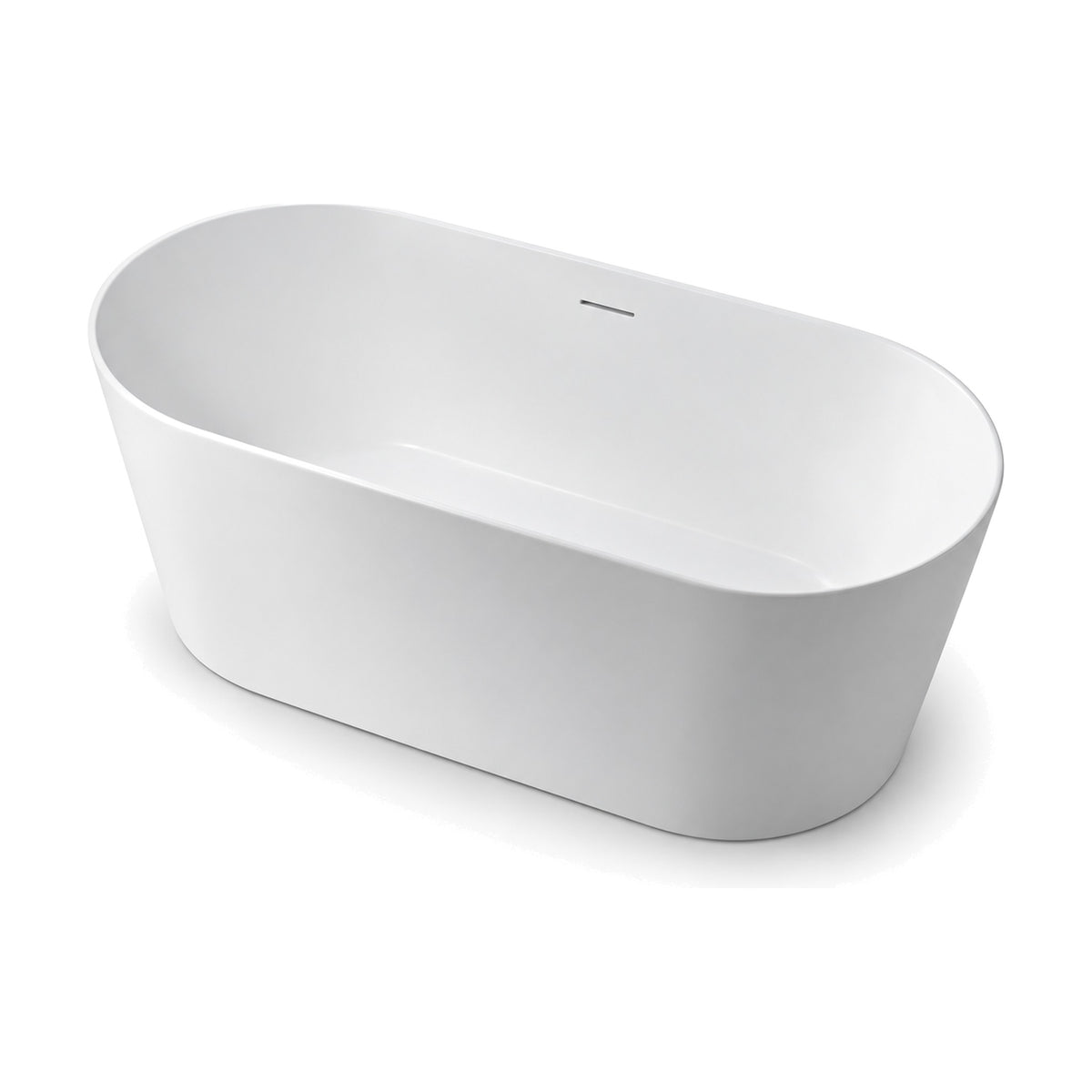

    SANIKB D-8377 - matte white stadium oval freestanding bathtub with tapered walls, slim rim and center drain

    White

    A low-sheen surface across the order

    The matte surface on D-8377 reads differently from gloss under bathroom lighting. Approve a sample before production so every unit in the order matches the reference.

    Acrylic scuffs if cartons are dragged or stacked without edge protection. Agree the packing method for the 1500 mm and 1700 mm D-8377 at quotation.

    Record on the sample approval that the matte finish is the reference for the whole D-8377 order.

    Compliance

    cUPC certification for D-8377

    Paperwork by SKU

    Request documents against D-8377-150 or D-8377-170 by name, so each line on the order has its own reference.

    D-8377 is cUPC certified. Before the tub goes into a submittal, ask for the current certificate details against model D-8377 and the size you are ordering so the paperwork matches the destination market.

    State the market and the document set you need in the enquiry; SANIKB issues written replies within 12 business hours.

    Procurement

    Ordering D-8377 in 1500 and 1700 mm

    SANIKB manufactures D-8377 and quotes each size as its own SKU.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    The standard lead time for D-8377 runs 30-45 days after sample approval. Split the quantity between D-8377-150 and D-8377-170 in the enquiry so each size is priced on its own line.

    Include these details with the RFQ

    • Quantity of D-8377-150 and D-8377-170
    • Destination market and port
    • Floor-standing or wall-mounted filler planned for the project
    • Whether drain and overflow fittings are needed with the tub
    • Carton marking and private-label requirements
    • Target shipping window
    Request D-8377 Quote View OEM & ODM Program

    The D-8377 lead time becomes fixed when the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which two sizes is D-8377 made in?

    D-8377 comes in two sizes. D-8377-150 measures 1500 x 800 x 610 mm (59 x 31.5 x 24.0 in) and D-8377-170 measures 1700 x 800 x 610 mm (67 x 31.5 x 24.0 in). Width and height are the same on both, so only the length changes the layout.

    Which end of D-8377 does the bather lie against?

    Either. D-8377 is double ended: both ends are shaped as backrests and the drain sits at the center, so the tub has no left or right hand and can be turned to suit the room.

    How is the faucet mounted with D-8377?

    D-8377 has no tap holes in its rim. Pair it with a floor-standing filler beside the tub or a spout mounted on the wall above it, and plan the supply pipes for the chosen filler before the floor is finished.

    What should the installer check before setting D-8377?

    Confirm the floor waste at the center of the footprint for the size ordered, and check the inner depth of 455 mm (17.9 in) at the ends and 470 mm (18.5 in) at the drain against the project specification. Take positions from the approved D-8377 drawing.

    What is D-8377 made of, and which finish is used?

    The tub is pure acrylic sheet with a matte white surface and a slim 15 mm (0.6 in) rim. Approve a finish sample before production so the matte surface is fixed for the whole order.

    What goes into a D-8377 order, and how long is production?

    Split the quantity between D-8377-150 and D-8377-170, and say whether a floor filler or a wall spout is planned. The quote is returned within 12 business hours, and production runs to the standard lead time of 30-45 days after sample approval of the matte white finish.
