Low Lie-Down Walk-In Whirlpool Tub with Glass Door, 60 & 72 in

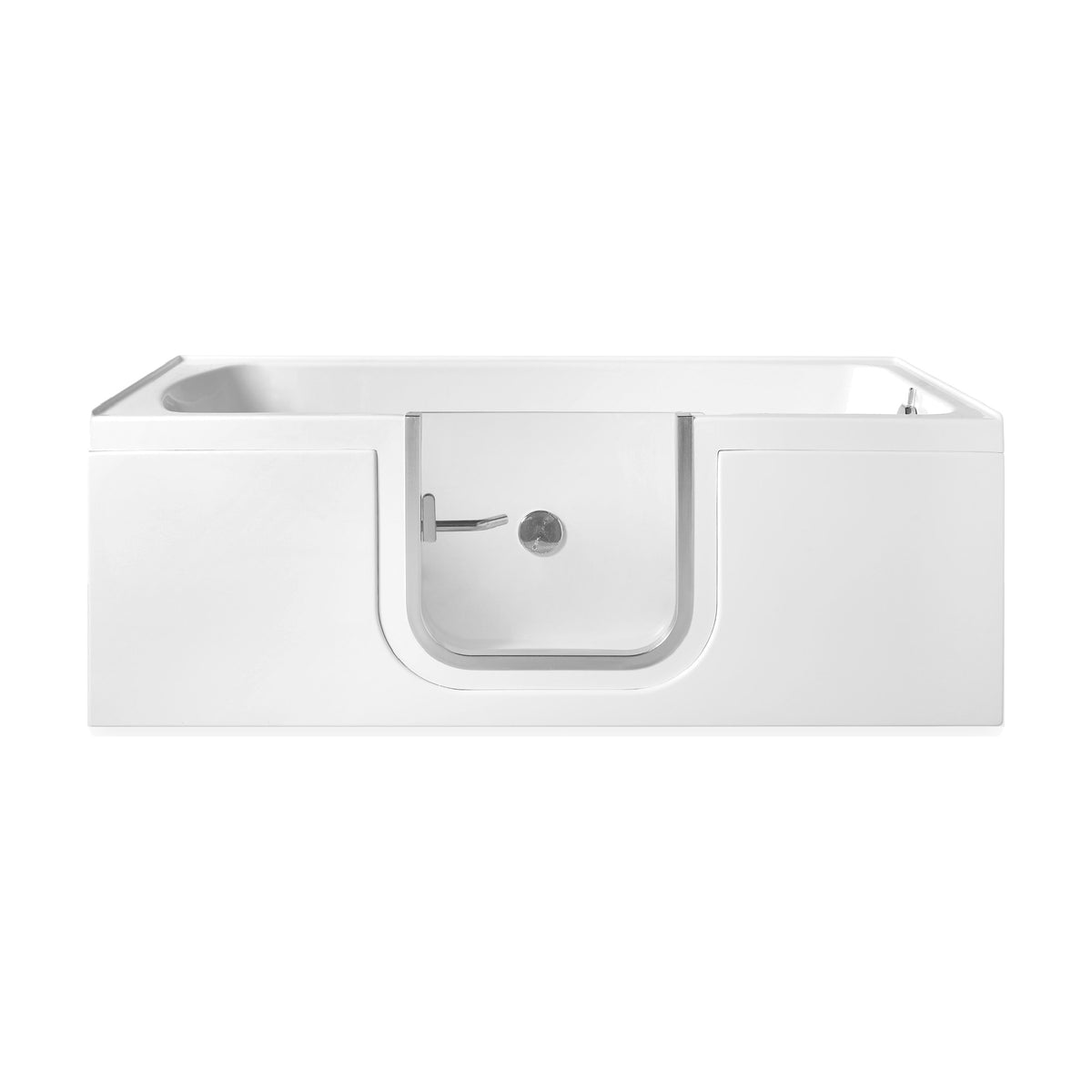

SANIKB B8080 is a walk-in whirlpool bathtub you lie down in rather than sit in. It stands at ordinary bath height, has no seat, and is entered through a chrome-framed clear glass door set into a smooth front apron; the bather reclines against a sloped backrest at one end, with the drain at the other. Two sizes are made: B8080-6030 at 1524 x 762 x 535 mm (60 x 30.0 x 21.1 in) and B8080-7232 at 1830 x 810 x 545 mm (72 x 31.9 x 21.5 in).
The shell is white gloss acrylic with a wide flat deck that is left clear of taps. Small jets are set in the tub walls and the pump sits at one end, and both sizes are cUPC certified. See the seated door-entry models in the walk-in tubs collection.
More in Walk-In Tubs
MOQ per model · one 40HQ container, quantity set by tub size
-
BG327Tall Walk-In Whirlpool and Air Tub with Tapered Glass Door, 52 in52" × 29.5" × 47.2"Walk-in, side entry door
-
BG329Compact Walk-In Soaking Tub with Seat and Black Fittings, 49 in49" × 26.0" × 37.8"Walk-in, side entry door
-
BG-321Walk-In Whirlpool and Air Tub with Inward Door and Back Jets, 52 in52" × 29.7" × 36.0"Walk-in, side entry door
-
BG-316Walk-In Whirlpool and Air Tub with Sloped Seat Back, 27.6 in Wide, 52 in52" × 27.6" × 36.2"Walk-in, side entry door
-
BG-312Walk-In Whirlpool and Air Tub with Headrest and Grab Bars, 52 in52" × 28.3" × 40.9"Walk-in, side entry door
-
BG-311Walk-In Whirlpool and Air Jet Tub with 4 Deck Buttons, 52 in52" × 31.7" × 36.2"Walk-in, side entry door
-
BG-310Walk-In Whirlpool Tub with Built-In Seat and Hand Shower, 52 in52" × 29.5" × 38.5"Walk-in, side entry door
-
BG-308ADouble-Ended Walk-In Whirlpool Tub with Center Door, 60 in60" × 31.7" × 39.2"Walk-in, side entry door
-
BG-306Narrow Walk-In Whirlpool Tub with Grab Bars, 25.2 in Wide, 52 in52" × 25.2" × 37.9"Walk-in, side entry door
-
BG-304Walk-In Whirlpool Tub with Inward-Opening Glass Door, 52 in52" × 30.3" × 41.3"Walk-in, side entry door
-
BG-305Walk-In Whirlpool Tub with Stepped Seat and Grab Bars, 55 in55" × 29.3" × 35.9"Walk-in, side entry door
Tub sheet
Size and installation of B8080
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| B8080-6030 | 60" x 30" |
| B8080-7232 | 72" x 32" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 60" x 30"B8080-6030 | 72" x 32"B8080-7232 | |
|---|---|---|
| Overall L×W×D | 60″ × 30.0″ × 21.1″ 1524 × 762 × 535 mm | 72″ × 31.9″ × 21.5″ 1830 × 810 × 545 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Door & Whirlpool
Glass door in the apron, a lie-down bath with wall jets
B8080 is a standard-height walk-in bath, not a tall seated shell. The door is cut into the smooth front apron, and the bather lies back against a sloped backrest at the end opposite the drain.
Chrome-framed glass door with a lever handle
The door is rectangular with rounded bottom corners, glazed in clear glass inside a chrome frame and opened by a lever handle. Its swing direction is confirmed on the approved drawing for each size, so settle it before the room layout is fixed.
Wall jets and a pump at one end

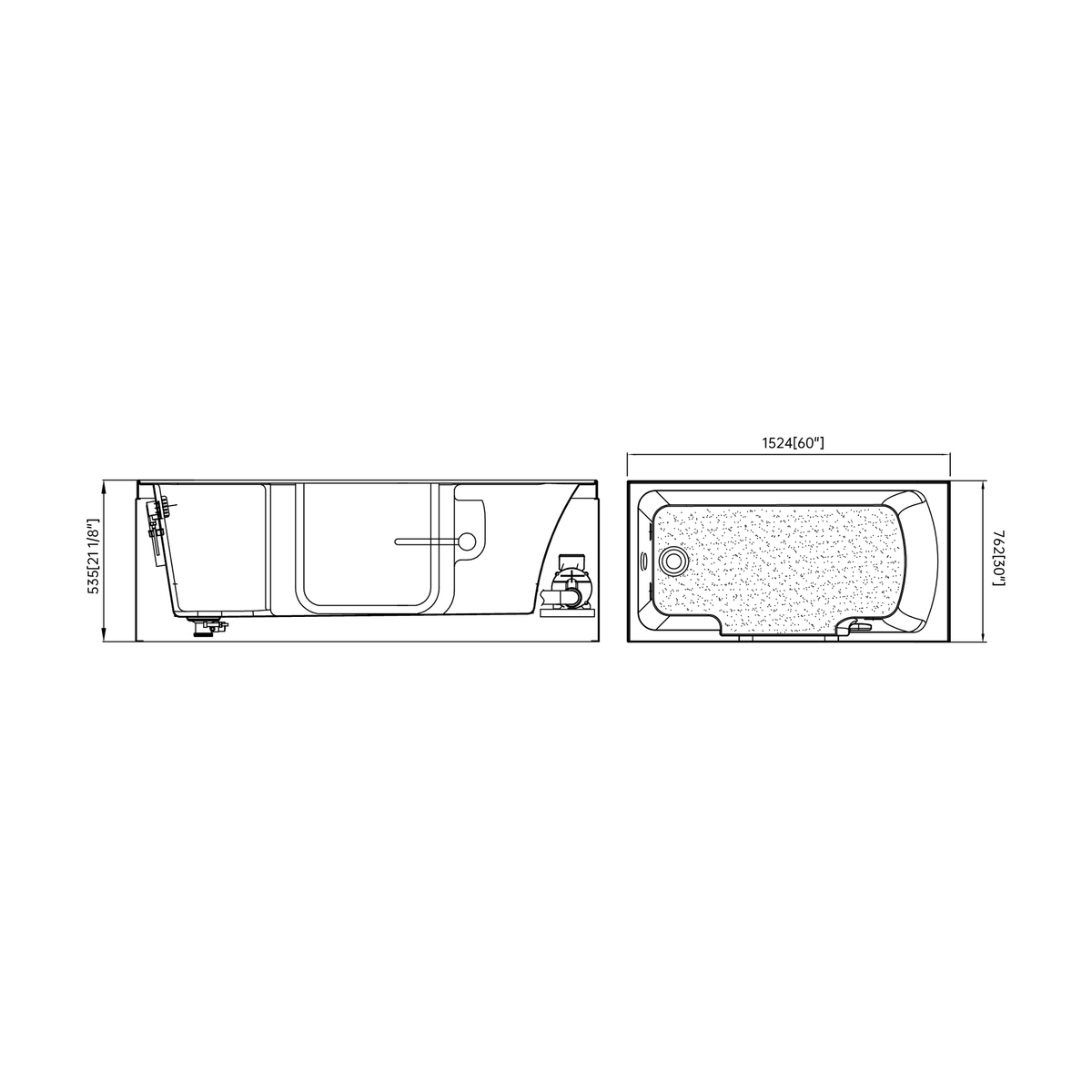

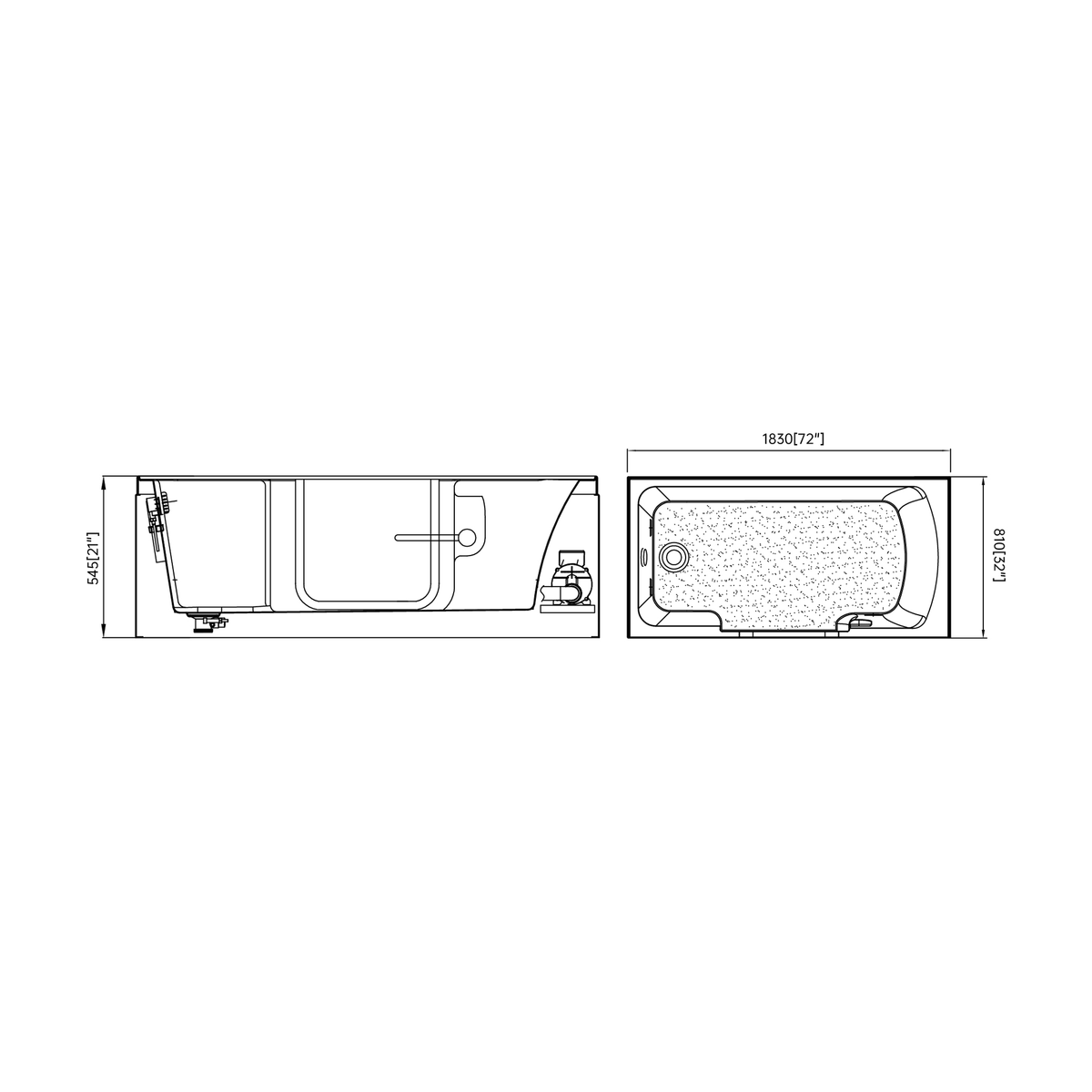

Small jets are set in the tub walls, and the drain sits in the tub floor at the end opposite the backrest. The front view of the dimension drawing places the pump at one end of the tub.
Whirlpool models of other shapes and heights sit in the whirlpool tubs collection.
Fit & Footprint
Two lengths at bath height: 1524 and 1830 mm
B8080 stands 535 or 545 mm (21.1 or 21.5 in) high, close to an ordinary bath rather than a tall walk-in shell. Length, width and height all change between the two sizes.
- B8080-6030
- 60" x 30.0" x 21.1" (1524 x 762 x 535 mm)
- B8080-7232
- 72" x 31.9" x 21.5" (1830 x 810 x 545 mm)
- Configuration
- Walk-in, single ended, no seat, skirted front apron
- Hydrotherapy
- Whirlpool, pump drawn at one end
Plan each room against its own B8080 size rather than one shared opening, and leave service access at the pump end. Ask for the pump's electrical requirements for your market before the rough-in is set.
Take the door position, drain location and pump end for each B8080 size from its approved drawing before framing.
Construction & Finish
White gloss acrylic with a wide flat deck
The shell is made from pure acrylic sheet and finished in white gloss. The rim is a wide flat deck, and the front is closed by a skirted apron that carries the door.
White
One shell color, two lengths
Both B8080 sizes are made in white only, so a project that mixes 1524 mm and 1830 mm rooms keeps one finish throughout.
The tub floor is drawn with a stippled pattern in the top view; the approved sample fixes the floor surface for bulk production.
B8080 is made with a clear deck and no taps fitted. Specify the filler separately and agree its position against the approved drawing.
Keep the approved B8080 sample as the reference for both finish and floor surface in bulk production.
Compliance
cUPC certification for B8080
Quote B8080-6030 or B8080-7232 on each document request so the paperwork matches the size being installed.
Both B8080 lengths carry cUPC certification. Request the certificate number and its validity date before the tub goes into a submittal package.
Some markets ask for electrical documents on jetted tubs. Name the destination market and the documents required in the enquiry, and SANIKB responds in writing within 12 business hours.
Procurement
Ordering B8080 in 60 and 72 inch lengths
B8080-6030 and B8080-7232 are quoted as separate lines, and both carry a standard lead time of 30-45 days after sample approval.
- Size SKUs
- B8080-6030, B8080-7232
- Standard Lead Time
- 30-45 days after sample approval
Say in the enquiry whether a filler should be quoted with the tub, since B8080 leaves the factory with a clear deck.
Include these details with the RFQ
- Quantity of B8080-6030 and B8080-7232
- Destination market and port
- Pump electrical requirements for that market
- Filler to be quoted with the tub, if any
- Private label and carton print for the 60 and 72 inch units
- Requested shipping window
Lead time on B8080 is confirmed on the issued quotation.
