Inverted Trapezoid Freestanding Tub, Wide Flat Rim, 59-71 in
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

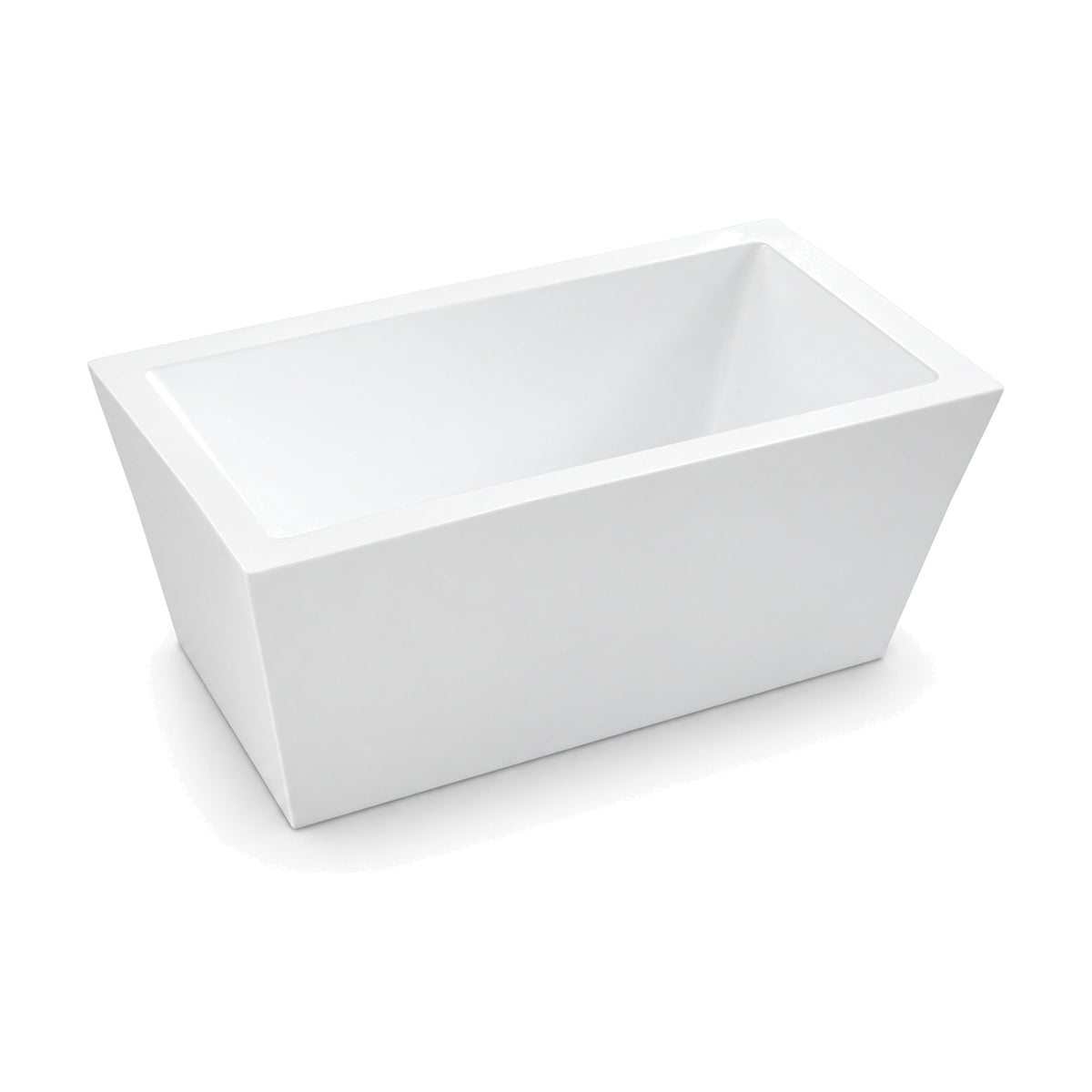

SANIKB D-8061 is a double ended rectangular freestanding bathtub in white acrylic with flat sides that taper inward to the floor, an inverted trapezoid under a wide flat rim. All three sizes are 800 mm wide and 600 mm high: D-8061-150 at 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), D-8061-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) and D-8061-180 at 1800 x 800 x 600 mm (71 x 31.5 x 23.6 in).
The drain is centered, and the rim has no tap holes: faucets are floor-standing or wall-mounted. Quotations for D-8061 follow within 12 business hours. Browse the freestanding bathtub collection.
More in Freestanding Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
Tub sheet
Size and installation of D-8061
Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8061-150 | 59" x 31" |
| D-8061-170 | 67" x 31" |
| D-8061-180 | 71" x 31" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 3 sizes
Size & spec comparison
| 59" x 31"D-8061-150 | 67" x 31"D-8061-170 | 71" x 31"D-8061-180 | |
|---|---|---|---|
| Overall L×W×D | 59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm | 67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm | 71″ × 31.5″ × 23.6″ 1800 × 800 × 600 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Shape & Rim
Flat planes tapering to a smaller base
Each side of D-8061 is a flat plane that slopes inward from the rim to the floor, so the tub reads as an inverted trapezoid. Both ends flare the same way on a square-cornered plan.
Angled sides, no curves
The walls are planar rather than curved, which gives crisp edges where the sides meet. The base is smaller than the wide rim at the top.
Flat rim on all four sides
A wide, flat rim frames the basin with no tap holes in it. The filler stands on the floor or mounts on the wall, so the rim stays clear.
Other angular and box profiles sit in the freestanding bathtubs collection.
Fit & Lengths
Three lengths on one 800 mm width

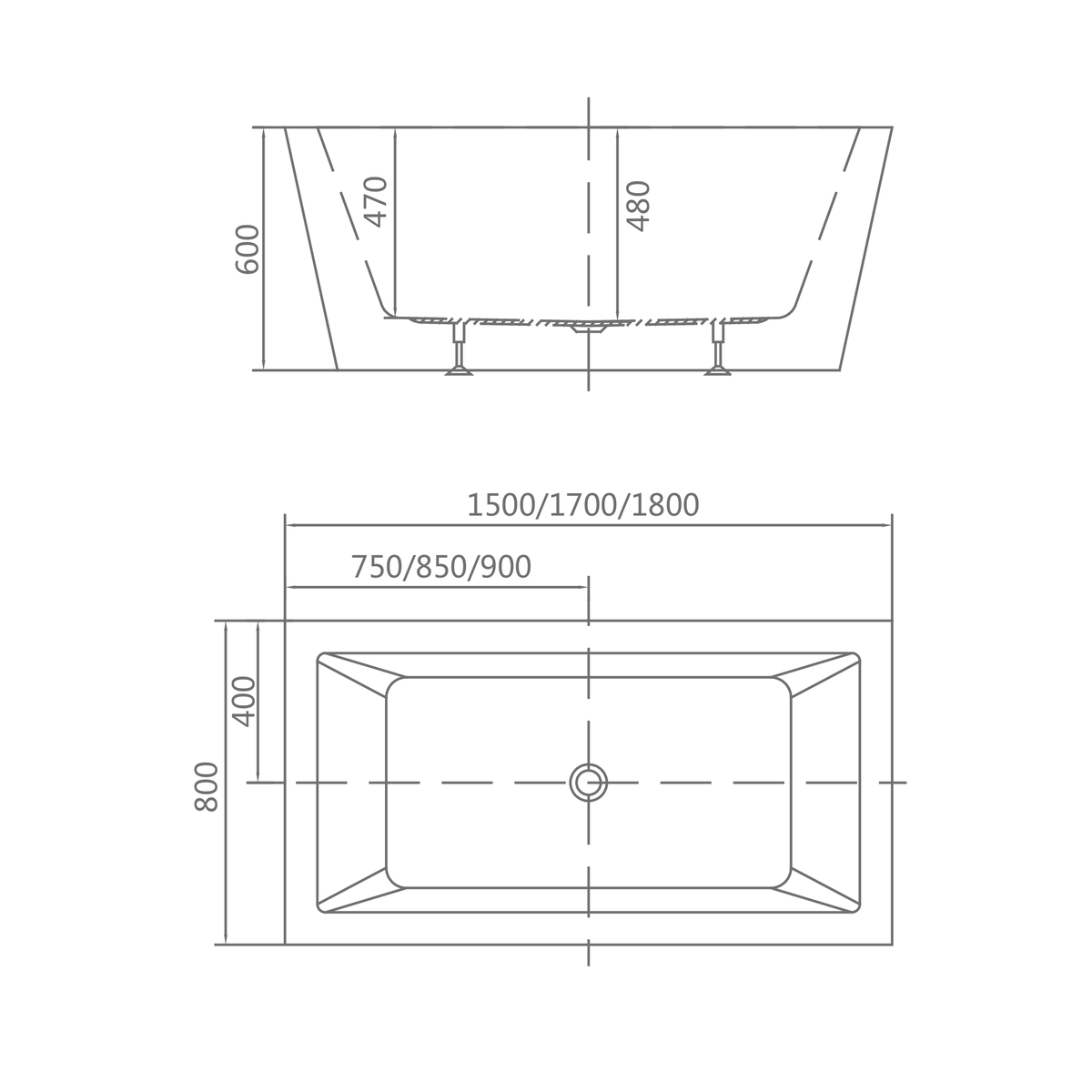

D-8061 comes in 1500, 1700 and 1800 mm (59, 67 and 71 in) lengths, all 800 mm (31.5 in) wide and 600 mm (23.6 in) high. The drawn inner depth is 470 to 480 mm (18.5 to 18.9 in).
- D-8061-150
- 59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
- D-8061-170
- 67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
- D-8061-180
- 71" × 31.5" × 23.6" (1800 × 800 × 600 mm)
- Drain Position
- Center: 750/850/900 mm from end, 400 mm from side
Since the width and height do not change, one bathroom layout can take any of the three lengths by adjusting only the end clearances. The drain always falls at mid-length and 400 mm from the side.
Confirm which length is being ordered for each room type before the drain is set.
Construction & Finish
White acrylic, flat to the floor
D-8061 is formed from pure acrylic sheet in white and rests directly on the floor.
White
Three lengths, one white
Ordering the 1500, 1700 and 1800 mm sizes in the same white lets one project cover several room sizes without a visible mismatch.
Gloss or matte for D-8061 is confirmed on the approval sample. Check the edges where the flat planes meet on that same sample.
Keep the approved sample for comparison when containers arrive.
Compliance
Compliance documents for D-8061
Name every D-8061 length being ordered so the documents match the packing list.
Three SKUs share the D-8061 model number, so ask for the compliance document record to name D-8061-150, D-8061-170 and D-8061-180.
Give the destination market when enquiring and the paperwork is lined up for it. Responses come within 12 business hours.
Procurement
Ordering D-8061
Each of the three D-8061 lengths is its own quotation line, all on a lead time of 30-45 days after sample approval.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- within 12 business hours
If a project mixes lengths, give the split per room type so the quantities per SKU are fixed at quotation.
Include these details with the RFQ
- Quantities for D-8061-150, D-8061-170, D-8061-180
- Faucet mounting: floor or wall
- Sample SKU to approve
- Destination port
- Carton marking
- Ship date
Lead time starts once the sample is approved in writing.
