SANIKB D-8095 - gloss white oval freestanding bathtub with an hourglass interior, armrest bulges and center drainSANIKB D-8095 dimension drawing
01 / 02
01 / 02

Hourglass Oval Freestanding Bathtub with Armrests, 63 & 67 in

SKU D-8095-160
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 63" × 31.5" × 23.6" (1600 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8095-160

SANIKB D-8095 is a double-ended oval freestanding bathtub whose interior narrows at mid-length into an hourglass, forming armrest bulges. It comes in two lengths: D-8095-160 at 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) and D-8095-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The shell is gloss white acrylic with a slim rim and a center drain.

Both sizes share the same width and height, so a project can change length without changing the width allowance. There are no tap holes in the rim; D-8095 is paired with a floor-standing or wall-mounted filler. It is cUPC certified; compare other shapes among the freestanding bathtubs.

Product PDF D-8095-160

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8095

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

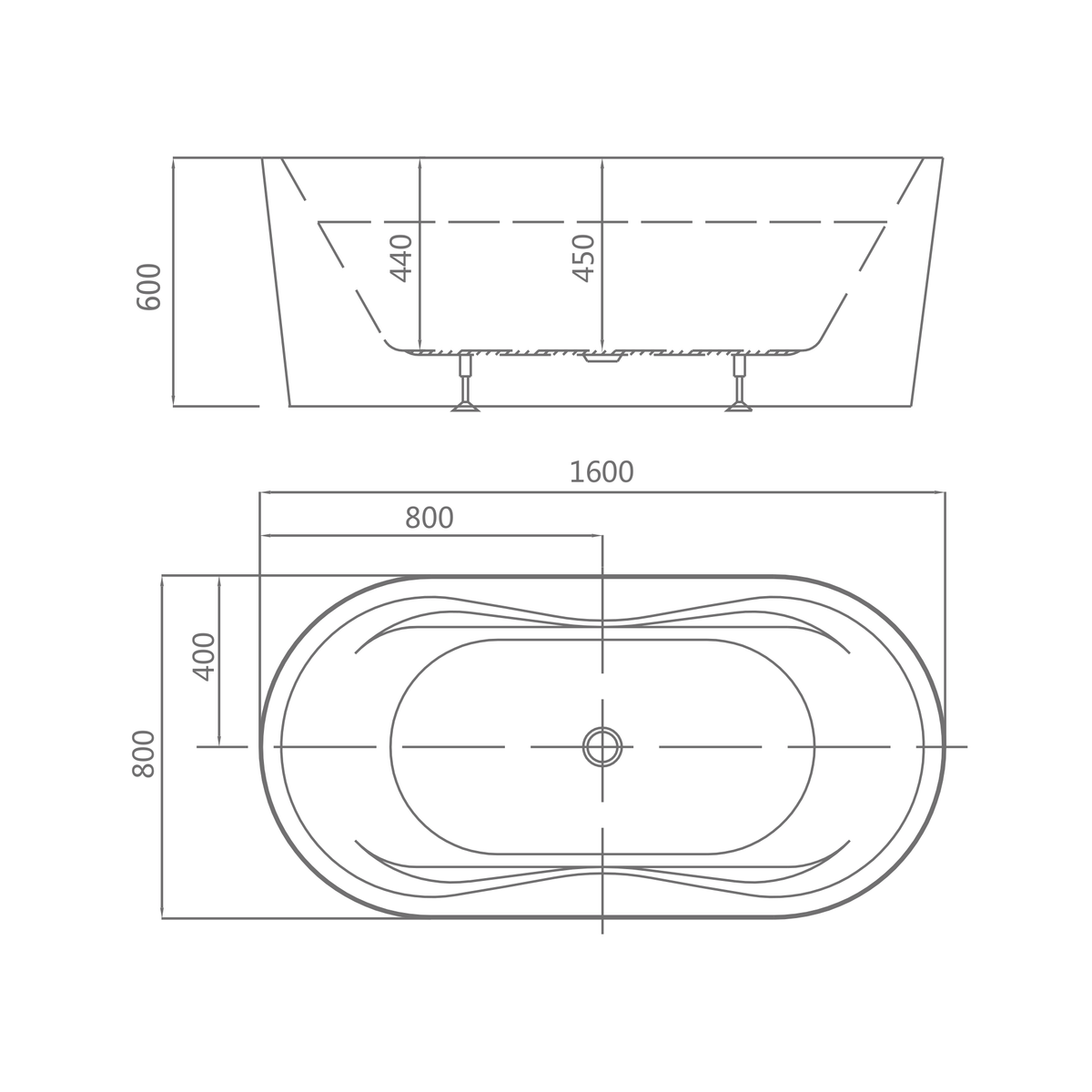

SANIKB D-8095 dimension drawing
Dimension drawing
Size range63" / 67" × 31.5" × 23.6" (1600 / 1700 × 800 × 600 mm)
Sizes63" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8095-16063" x 31"
D-8095-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
63" x 31"D-8095-16067" x 31"D-8095-170
Overall L×W×D
63″ × 31.5″ × 23.6″
1600 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Hourglass Oval Freestanding Bathtub with Armrests, 63 & 67 in SKU D-8095-160
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Interior Shape

    Hourglass freestanding tub with armrest bulges at mid-length

    The outer shell of D-8095 is an oval, stadium-like form. Inside, the basin pinches in at the middle into a figure-8 outline, and the narrowed section forms armrest bulges.

    01 / ARMRESTS

    Armrest bulges at mid-length

    The pinch at the center of the basin forms the armrest bulges, giving the arms a place to rest while the back reclines against an end. Both ends are shaped for reclining, which makes the tub double-ended.

    02 / RIM & DRAIN

    Slim rim and a center drain

    A slim rim runs around the top edge, and the drain is set at the center of the tub floor. The overflow arrangement is agreed at quotation and confirmed on the approved drawing.

    The hourglass interior separates D-8095 from plain-bowl oval models. Compare it with other plan shapes in the freestanding tub range.

    Sizes

    63 and 67 inch lengths on one 800 mm width

    D-8095 is made in 1600 mm and 1700 mm lengths. Width stays at 800 mm (31.5 in) and height at 600 mm (23.6 in) on both SKUs.

    D-8095-160
    1600 x 800 x 600 mm (63 x 31.5 x 23.6 in)
    D-8095-170
    1700 x 800 x 600 mm (67 x 31.5 x 23.6 in)
    Installation
    Freestanding, flat to floor, center drain
    Faucet Mount
    Floor-standing or wall-mounted filler

    Take the drain position and inner depth from the approved drawing for the length ordered. The 1600 mm size is the one to specify where a 67 inch tub would leave too little walking room at the ends.

    Do not set the floor waste until the approved drawing for the chosen length has been signed off.

    Material & Finish

    Gloss white acrylic shell with a formed waist

    D-8095 is formed from pure acrylic sheet in white, with a gloss surface.

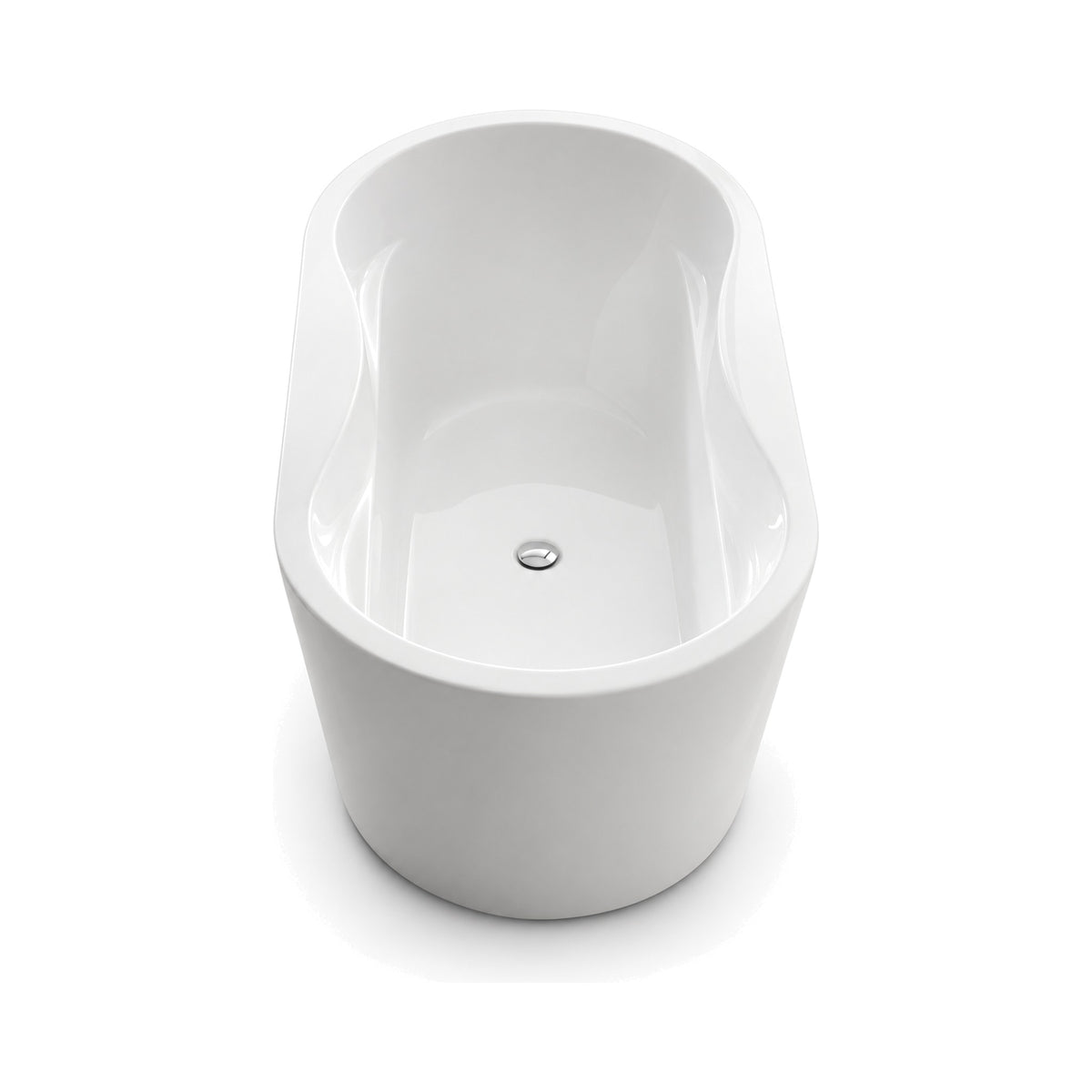

    SANIKB D-8095 - gloss white oval freestanding bathtub with an hourglass interior, armrest bulges and center drain

    White

    One finish: gloss white

    D-8095 is made in gloss white. Name the SKU and finish on the order so both lengths in a mixed project arrive matching.

    Check the approval sample through the narrowed waist, where the shell changes direction sharply, for even gloss and wall surface.

    Agree packing and the method for reporting transit damage before shipment, including a check of the rim and interior on arrival.

    Keep the approved sample on file as the color and gloss reference for repeat orders.

    Compliance

    cUPC certification across both D-8095 lengths

    Paperwork per length

    If a project uses both D-8095-160 and D-8095-170, list each SKU in the document request so certificates and drawings are issued for both.

    D-8095 is cUPC certified in both lengths. Ask for the current certificate number and its validity date before the tub is entered into a submittal.

    Request the approved drawing alongside the certificate so the submittal carries both. The quotation confirming the document set is sent within 12 business hours.

    Procurement

    Ordering D-8095 in one or both lengths

    SANIKB manufactures D-8095 and quotes each length as its own SKU. Quantities, packing and shipping terms are fixed in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    Where a scheme mixes 63 inch and 67 inch rooms, both SKUs can go on one inquiry and be quoted together. Sample approval starts the lead-time count, so sample the length that will be ordered in the larger number.

    Include these details with the RFQ

    • Quantity per SKU: D-8095-160 and D-8095-170
    • Destination market and port of discharge
    • Overflow required or not
    • Floor-standing or wall-mounted filler
    • Carton and label marking
    • Target shipping window
    Request D-8095 Quote View OEM & ODM Program

    The lead time stated here is indicative until confirmed in the written quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which lengths is the hourglass D-8095 offered in?

    Two: D-8095-160 at 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) and D-8095-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). Width and height are the same on both; only the length changes.

    What is the hourglass interior?

    The basin narrows at the middle into a figure-8 outline, and the narrowed section forms armrest bulges. The tub is double-ended with a center drain, so a bather can recline against either end.

    Does D-8095 have an overflow?

    The overflow is agreed per order. State in your inquiry whether your project or market requires one, and the arrangement is set in the quotation and confirmed on the approved drawing.

    What faucet mounting suits D-8095?

    The rim has no tap holes, so D-8095 takes a floor-standing filler beside the tub or a wall-mounted spout above it. Fix the filler position on the approved drawing together with the center drain.

    What should be fixed before installing D-8095?

    The outer shell comes down to the finished floor, with no exposed feet or plinth. The waste connects at the center drain; take the drain position from the approved drawing before the floor waste is set.

    How long does D-8095 take to produce?

    Production runs 30-45 days after sample approval, which is the standard lead time for D-8095. The model is cUPC certified, and once quantities per SKU and the destination port arrive, a written quote follows within 12 business hours.
