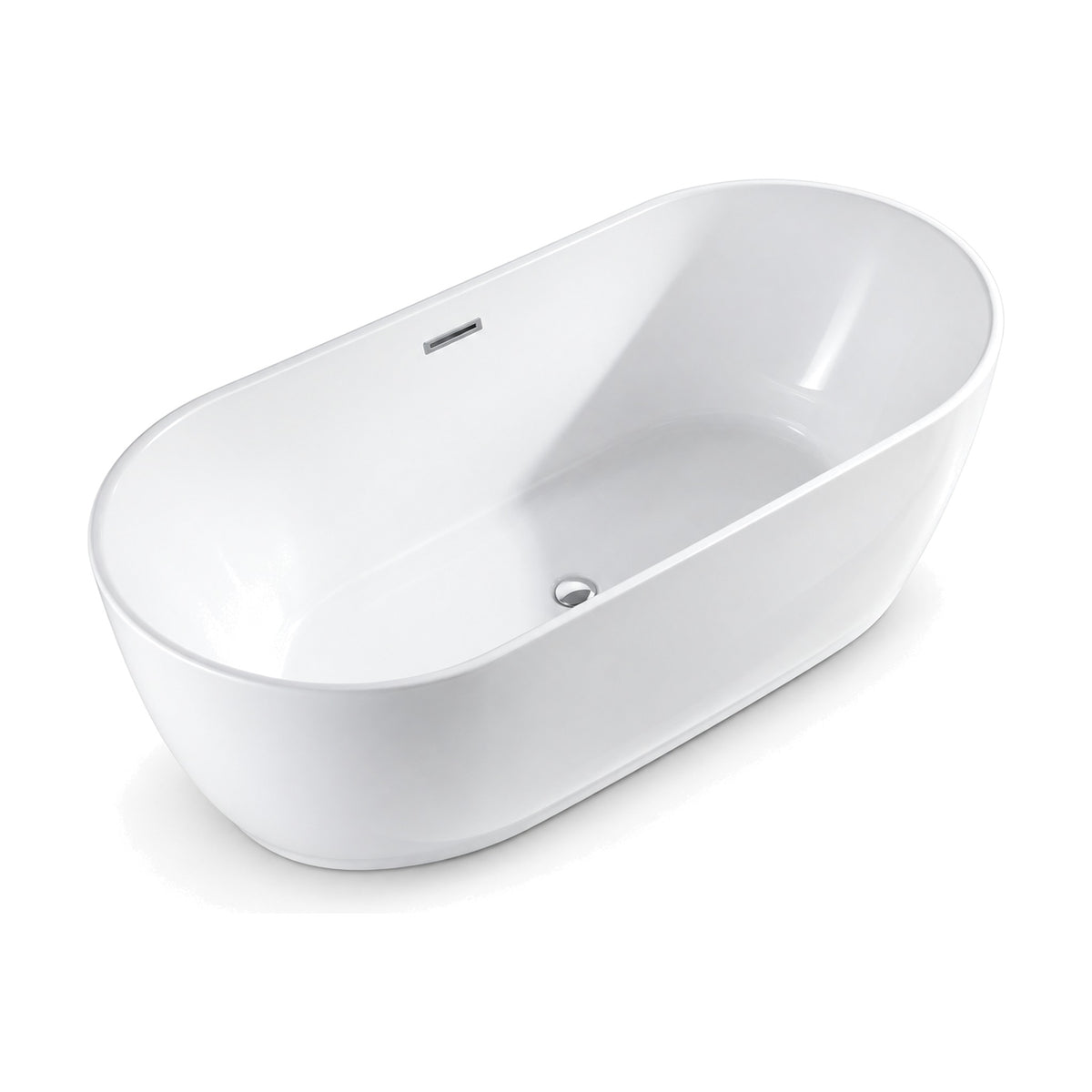

SANIKB D-8351 - gloss white oval freestanding tub with straight long sides, round ends and 25 mm level rimSANIKB D-8351 dimension drawing
01 / 02
01 / 02

Glossy Straight-Sided Oval Freestanding Tub with 25 mm Rim, 59 & 67 in

SKU D-8351-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8351-150

SANIKB D-8351 is a gloss white acrylic freestanding tub with straight long sides, round ends and a base that tapers slightly toward the floor. It is made in two sizes: D-8351-150, 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), and D-8351-170, 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The level rim is 25 mm (1.0 in) wide with a rounded edge and has no tap holes, so the tub takes a floor-standing or wall-mounted filler. The drain is centered and the overflow is on a long side. The model holds cUPC certification; send the enquiry and a quote follows within 12 business hours.

More shapes are in the SANIKB freestanding bathtub collection.

Product PDF D-8351-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8351

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

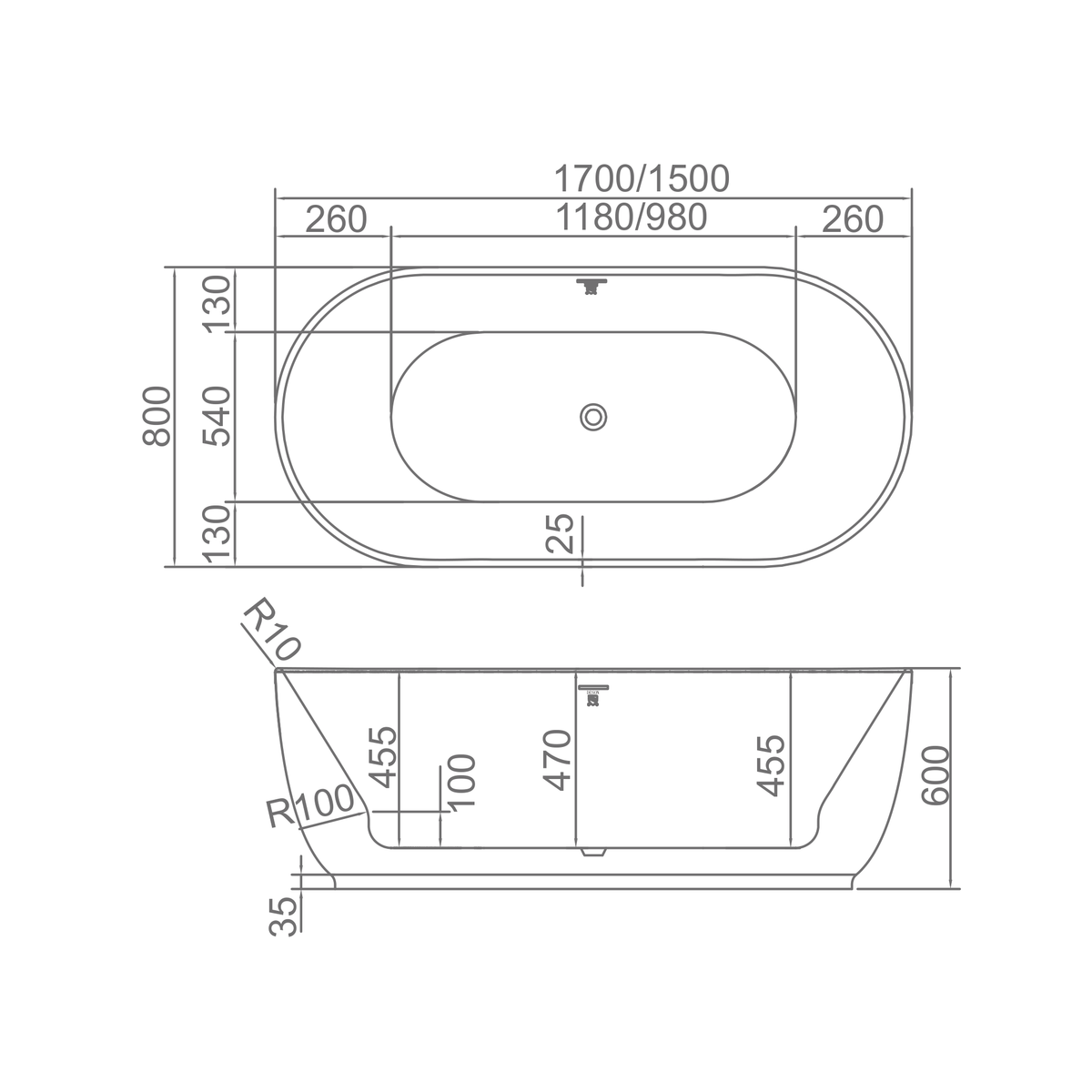

SANIKB D-8351 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8351-15059" x 31"
D-8351-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8351-15067" x 31"D-8351-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Glossy Straight-Sided Oval Freestanding Tub with 25 mm Rim, 59 & 67 in SKU D-8351-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Profile

    Straight long sides, round ends, 25 mm rim

    D-8351 is drawn on a symmetric stadium plan with a level rim. The long sides run straight, the ends are fully rounded and the base steps in slightly at the floor.

    01 / RIM

    25 mm rim with an R10 edge

    The D-8351 rim is 25 mm (1.0 in) across, and its outer edge is rounded to a 10 mm radius, so the wider rim still reads soft rather than square.

    02 / BASE

    35 mm base step

    The drawing shows a 35 mm (1.4 in) step at the base, where the shell tapers in slightly before meeting the floor. D-8351 sits flat on the floor without feet.

    Straight-sided and tapered alternatives are grouped in the freestanding bathtub range.

    Fit & Plumbing

    Inner basin of 980 or 1180 mm by 540 mm

    Outside, D-8351 measures 1500 or 1700 mm (59 or 67 in) long, 800 mm (31.5 in) wide and 600 mm (23.6 in) high. The inner basin is 980 mm (39 in) long on the smaller size and 1180 mm (46 in) on the larger, with a 540 mm (21.3 in) inner width.

    D-8351-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8351-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Inner Depth
    455 mm (17.9 in) at the ends, 470 mm (18.5 in) at center
    Faucet Mount
    Floor-standing or wall-mounted filler

    Both D-8351 end walls take 260 mm (10 in) from the outer edge to the basin on either size, so the extra 200 mm (8 in) of the larger model goes entirely into inner length.

    Set the center waste from the approved D-8351 drawing for the length being ordered.

    Material & Finish

    Gloss white pure acrylic

    Pure acrylic sheet is the material of D-8351, and the finish is gloss white.

    SANIKB D-8351 - gloss white oval freestanding tub with straight long sides, round ends and 25 mm level rim

    White

    Reflective surface, one reference

    A gloss shell shows variation in tone under hotel lighting. Approve a D-8351 sample and hold it as the finish reference for the order.

    Gloss acrylic shows fine scratches from packing straps and grit. Ask how the D-8351 rim and rounded ends are protected in the carton before the order is confirmed.

    Agree an arrival inspection that records any surface marks.

    Compliance

    cUPC certification for D-8351

    Documents per size

    Ask for paperwork against D-8351-150 and D-8351-170 by name so the two sizes are not merged on one sheet.

    D-8351 is cUPC certified. Before a submittal, request the current certificate details for the model and each SKU on the order.

    Include the destination market in the enquiry; our written answer arrives within 12 business hours.

    Procurement

    D-8351 order planning

    SANIKB manufactures D-8351 and quotes the 1500 and 1700 mm sizes as separate SKUs.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    For D-8351 the standard lead time is 30-45 days after sample approval. The clock starts at sample approval, so request the gloss white sample early in the project schedule.

    Include these details with the RFQ

    • Quantities of D-8351-150 and D-8351-170
    • Market and discharge port
    • Floor or wall filler choice
    • Overflow and drain fittings required
    • Carton branding
    • Required delivery window
    Request D-8351 Quote View OEM & ODM Program

    D-8351 ship dates are confirmed on the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    In which sizes is D-8351 available?

    D-8351-150 measures 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in); the 1700 mm D-8351-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). Inner basin length is 980 mm (39 in) or 1180 mm (46 in), with a 540 mm (21.3 in) inner width.

    Which end of D-8351 is the backrest end?

    Both. D-8351 is a double-ended tub with a centered drain and the overflow on a long side, so either end can be used for reclining.

    What kind of faucet does D-8351 take?

    The D-8351 rim has no tap holes, so it takes a floor-standing filler or a wall-mounted spout. Plan the pipe route before the floor finish goes down.

    What does the D-8351 rim look like?

    It is level, 25 mm (1.0 in) wide and rounded on the edge with a 10 mm radius. The body has straight long sides and round ends.

    Which finish is supplied on D-8351?

    D-8351 is gloss white, formed from pure acrylic sheet. Approve a sample first so the gloss level is fixed for the whole order.

    What do you need from us to quote D-8351?

    How many of each length, where the tubs ship to, and whether drain and overflow fittings are in scope. With that, a D-8351 quote is prepared within 12 business hours; lead time is standard at 30-45 days after sample approval.
